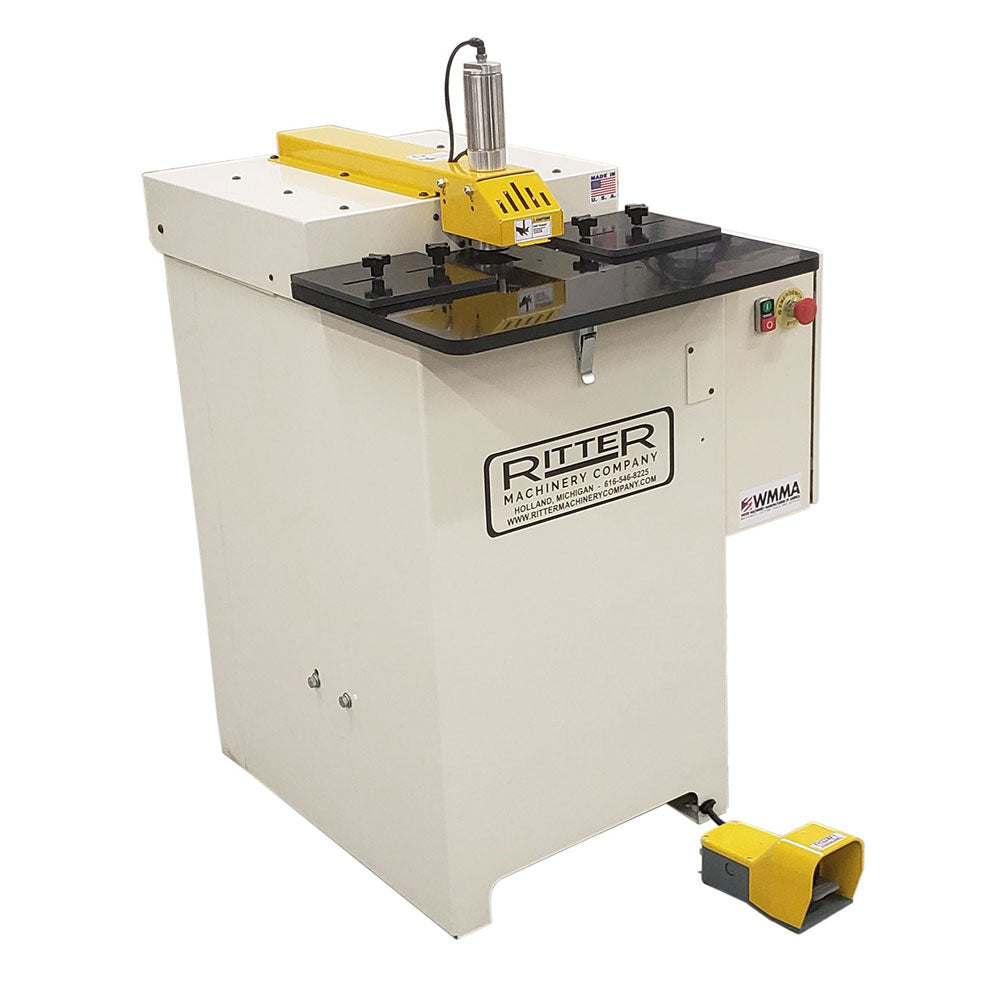

Ritter R2063 6° Low Angle Pocket Cutter (3-Phase)
- Price
- $ 8,390
Have questions? Give us a call at 260-637-0054.
- Freight included in price*

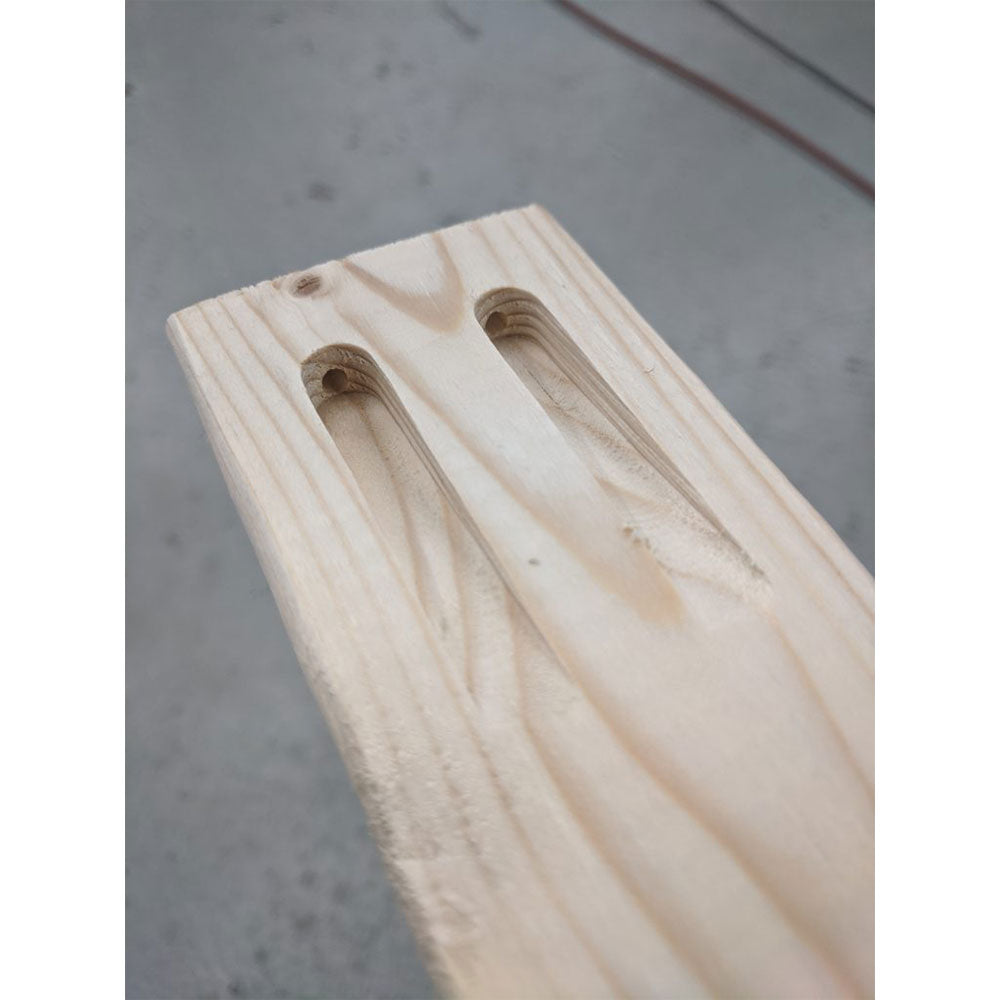

The Ritter R2063 Low Angle Pocket Cutter is an essential tool for crafting precise pocket holes in cabinet face frame assembly. Its innovative design, featuring a low 6° angle, serves to dramatically reduce joint misalignment during assembly, ensuring a seamless and strong connection by enabling the screws to draw the pieces together with greater precision.
This model represents a significant advancement in woodworking productivity. By eliminating the need for dowel boring, dowel and glue insertion, protracted clamping, and the common issue of joint misalignment, it delivers a remarkable up to 50% reduction in frame construction time. This means faster, more efficient work and a substantial increase in overall productivity.
The R2063 is not only a productivity powerhouse but also incredibly user-friendly. With its single-touch foot pedal operation, it simplifies the machine's use, making it accessible and intuitive for operators of all skill levels. This seamless operation further enhances its appeal, as it can be effortlessly integrated into your woodworking process.
Need Single-Phase? Check out the R2061.
Features
- 6° Low angle
- PLC controlled cycle
- Foot pedal operated

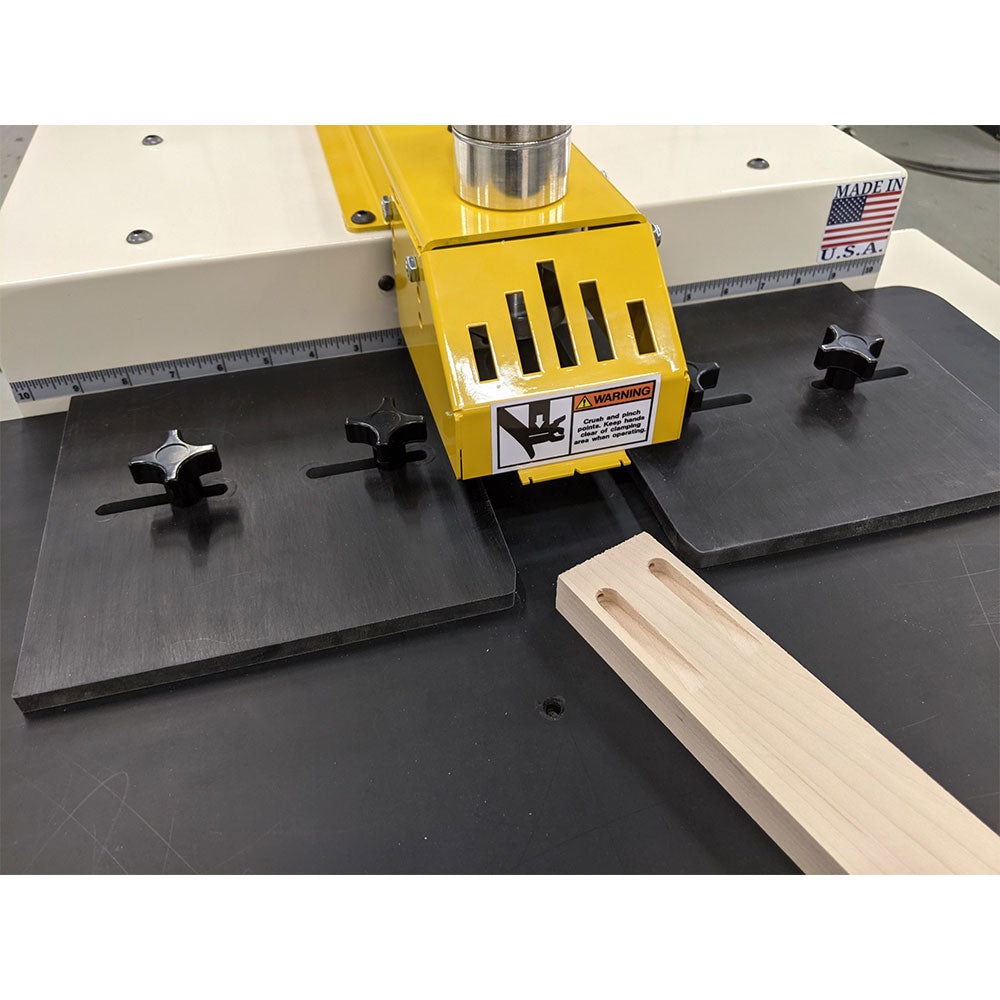

- Adjustable Material Stops
- Up to 2″ thick material
- Cycle Time: 1.75 – 2 Sec
- Tooling Included
Specs
Router bit: 3/8” Solid Carbide, Rough Mill
Drill bit: 9/64” Brad and Spur TiN-Coated Bit
Router: 24,000 RPM, 8 A, 2hp
Drill: 22,000 RPM, 0.9hp
Electrical: 230V, 3-phase, 10 A
Air: 2 CFM at 80 – 100 PSI
Work height: 36″
Table area: 15.75″ x 23.75″
Footprint: 27.75" x 20.5"
Dust port: 4″
Shipping weight: 300 lbs.
Shipping dimensions: 38″ x 25″
