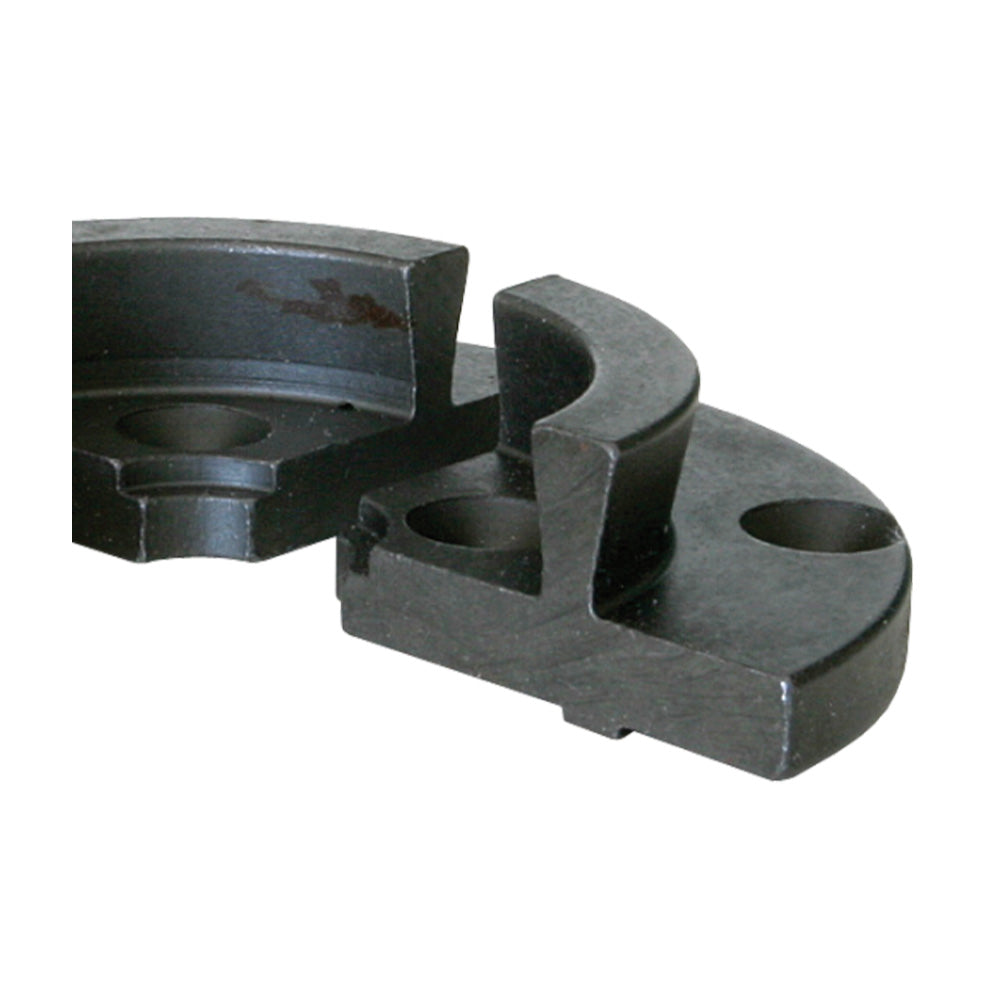

Oneway #2 Smooth Jaws for the Stronghold Chuck

Oneway #2 Smooth Jaws for the Stronghold Chuck

$ 50.54

Have questions? Give us a call at 260-637-0054.

The #2 Smooth Jaws for the Stronghold Chuck. Great for turning medium-sized bowls and vases.

Why Oneway Jaws are Superior

Most jaws on the market are designed to only fit one diameter by a limited depth (design diameter). For example, a set of jaws turned to 2" diameter with a 7° taper * 1/4 deep will only work well in a cavity that is exactly 2" diameter * 7° and just less than 1/4" deep. They will hold progressively less, and increasingly damage your mounting as this base size changes from the theoretical perfect size.

Oneway jaws are designed to achieve excellent 8-point contact at all diameters in the jaw size range. Their patented profile top jaw shape increases gripping power at all diameters of round and square stock. Less wood damage also occurs with this jaw shape than with the conventional round-shaped jaws.

Features
  • Carbon steel base jaws provide precision grinding on the sides for the exact and controlled clearances, which are required for woodturning chucks
  • Base jaws are case hardened which makes them longer lasting, stronger, and non-seizing in use
Specs
Weight: 1 lbs.
External Compression Min: 2”
External Compression Max: 3-1/2”
Internal Expansion Min: 2-5/8”
Internal Expansion Max: 4-1/8"

    SKU: 2948
