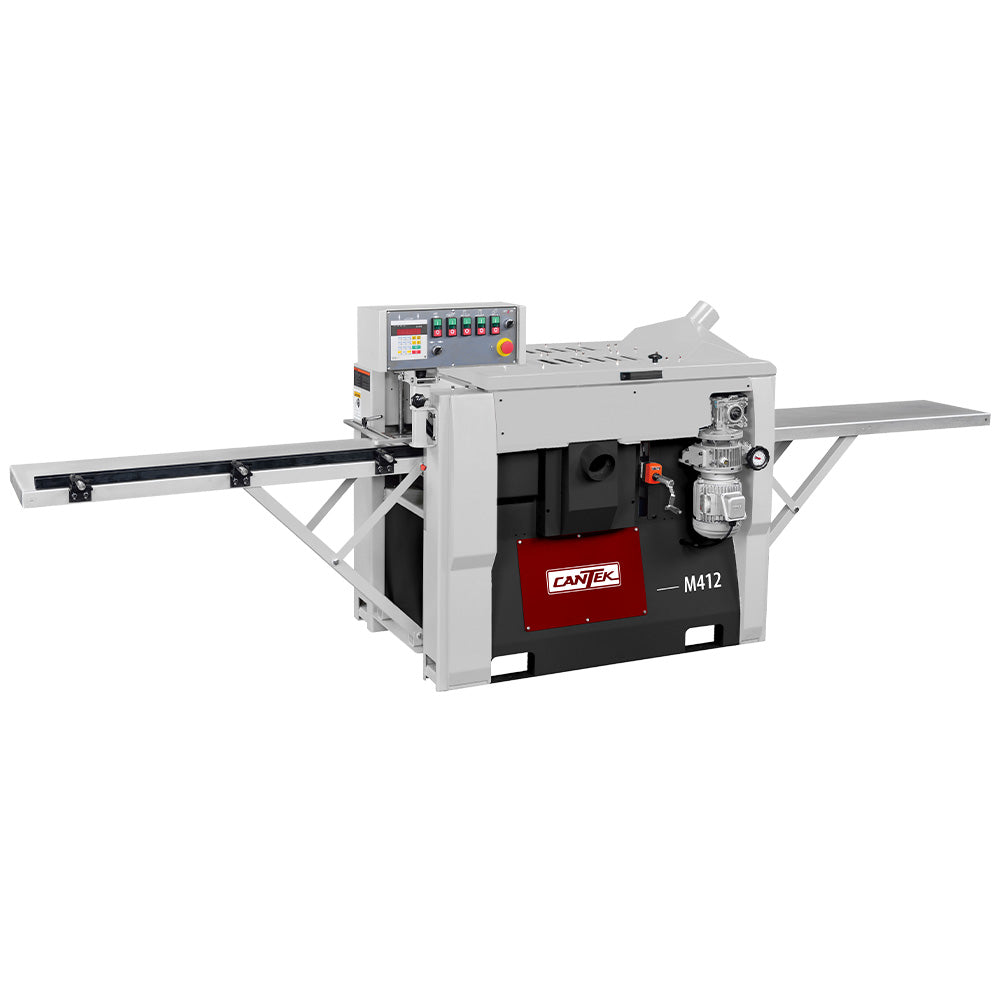

Cantek M412 (3PH) 4-Sided Planer Moulder

• Four cutting modes: Single / double / three / four-sided planing and moulding

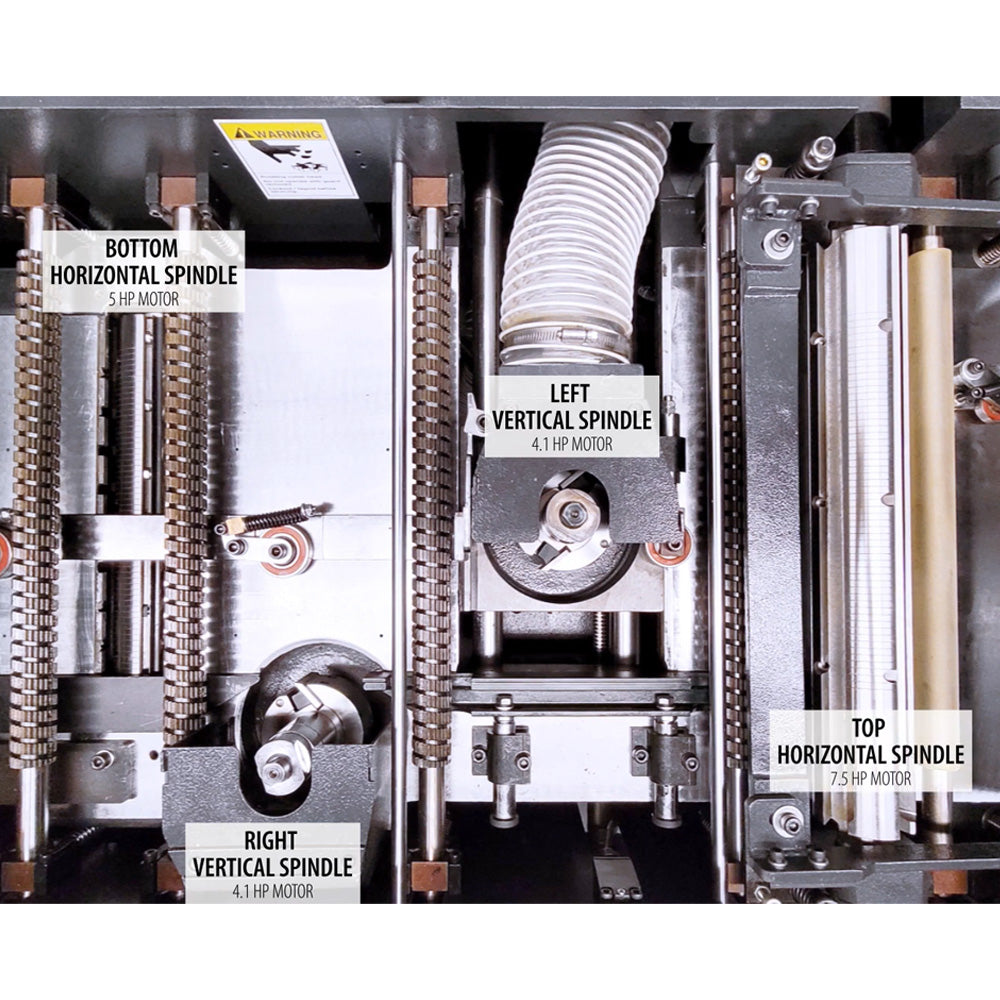

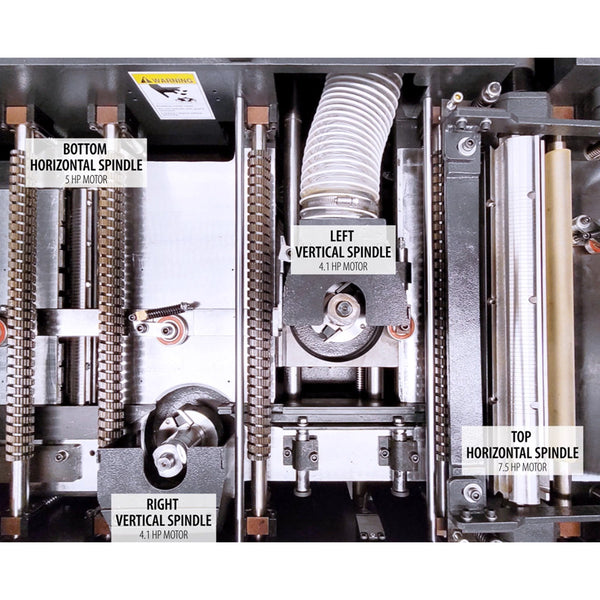

• Designated individual motors to each spindle
• Variable feed speed from 11-52 FPM for optimum finish results
• Digital motorized thickness controller (inch / metric) for operator convenience
• Mechanical digital readouts for side head adjustment
• 3 depth of cut control plates for bottom cutterhead
• Includes infeed outfeed table for supporting material during machining

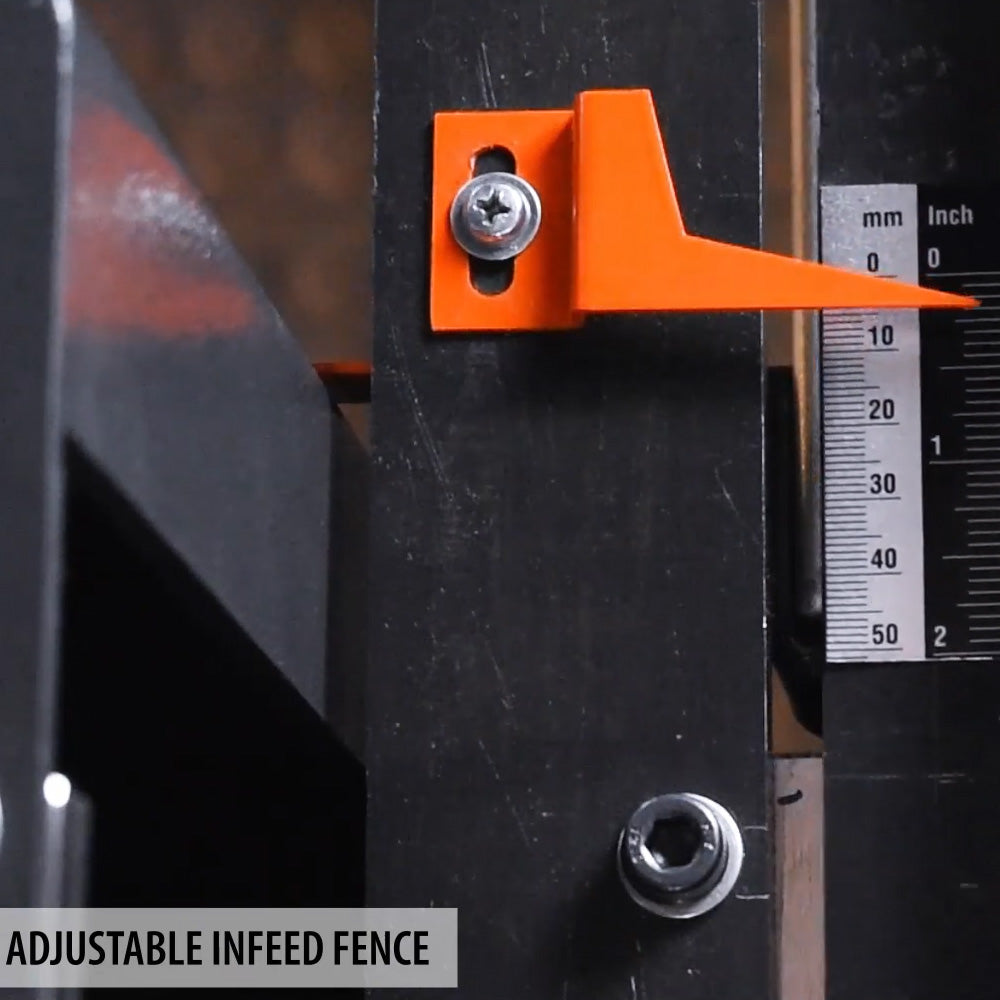

• Upgraded adjustable infeed fence for convenient depth adjustment
• See through top guard so operator can view cutterheads

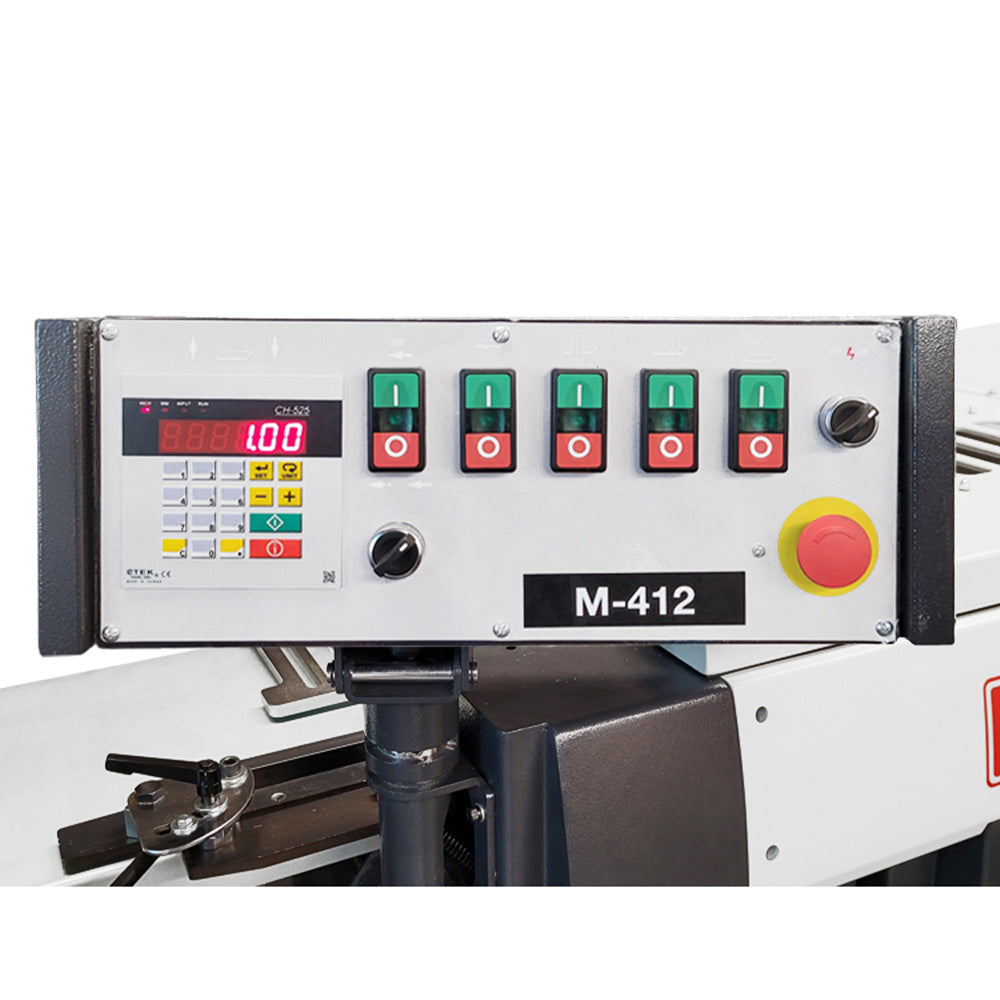

• Centralized control panel to turn on and off all working units and adjust thickness opening

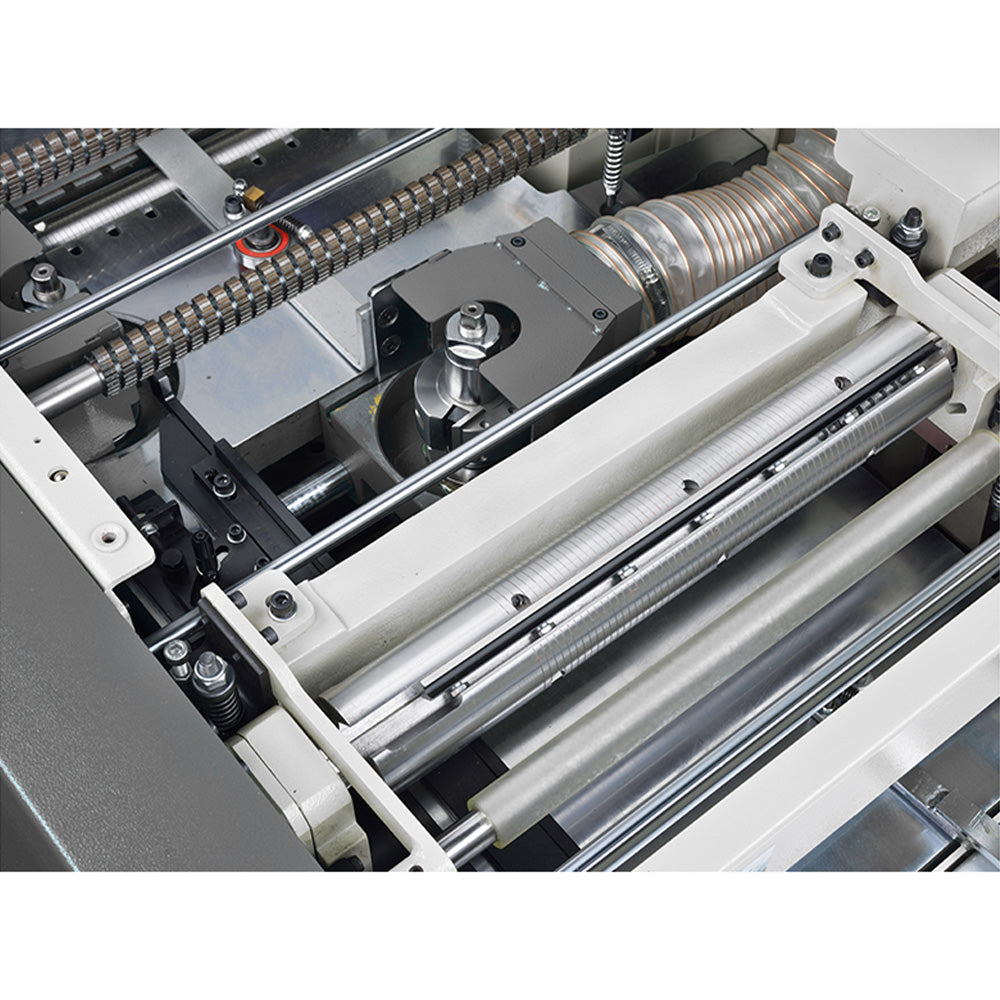

• Top horizontal spindle is equipped with two pattern knife for planing and moulding operations

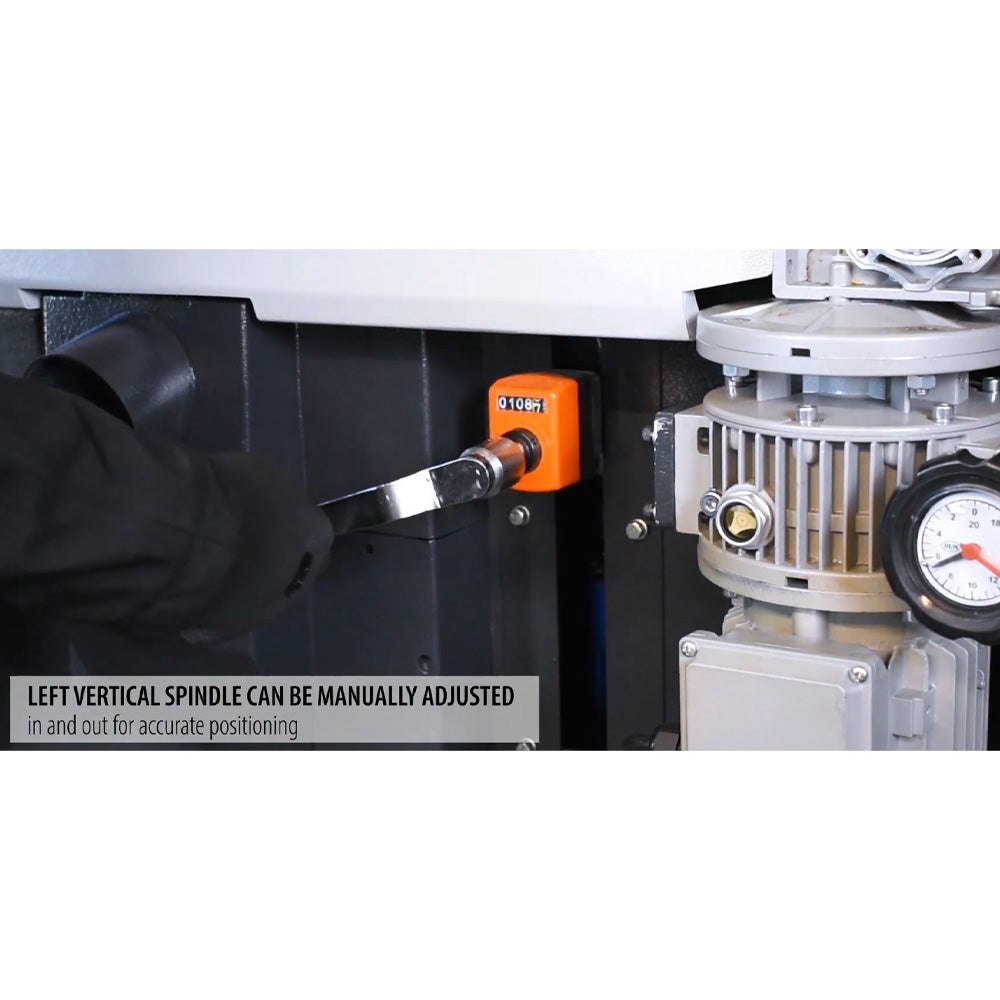

• Left vertical spindle can be adjusted in and out manually with a mechanical digital readout for accurate positioning

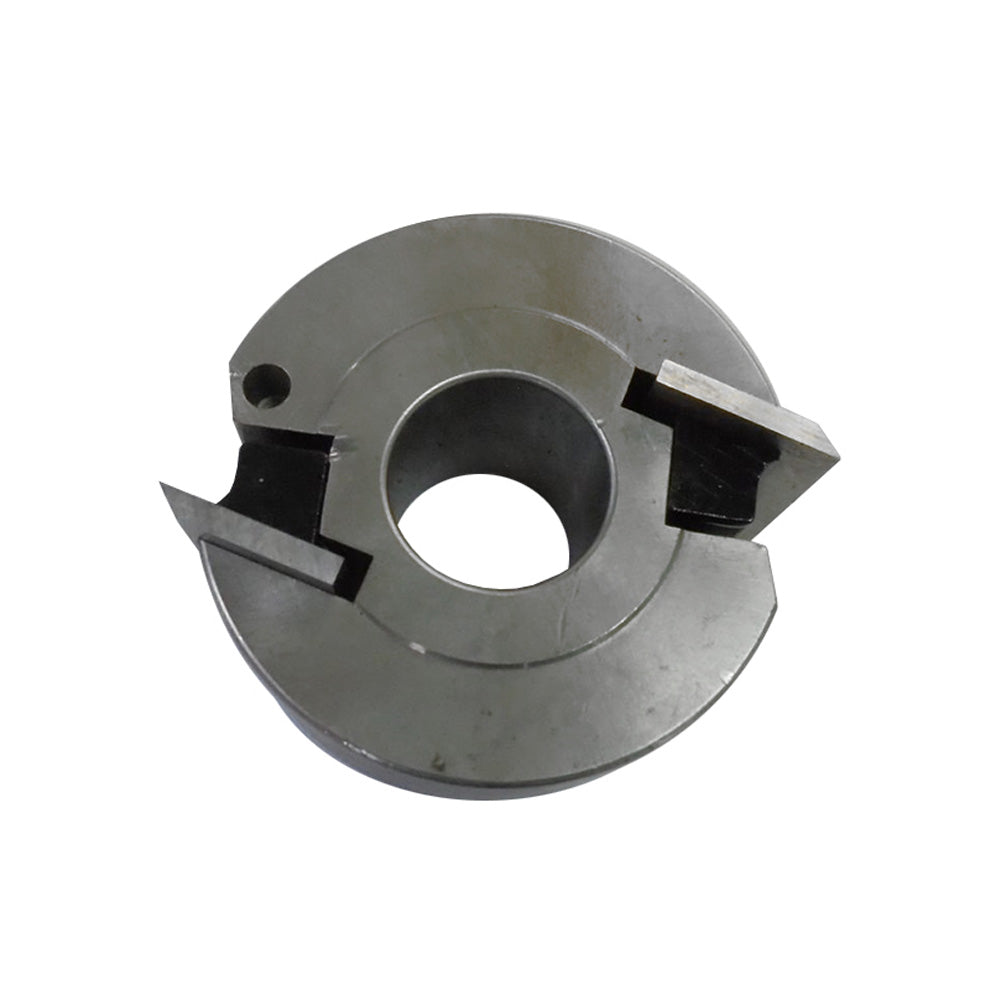

• Equipped with two planer knives and two pattern knives for planing and moulding operations at a time

Planing
Width: 13” (330 MM)
Depth: 7/16” – 9” (12 – 230 mm)

2-Side Planing/Moulding
Width: 13-5/8″” (346 mm)
Depth: 7/16” – 9” (12 – 230 mm)

4-Side Planing/Moulding
Width: 0 – 12” (0 – 305 mm)
Depth: 7/16” – 4” (12 – 100 mm)

Top Horizontal Spindle
Width: 17-15/16” (455 mm)
Max. planing depth: 5/16” (8 mm)
Max. moulding depth: 3/4” (19 mm)
Speed: 7000 RPM
Cutterhead diameter: 2-7/8” (72 mm)
Motor: 7-1/2HP (5.5Kw)

Bottom Horizontal Spindle
Width: 13-5/8” (346 mm)
Max. planing depth: 1/4” (6 mm)
Max. moulding depth: 3/16″ (5 mm)
Speed: 7000 RPM
Cutterhead diameter: 2-7/8” (72 mm)
Motor: 5HP (3.7Kw)

Right & Left Vertical Spindles
Max. cutting height: 4” (100 mm)
Max. cutting depth: 13/16” (21 mm)
Spindle diameter: 1-1/4″ (31.75 mm)
Speed: 7000 RPM
Max. cutterhead diameter: 3-1/2” (90 mm)
Motor: 4.1HP (3Kw) x 2

Table
Area: 1125 x 685 mm
Elevation: 230 mm
Power Table (Raise): 120w
Dust Hood Outlet: 4 - 100 mm (3.95″)
Minimum width: 0 - 306 mm
Minimum thickness: 12 - 230 mm

Feed System
Speed (Variable): 11-52 ft/min.
Motor: 1HP (0.745Kw)

Machine Dimensions (LxWxH): 1485 x 1265 x 1216 mm
Packing Dimensions (LxWxH): 1350 x 1140 x 1130 mm
New Weight: 635kgs (1400 lbs.)
Gross Weight: 730kgs (1610 lbs.)
Electrics: 230/3/60 – 48 Full Load Amps
