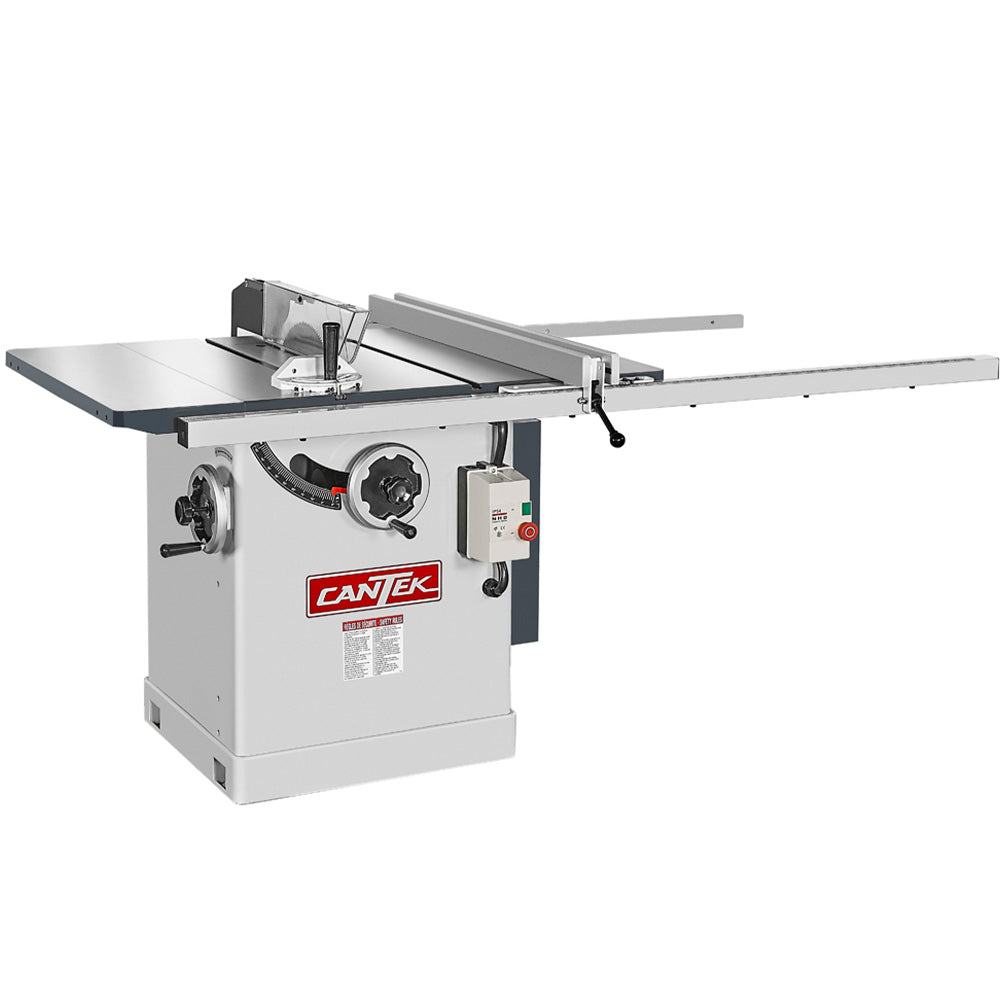

Cantek TA16B (10HP 3PH) 16" Table Saw

• Heavy-duty cast iron table is precision ground for accuracy & precision
• Industrial strength cast iron saw carriage and trunnion for vibration free cutting

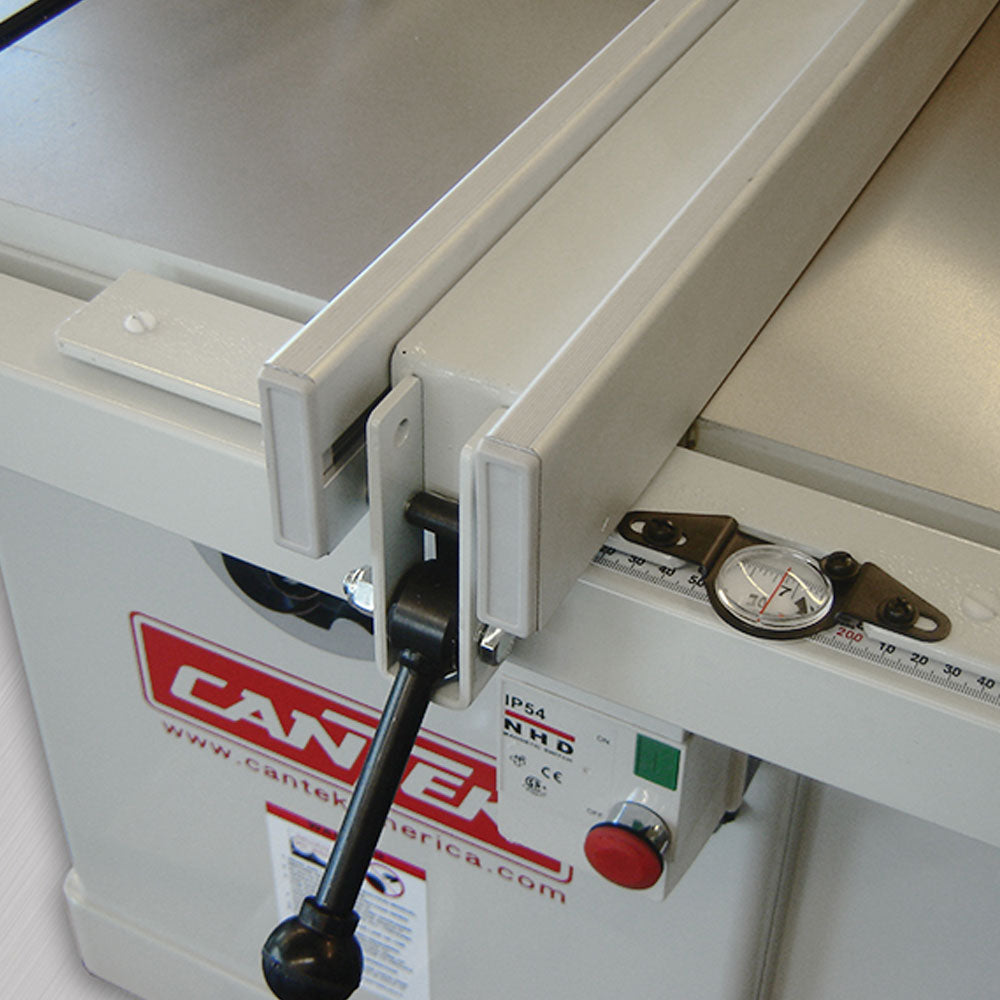

• 50” capacity T-square rip fence assembly locks on front rail for a precise parallel reference to the saw blade
• Right tilt blade to 45^o

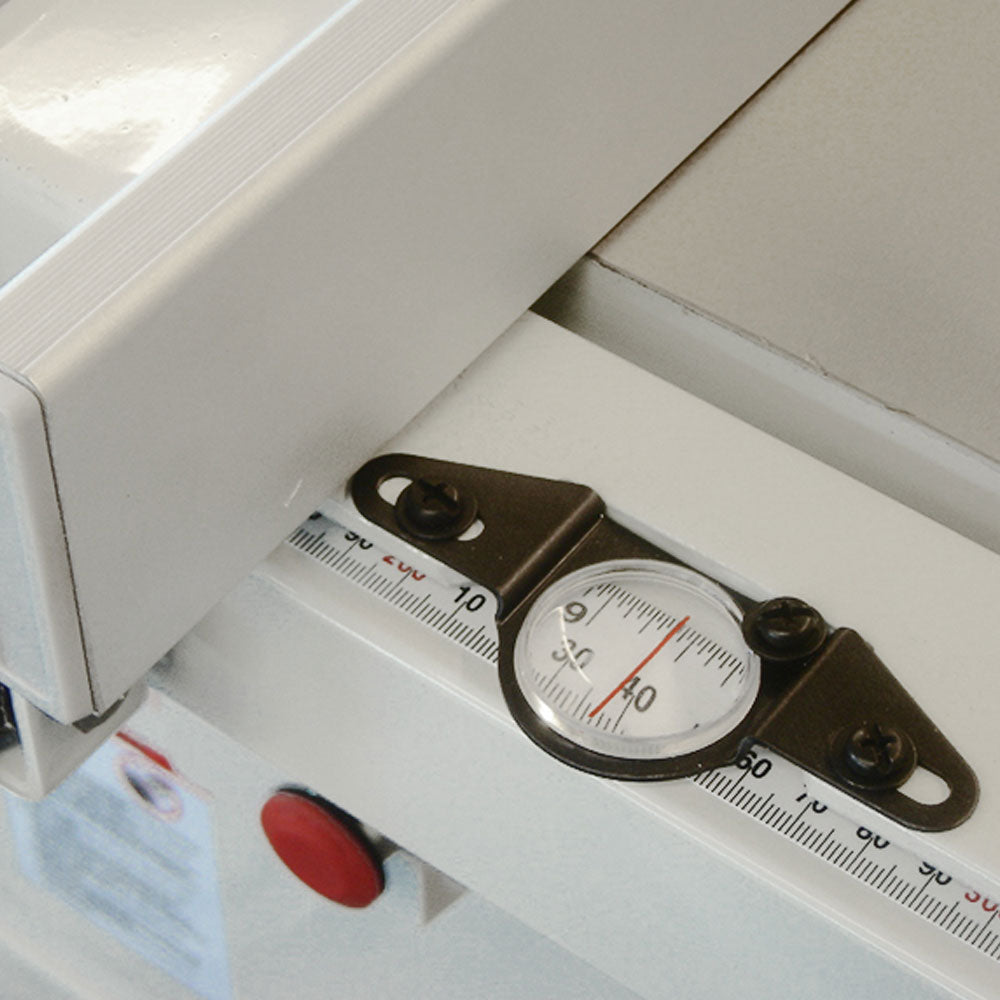

• Dual Inch/Metric scale guide rail on rip fence with magnifying glass for easy visibility

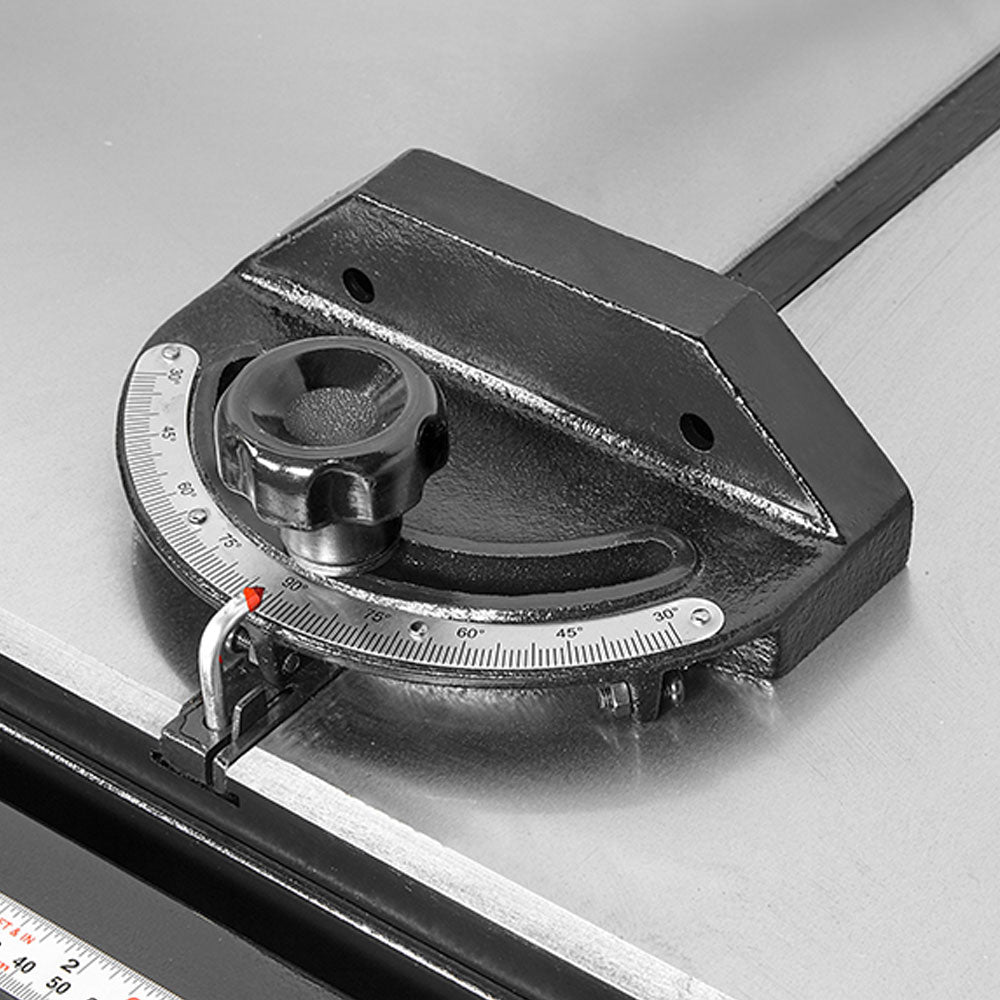

• Miter gauge with two miter slots in the table
• Comes with dado arbor & dado table insert
• 16” blade can be lowered completely under the table
• Rugged machine frame construction provides maximum stability and reduced vibration

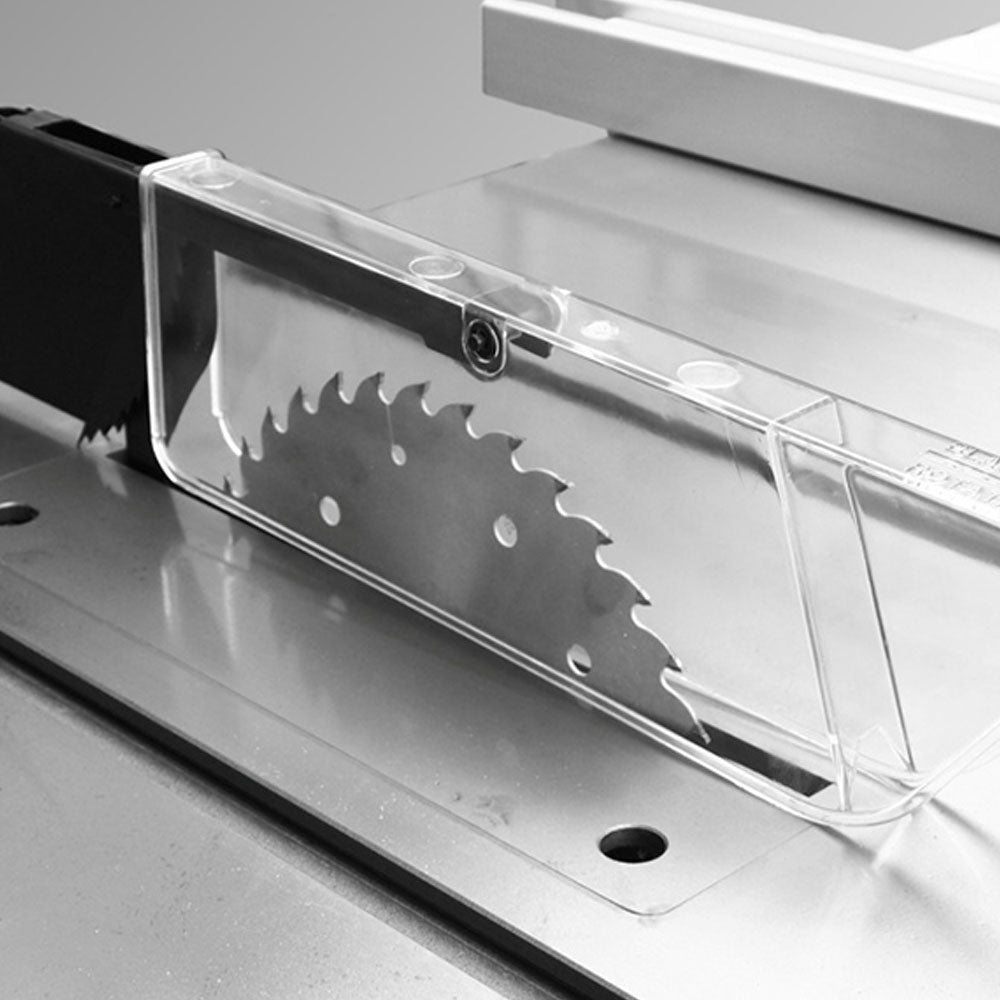

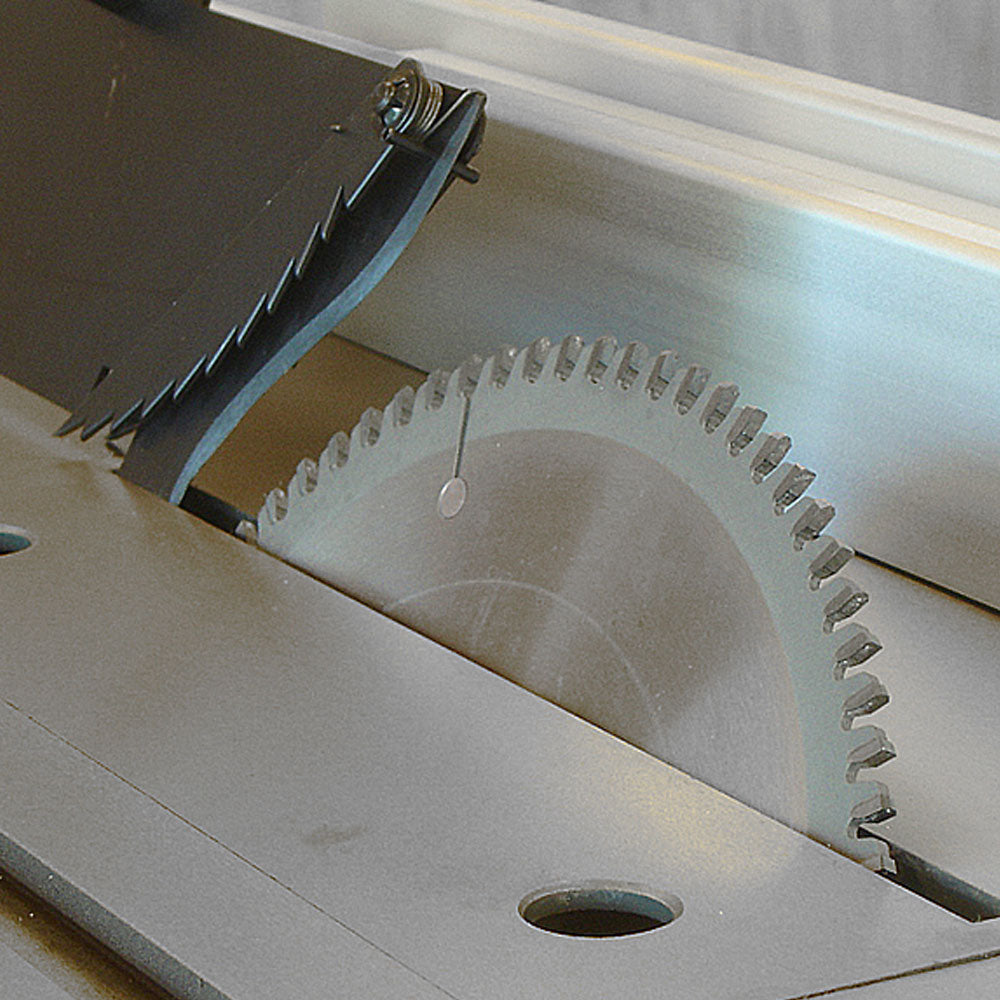

• Saw guard with built in splitter and safety anti-kickback unit
• 1” standard and 1” dado arbor included along with appropriate cast iron table inserts

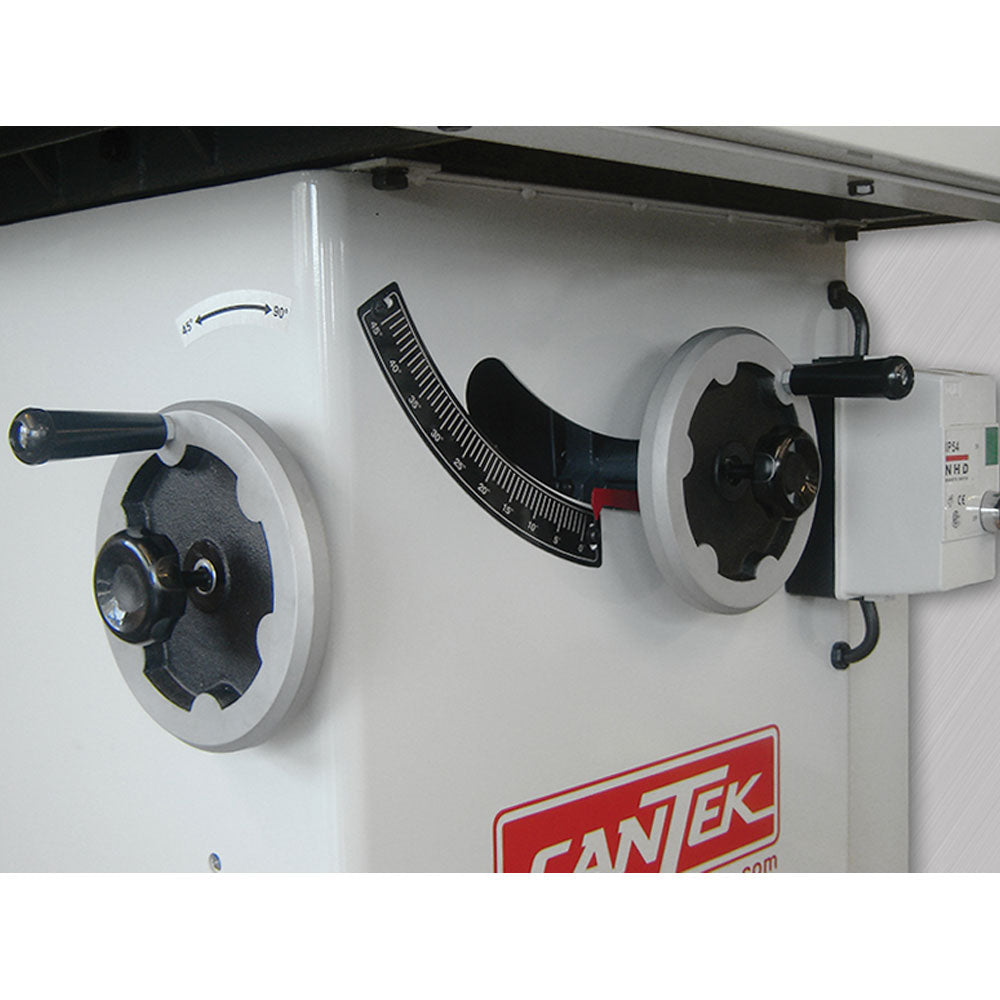

• Handwheel adjustment for blade height and tilting adjustments which can be locked in place

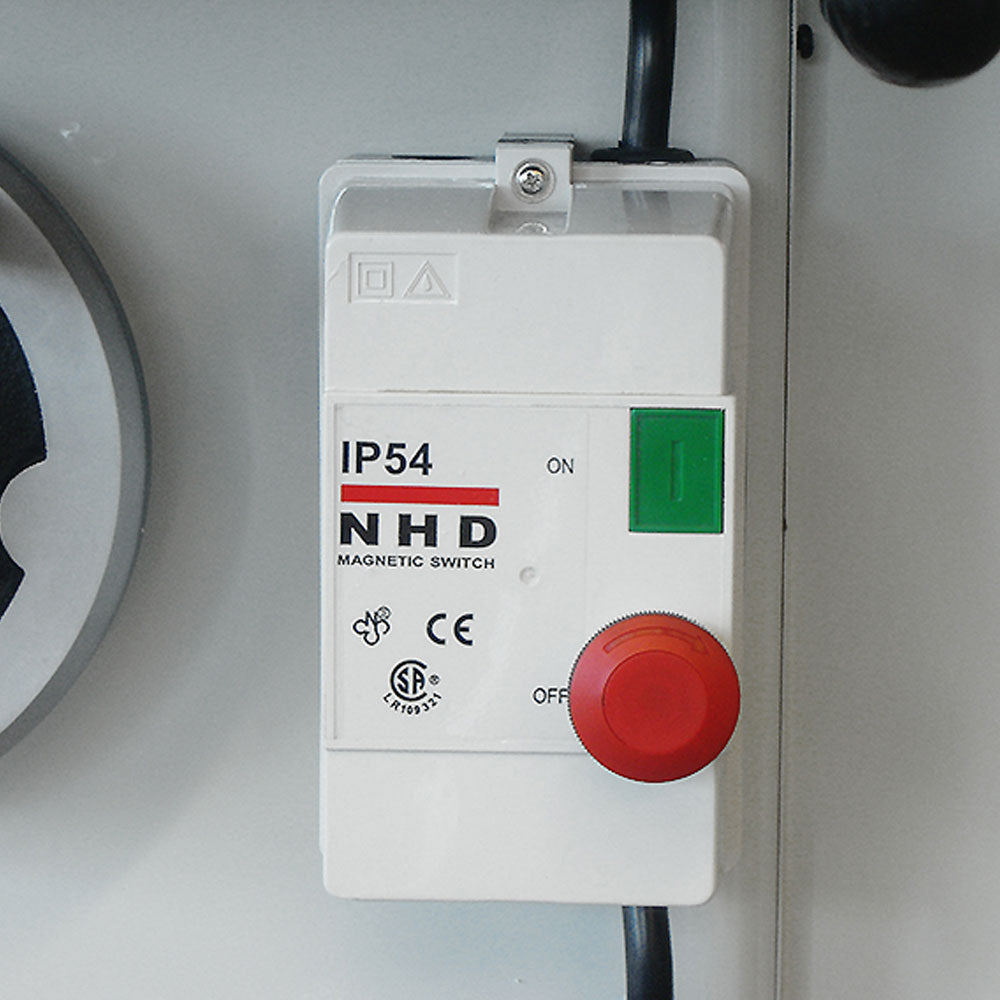

• CSA / UL approved magnetic switch

Saw Blade Diameter: 16″
Max. depth of cut at 90°: 5-1/2”
Max. depth of cut at 45°: 3-7/8″
Arbor diameter: 1″
Dado arbor diameter: 1”
Arbor speed: 3750 RPM
Table size: 48″ x 38″
Table height: 34-1/4”
Max. rip to right of blade: 50″
Motor: 10 HP
Electrical: 230/3/60 = 28 Full Load Amps
Electrical: 460/3/60 = 14 Full Load Amps
Net weight: 869 lbs.
Gross weight: 1,036 lbs.
Packing size (L x W x H): 37″ x 44″ x 42″
