SCM Minimax FS 41ES - Tersa Jointer/Planer (3-Phase)

• Freight included in price*
• In stock as of 12.12.24
• Click here to see the exact machine configuration
• Price valid on in-stock machines only - while supplies last

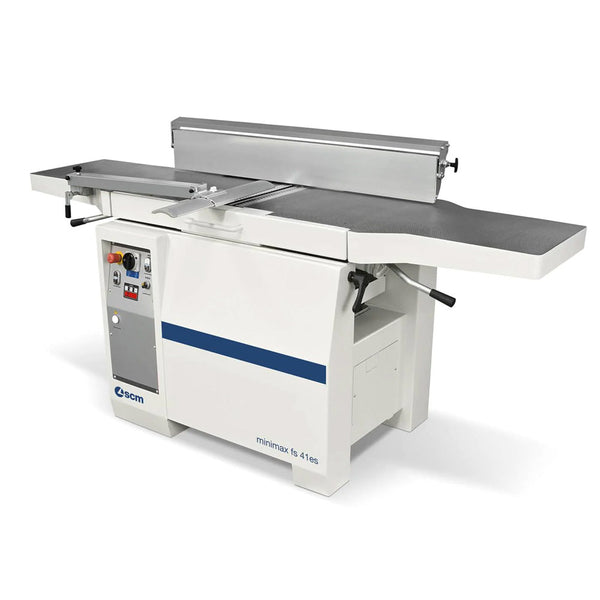

The Minimax FS 41ES X is a professional grade, heavy duty, long bed jointer/planer combination machine designed to meet the needs of the most demanding environments. It features cast iron tables, an 8 horsepower 3-phase motor and a tilting fence.

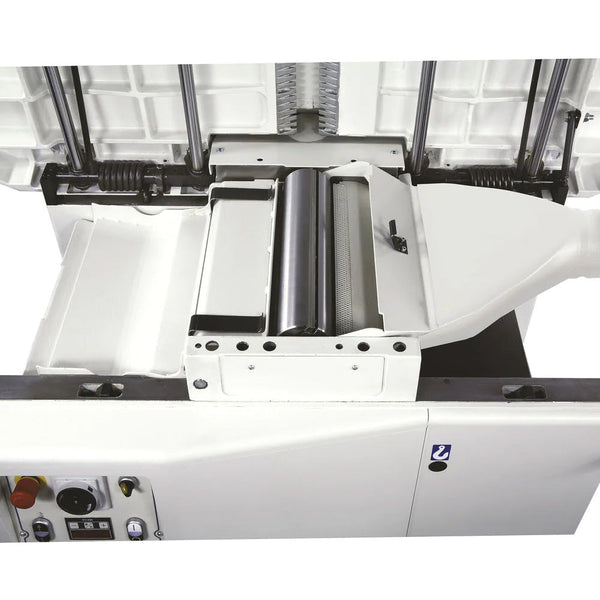

The planer unit stands on cast iron supports and the standard version has a 95 mm diameter “Tersa” cutter block with 4 quick tightening knives and automatic adjustment. For an impeccable finish, the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The infeed roller has a helicoidal profile to guarantee firm and constant work piece feed, while the outfeed roller, in sandblasted steel, maintains the perfect post-processing finishing.

The standard guard offered on the Minimax jointer/planer combination machine is a spring type guard which always covers the unused portion of the knife. Other style guards require the guard to be manually moved into place when the fence is readjusted. When processing thick wood, this does not cover the blade as completely.

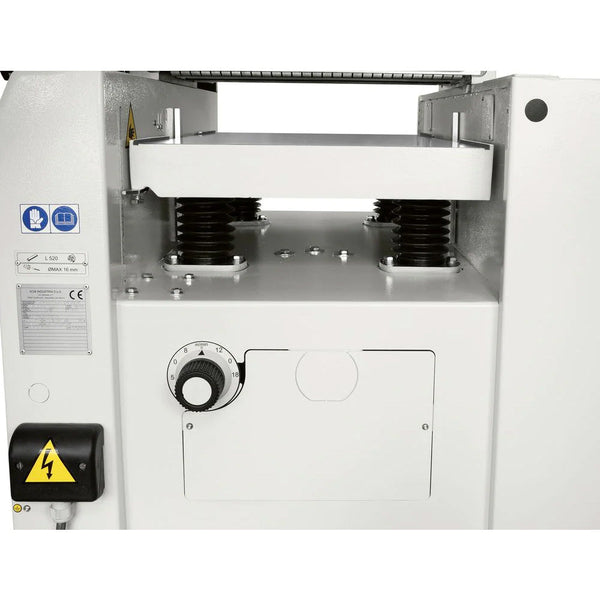

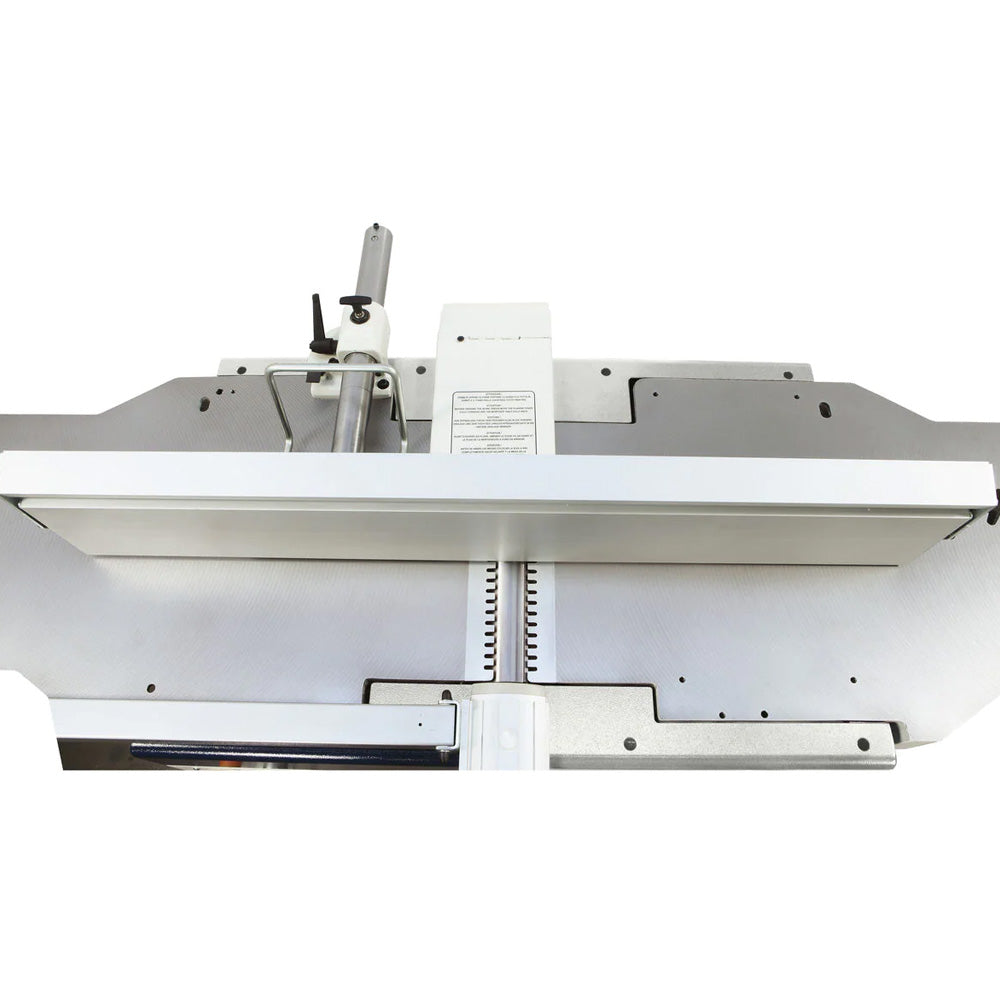

For a maximum long lasting stability, the cast iron thicknessing table lifts on 4 spindles with trapezoidal threads dust protected. The Minimax FS 41ES uses a dedicated planing fence extremely rigid and smooth, thanks to a support with central round bar.

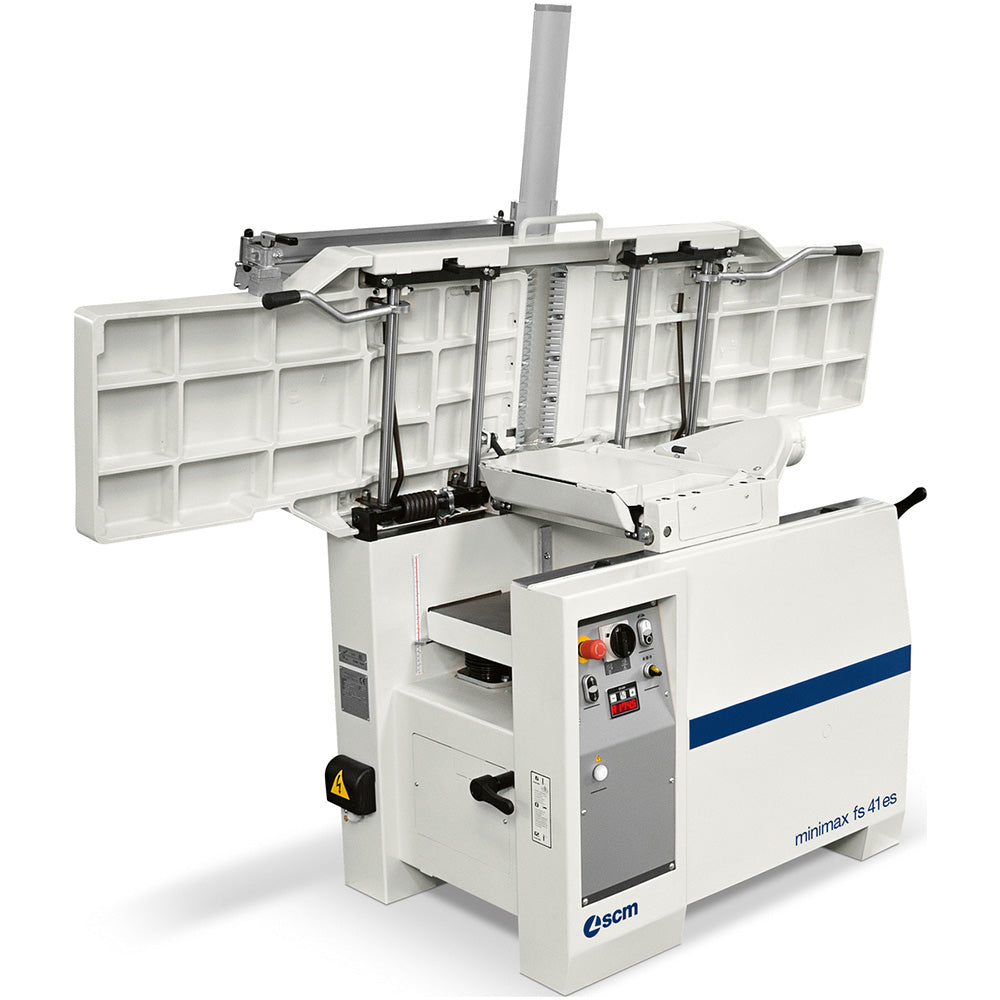

The ES series adopts ergonomic solutions like the 87" jointer tables, in ribbed cast iron, that allows for the simultaneous opening towards the inside of the machine with a 90° angle. For maximum long lasting stability the cast iron thicknessing tables lift on 4 spindles with dust protected trapezoidal threads.

Need replacement knives? Find them here.

Also available with a single-phase motor.
