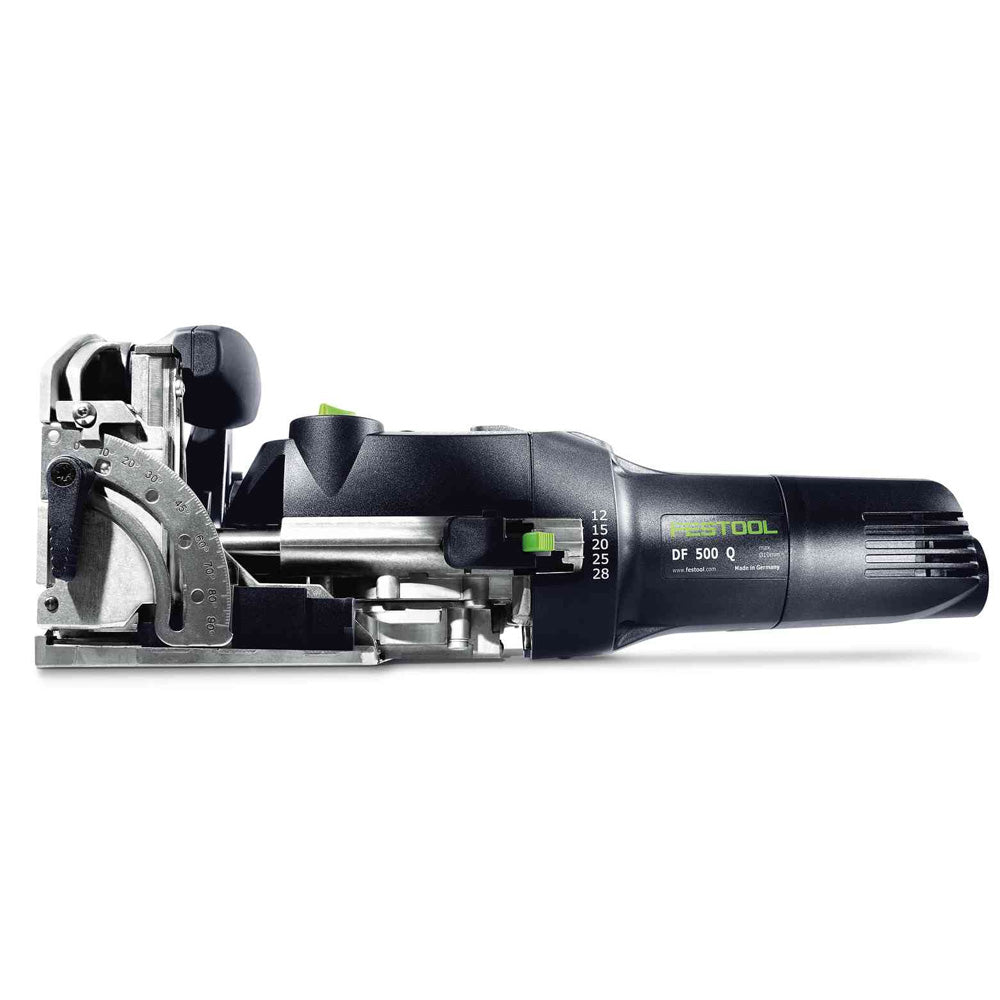

Festool Domino Joiner DF 500 Q Set
- Price
- $ 1,199
Have questions? Give us a call at 260-637-0054.
Joining has always been a slow, difficult process. Never again, thanks to the Festool DOMINO joining system. The system consists of the DOMINO joiner and pre-fabricated beech and sipo DOMINO tenons. The DOMINO joiner, with its revolutionary cutting method, simple indexing features and adjustable mortise sizing, makes flawless mortises every single time. The DOMINO tenon is equally as impressive - it is 100% rotation-proof and far stronger than either biscuits or dowels. It also has a large gluing surface area for extra strength.
Don't forget the dominos! Buy individual sizes, or get started with a variety pack in a convenient systainer (includes all cutters for the DF 500).
The DF 500 Q Set comes with a 5mm cutter. To use with other sizes of dominos, make sure to get the compatible cutter as well!
All Festool power tools include a 3-year wear-and-tear warranty, 2-day standard repair time, and 1-month satisfaction guarantee.
Features
- Patented routing principle: The spiral cutter rotates and oscillates to create perfect mortises
- Mortise Width Adjustment: Adjusting the width of the mortise allows for easier alignment when joining panels
- Positioning: With an adjustable fence angle, retractable stop flaps, adjustable cutter height with step gauge, and precise mortise depth stop, the DOMINO joiner enables precise mortise placement and spacing
- Pivoting fence: Fence creates angled mortises from 0-90° with positive stops at 22.5°, 45°, 67.5°
- Depth Control: Quick, precise adjustment for five different mortising depths, relative to the size of the tenon required for the application
- Stepped Height Stop: 7 different step positions for different material thicknesses for fast and easy fence height adjustment
- Dust extraction: Your mortises are clean and ready for glue when the DOMINO is used in combination with a dust extractor, extending your cutter life
- Carbide Tip Spiral Bit: Durable, long-lasting bit withstands 5,000-14,000 joints depending on material
- Rapid Bit Change: Means you can change a bit in under 30 seconds to match desired tenon size
Specs
Max. routing depth: 1-1/16" (28 mm)
Dust extraction connection dia.: 1-1/16" (27 mm)
Weight: 7.05 lbs. (3.2 kg)
Routing height adjustment: 1/8" (5 mm) - 1-3/16" (30 mm)
DOMINO slot cutter dia.: 3/16" (4 mm)/1/8" (5 mm)/1/4" (6 mm)/5/16" (8 mm)/3/8" (10 mm)
Power consumption: 420 watt
Depth stop for routing depth: 12, 15, 20, 25, 28 mm

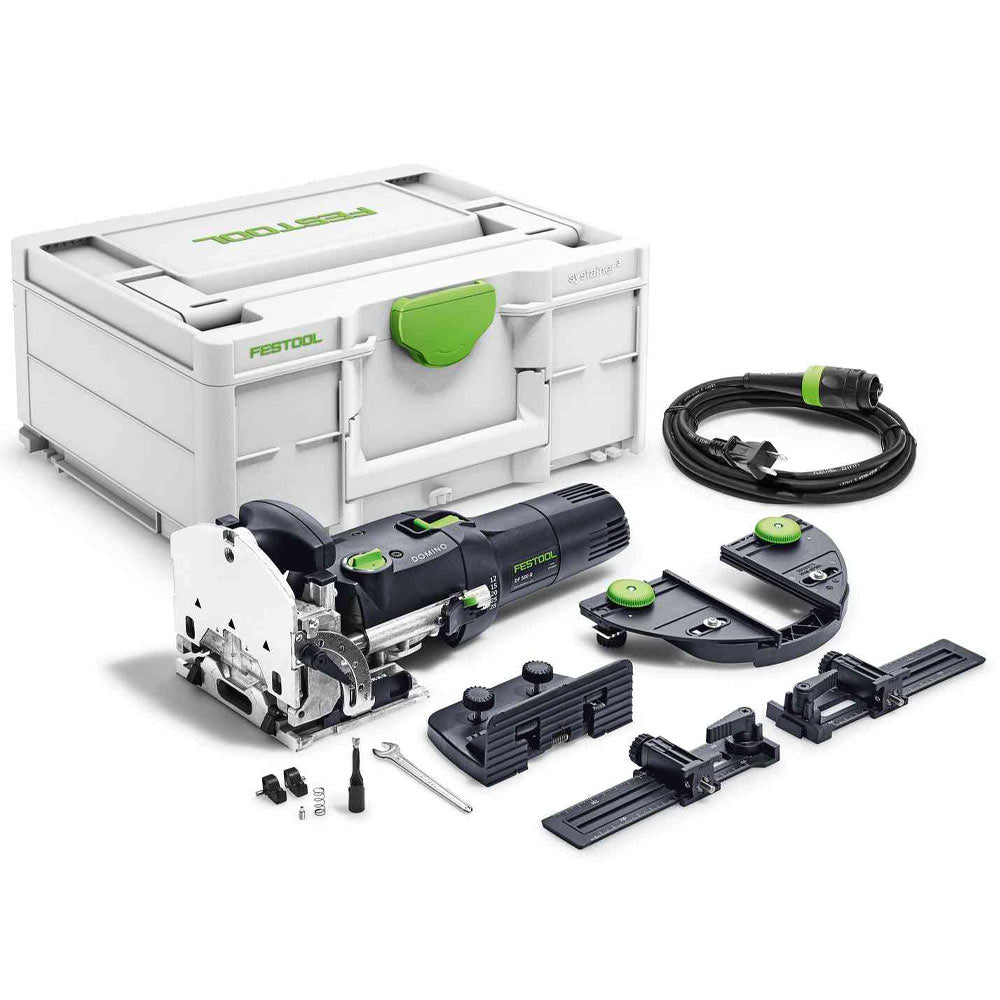

Includes
- DF 500 Joiner
-
DOMINO DF 500 7/32" (5 mm) cutter
- Cross Stop
- Open-Ended Spanner, WAF 8
- Support Bracket
- Trim Stop
- Power cable
-
Systainer SYS3 M 187
Video
The domino tool is precision at its best. Knockdown hardware is genius. Must do a lot of this type joints to justify cost but if so, very well worth it.
This is a great addition to any woodworking or creators shop!
I should not have waited so long to buy this . Such an asset in my shop . Easy to use and adjust for different pieces . Comfortable to use and it hooks up to my Festool dust collector. I appreciated the help and being shown how to use it from the great staff at oak tree .
this is an amazing machine, I wish i had bought sooner. I recently used to make several face frames and currently working on a large desk.
I joined 5in wide boards to make the large desk top. The glue up was flawless as the boards were level with each other..... was amazing. The
possibilities are endless with this machine. I am so impressed with the dust extraction with all the Festool tools and the Domino is no exception.
I previously shopped at the "chain" woodworking stores but no more since working with the friendly staff at oaktree. .... they rock !!
My 500 DF is absolutely Awesome...I can't believe I've been putting off buying it for so long. Do yourself a favor and get one now! Simple, fast, repeatable, and strong. The Domino takes all of the guesswork and tedious measurements out of joint layouts; the end result is a perfect, effortless joint. I also picked up the Domino accessory systainer (4,5,6,8,and 10mm). I would highly recommend buying that, as well. Also, a huge thanks to Chris at Oak Tree Supplies for shipping this out right away...I received it the next day.
