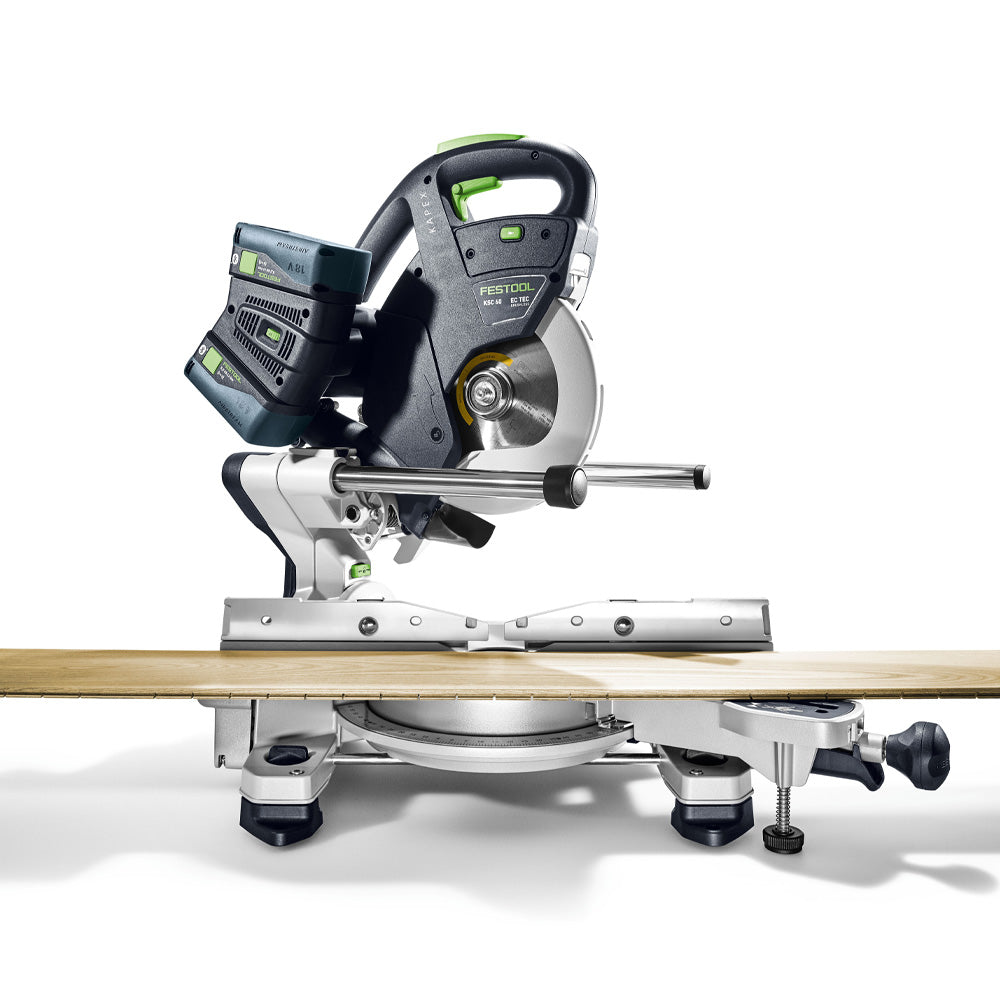

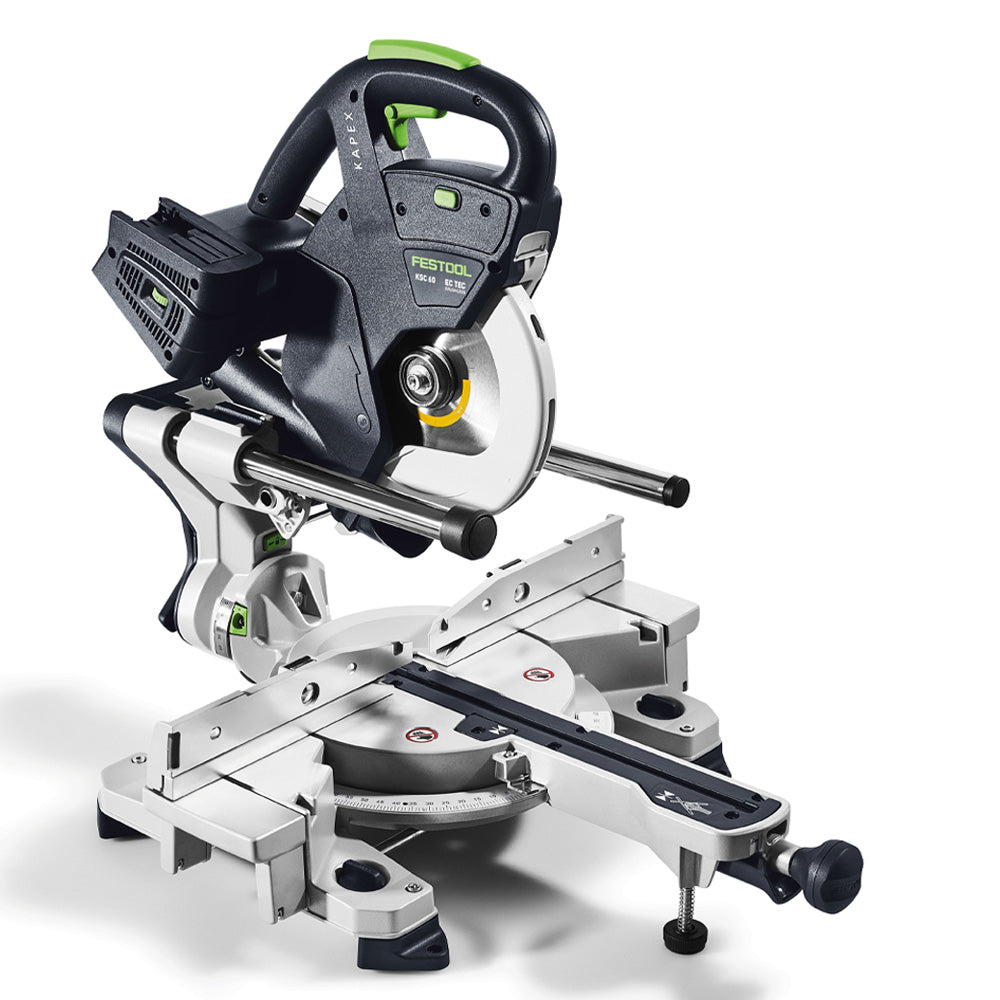

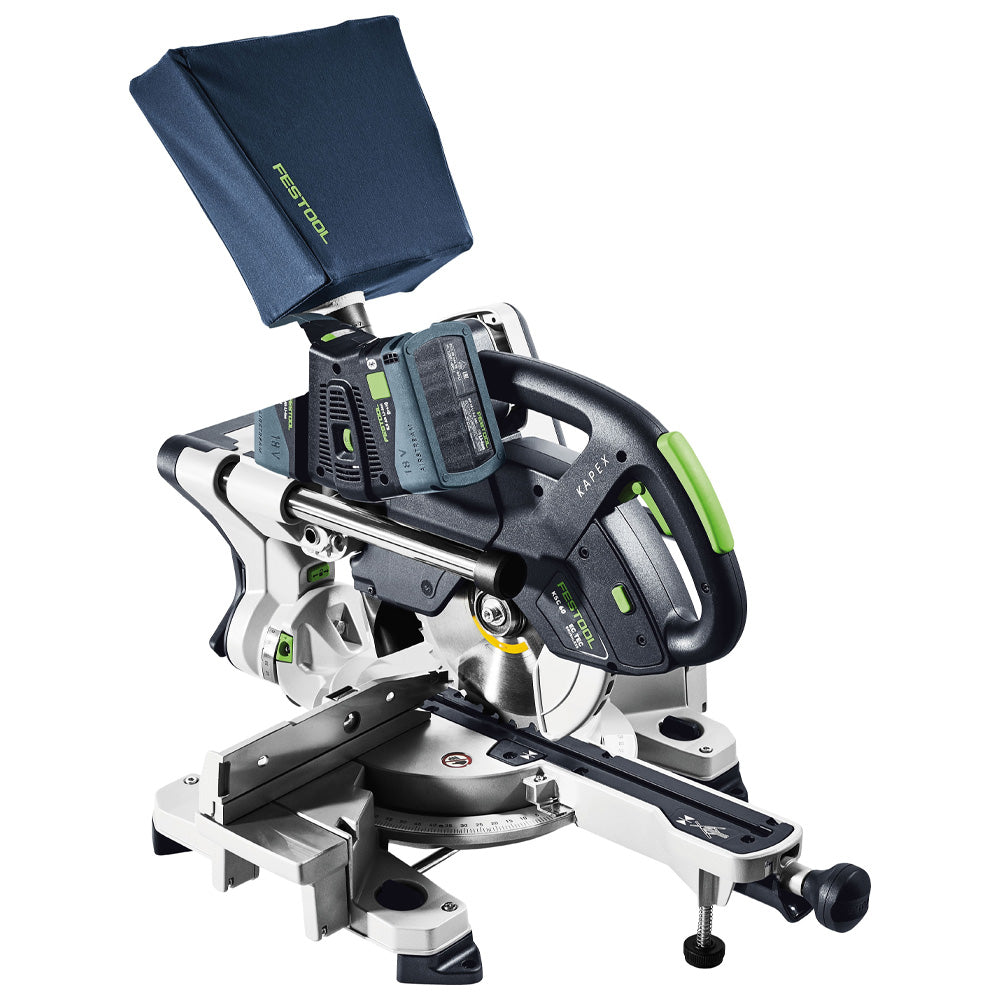

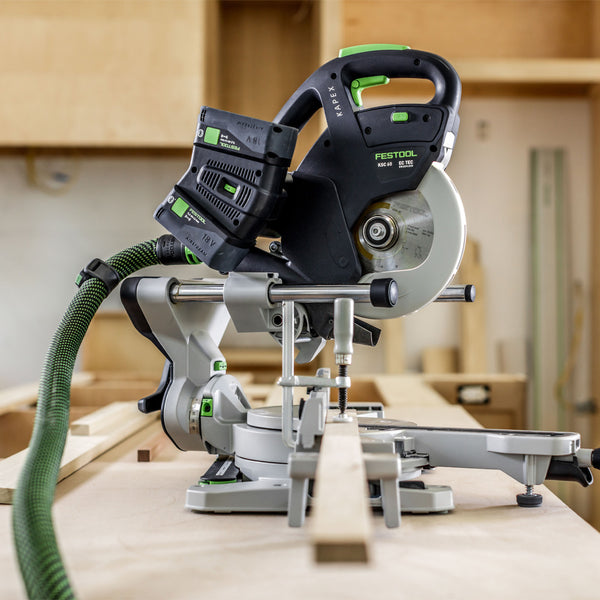

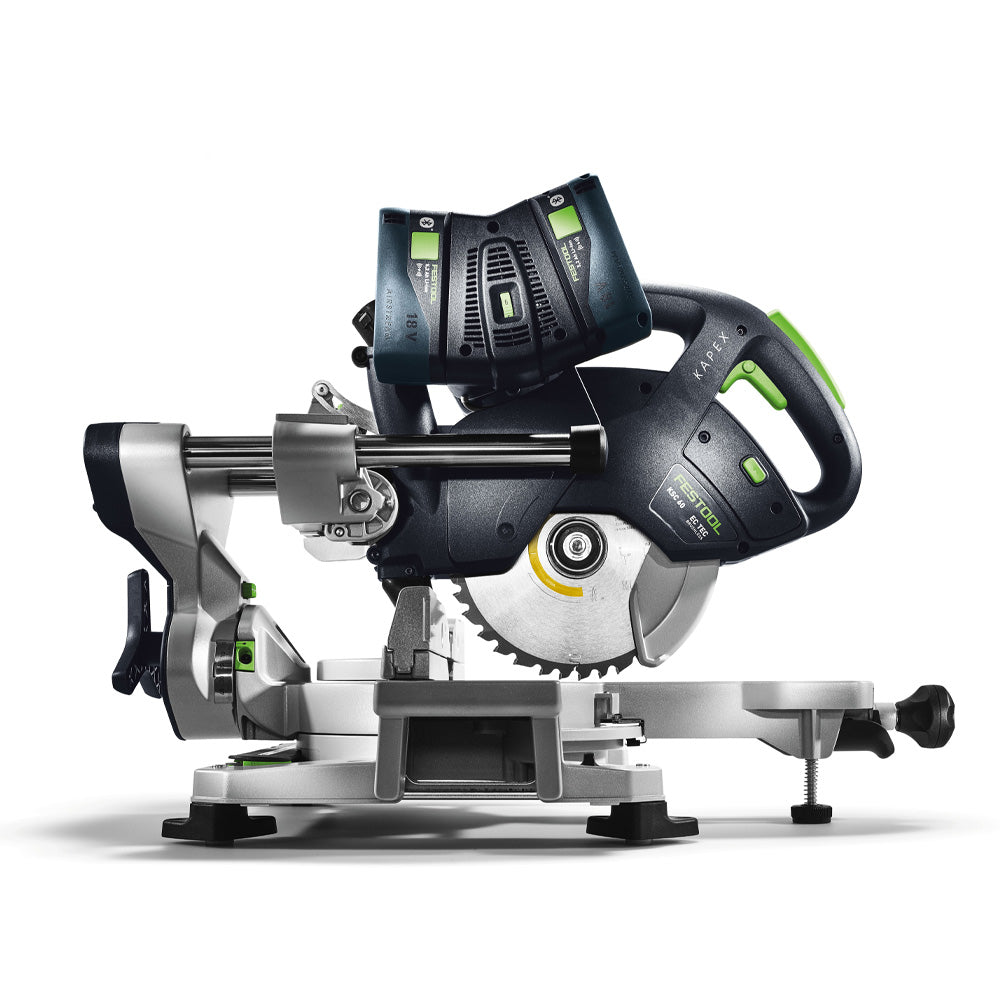

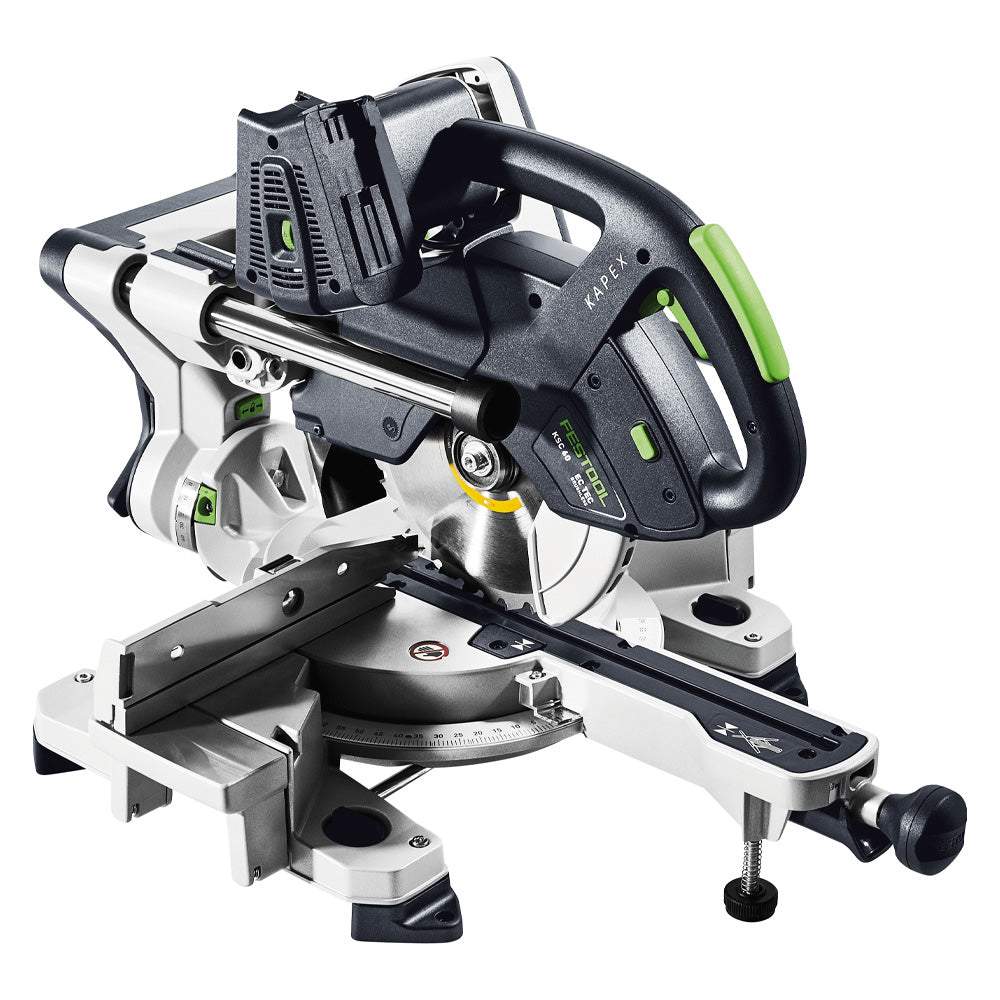

The KAPEX KSC 60 cordless sliding compound miter saws produce unbeatably precise cross cuts – in an enormous range of applications with miter angles of up to 60° on each side and bevel angles of up to 47° on each side. The twin-column guide with two bearings ensures that the saw blade is guided smoothly and with precision whichever setting is chosen: This makes every cut perfect, without wobble or deflection.

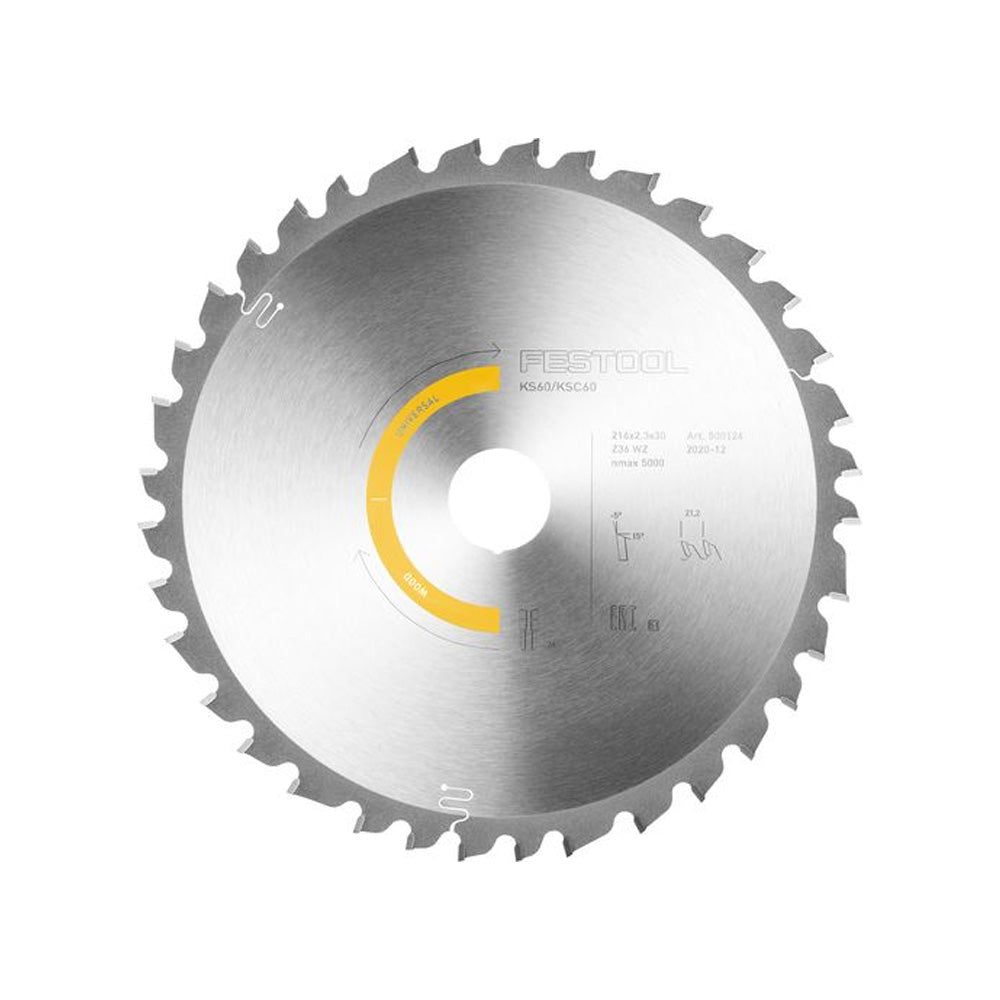

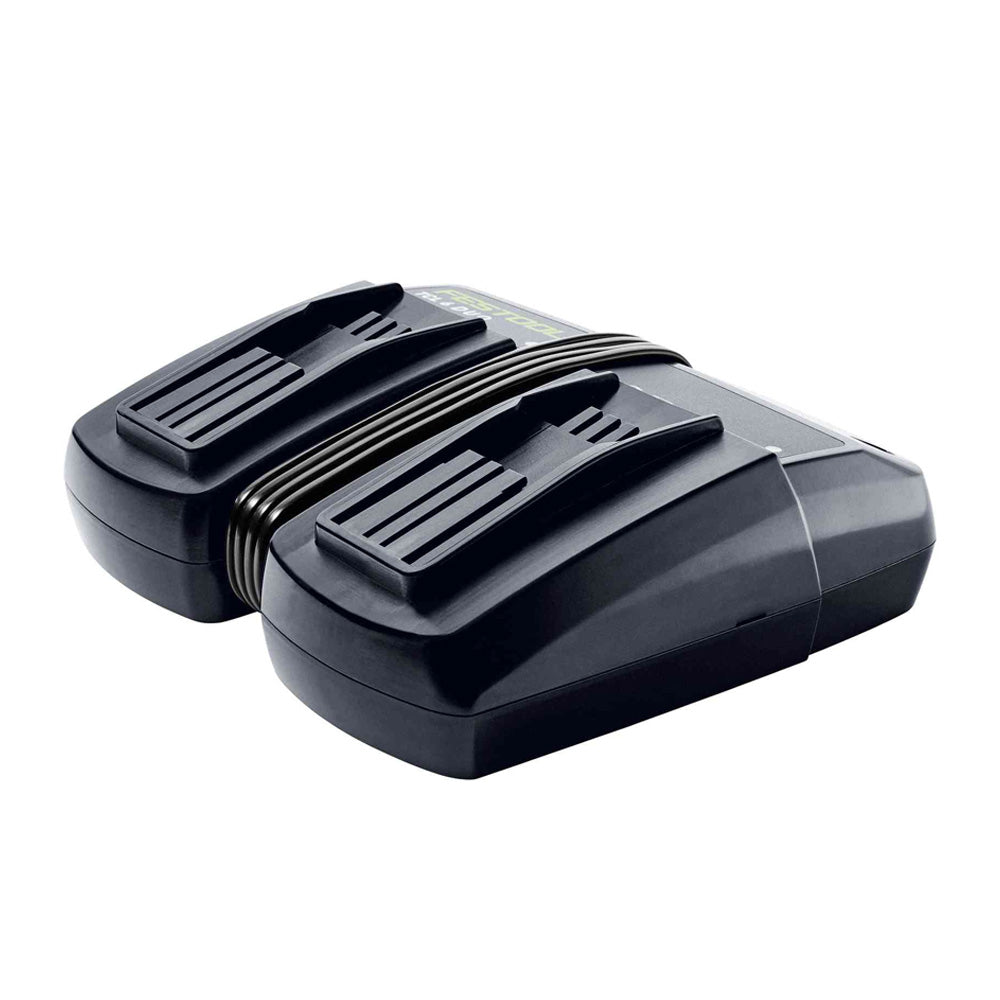

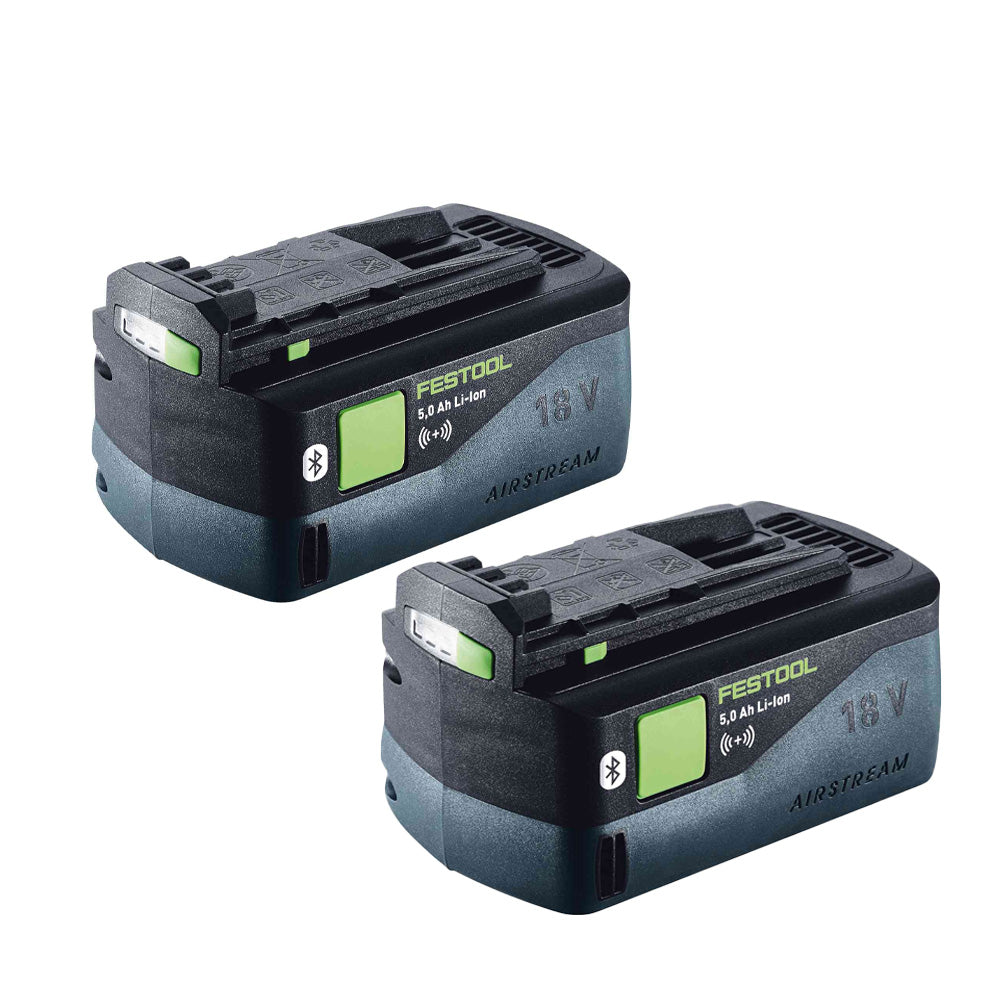

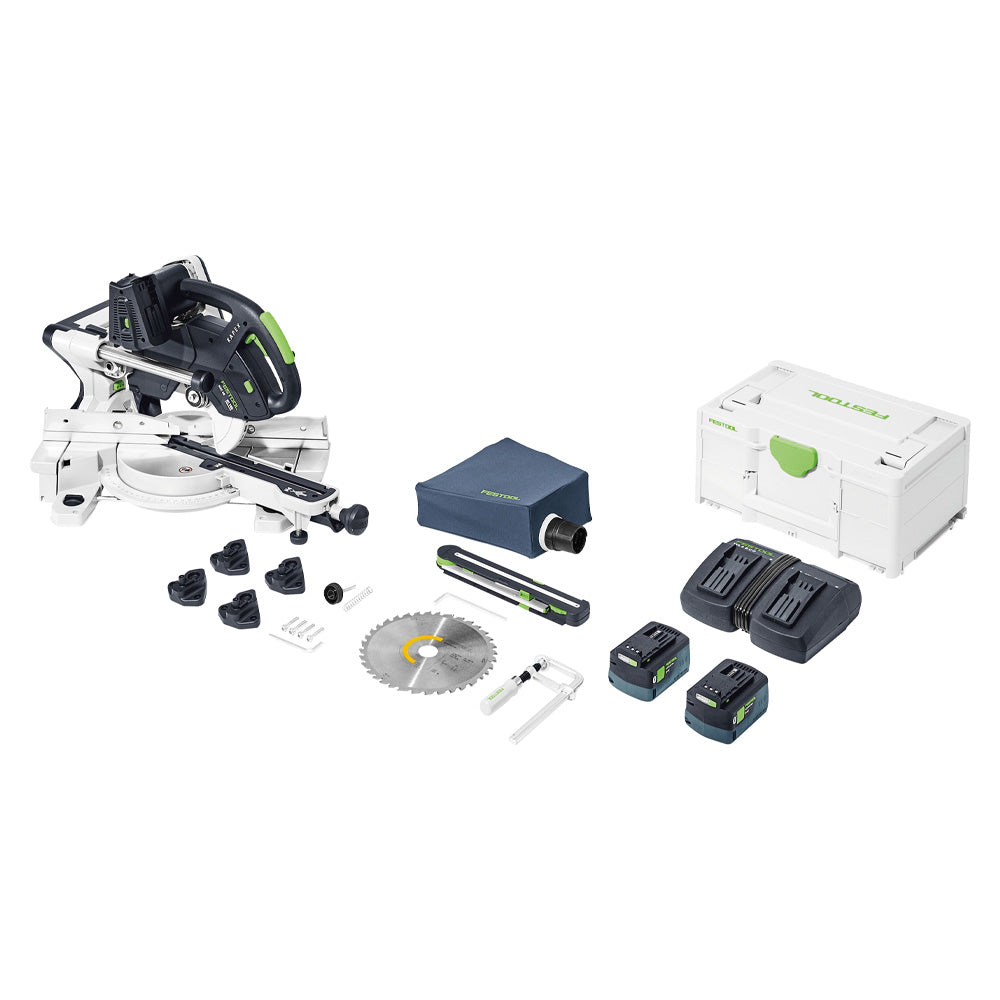

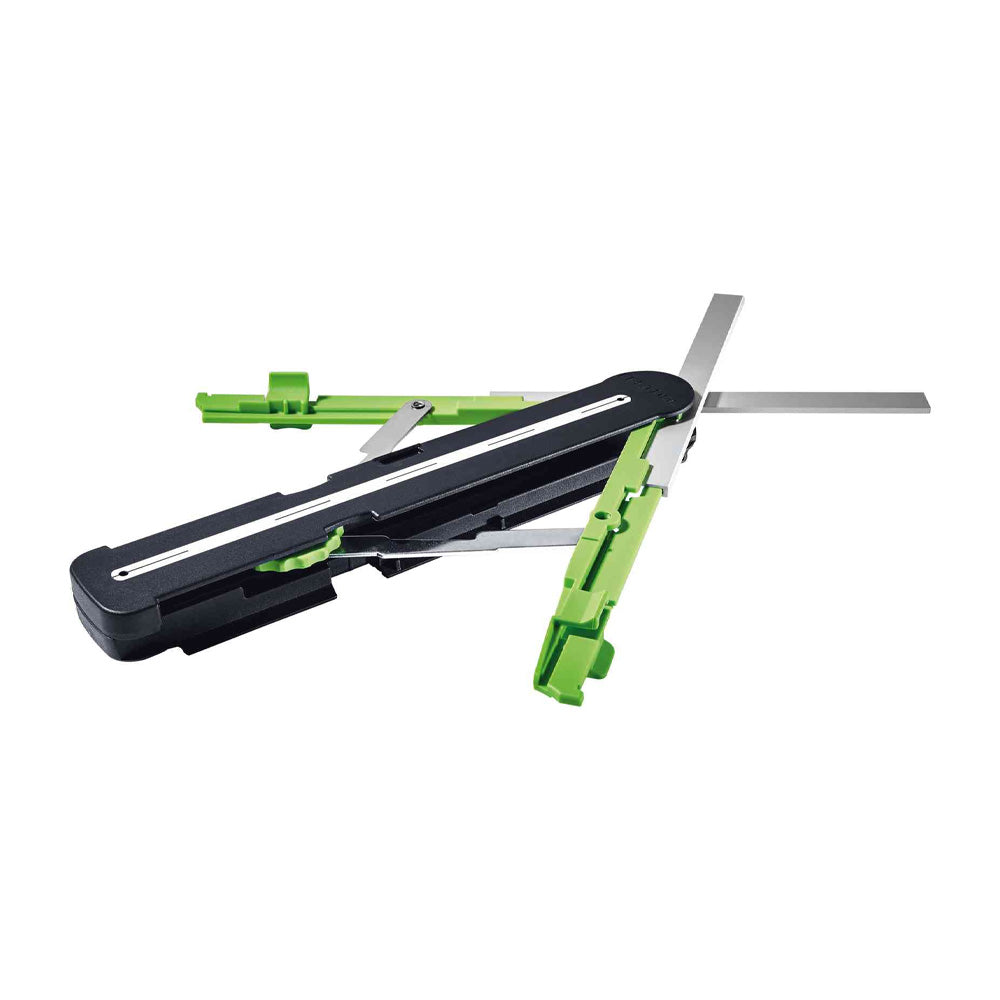

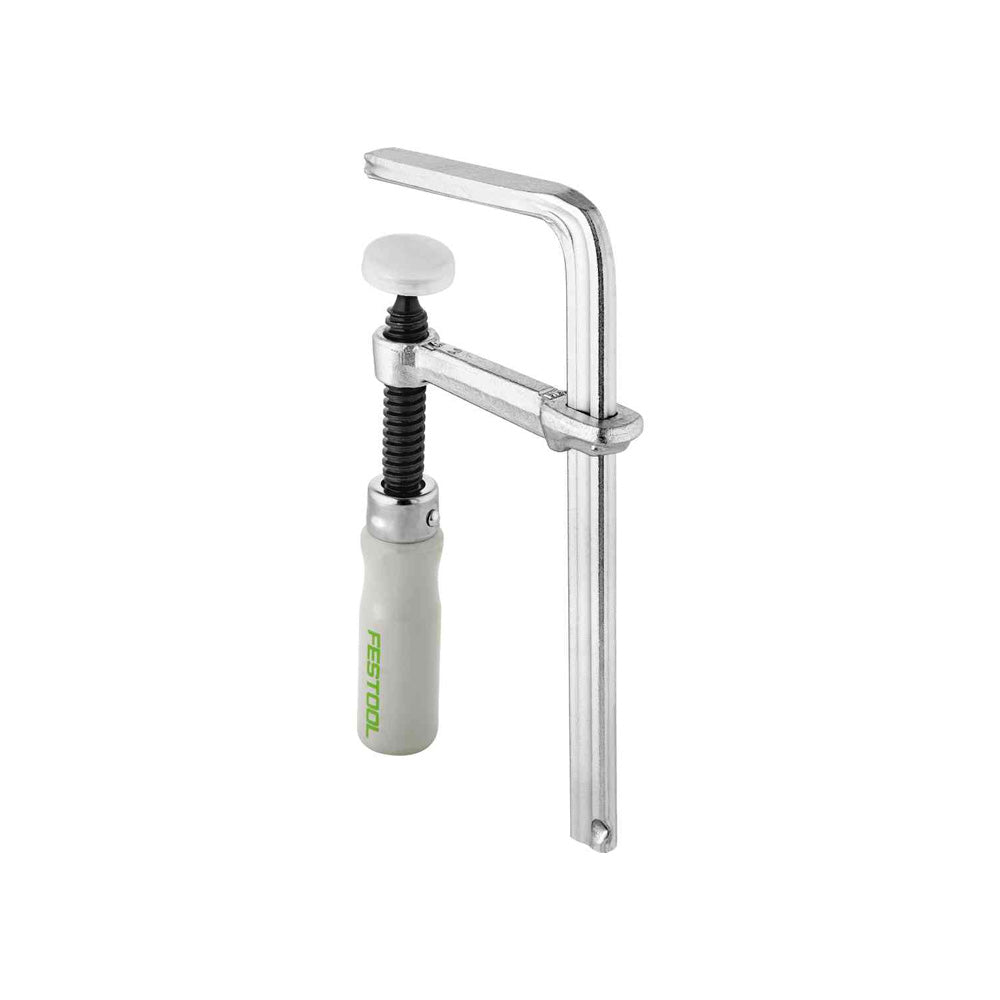

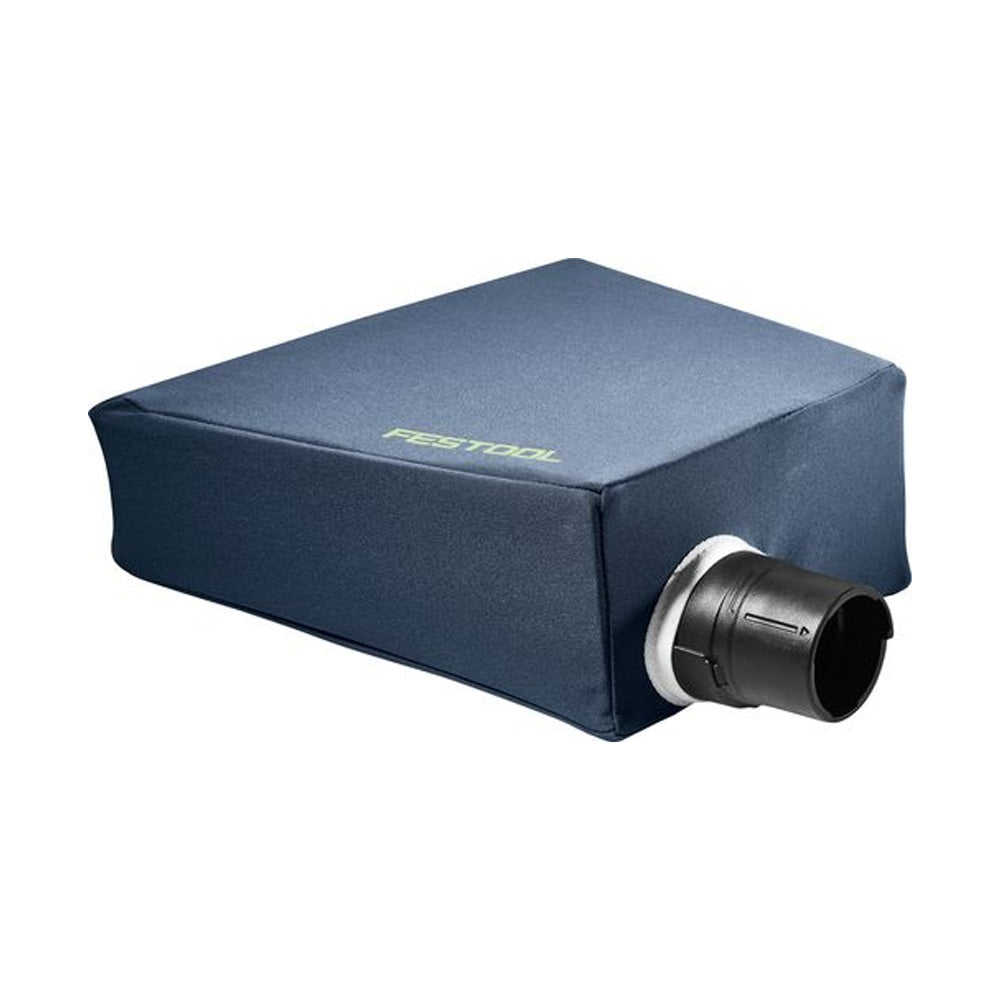

This set includes everything you need to get cutting right away, like the required battery packs, a charger, a universal saw blade, and a chip collection bag for immediate dust extraction. Also included is an angle transfer device for beveling and a screw clamp for securing your workpiece and enabling precise cuts.

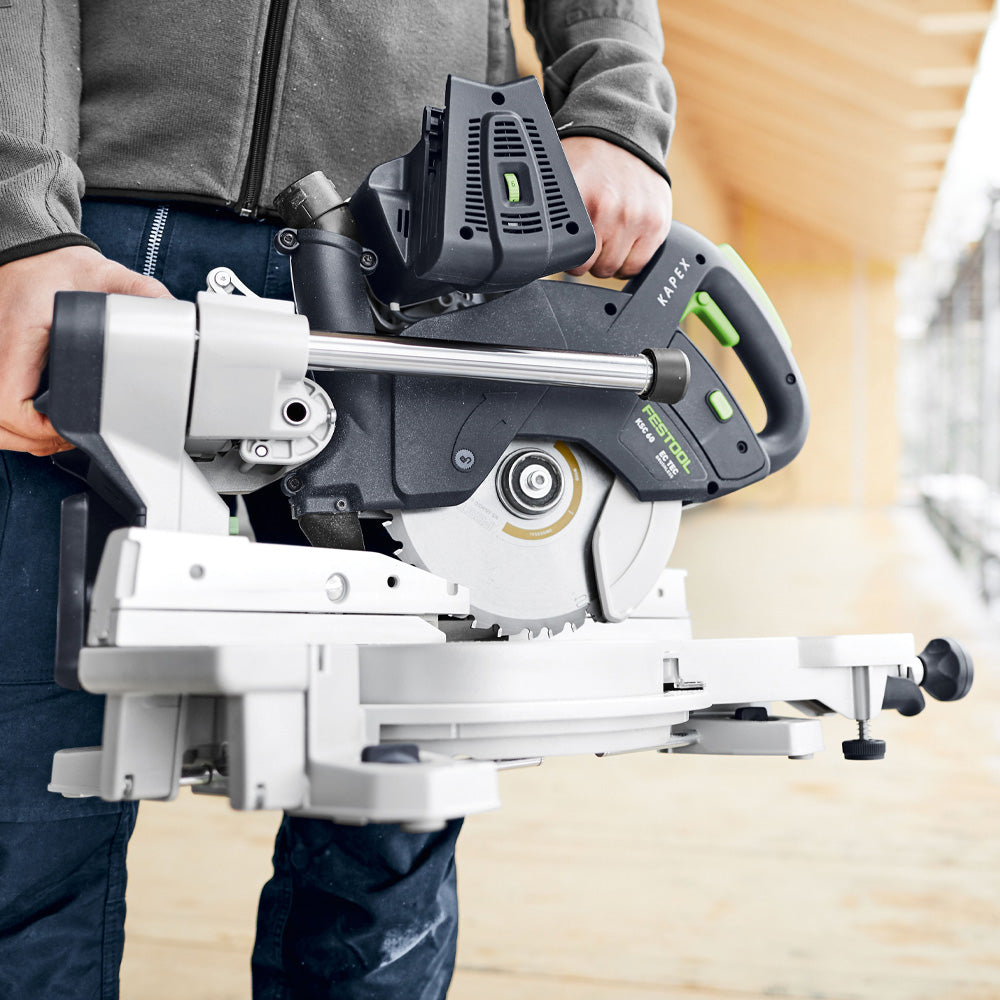

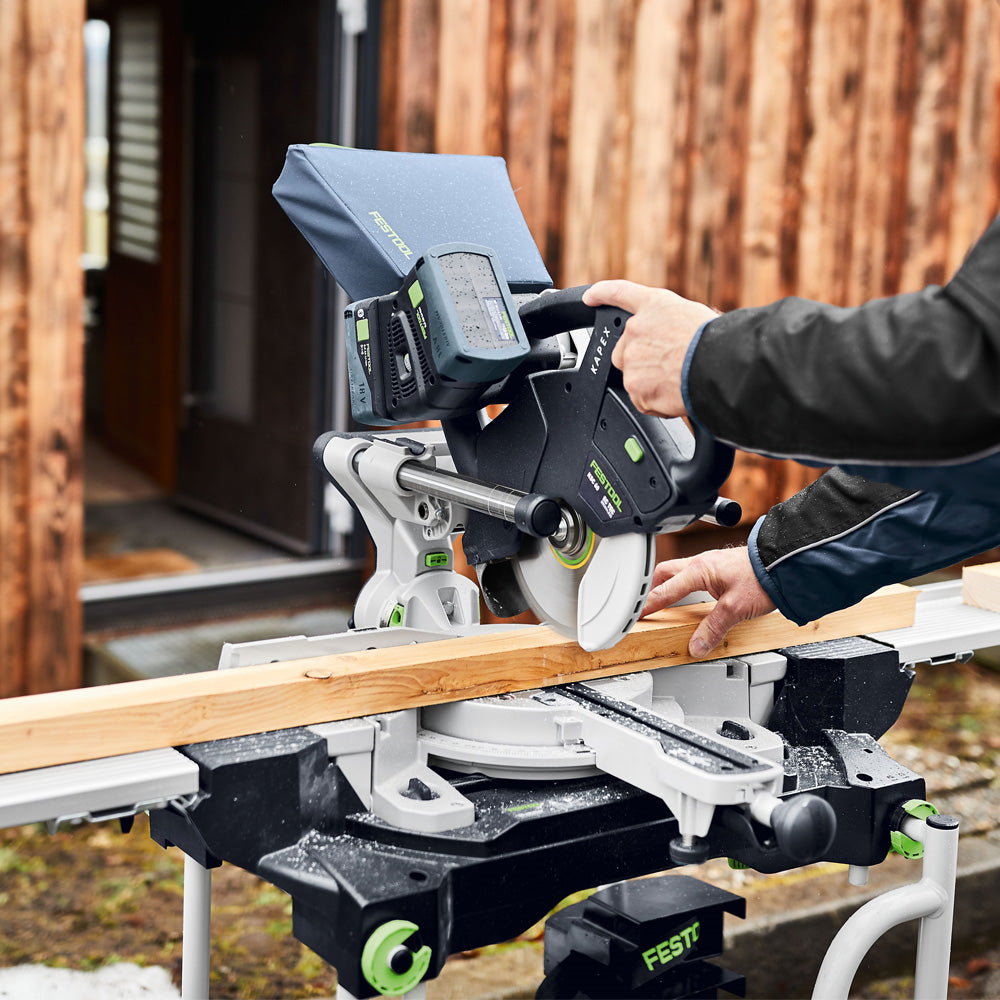

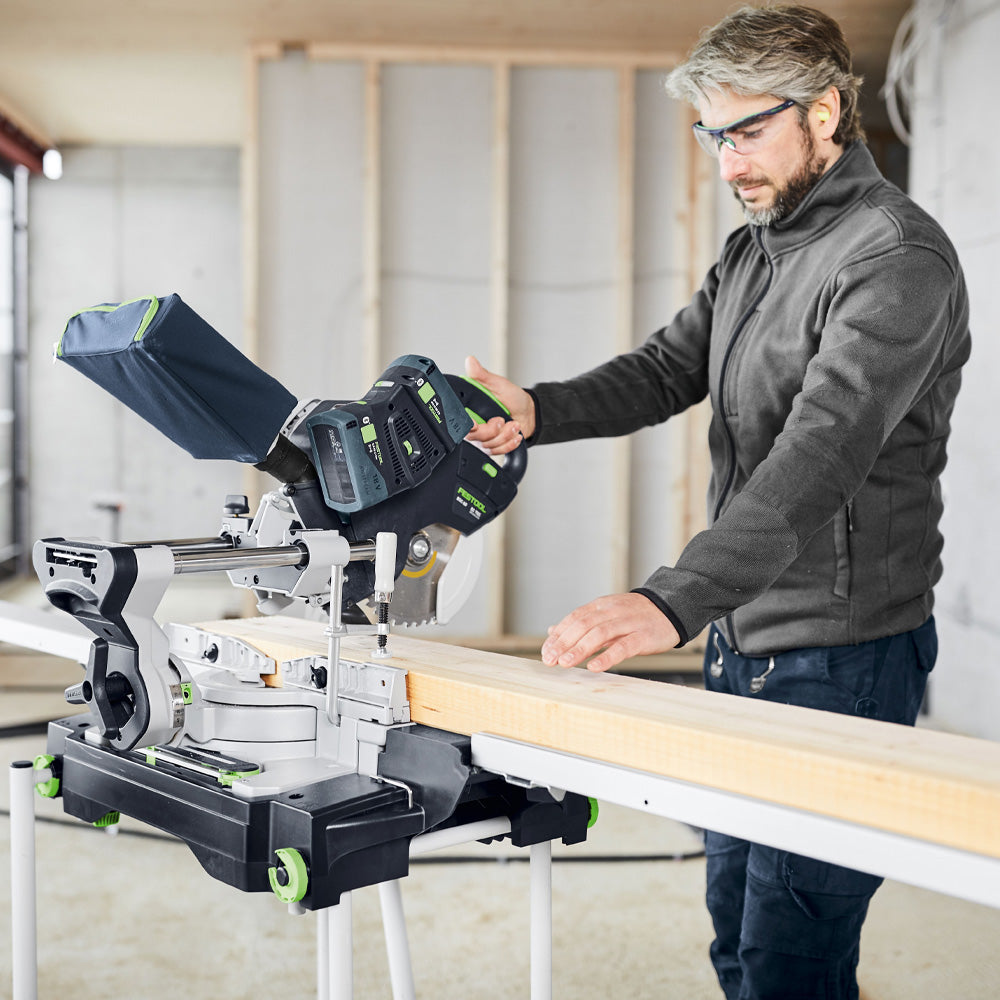

Every detail is designed and built to reliably produce precise results while maintaining a compact and portable format. Tackle nearly any application with the right saw blade and with variable speed to adapt to the material cutting needs. An available mobile stand (sold separately) for an ergonomic work position and easy transportation further enhance portability. An energy set with battery packs and a charger can provide power for the whole day and has everything neatly stowed away in the Systainer.

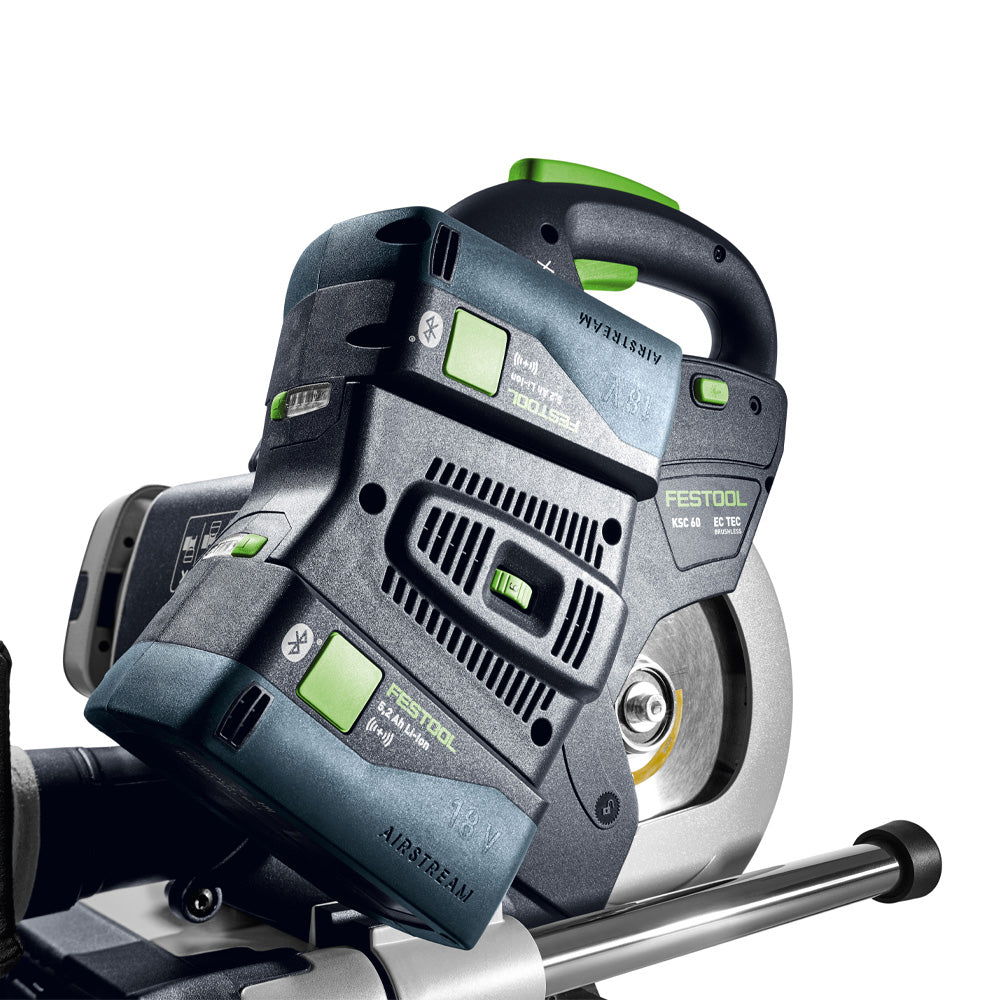

In conjunction with the dual battery system, the brushless EC-TEC motor provides virtually unlimited endurance and is enough for all typical applications for an entire day's work. And finally, clever details such as the variable speed, saw blades for every application, bevel, ergonomic underframe and dust bag create the ultimate experience in precision, durability, and performance.
Battery voltage: 18/36 V
Idle engine speed: 1,300 - 1,800/3,500 RPM
Saw blade diameter: 8-1/2" (216 mm)
Inclination angle: 47°/46 °
Miter angle: 60°/60 °
Dimensions (L x W x H): 25-5/32" x 18-1/16" x 17-13/32" (639 x 459 x 442 mm)
Dust extraction connection dia.: 1-1/16" / 1-2/5" (27/36 mm)
Battery capacity: 5.2 Ah
Weight 1 x 18 V/2 x 18 V: 37.69/40.78 lbs. (17.8/18.5 kg)
Cutting Capacity x Max. Thickness
Bed angle / blade angle: Max. width x max. thickness
0°/0°: 12-1/64” x 2-6/16” (305 x 60 mm)
45°/0°: 8-1/2” x 2-6/16” (215 x 60 mm)
0°/45° right: 12-1/64” x 3/4” (305 x 20 mm)
0°/45° left: 12-1/64” x 1-9/16” (305 x 40 mm)
45°/45° right: 8-1/2” x 3/4” (215 x 20 mm)
45°/45° left: 8-1/2” x 1-9/16” (215 x 40 mm)
