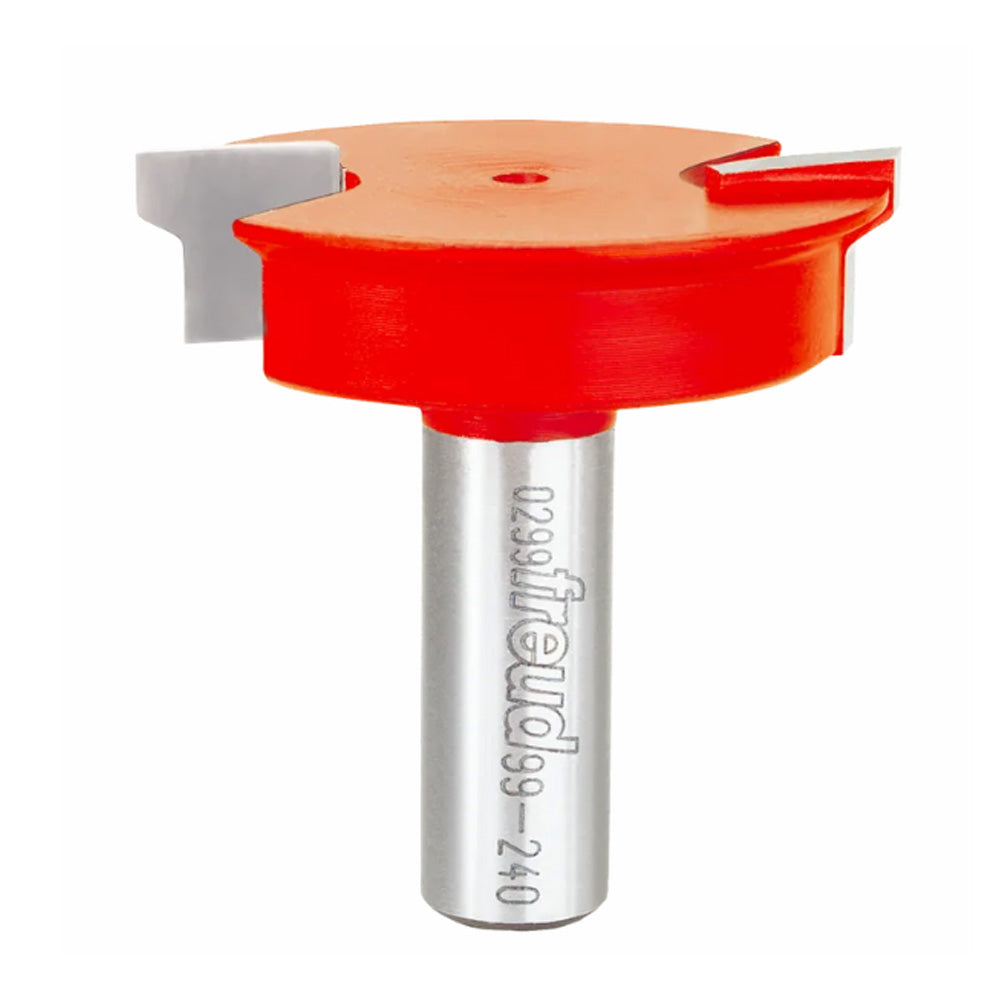

Freud Drawer Lock Bit 1/2" SH, 2" D, 33/64" CL
Freud Drawer Lock Bit 1/2" SH, 2" D, 33/64" CL
Freud Drawer Lock Bit 1/2" SH, 2" D, 33/64" CL
Click image to open expanded view
Freud Drawer Lock Bit 1/2" SH, 2" D, 33/64" CL
Freud Drawer Lock Bit 1/2" SH, 2" D, 33/64" CL
Freud Drawer Lock Bit 1/2" SH, 2" D, 33/64" CL

Freud Drawer Lock Bit 1/2" SH, 2" D, 33/64" CL

$ 43.75
$ 46.97

Have questions? Give us a call at 260-637-0054.

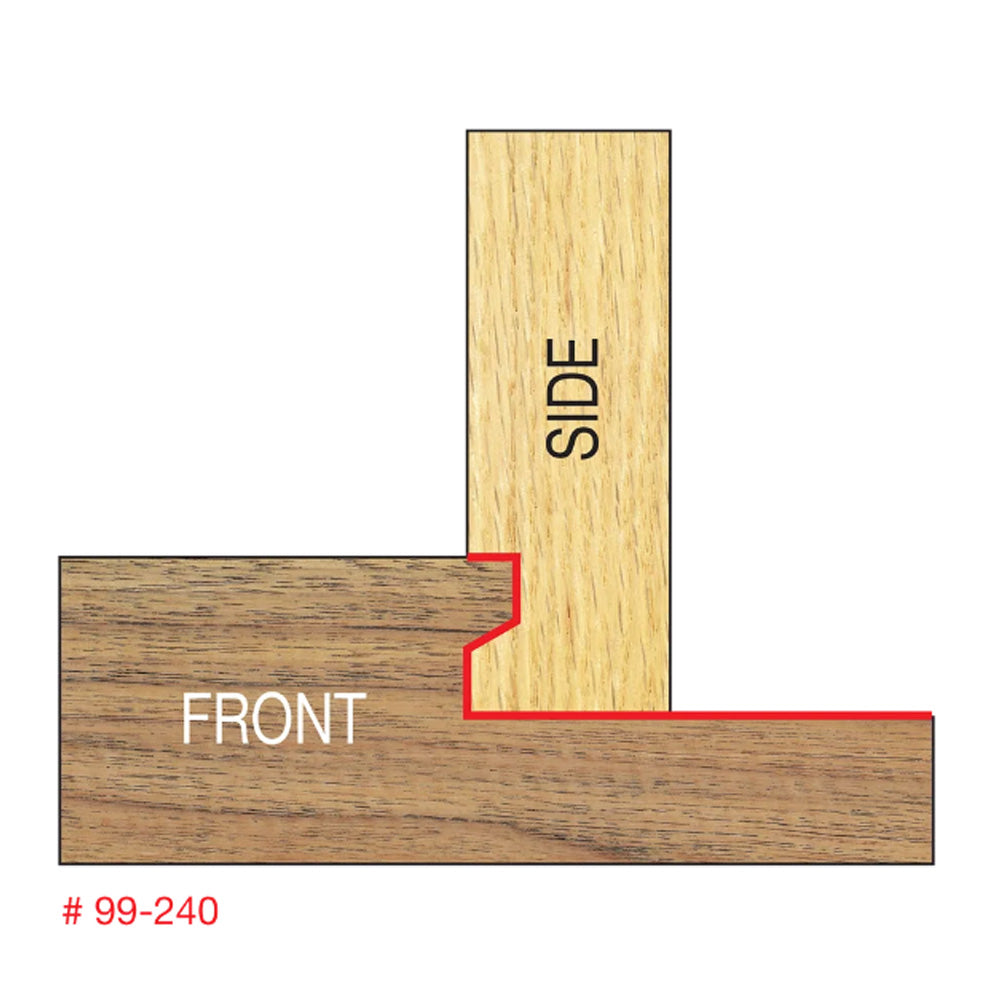

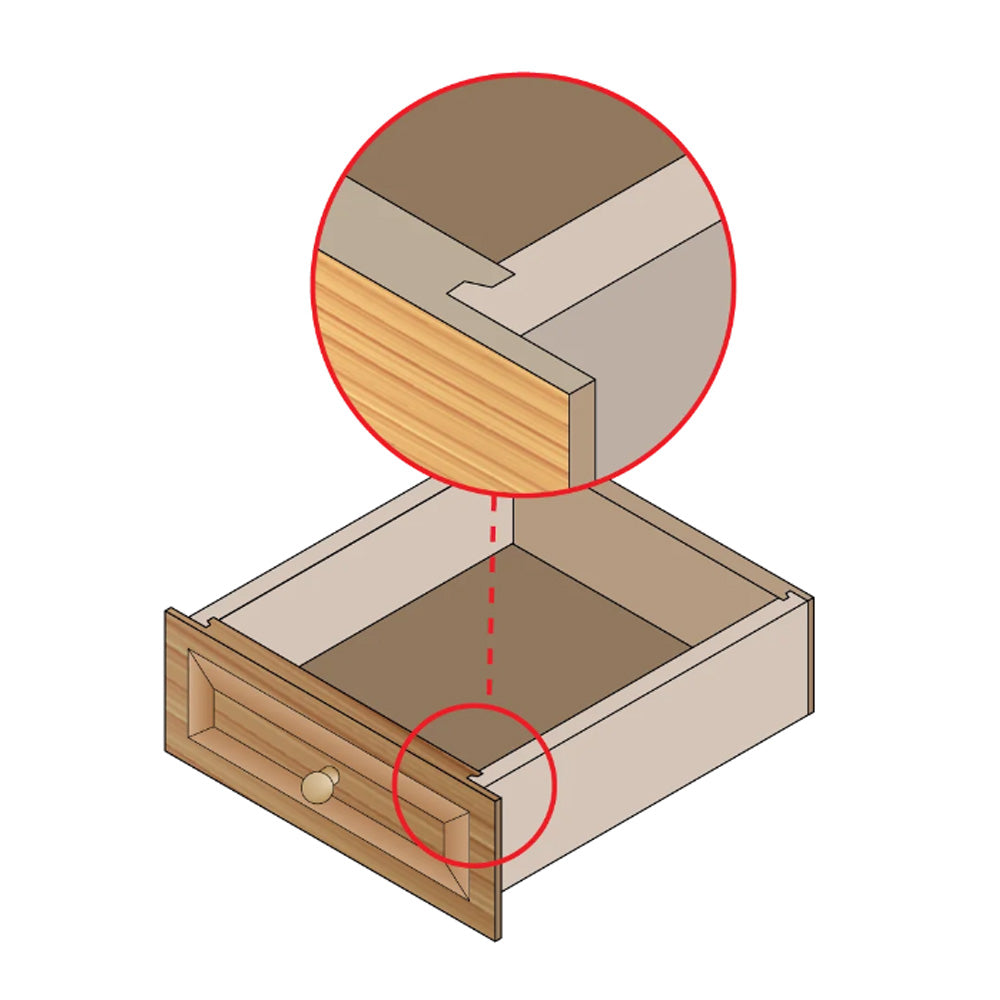

The cleverly-designed Drawer Lock Bit produces both pieces of the drawer joint using a single bit. Drawer fronts are formed horizontally, flat on the table surface. Then, without adjusting the bit height, the drawer side is routed with the work piece standing vertically. The result is a strong, efficient joint between the sides and front of a drawer. Routes hardwood, softwood and composite materials; use in table-mounted routers only.

Ideal for building strong drawer joints in solid wood or composite materials.

Features
  • One bit produces both the front and side drawer joints
  • Cuts all hardwood, softwood, plywood and composites
  • Use on table-mounted routers only
  • Freud Perma-SHIELD Coating
Specs

Angle dia.: 30°
Cutting length: 33/64"
Overall dia.: 2"
Minor height: 5/32"
Overall length: 2"
Number of cutters: 2
Small dia.: 1-3/4"
Shank dia.: 1/2"

SKU: 99-240
