Freud Premier Adjustable Rail & Stile Set Ogee 1/2" SH, 1-11/16" D

Sale price
$ 120.15
List price
$ 139.97

Have questions? Give us a call at 260-637-0054.

Freud's unique Premier Adjustable Rail and Stile System builds perfect doors in material from 5/8" to 1-1/4" thick, and also features Freud's patented technology for producing extra-strong long tenon joints. The System also includes adjustable shims to adjust the panel groove from 7/32"(5.5 mm) for thinner plywood panels to 3/8" (9.5 mm) thick for larger solid wood raised panels.

For even more versatility, add optional cutters to produce double-sided doors, or the optional cutter for glass and screen door construction. Use in table-mounted routers to mill and hardwood or softwood.

Ideal for producing extra-strong long tenon joints.

Features
  • Build rail and stile doors with your choice of five different profiles with thickness from 5/8" to 1-1/4"

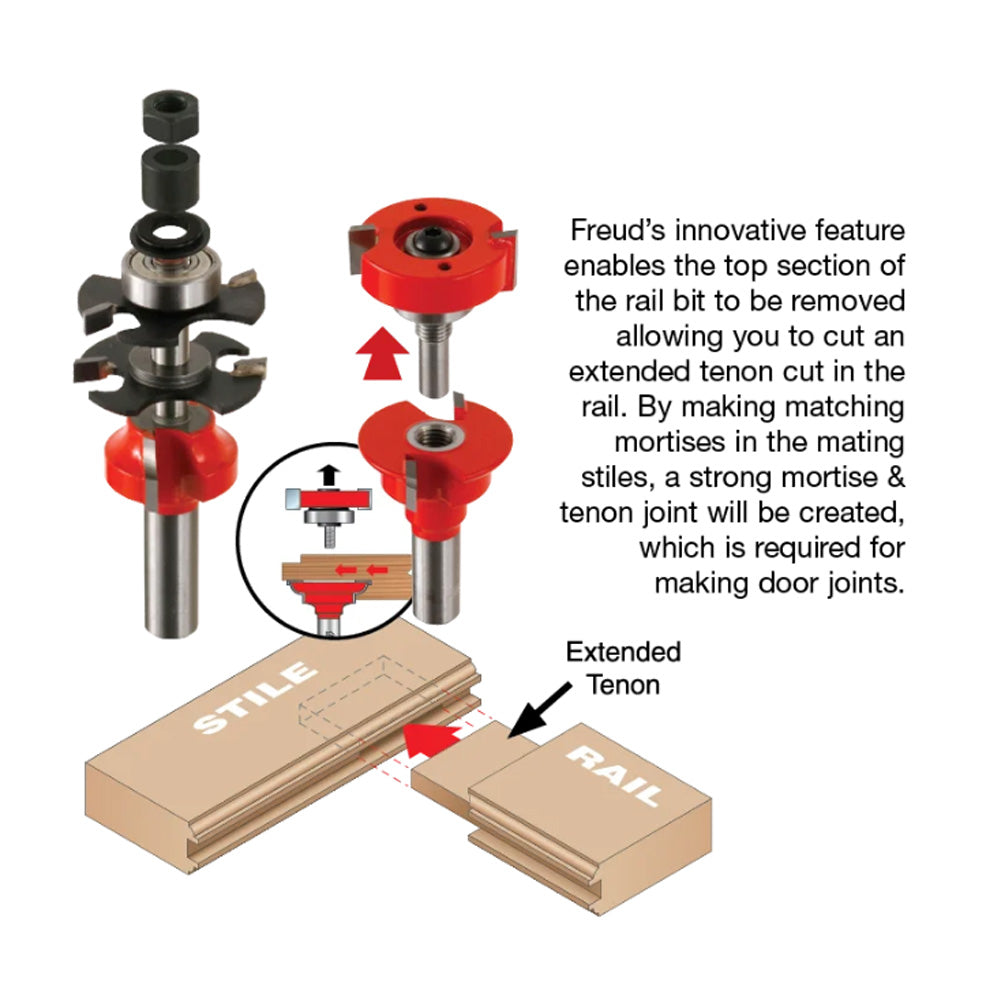

  • Patented Extended Tenon Capability for milling extra-strong long tenon joints
  • Unique cutter geometry to eliminate tearout
  • TiCo Hi-Density Carbide to maximize bit life and material finish
  • Freud Perma-SHIELD Coating
Specs

Overall dia.: 1-11/16"
Large radius: 13/64"
Overall length: 3-3/4"
Max RPM: 16,000
Small dia.: 1/2"

SKU: 99-761
