Freud 1/4" Shank Tapered Ball Router Bits

These bits are specifically designed for CNC Makers to deliver long cutting life, maximum durability, and high quality finish. The 3 flute design provides fast chip clearance in deep cuts. Ideal for wood, wood composites, plastics (hard & soft), and aluminum for 2D and 3D carving.

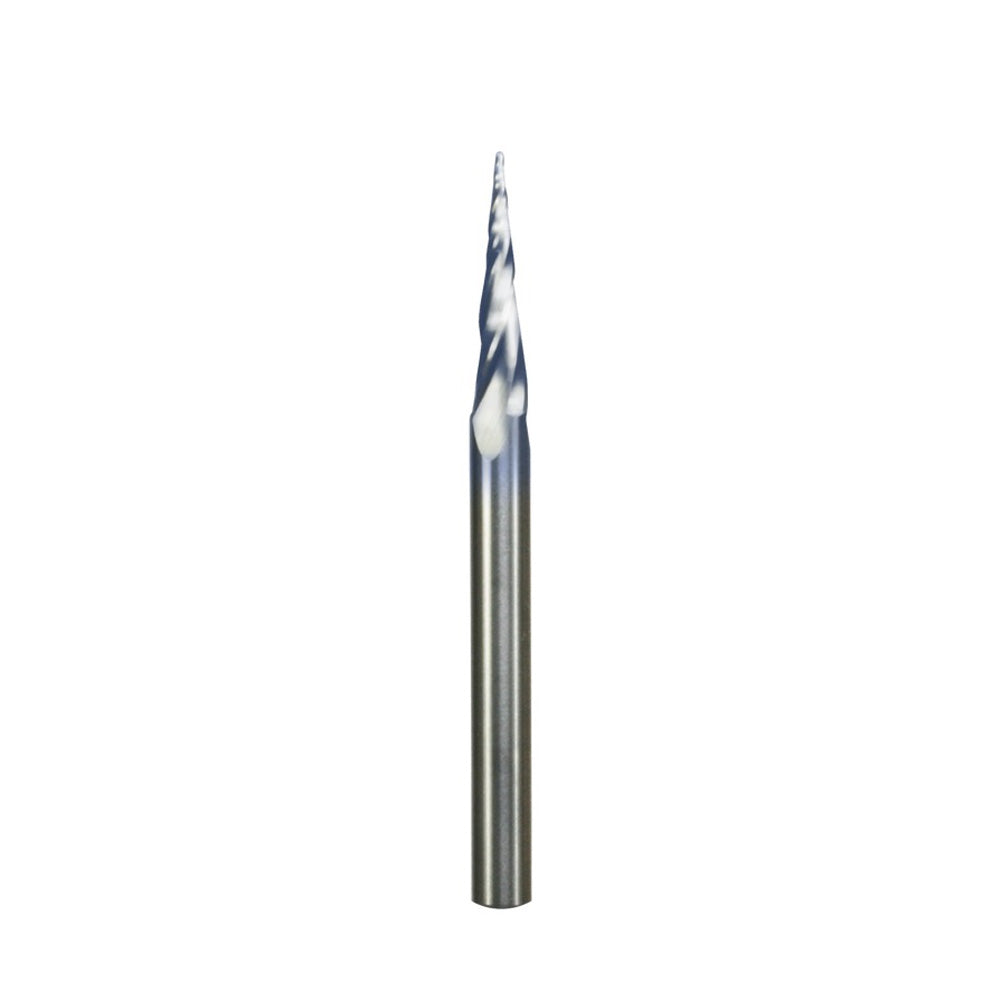

Item Number: 72-300

6.2° x 1/32" Tapered Ball Tip Solid Carbide, 1/4" Shank

• Angle: 6.2°
• Angle (included): 12.4°
• Angle (side): 6.2°
• Carbide height: 1"
• Overall dia.: 1/32"
• Overall length: 3"
• Number of cutters: 3
• Radius: 1/64"
• Max RPM: 24,000
• Shank dia.: 1/4"

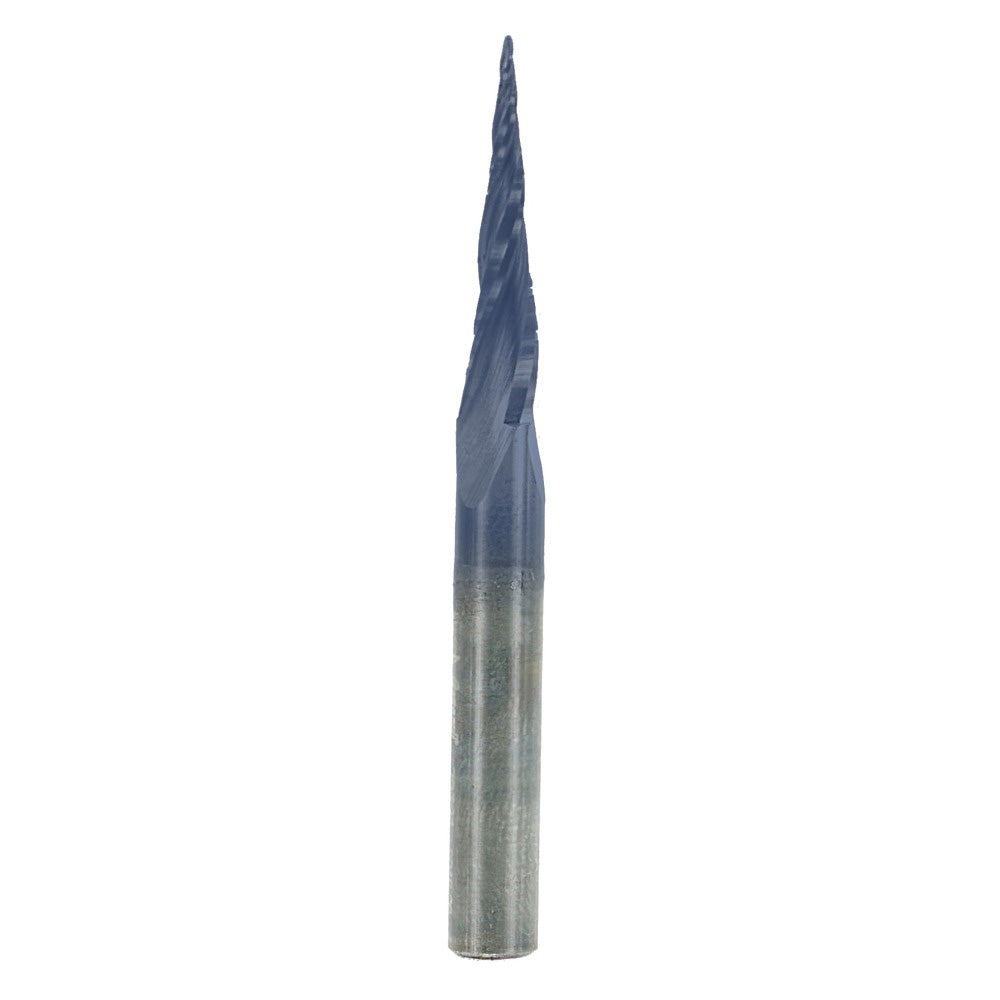

Item Number: 72-301

6.2° x 1/32" Tapered Ball Tip, Solid Carbide, 1/4" Shank

• Angle: 6.2°
• Angle (included): 12.4°
• Angle (side): 6.2°
• Carbide height: 1"
• Overall dia.: 1/32"
• Overall length: 2-1/2"
• Number of cutters: 3
• Radius: 1/64"
• Max RPM: 24,000
• Shank dia.: 1/4"

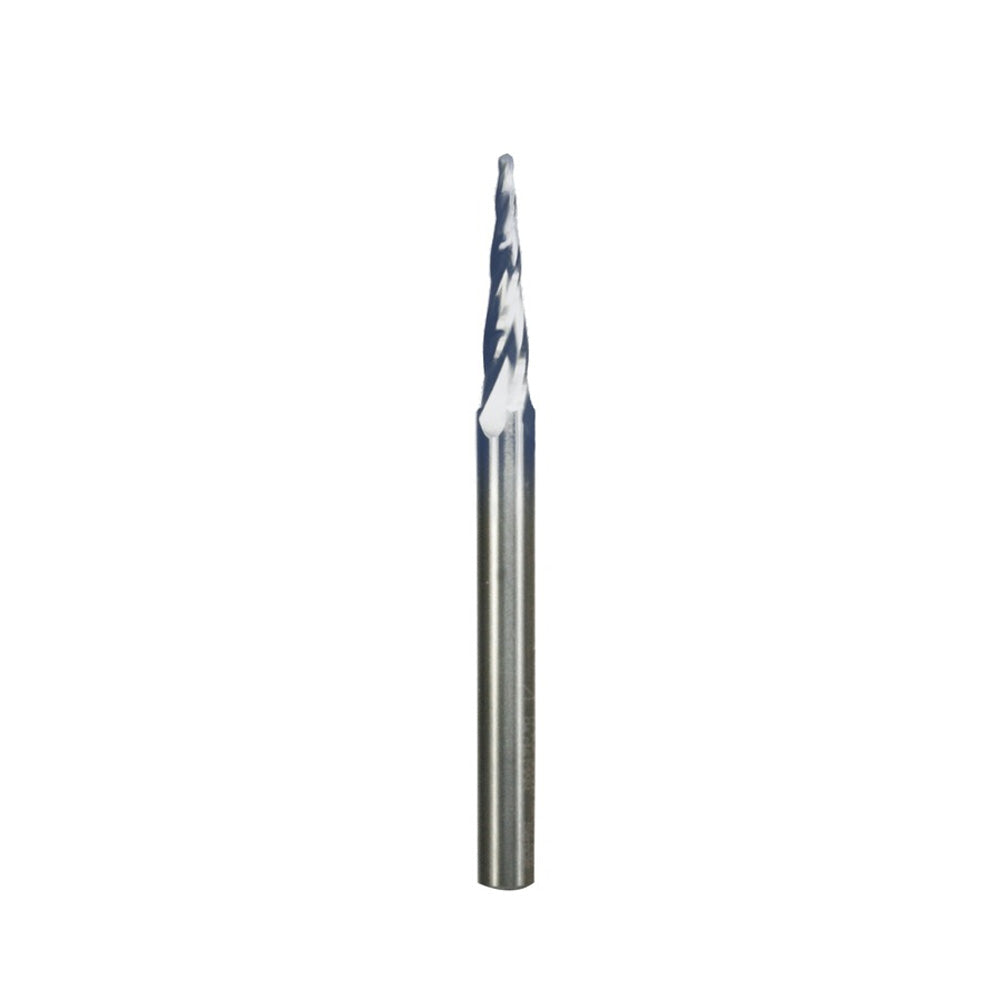

Item Number: 72-400

5.4° x 1/16" Tapered Ball Tip -Solid Carbide, 1/4" Shank

• Angle: 5.4°
• Angle (included): 10.8°
• Angle (side): 5.4°
• Carbide height: 1"
• Overall dia.: 1/16"
• Overall length: 3"
• Number of cutters: 4
• Radius: 1/32"
• Max RPM: 24,000
• Shank dia.: 1/4"

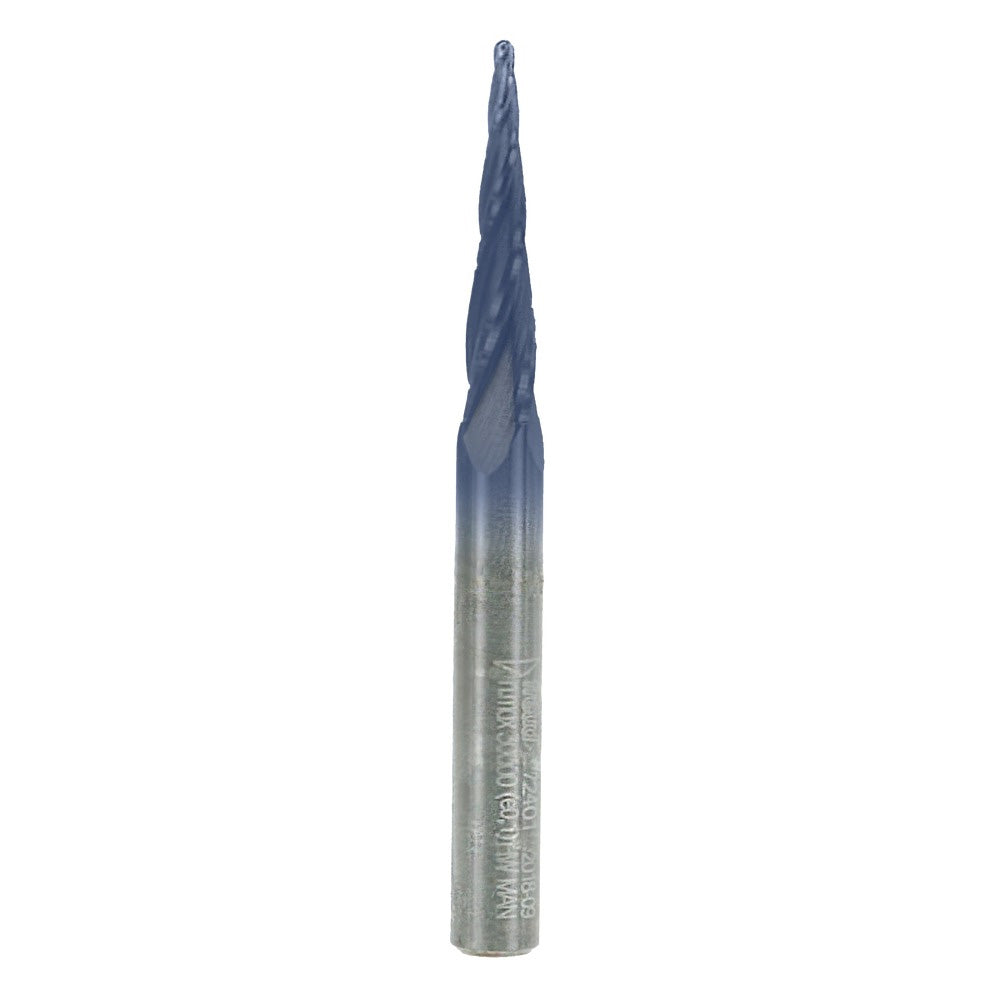

Item Number: 72-401

5.4° x 1/16" Tapered Ball Tip

• Angle: 5.4°
• Angle (included): 10.8°
• Angle (side): 5.4°
• Carbide height: 1"
• Overall dia.: 1/16"
• Overall length: 2-1/2"
• Number of cutters: 4
• Radius: 1/32"
• Max RPM: 24,000
• Shank dia.: 1/4"

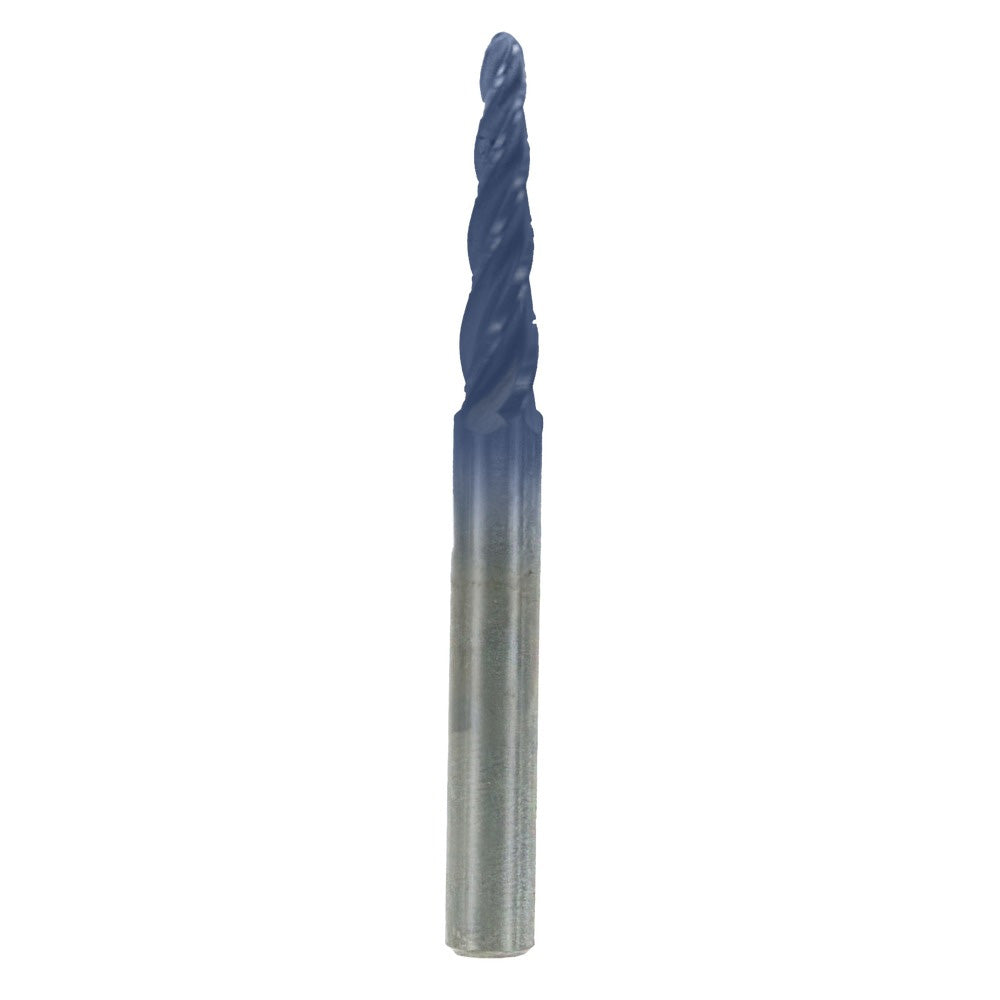

Item Number: 72-405

7° x 1/8" Tapered Ball Tip, Solid Carbide, 1/4" Shank

• Angle: 7°
• Angle (included): 7.2°
• Angle (side): 3.6°
• Carbide height: 1"
• Overall dia.: 1/8"
• Overall length: 2-1/2"
• Number of cutters: 4
• Radius: 1/16"
• Max RPM: 24,000
• Shank dia.: 1/4"
