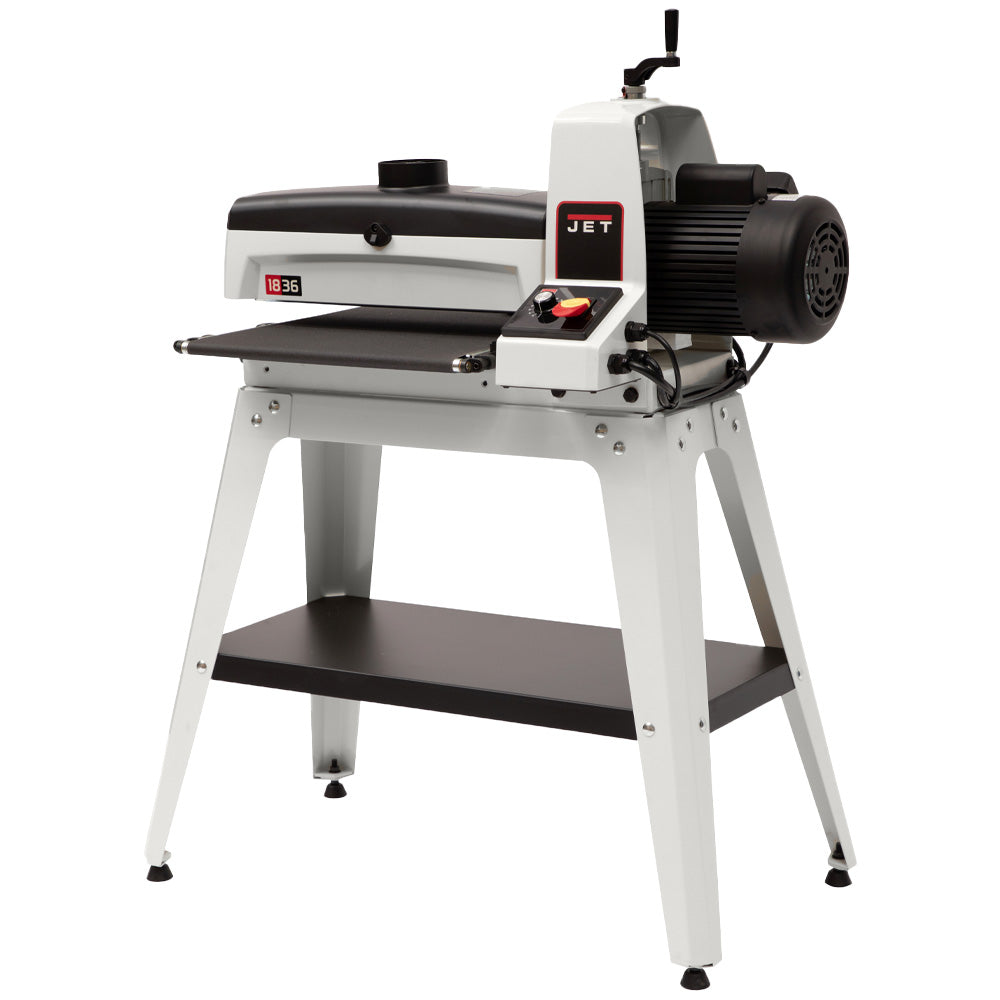

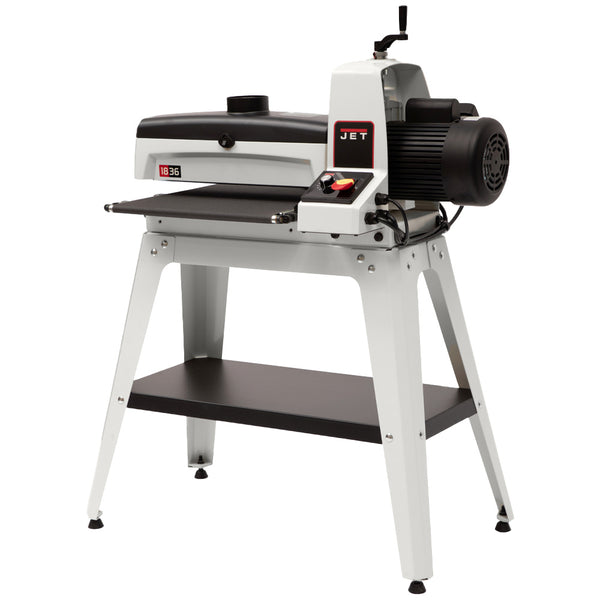

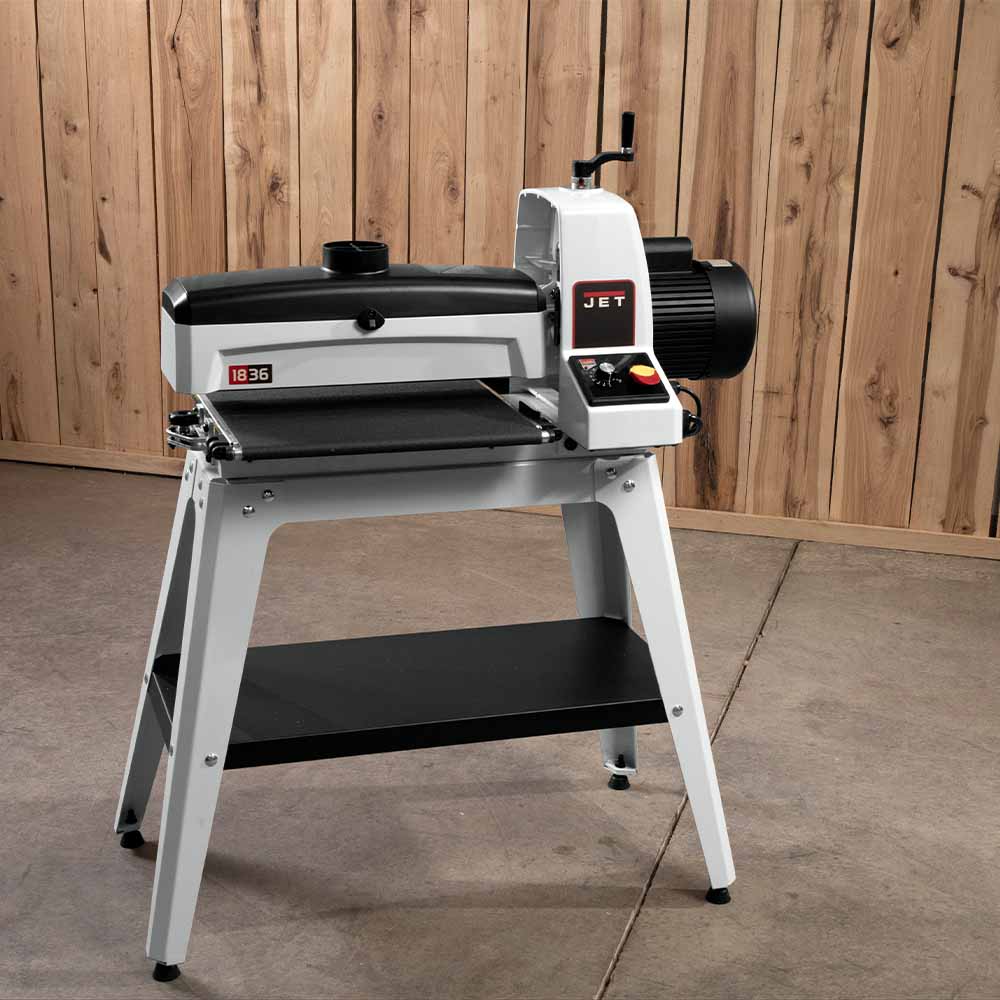

JET JWDS-1836 Drum Sander

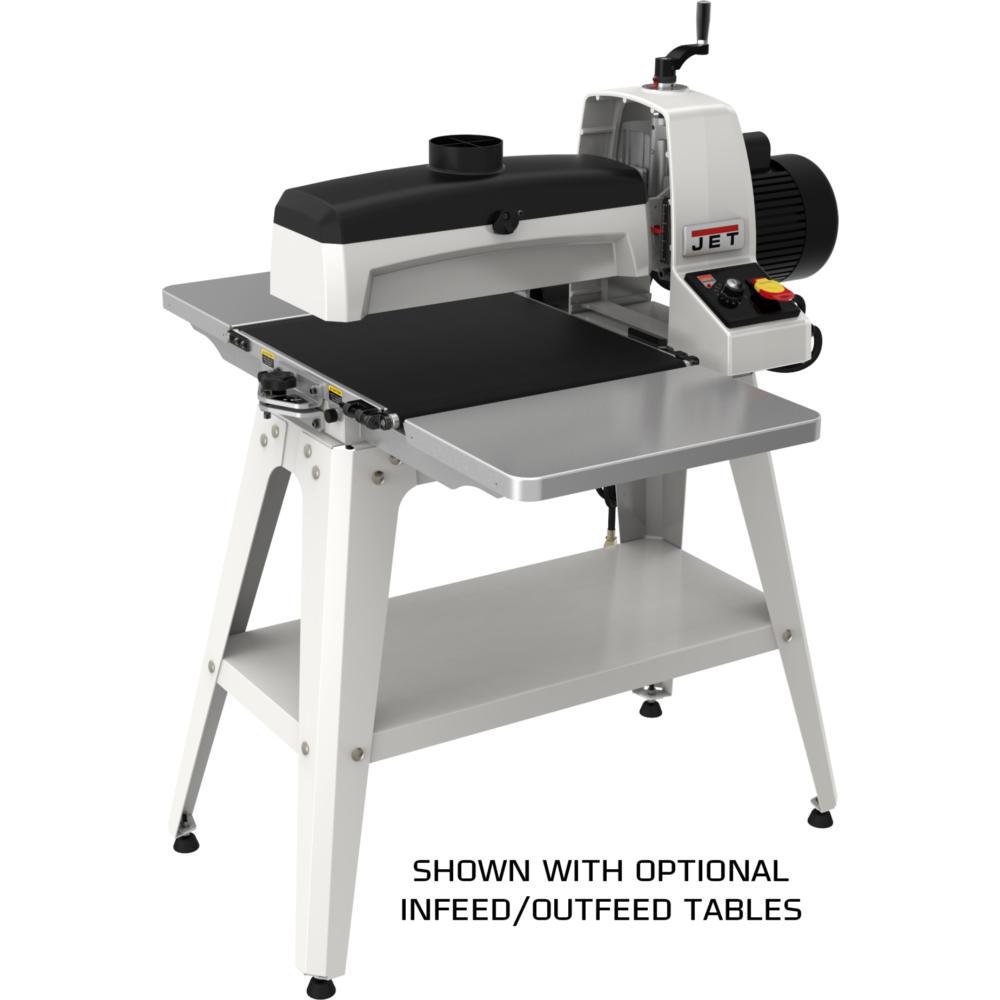

JET 18-36 Drum Sander with Optional Infeed OutFeed Tables
JET JWDS-1836 Drum Sander
JET JWDS-1836 Drum Sander
JET JWDS-1836 Drum Sander
Click image to open expanded view
JET JWDS-1836 Drum Sander
JET 18-36 Drum Sander with Optional Infeed OutFeed Tables
JET JWDS-1836 Drum Sander
JET JWDS-1836 Drum Sander
JET JWDS-1836 Drum Sander

JET JWDS-1836 Drum Sander

$ 1,699.99

Have questions? Give us a call at 260-637-0054.

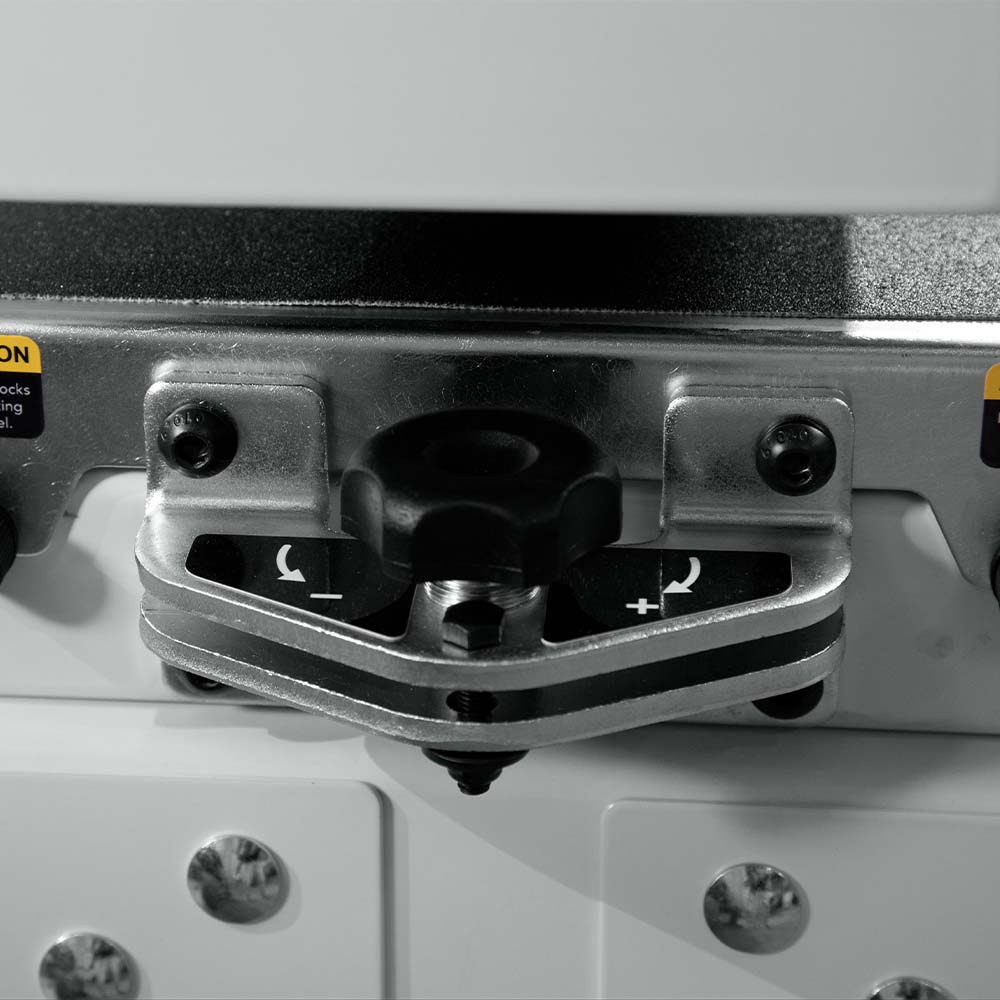

Introducing the JWDS-1836 Drum Sander from JET. The 1.75 horsepower motor delivers plenty of power to handle just about any sanding task. The innovative tool-less parallelism system keeps adjustments simple. The worktable is easily positioned by a turn of the parallelism dial.

The variable-speed rate permits you to choose the optimal feed rate for a full range of projects, while the Sandsmart feature continuously monitors the load on the drum motor to prevent an overload situation. The mirrored design of the dust hood optimizes dust collection preventing chips and dust from getting between your work-piece and the finish. The JWDS-1836 Drum Sander delivers everything you need for an effortless finish.

JET warrants every product they sell against manufacturers’ defects. All JET Woodworking Machinery carry a 5-Year Warranty from date of purchase. Woodworking products with a 5-Year Warranty that are used for commercial or industrial purposes default to a 2-Year Warranty. Warranties are subject to JET's terms and conditions.

Features
  • Self-Cooling Drum
  • Drum is easily removable
  • Drum utilizes sealed and permanently lubricated ball bearings for longer life
  • Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate

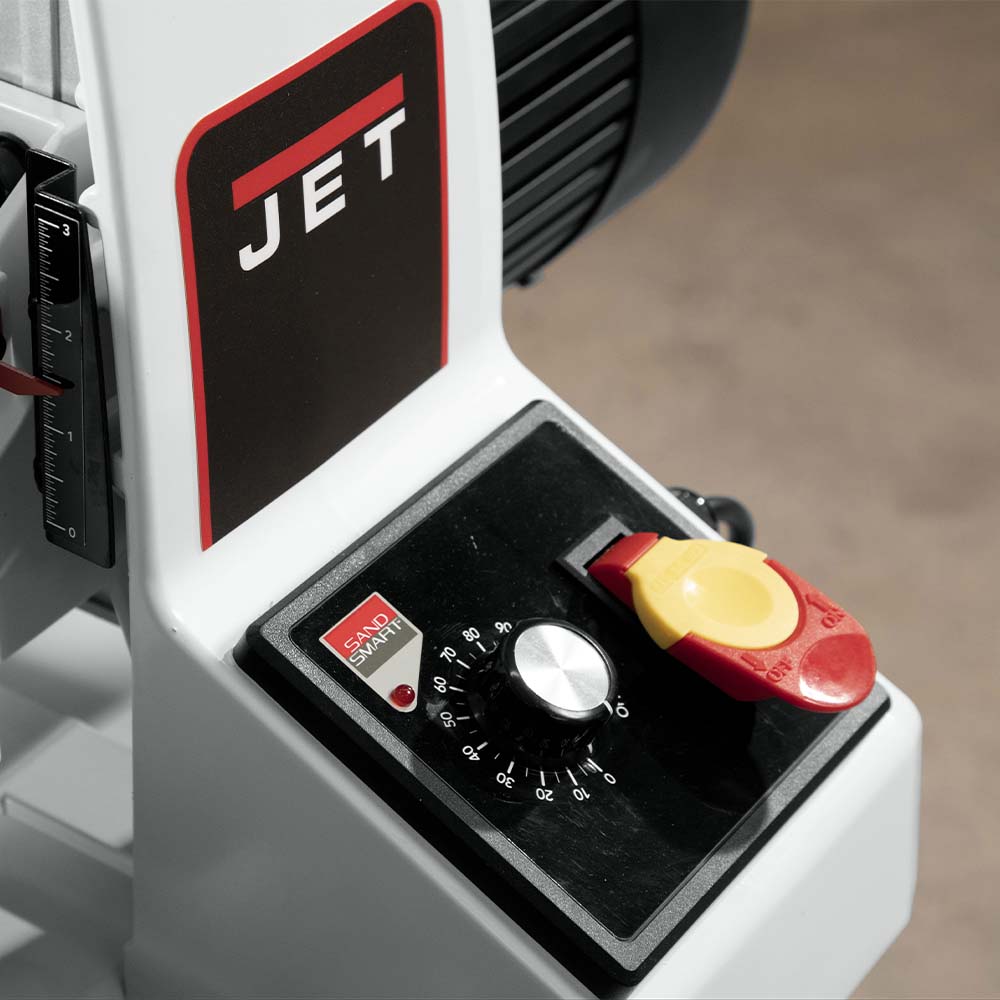

  • Integrated on/off switch and variable speed control knob are conveniently located
  • Precision-flattened reinforced steel conveyor bed
  • Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage
  • Separate feed and drum motors provide independent control, optimizing the performance of the sander
  • Stand features a 20" x 37" footprint to increase stability and has a storage shelf and pre-drilled holes for casters
  • The relative depth scale on the handwheel allows the user to reset and measure the depth for every project
Specs

Drum Bearing Diameter: 1"
Drum Diameter: 5"
Dust Collection Minimum CFM Required (CFM): 500
Dust Port Outside Diameter: 4"
Maximum Board Thickness: 3"
Minimum Board Length: 2-3/8"
Minimum Board Thickness: 1/32"
Motor Amps: 15
Motor Power (HP): 1-3/4
Number of Sanding Drums: 1
Recommended Circuit Size (Amps.): 20
Weight: 164 lbs.

Video

SKU: 723530K
