$ 3,899.99

Have questions? Give us a call at 260-637-0054.

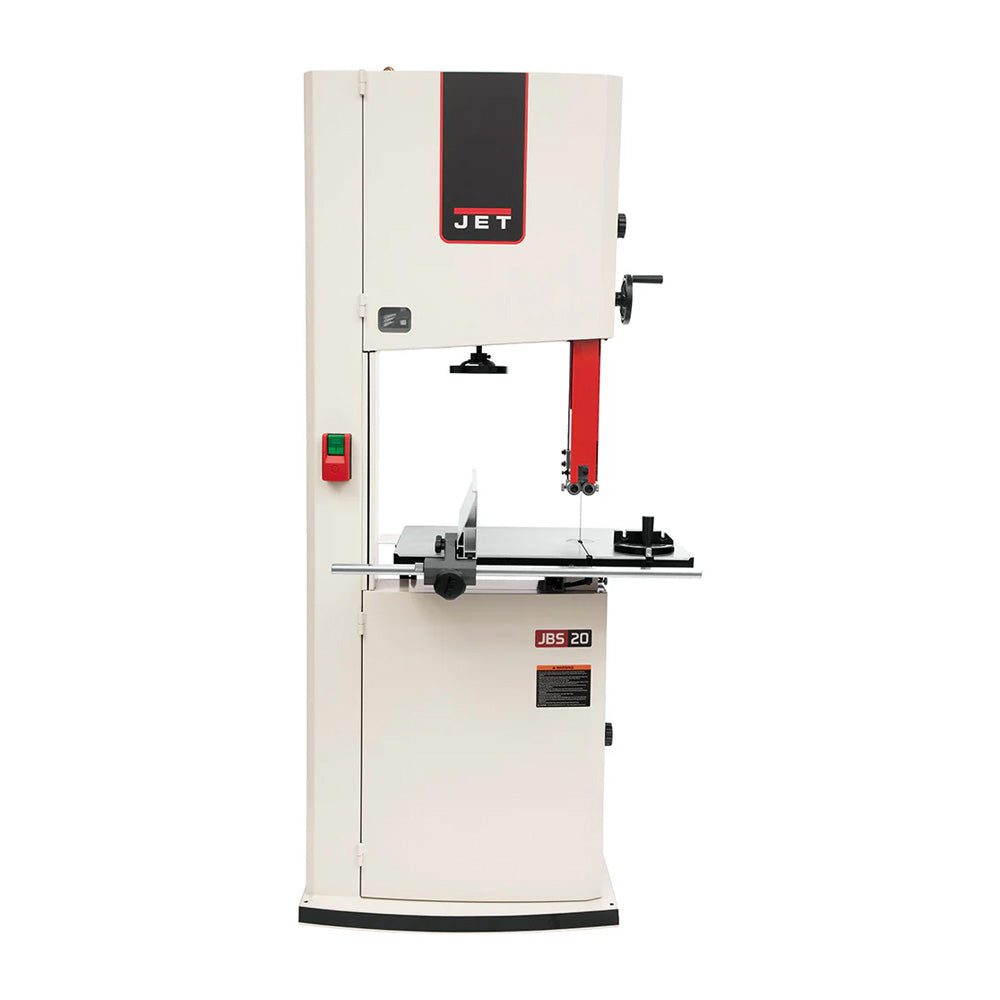

Designed to perform, the JET 20” bandsaw delivers more re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement.

The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. The JET 20” steel frame bandsaw is engineered to build great projects through superior performance.

JET warrants every product they sell against manufacturers’ defects. All JET Woodworking Machinery carry a 5-Year Warranty from date of purchase. Woodworking products with a 5-Year Warranty that are used for commercial or industrial purposes default to a 2-Year Warranty. Warranties are subject to JET's terms and conditions.

Also available with a 5hp motor.

Features
  • Blade tracking window provides clear view of blade during tracking
  • Cast iron handwheels and ergonomic-designed knobs make adjustments smooth and easy
  • Cast iron trunnion for maximum support and stability
  • Conveniently located dual 4" dust collection ports catch dust and chips at the source
  • Easy-to-read blade tension scale can be viewed through upper door window
  • Heavy duty tensioning with quick release and three settings: full tension, partial tension, and full release
  • Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
  • Round table insert features leveling screws for precise adjustment
  • Single knob adjustment simplifies the blade tracking process
  • Table tilts 5° left and 45° right to accommodate a wide variety of cuts
Specs

Band Saw Size/Wheel Diameter: 20-1/4"
Cutting Capacity Height: 16"
Cutting Capacity Width: 20"
Dust Collection Minimum CFM Required (CFM): 400
Minimum Saw Blade Width: 1/8"
Motor Amps: 12
Motor Power (HP): 3hp
Recommended Circuit Size (Amps.): 30
Table Height from Floor: 37"
Table Size (LxW): 27-1/4" x 20" x 1-5/8"

Video

SKU: JT9-714800
