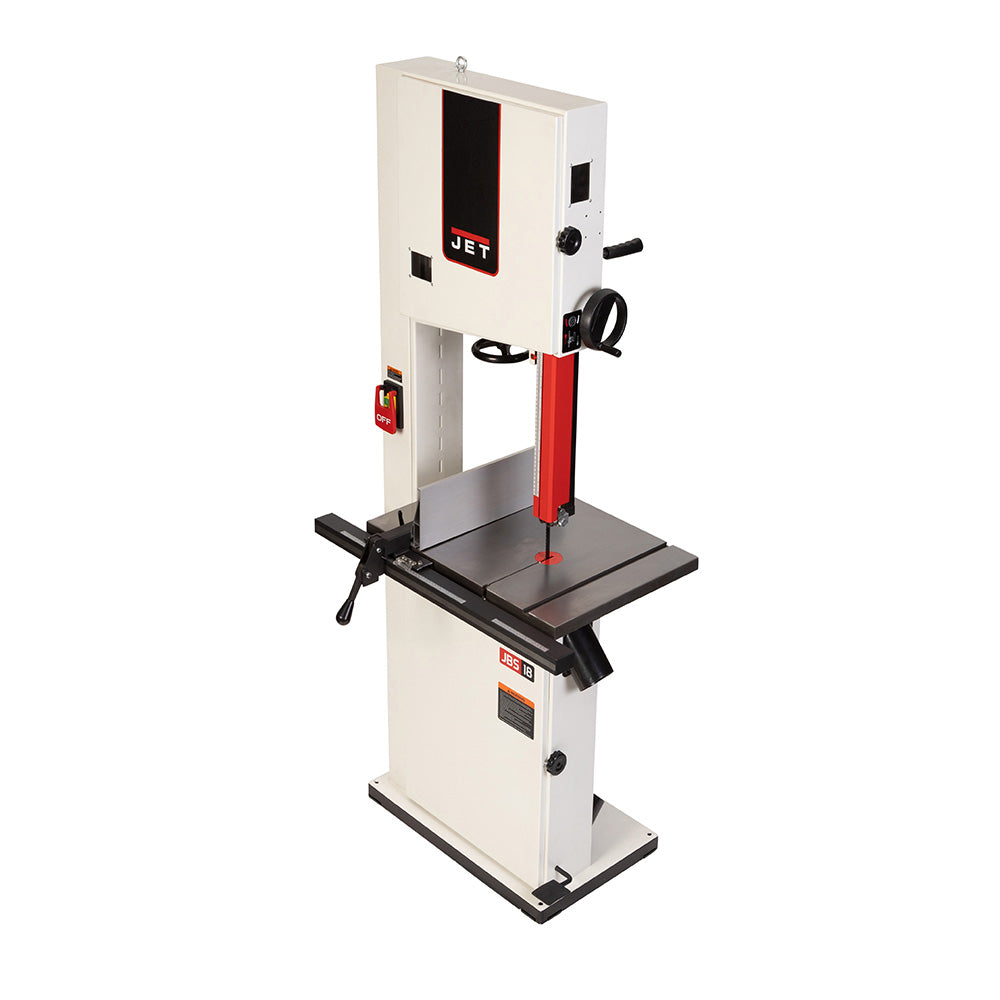

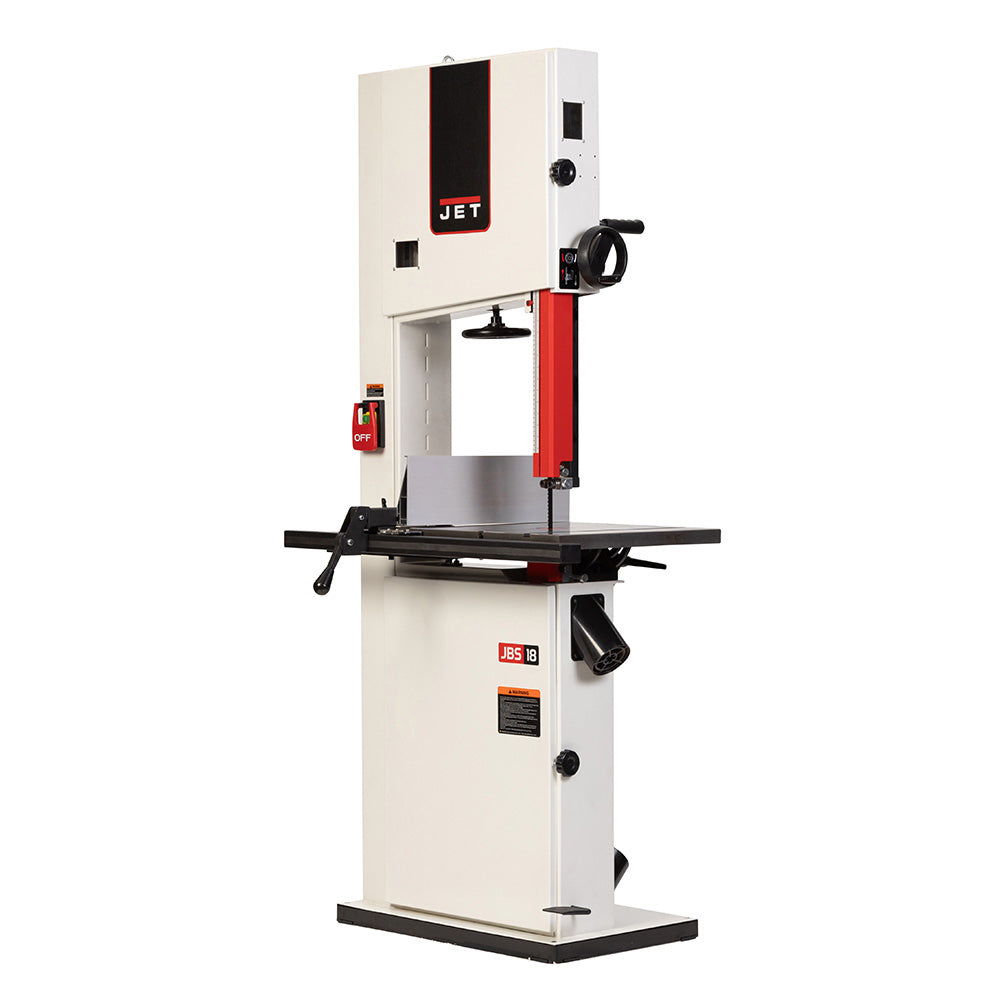

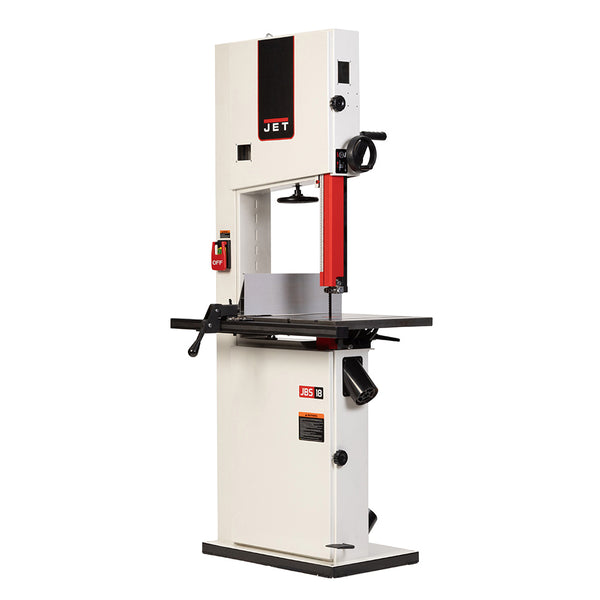

JET JWBS-18SFX 18" Band Saw 1.75hp, 1PH, 115V
- Price
- $ 2,699
Have questions? Give us a call at 260-637-0054.
The JET JWBS-18SFX is a versatile and reliable 18" band saw designed to meet the needs of both amateur and professional woodworkers. The most notable feature is a 1.75 horsepower motor powered by a standard 115V outlet. With the JWBS-18SFX, you get 16" resawing capacity and 18" throat without the need to rewire for 230V.
This band saw shares many of the premium features found in the 3hp model, including the safety foot brake for blade stoppage, ergonomically-designed knobs for smooth adjustments, and a clear view window for precise blade tracking. Its dual 4" dust collection ports ensure efficient removal of sawdust and chips, promoting a cleaner working environment.
The table can tilt from 5° left to 45° right, allowing for versatile cutting angles. With a sturdy cast iron trunnion for maximum stability and a heavy-duty fence system, the JET JWBS-18SFX is designed to deliver consistent and accurate cuts, making it an excellent addition to any woodworking shop.
Note: Blades sold separately.
Features

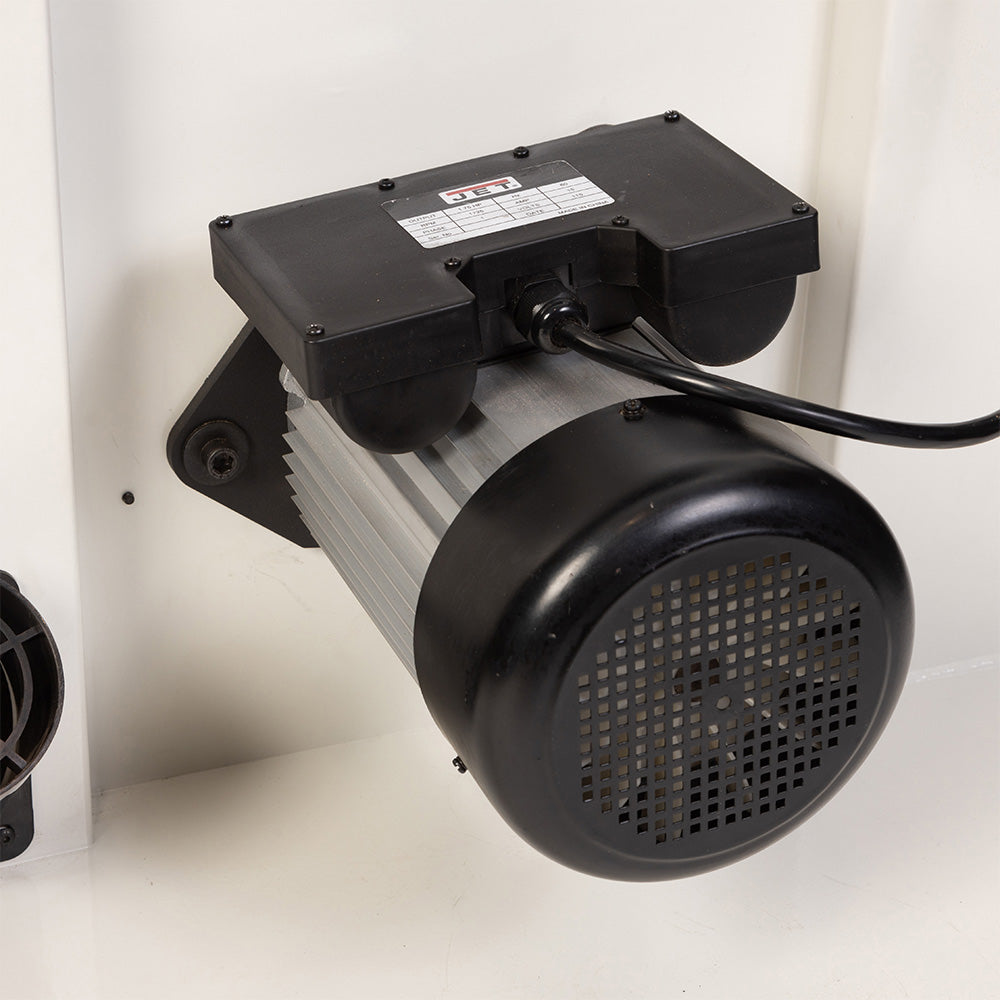

- Efficient 1.75hp motor: Provides ample power for a variety of woodworking tasks, ideal for home and professional use

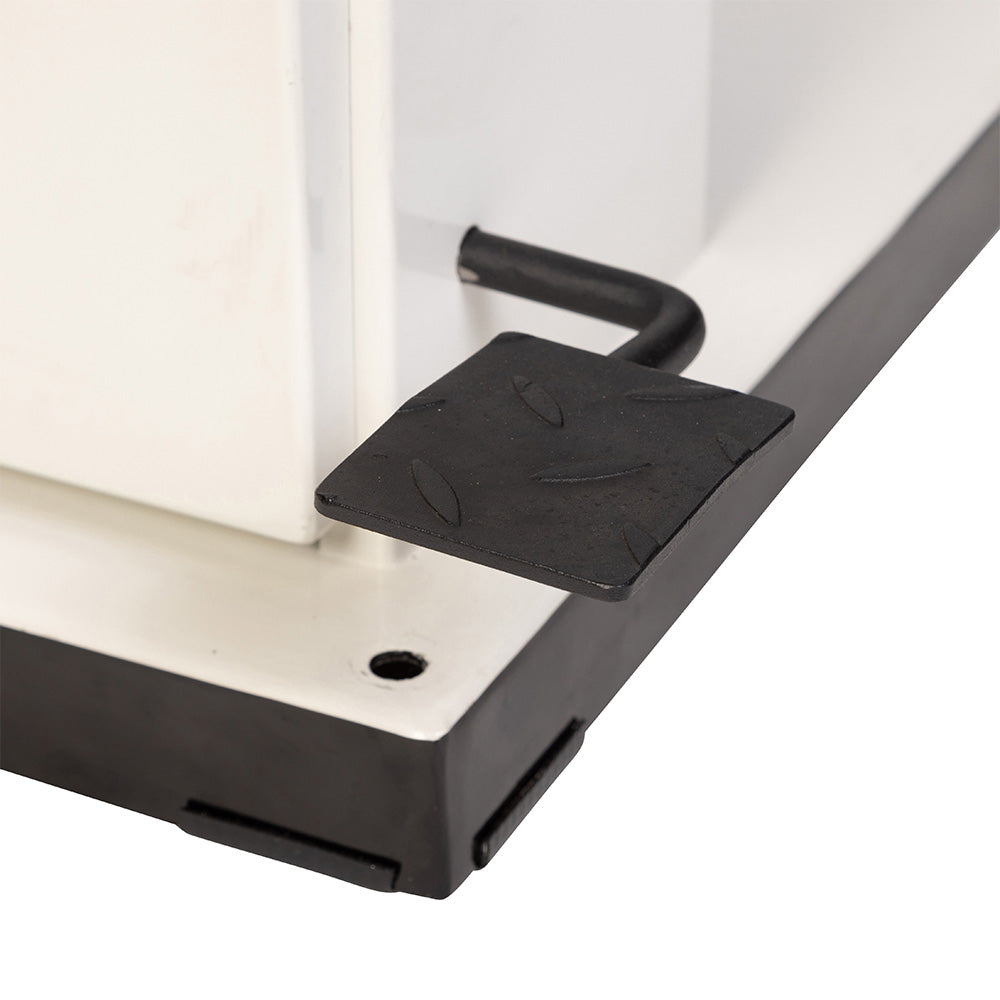

- Foot brake safety: Blade stoppage for enhanced user safety and accident prevention

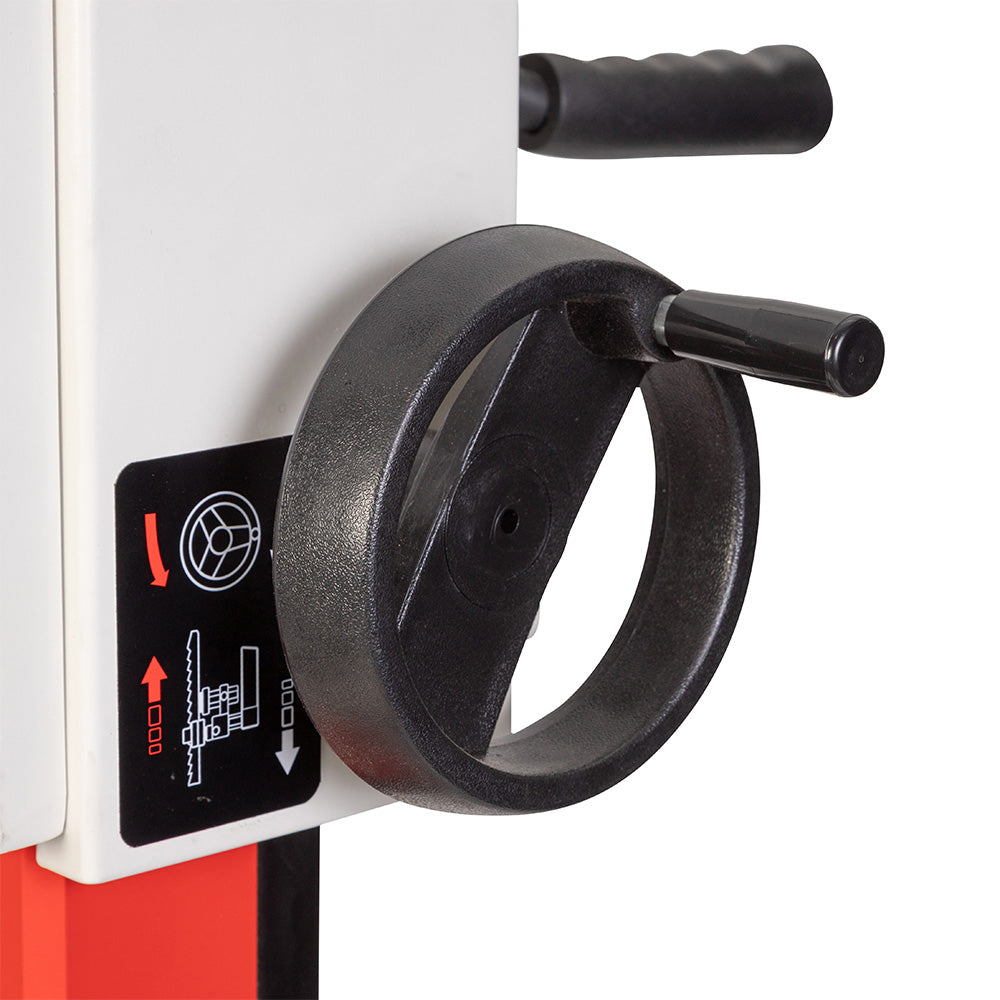

- Ergonomic adjustments: User-friendly knobs and handwheels ensure smooth and precise adjustments

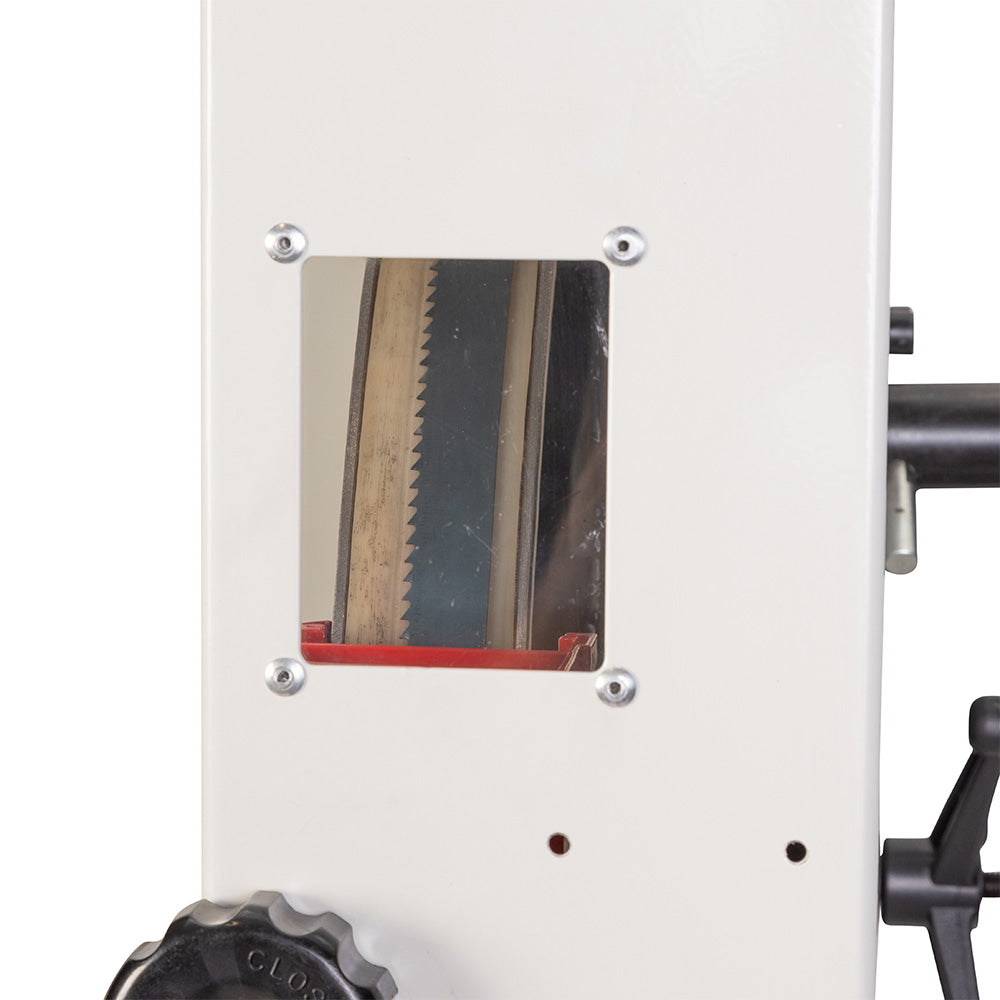

- Clear Blade Tracking: Transparent window for easy and accurate blade alignment

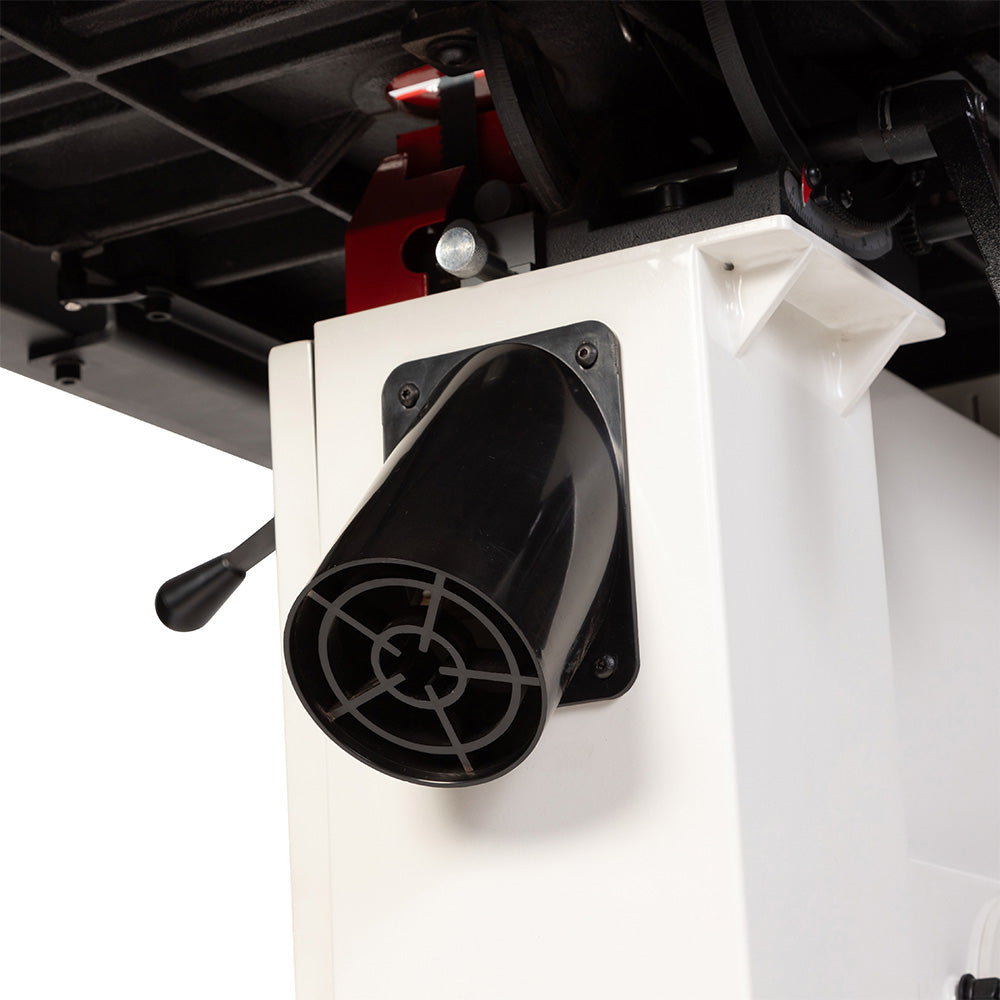

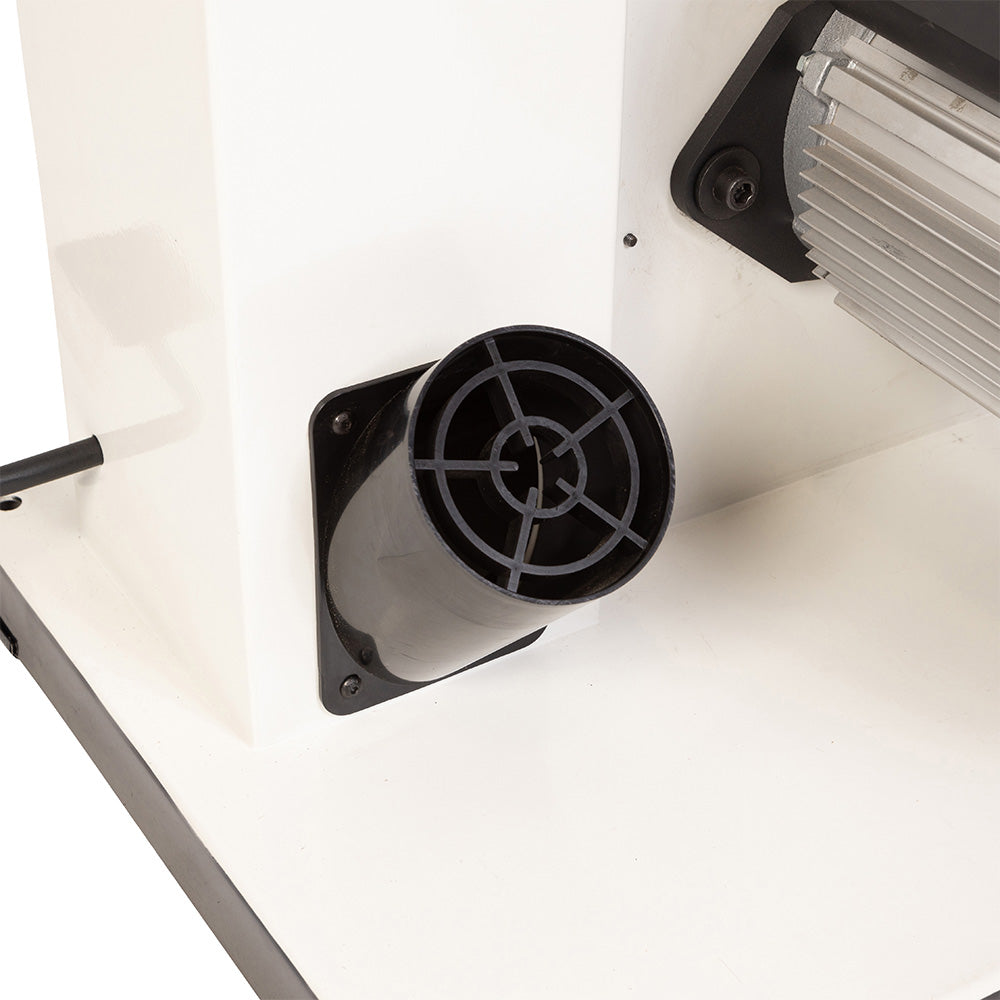

- Dual 4" Dust Ports: Efficiently captures dust and chips at the source, maintaining a clean work environment

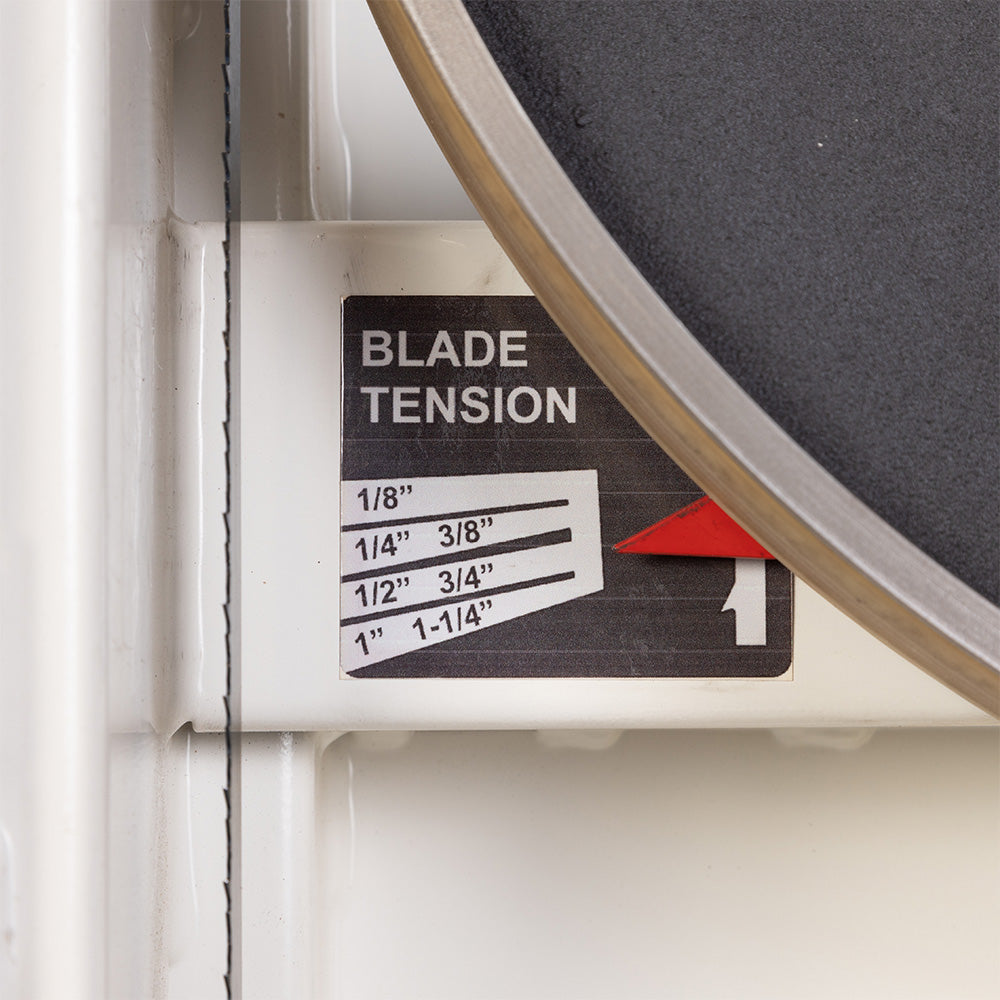

- Quick Release Tensioning: Heavy-duty system with an easy-to-read scale for fast and efficient blade tension adjustments
- Optimal Blade Support: Rigid, four-sided guide post with rack and pinion adjustment for superior blade stability

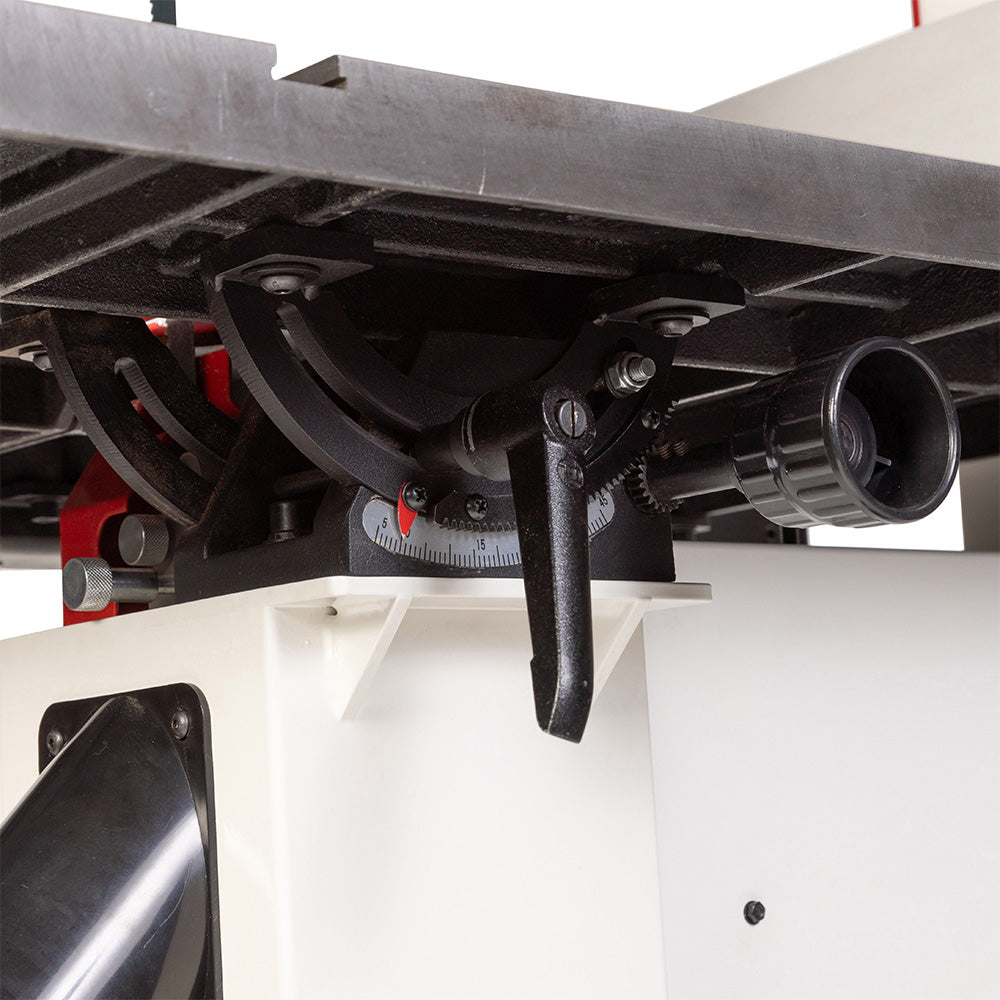

- Stable Cast Iron Trunnion: Provides maximum support and stability during operation
- Versatile Cutting Angles: Table tilts 5° left and 45° right to accommodate a wide variety of cuts
Specs
Blade wheel dia.: 18-1/2"
Wheel speed: 6,400 RPM
Blade length: 150"
Max. saw blade width: 1-1/4"
Min. saw blade width: 1/8"
Cutting capacity height: 16"
Cutting capacity width: 18"
Dust port dia.: 4"
Dust collection: 600 CFM
Table size (L x W): 27-1/4" x 20"
Table tilt (left/right): 5° / 45°
Motor voltage: 115V
Motor power: 1.75hp
Motor phase: Single
Recommended circuit size: 20 Amps
Motor Amps: 12
Table height from floor: 37"
Net weight: 383 lbs.
Overall dimensions (L x W x H): 31-7/8" x 38" x 79-1/4"
Table T-slot: 3/4"
Gross weight: 470 lbs.
