JLT Mini Pod Press

Contact the staff at OakTree Supply for your custom quote today! Email sales@oaktreesupplies.com or call us at 260-637-0054

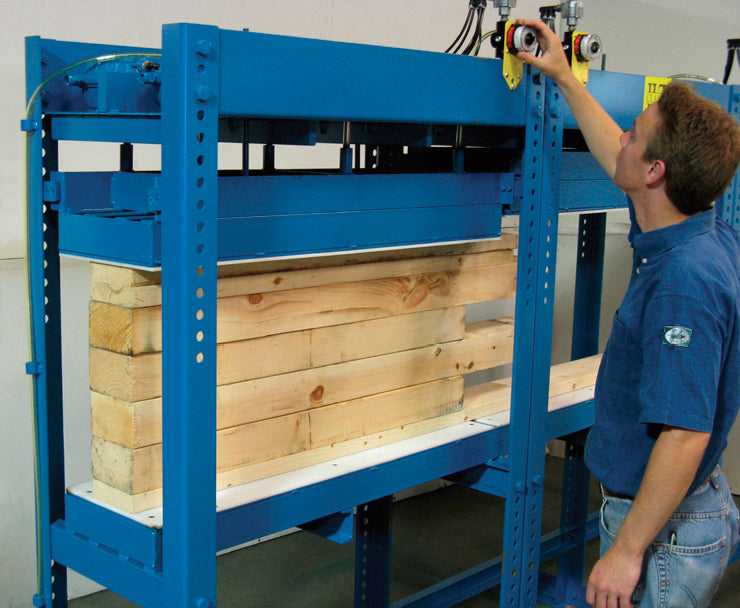

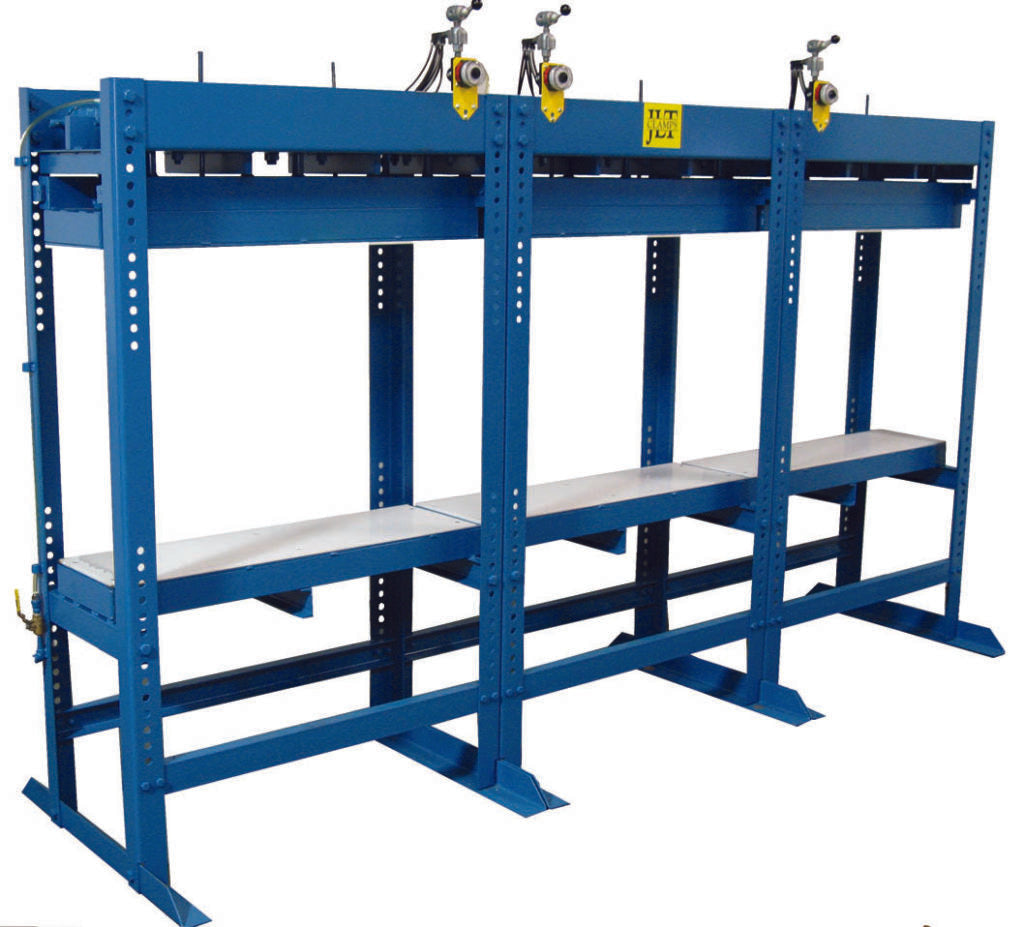

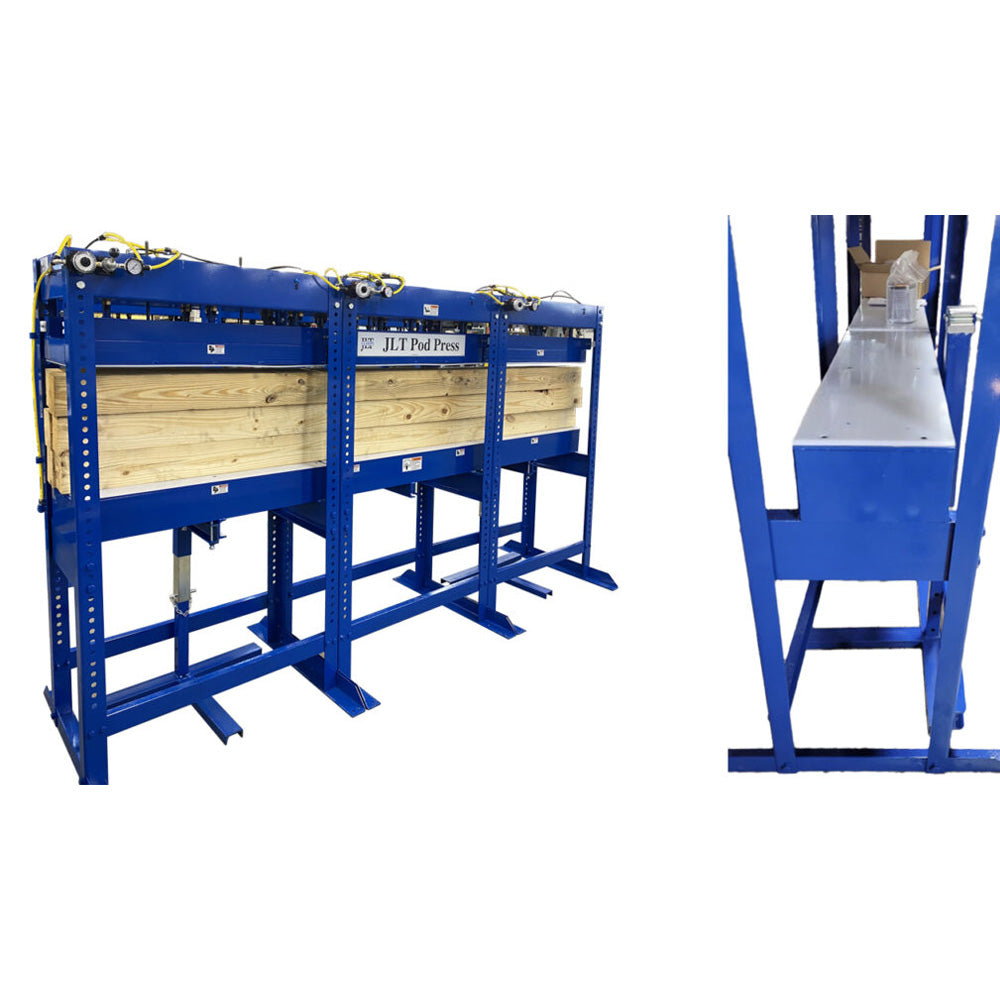

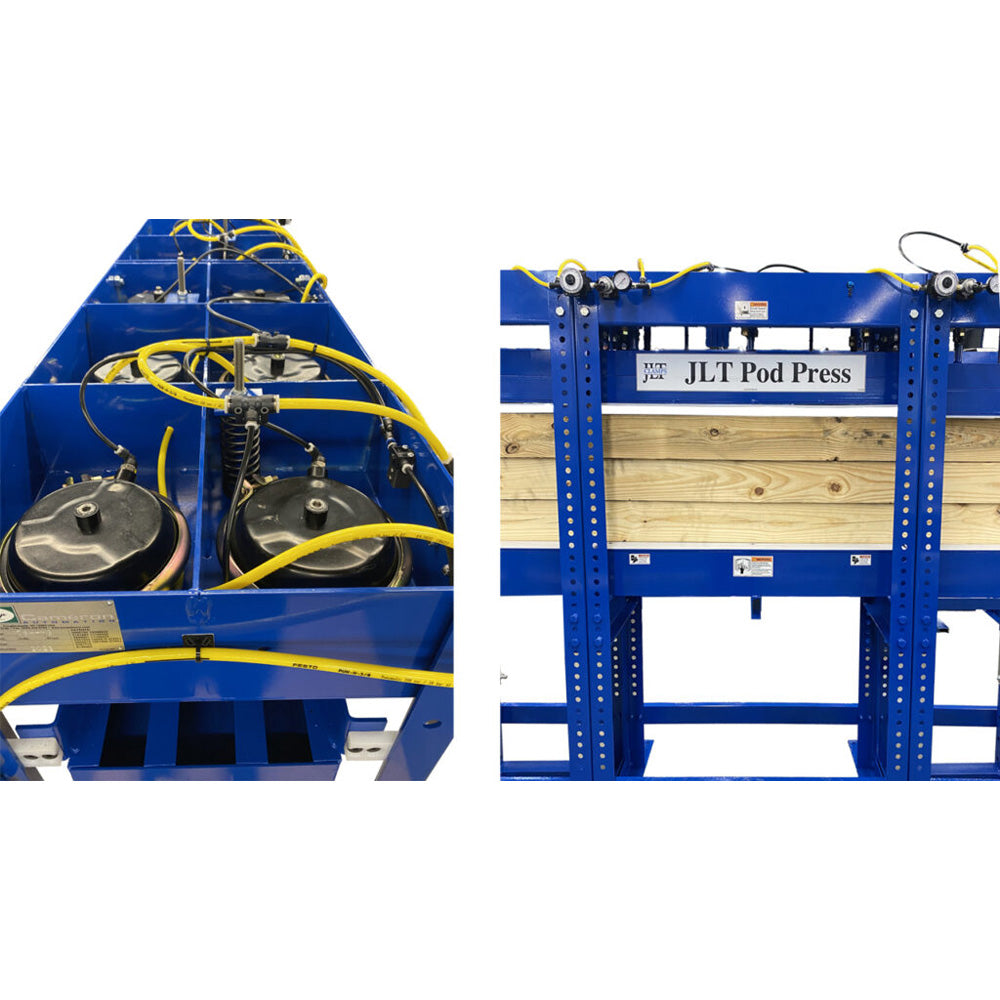

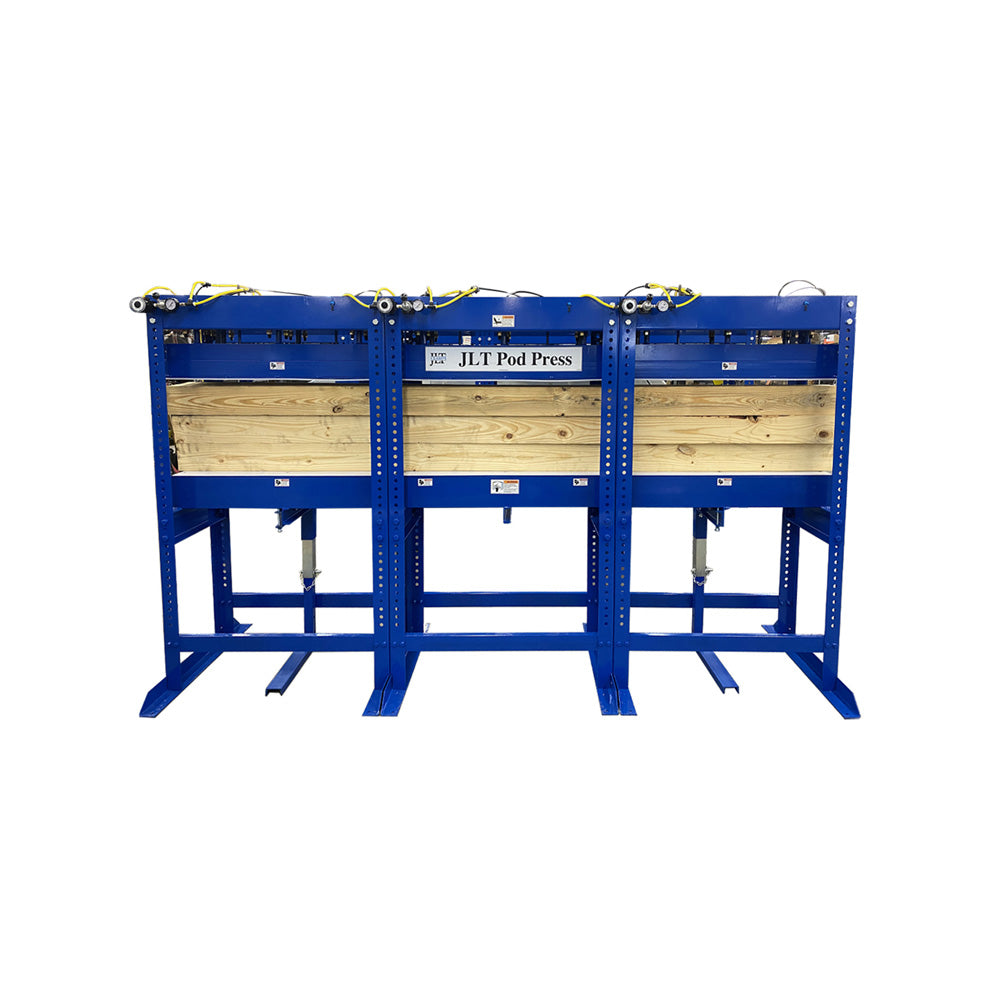

The Mini Pod Press is a low-cost high-pressure cold press laminating machine. It features individually controlled top platens and a bottom platen adjustable at 1 1/2″ increments to a maximum opening of 40″. The work area is 12″ wide and machines are currently offered in lengths of 3-1/2′, 7′ or 10-1/2′.

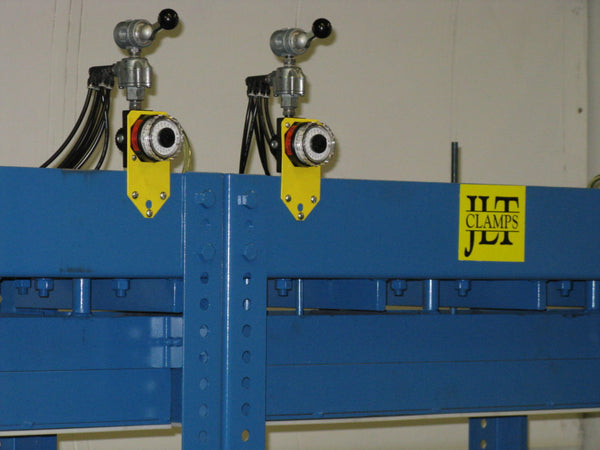

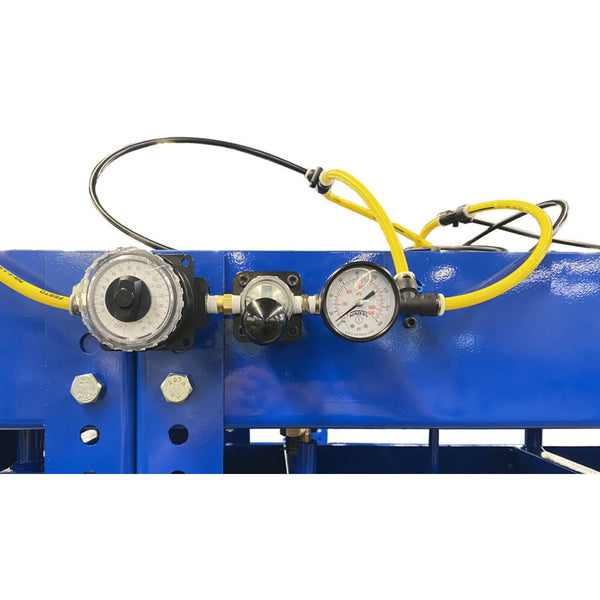

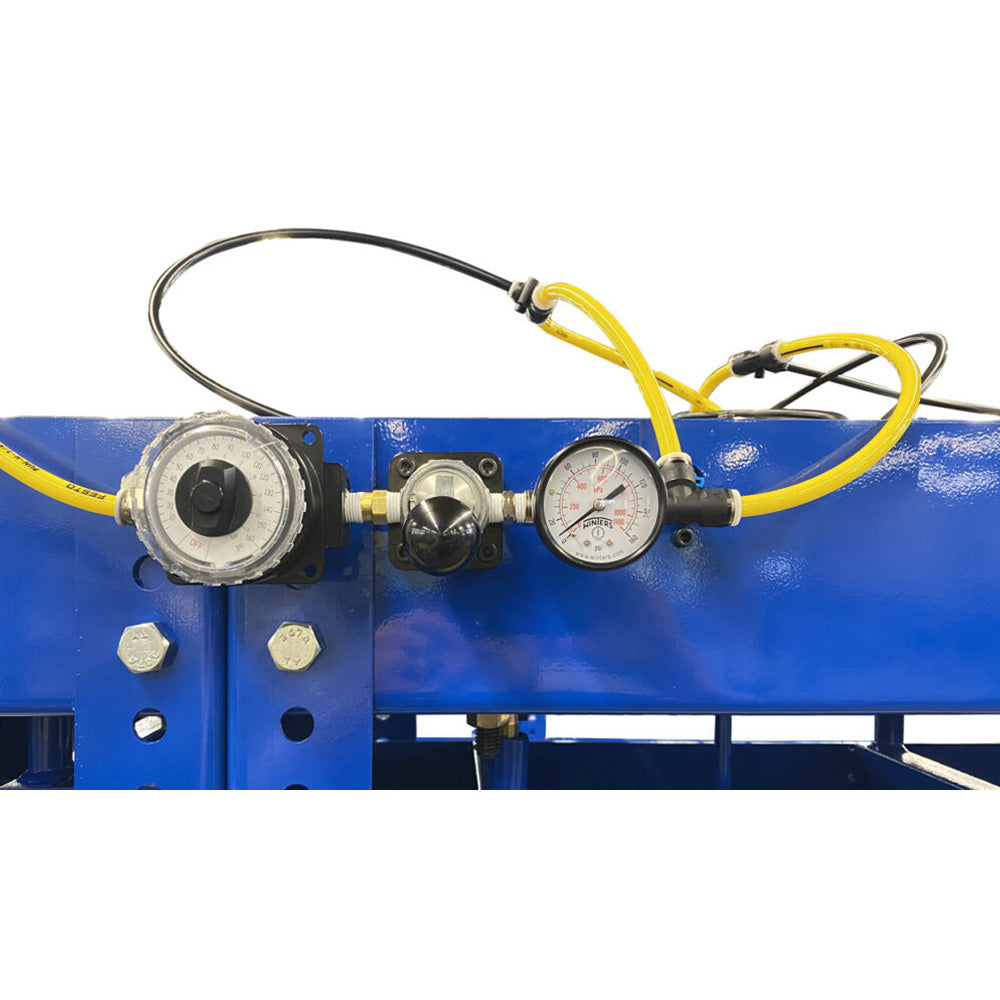

Air pressure and alignment are carefully controlled via dial regulators on each individual platen and air can be locked in for any length of time through the use of a hand-operated level valve.

Features:

• Material Capacity: 12″W x 42″L [7’L] [10-1/2’L] x 40″H
• Adjustable Opening: 0″ – 40″
• Maximum Pressure: 10 Tons Per 3-1/2′ Section @ 110 psi
• Dial Regulators for Fine Control
• Pyramid Different Size Glue Ups
• Modular Design
