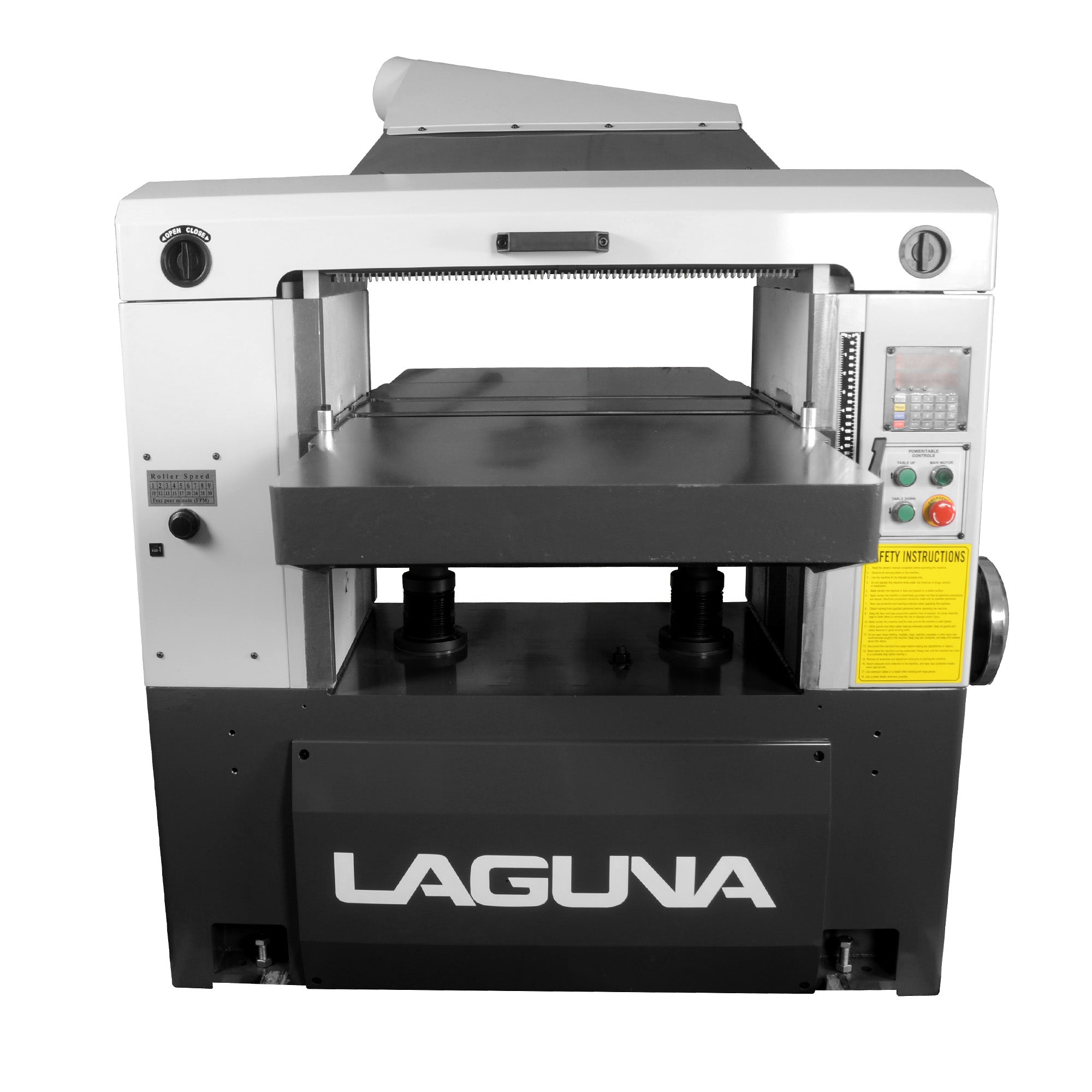

Laguna 25" 15HP Industrial Planer (3PH)

Price
$ 14,999

Have questions? Give us a call at 260-637-0054.

Oversized bearing housings ensure ultra-smooth, quiet performance and long life. Most thickness- planers in this class have only 2 or 4 speeds and it seems they never have the right speed for the job. The Laguna 25 comes standard with Electronic Variable Speed meaning you will ALWAYS have the exact speed required.

Another feature not normally found in this class is the standard PLC control which allows you to simply enter in the desired height and the bed moves automatically to that setting. You 'll never want to go back to turning a hand wheel to find your thickness (or even holding down a button for that matter!). The PLC in the Laguna Industrial 25 planer also has automatic backlash compensation ensuring exact thicknesses.

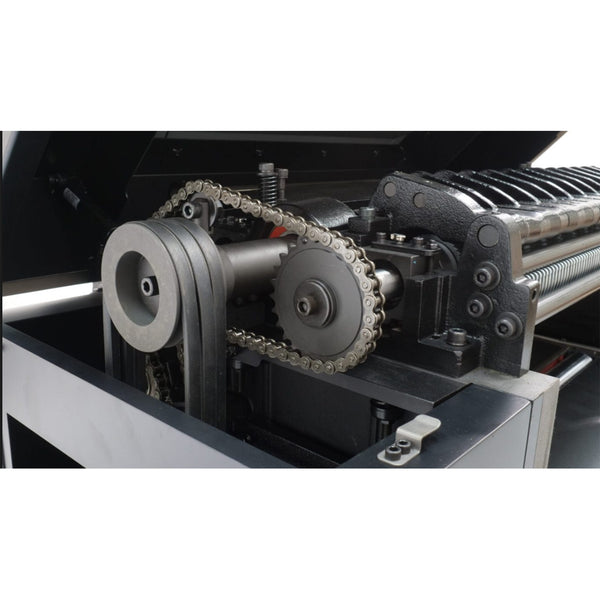

Of course, no world-class planer would be complete without the incredible ShearTec II cutter head, which boasts 6 rows of 4 sided German carbide inserts for a total of 174 knives!

All Laguna Tools woodworking machinery carry a 2-year warranty. Must register machine within 30 days of purchase.

Features
  • DRO (Digital Read Out)
  • PLC Programmable Height Setting
  • Push-Button Height Setting
  • Manual Back-Up Height Setting
  • Adjustable Retractable Table Rollers
Specs

Motor, Cutterhead: 15HP 3 Phase, 220 Volt
Motor, Feed: 3/4HP, DC Electronically Variable speed
Motor, Vertical: 3/4HP, AC
Max. Stock Width: 25"
Max. Stock Thickness: 9"
Min. Stock Thickness: 1/8"
Min. Stock Length: 10"
Max. Stock Removal 1"-12" Wide: 6 mm/1/4
Max. Stock Removal 12-25 Wide: 3 mm/1/8
Electronic Variable Speed: 10-30 FPM
Table Size: 52" L x 26" W (including extensions)
ShearTecII Cutterhead: 6 row 174 Insert Knives
Cutter-head Diameter: 3-1/2"
Cutter-head Speed: 4,800 RPM
Knives: 174 ShearTec II, 4-sided, Solid Carbide
Segmented In-feed Roller: 3
2 Polished Out-feed Rollers: 3
In/Out-Feed Cast Extensions Included: 10" L X 26" W
Dust ports: 5
Weight (Net/Ship): 1,672/1,848 Lbs.
