Laguna LT18HD Band Saw 5hp, 220V
- Price
- $ 5,499
Have questions? Give us a call at 260-637-0054.

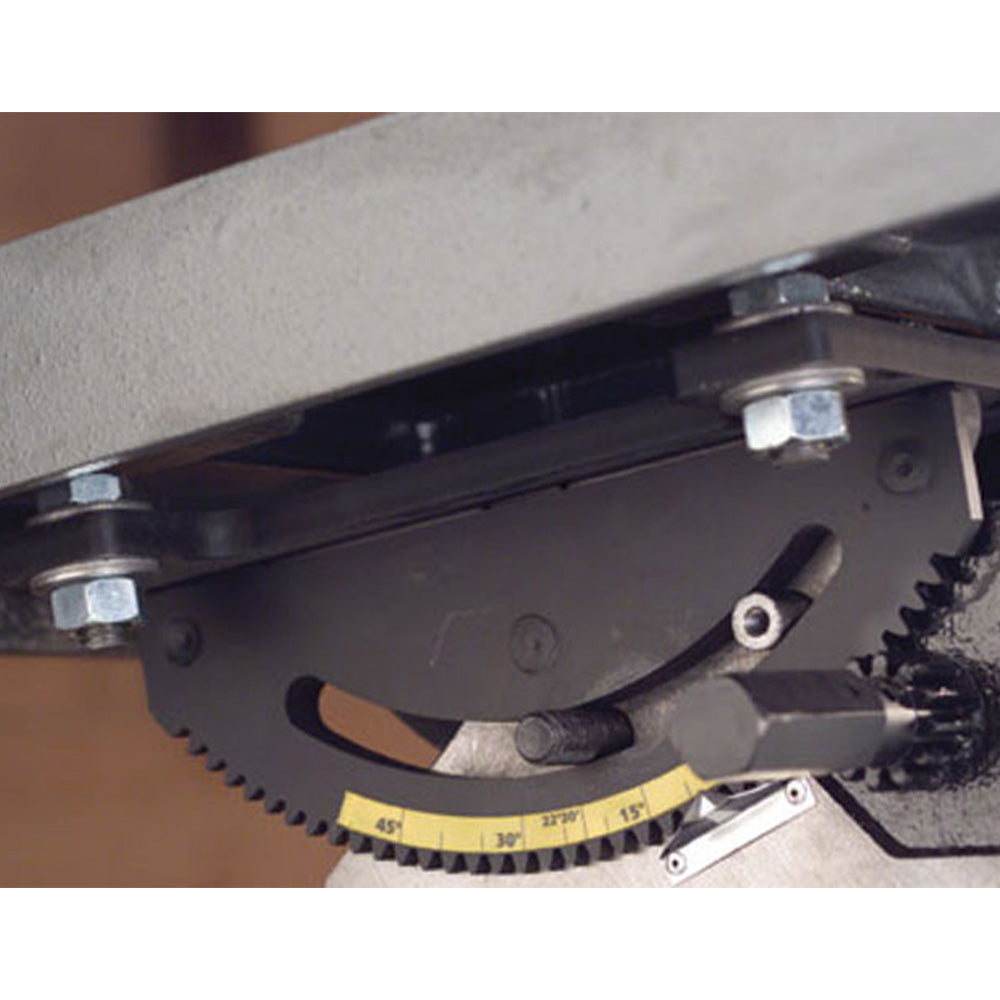

The Laguna Tools LT 18 bandsaw is the perfect step-up from the legendary LT16 HD. The larger table and increased resaw height and throat capacity open additional opportunities to show off your woodworking skills. This European saw features a 5 HP Leeson motor to provide plenty of power to match the 18.5 resaw height. The standard high/low resaw fence, geared trunions, and EZ tension indicator make operation a breeze. Our award-winning Laguna Guide system features thumb screws for quick adjustment and precision control.

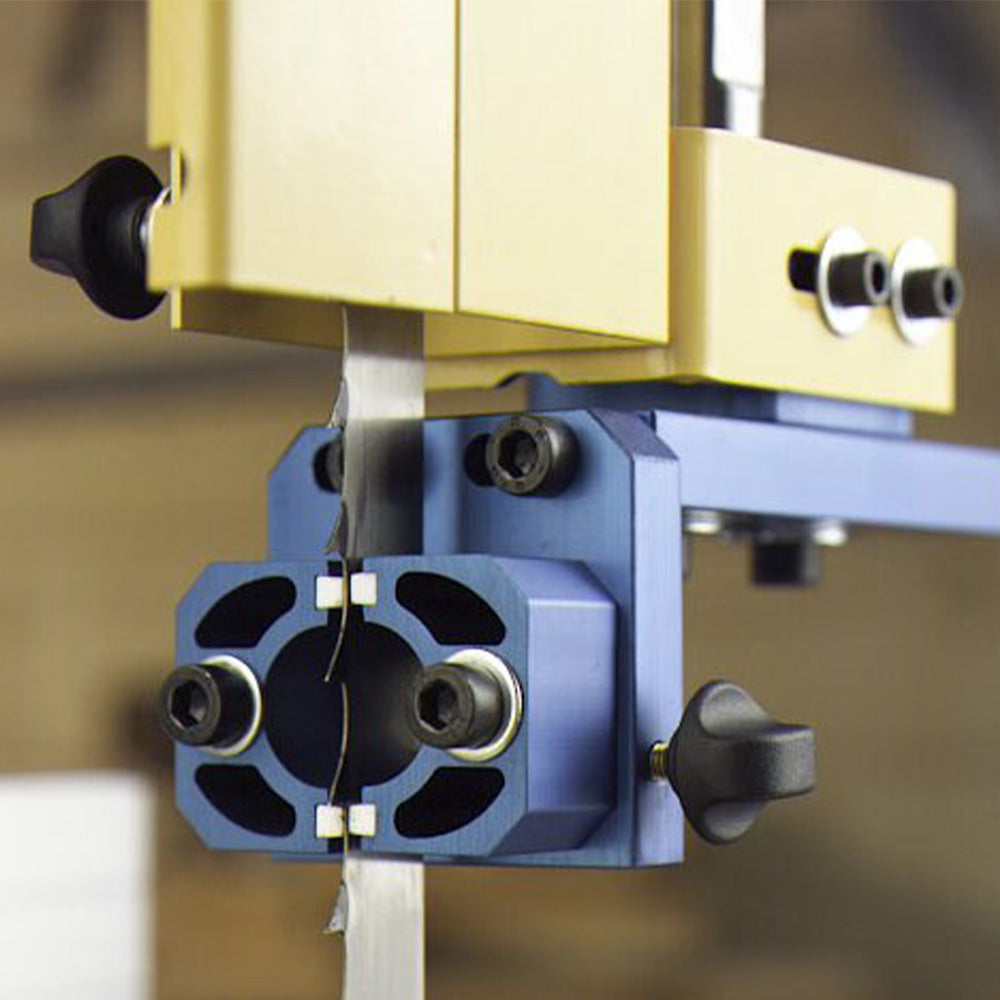

Most blade guide systems are designed to support the blade on the sides, and then either above or below the side guides to support the back of the blade. This forces the blade to twist as pressure from the wood being cut is transferred to the back blade guide. Laguna Guides solve this problem by supporting the blade on the sides above and below the back blade guide. By eliminating all blade twist, the Laguna Guide gives the blade unsurpassed stability.
The Laguna Guide System utilizes 10 points of contact, 4 more than traditional guide systems. It features "Space Age" ceramic guide blocks as both side and thrust support. This enables the ceramic piece to gently touch the side of the blade, on all three sides without heat build-up, therefore giving stability, which has never been achieved before.
Optional Blades:
- Resaw King: Carbide-tipped resaw blades. The carbide tips outlast standard blades many times over and can be re-sharpened. The profile of the carbide tipped teeth is optimized to provide a thin kerf and smooth finish cuts in woods. A 3/4" blade width is recommended for resawing on the 14|CX Band Saw.
- Pro-Force Blades: Swedish silicon steel blades with heat-treated teeth and rear surface (on wider blades). The Pro-Force Blades out perform standard carbon steel blades. These blades are available in a wide range of widths and TPI. The narrowest blades are used for tight curved work. The medium widths are perfect for gentle curves, light weight straight cuts, and general purpose work. Higher tooth counts provide smoother cuts and are required for thinner stock. Lower tooth counts provide faster cutting, rougher surface, and are better for thicker stock.
All Laguna Tools woodworking machinery carry a 2-year warranty. Must register machine within 30 days of purchase.
Note: Blade is not included. Check out our selection of band saw blades here.
Specs
Motor: 5 hp Leeson
Resaw: 18-3/8"
Volts: 220
Amp Breaker: 40
Min. Blade: 1/16"
Max. Blade: 1-3/8"
Throat: 16-1/2"
Table Size: 19" x 25"
Blade Length: 158"
Table Height: 33-1/2"
Rack/Pinion: yes
Foot Brake: yes
Guides: Laguna Guides
Base Size: 15-3/4" x 28-1/2"
Height: 77-1/2"
Weight: 510 lbs.
Optional cool blocks required for blades less than 1/4 blade.
