Lamello Bisco P-14 P-System Connectors

Price
$ 120

Have questions? Give us a call at 260-637-0054.

Quantity:

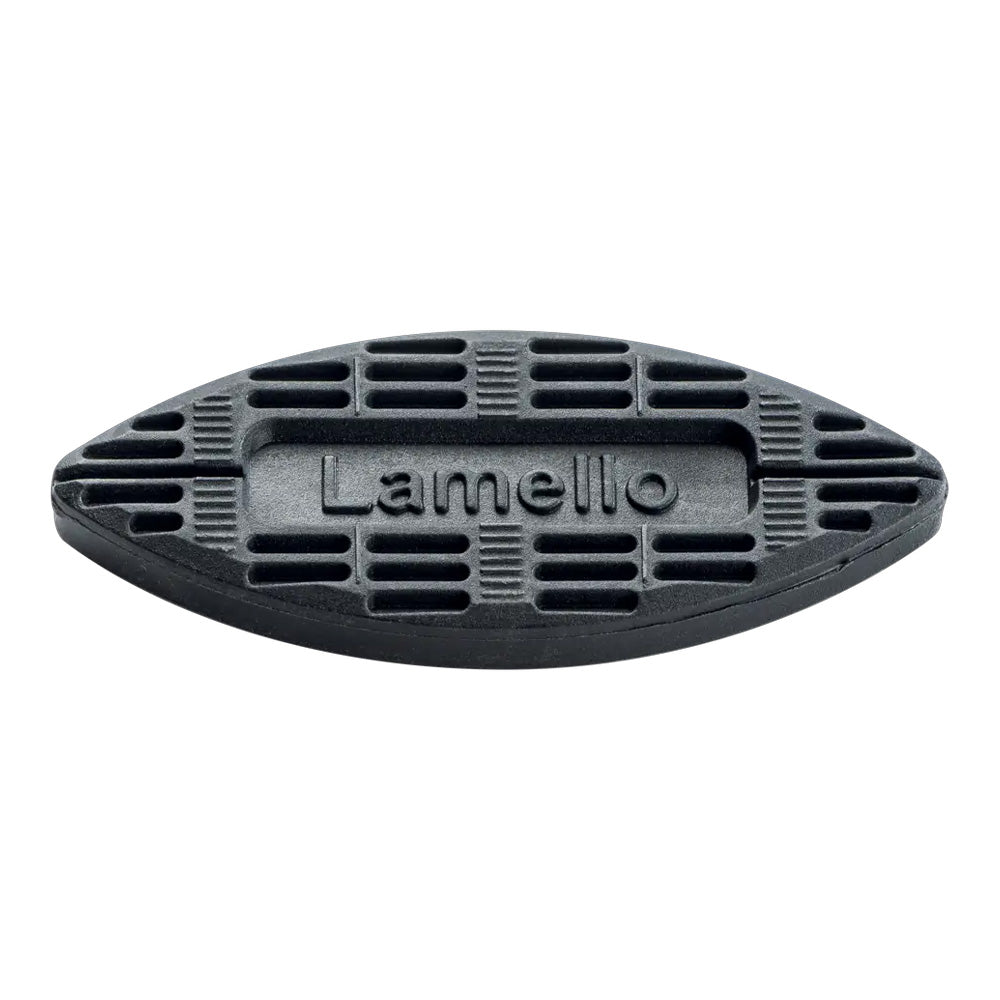

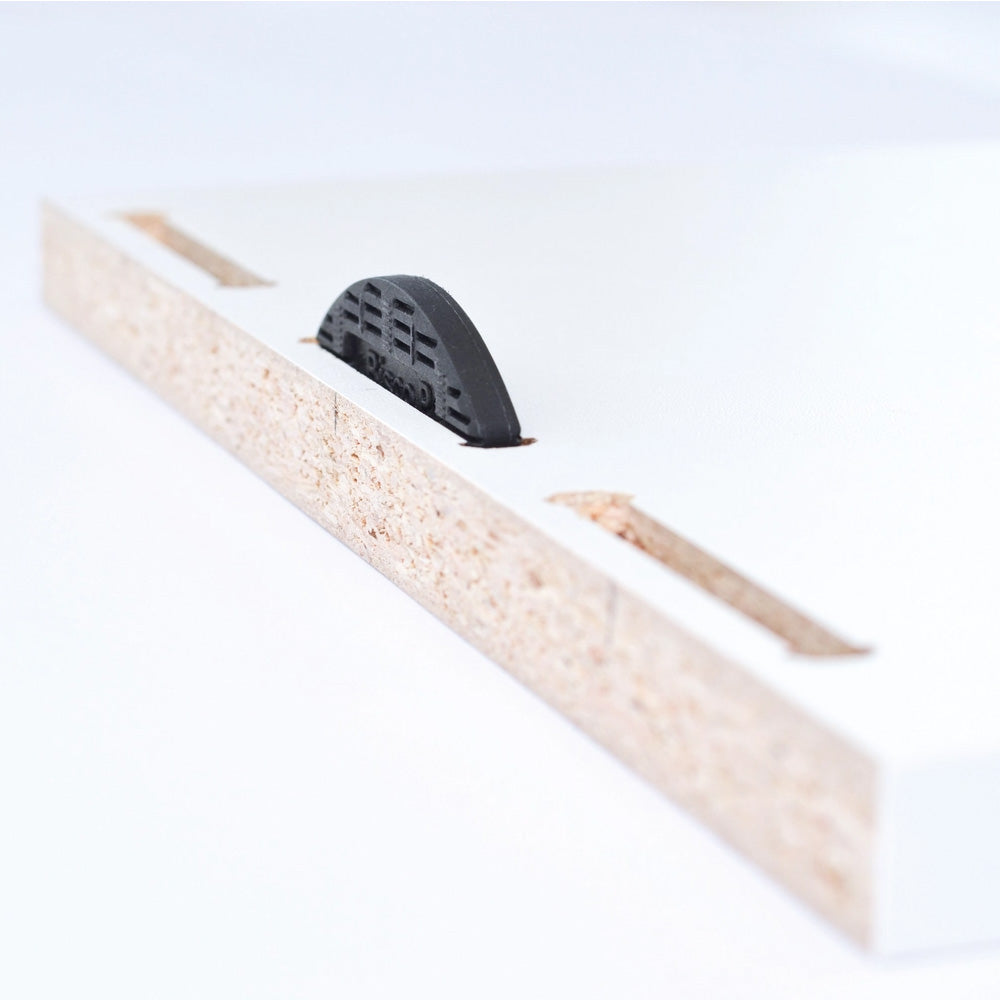

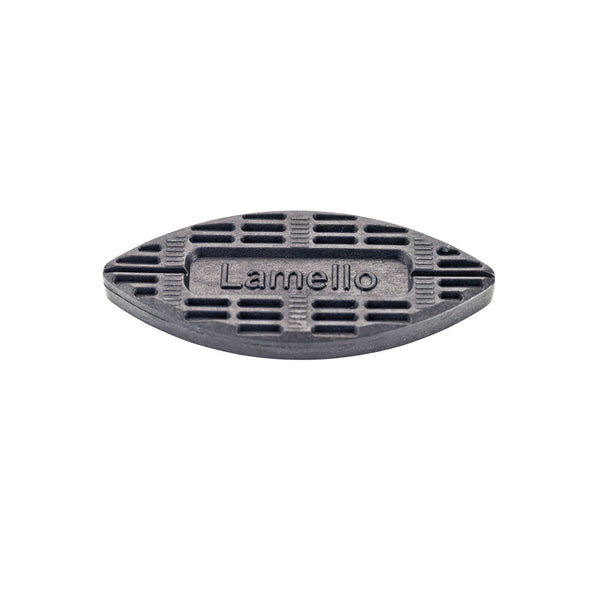

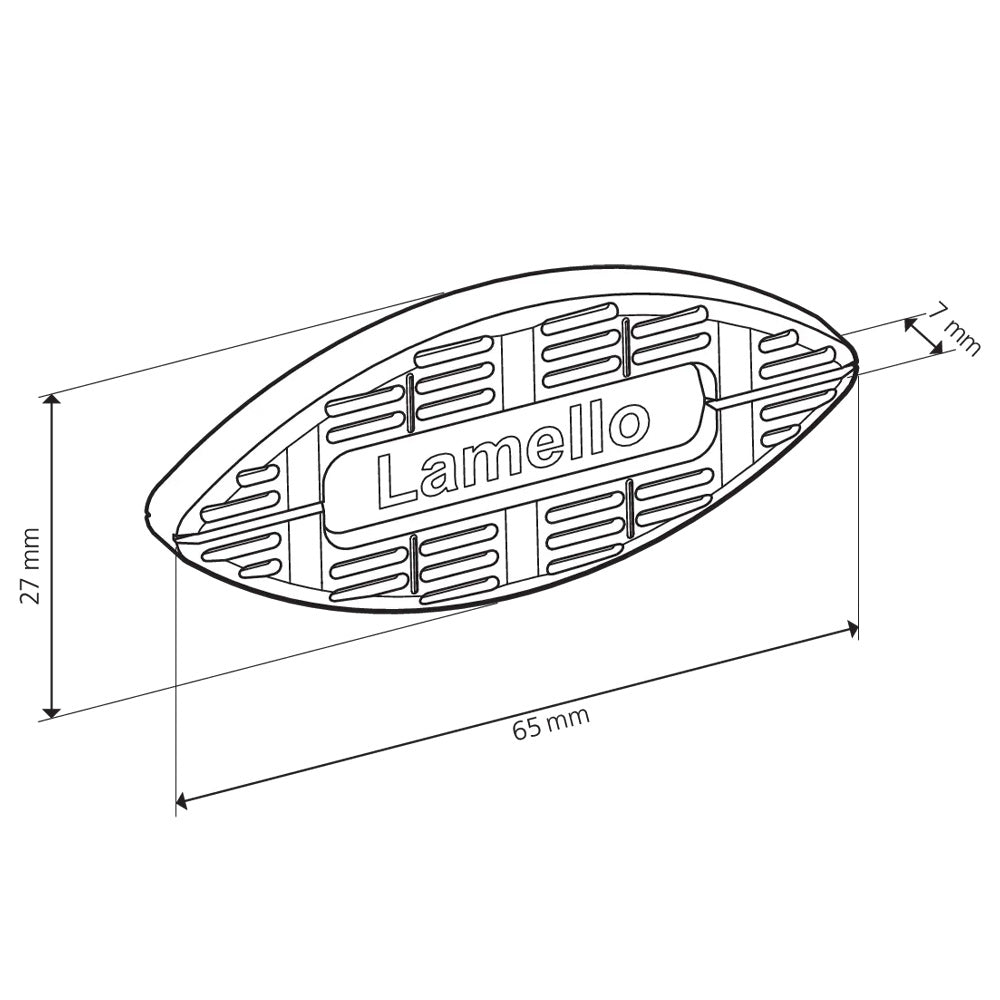

Bisco P is a plastic biscuit which fits into the 7 mm groove made by Lamello P-System installation tools such as the Zeta P2. It is held in the groove by its surface structure.

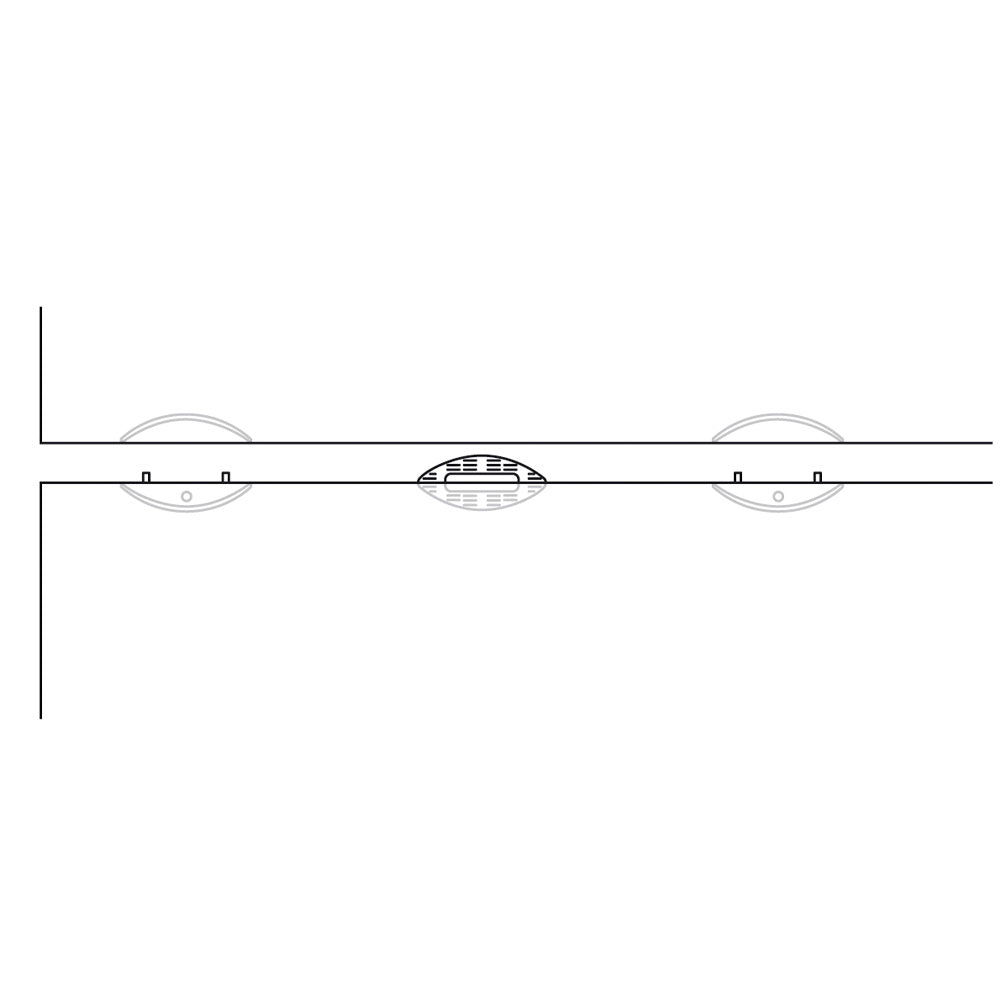

Bisco P is used in combination with Clamex or Tenso as a cost-effective alignment element and ensures flushness of the joint. The Bisco can also be used as a dry joint as a test before the work piece is permanently joined with Tenso P and PVA glue.

The Bisco serves to align the workpieces and fits into the P-System groove without the need to change cutters. Ideal for dry connections or when still deciding whether the parts will be glued or should be detachable.

Features
  • Fits the same P-System groove as Clamex P-14 / Clamex P-10 thus removing the need to change cutters
  • Self-clamping in the groove due to its surface structure
  • Fixed connections possible in conjunction with PVA glue
  • Minimal installation depth for material thickness of at least 16 mm

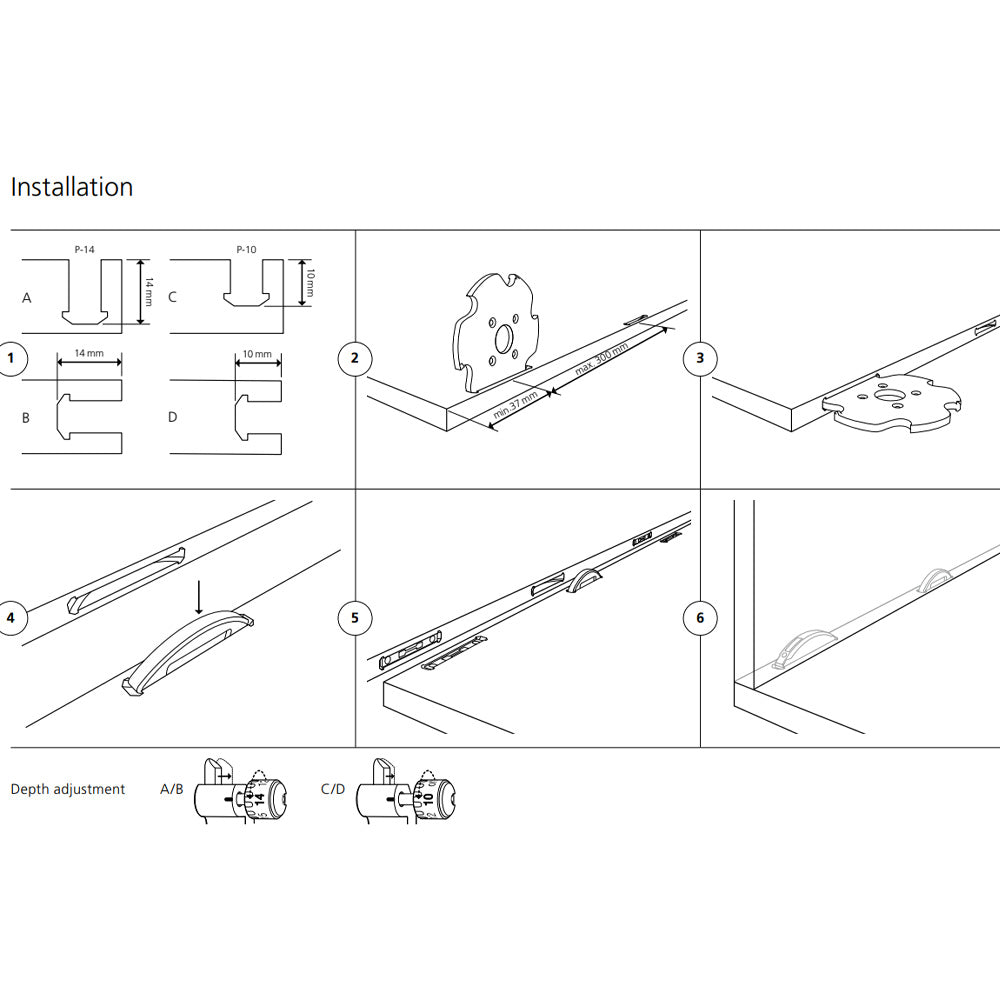

  • Lateral tolerance for efficient installation with the Zeta P2 profile groove biscuit joiner or a CNC machine
  • Alignment of grooves on separation walls, table tops, or kitchen worktops

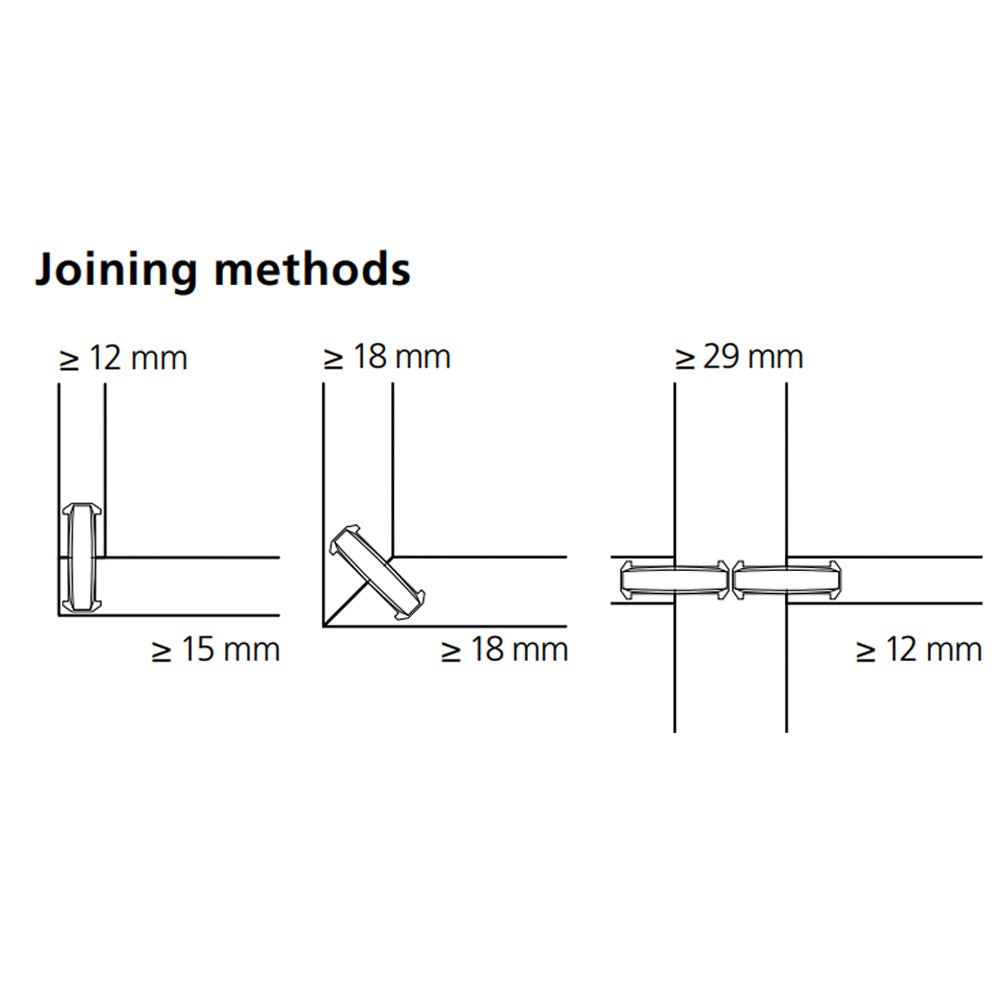

  • Combination with Clamex P-14 / Clamex P-10 for detachable surface, corner or mitre joints ranging from 30-180°
  • Combination with Clamex P-14 / Clamex P-10 or as a simple element for gluing workpieces
  • Stiffening or raising shear strength
Video

SKU: 145302
