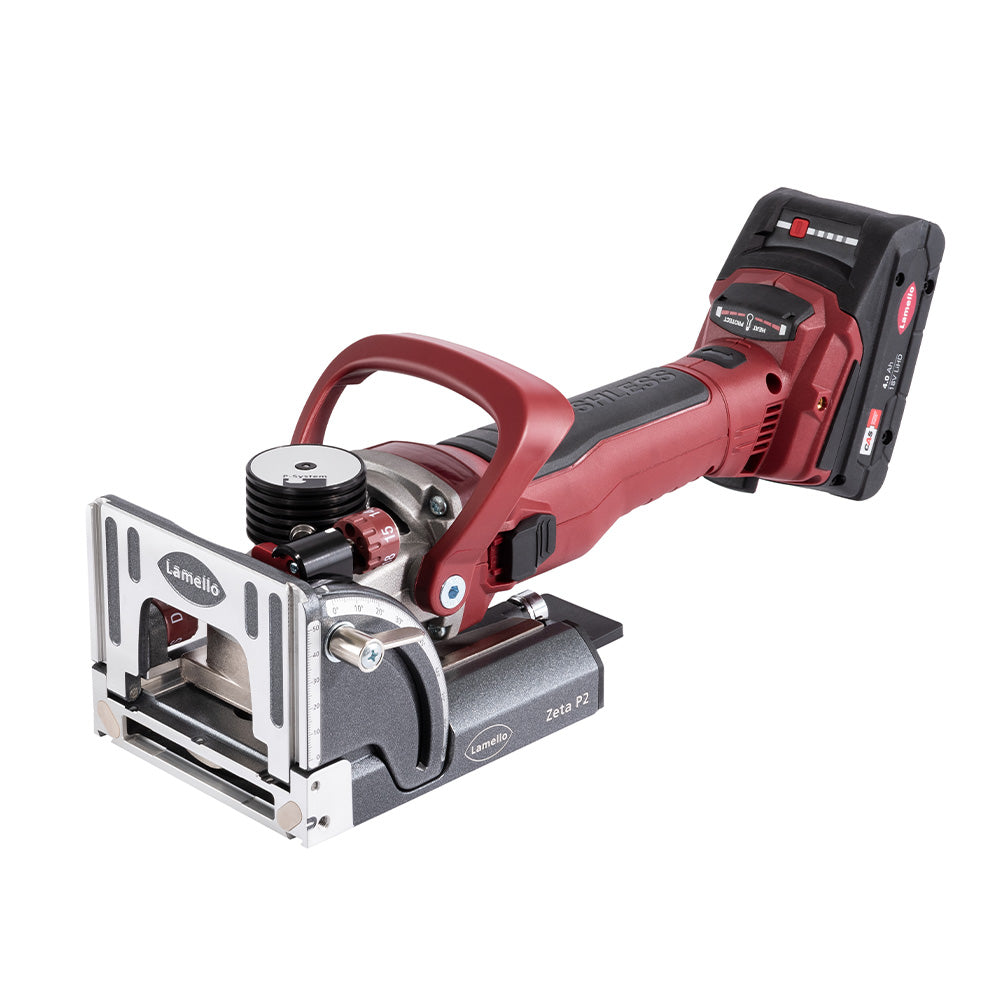

Lamello Zeta P2 Cordless With Diamond Cutter - Set
- Price
- $ 2,200
Have questions? Give us a call at 260-637-0054.
Back in stock for a limited time!

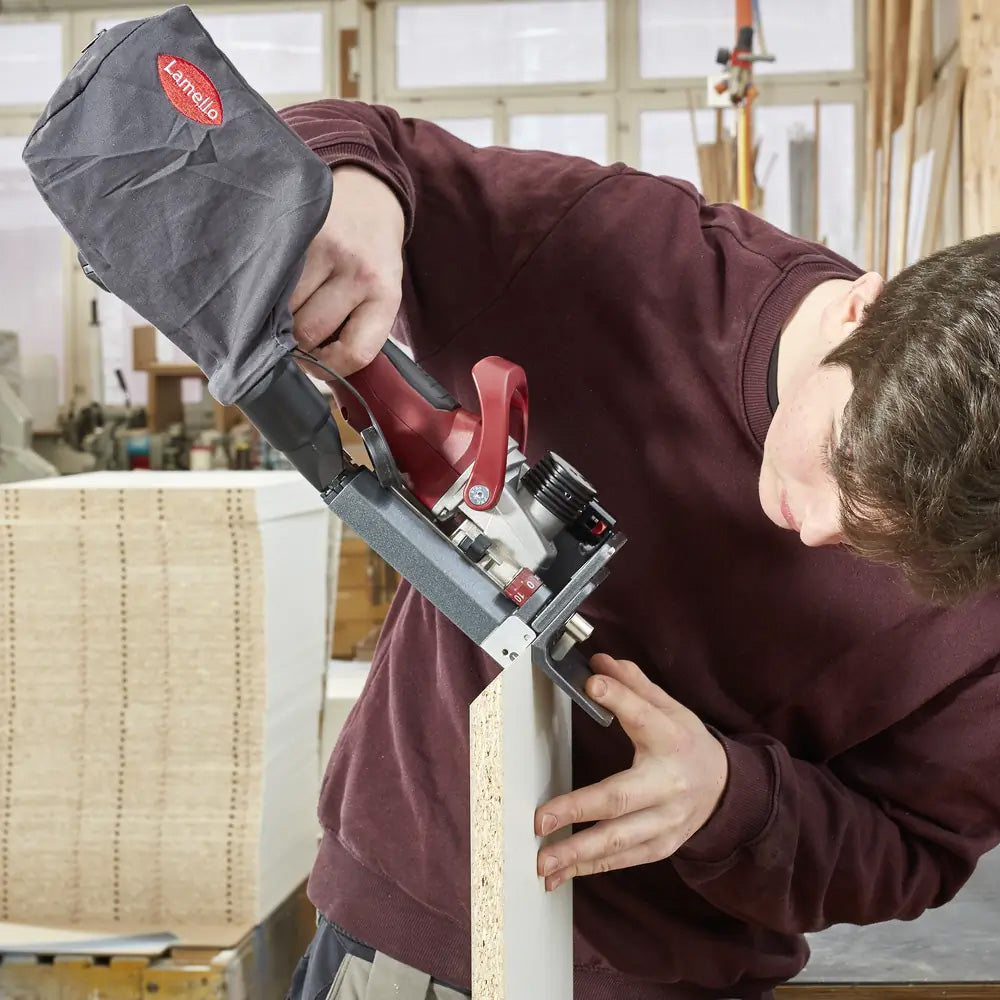

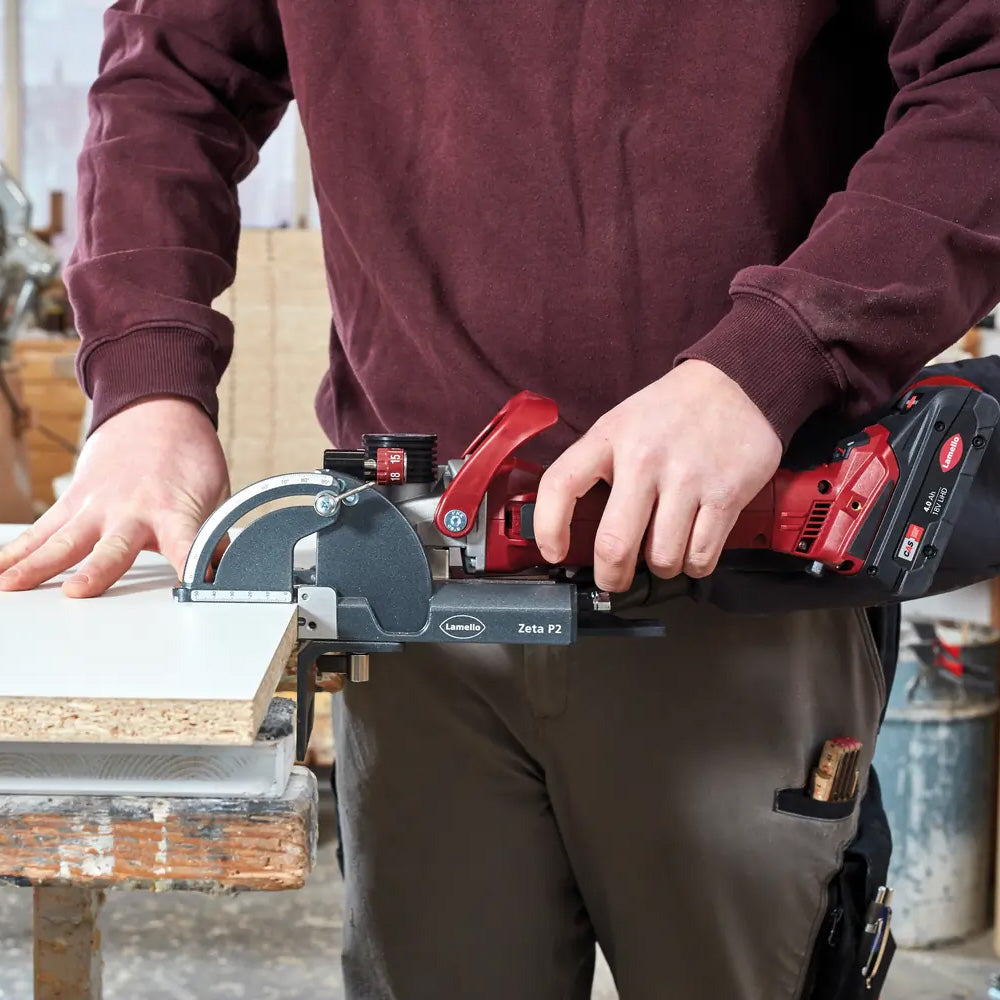

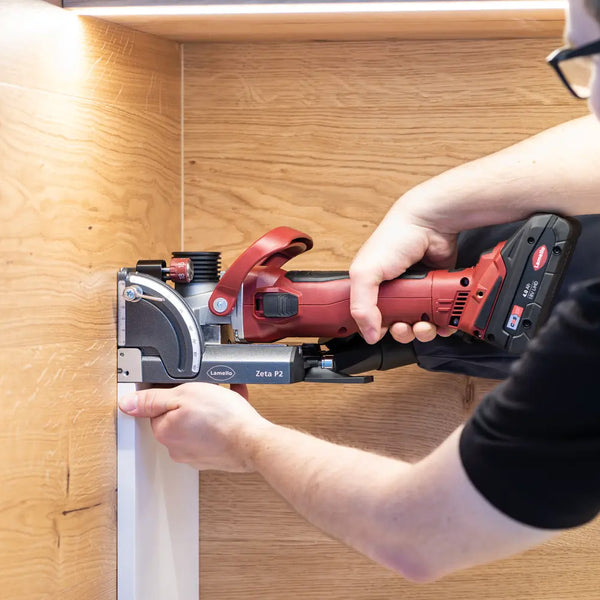

The Zeta P2 Cordless is the profile biscuit joiner for the P-System. It can be used to join components in solid wood, plywood, MDF, particleboard, plastics, solid surface, and more.
The integrated vertical mechanical drive on the cutting spindle of the Zeta P2 cordless is the centerpiece of this profile biscuit joiner. During the cutting process, the vertical mechanical drive automatically performs a vertical movement to create the profile groove. All P-System fittings are then manually inserted into this groove, ensuring a fast form-locking anchorage.
The Zeta P2 cordless can cut P-System grooves for connectors with varying installation depths simply by turning the P-System depth adjuster, thus removing the need to change cutters.
The vertical movement for the profile groove is triggered automatically when the maximum cutting depth is reached and requires just a fraction of a second. The vertical mechanical drive combines process precision and reliability with a low-wear, fully mechanical construction.
The Zeta P2 cordless can also be employed as a standard biscuit joiner for original biscuits by simply deactivating the profile groove function and changing to a 4 mm blade.
Find your P-System Connectors here.
Features
- Trademark P-System Vertical Mechanical Drive. The vertical mechanical drive consists of highly precise rotary parts supplied by Lamello. It creates an eddy current, driving the stroke movement.

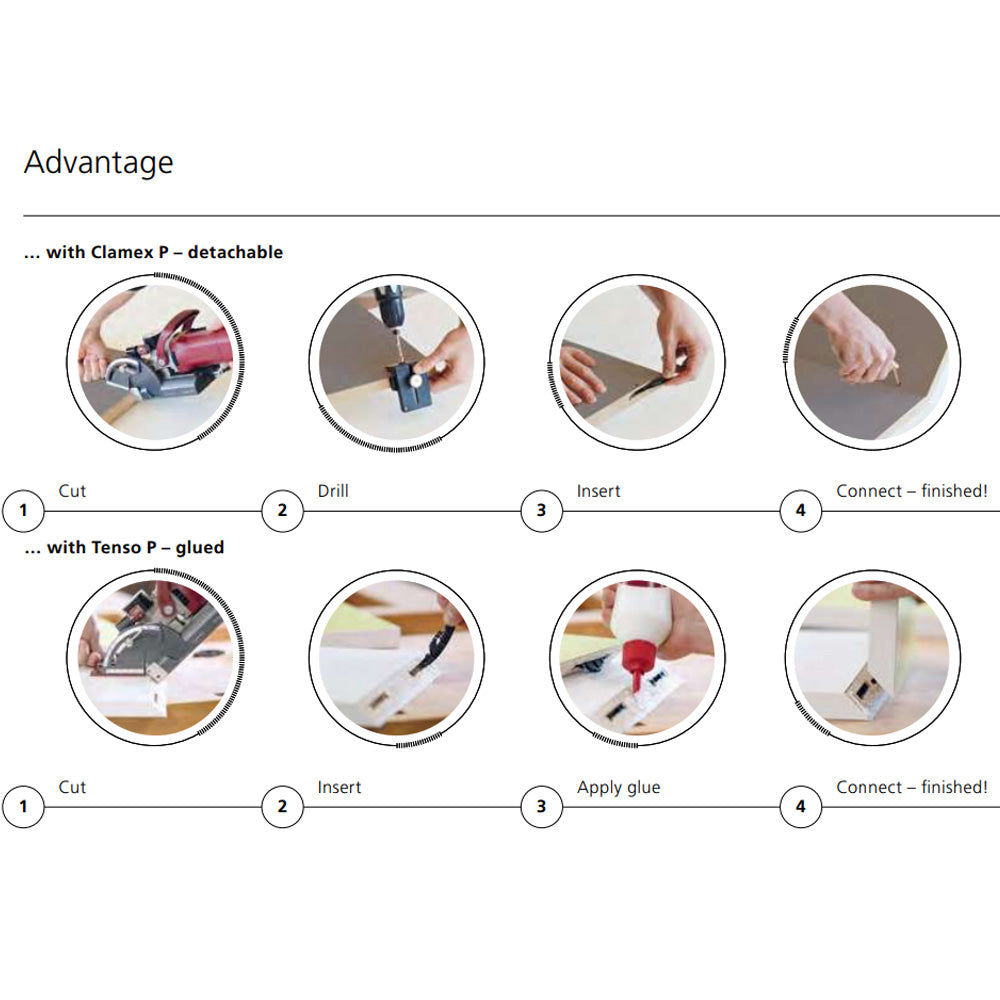

- P-System Anchorage
- Tool-free anchoring of connectors, without adhesive or screws.
- P-System Depth Adjuster
- Extremely fast rotation to set different depths for the P-System joining elements: 10, 12, 14, 15 or 18.
- Use Zeta P2 Cordless for standard wooden biscuits by rotating the P-System depth adjuster to OFF to switch off the vertical mechanical drive. The 7 mm P-System cutter is replaced with the 4 mm groove cutter.

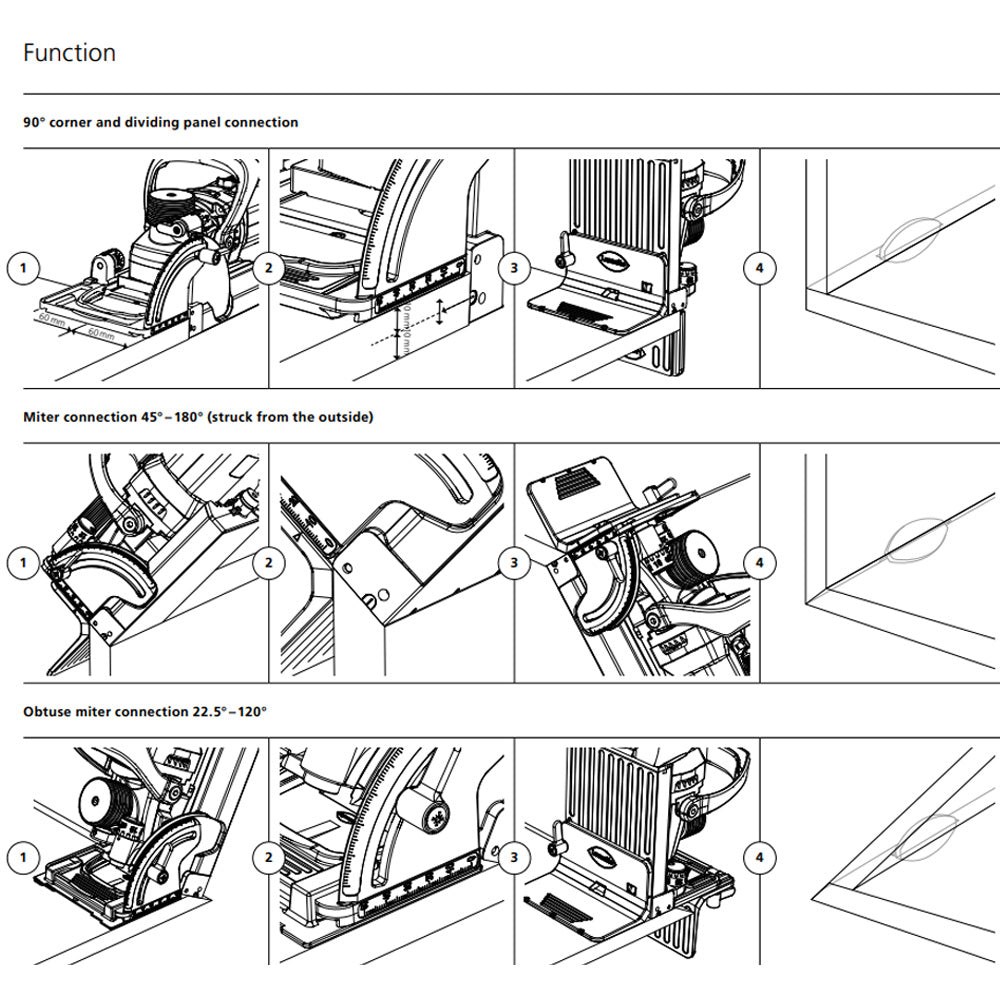

- Swivelling Front Stop with Fixed Pivot Point
- Join reliably with the cutter which is in the exact center between to two application surfaces
- Multifunctional Stop Square
- In addition to vertical stability resulting from the larger contact area, the stop square enables variable adjustment of the groove position, 0-50 mm.
Specs
Power: 800 W Cordless Version
Voltage: 18V
Speed: 9,000 RPM

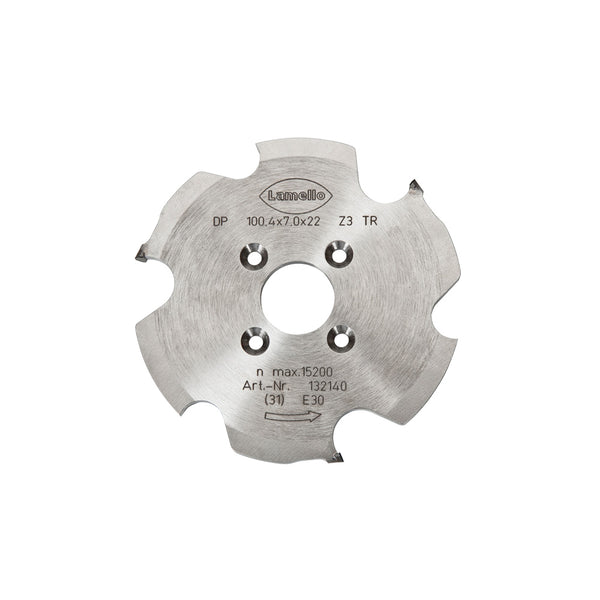

Cutter: Diamond-tipped profile groove cutter Ø 100 x 7 x 22 mm
Teeth: 3
Max. cutting depth: 20 mm
Weight: 8.15 lbs. incl. 4.0 Ah battery / 9.03 lbs. incl. 5.5 Ah battery

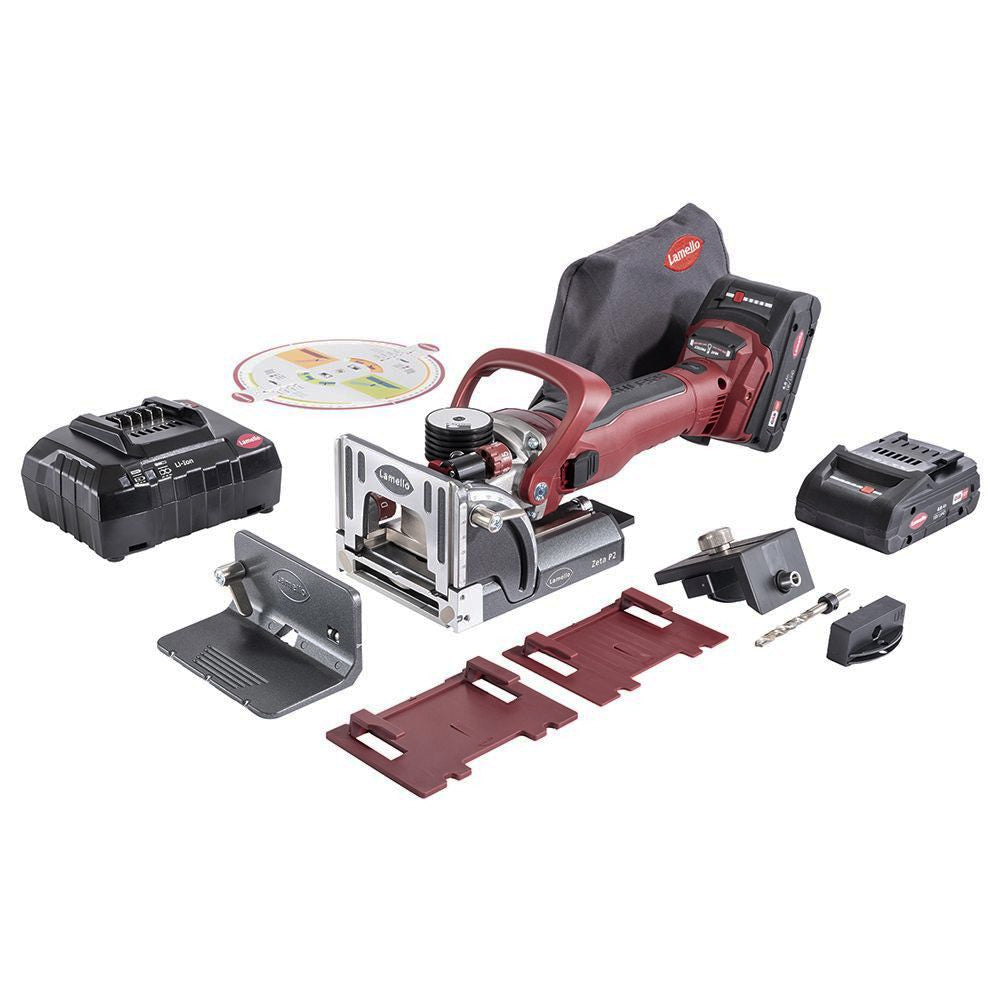

Includes
- Zeta P2 cordless biscuit jointer

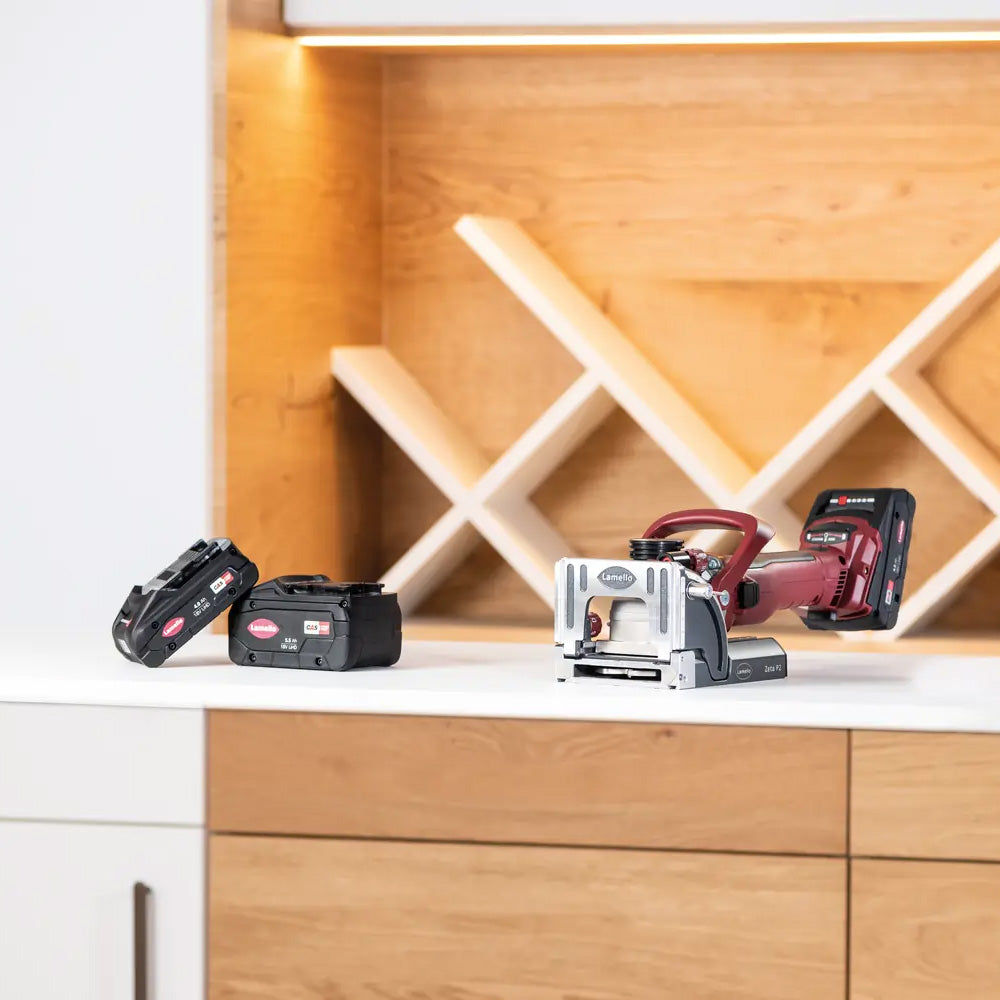

- (2) Battery packs 18 V, LiHD 4.0ah
- Battery Charger ASC 55
- P-System drill jig
- Spacer- 2 and 4mm
- Dust Bag
- Tool Set
- Stop Square
