SCM Minimax SI X Sliding Table Saw with Ready 3 Up Control

Price
$ 26,485

Have questions? Give us a call at 260-637-0054.

  • Freight included in price*
  • Next available January 2025

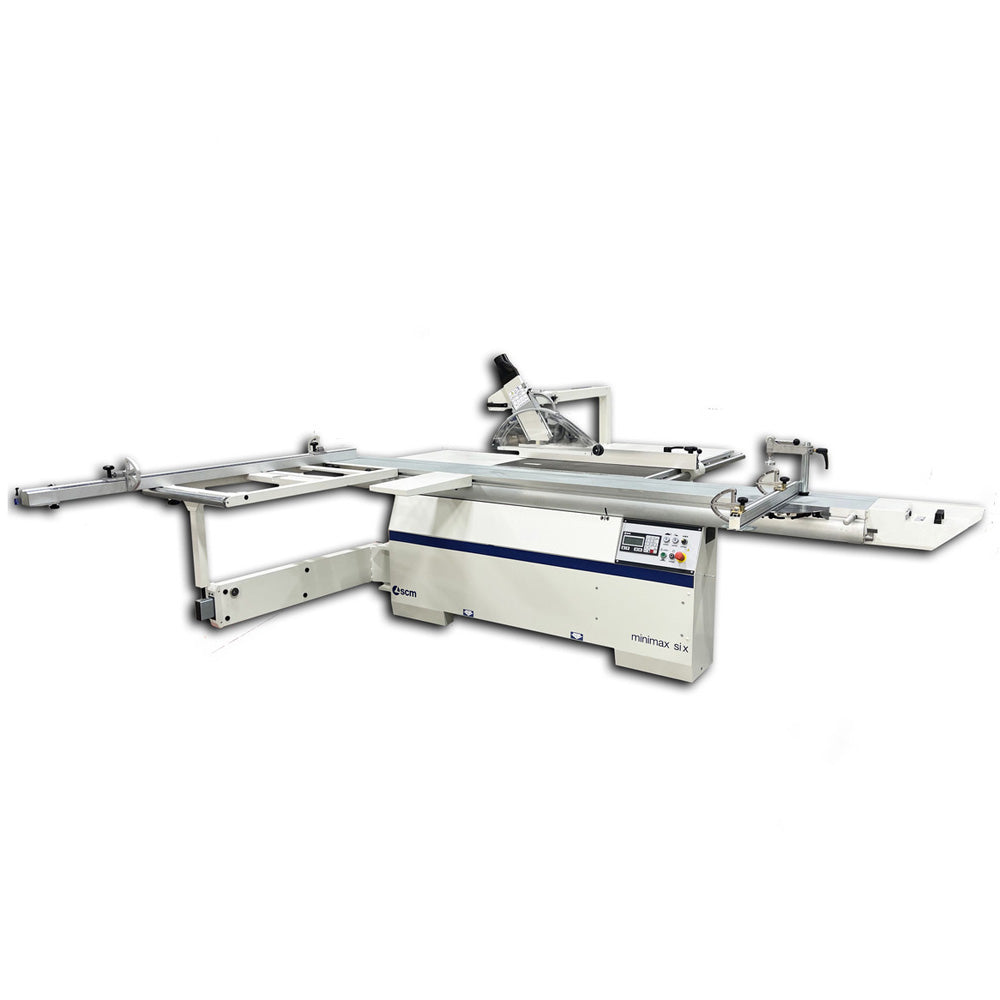

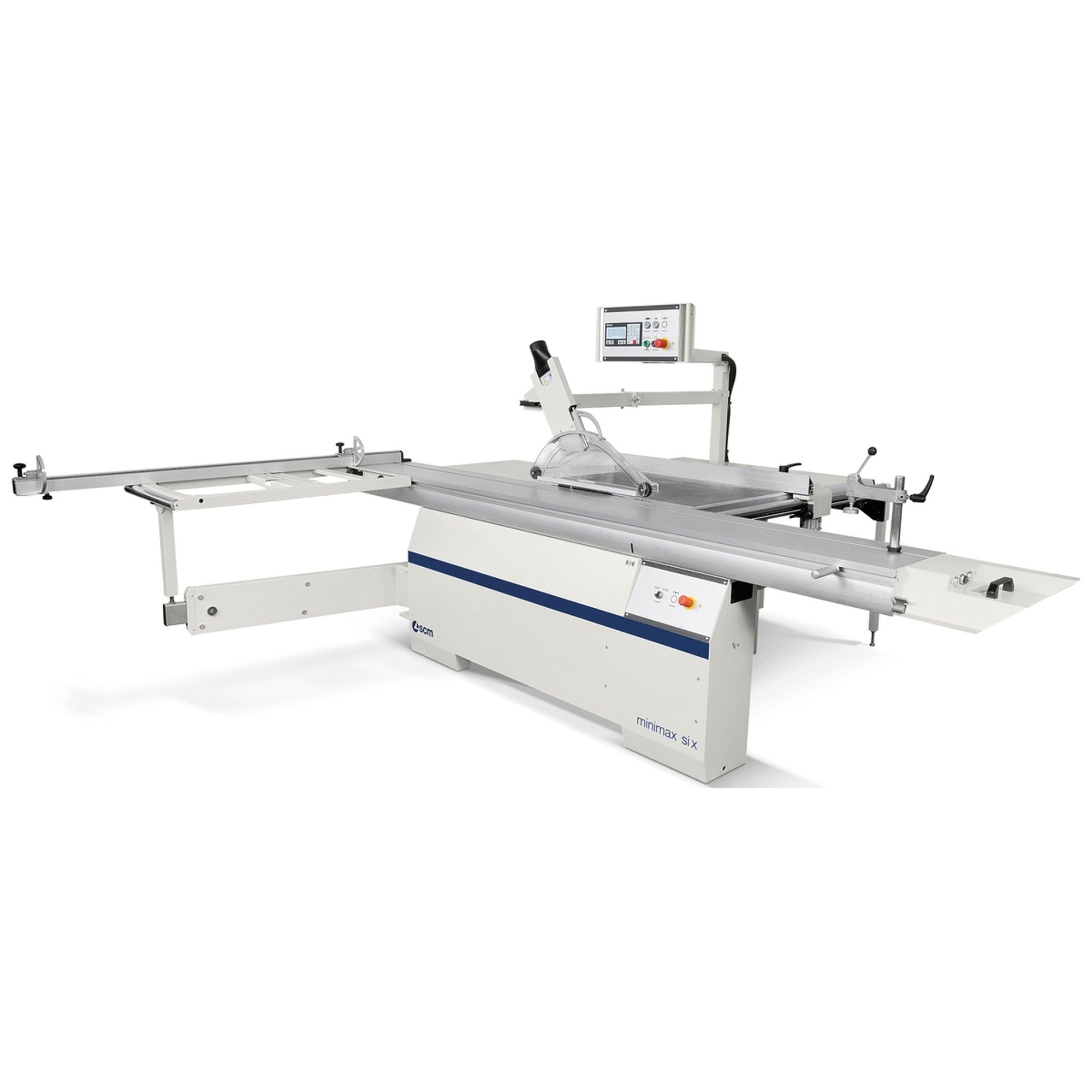

The SCM Minimax SI X is a circular saw with ±46° double tilting sawblade. It allows simultaneous use of a 400 mm saw blade and 160 mm scoring blade both for 90° cutting and ±46° tilted cutting, guaranteeing the maximum cutting height on veneered panels and solid wood.

The 360 mm sliding table ensures optimal support. Exceptional precision and smoothness: to secure the guides it is not used glue, since the thickness could affect sliding. They are secured with a procedure of aluminum riveting. For exceptional precision and smoothness, the guides are secured with aluminum riveting, not glued.

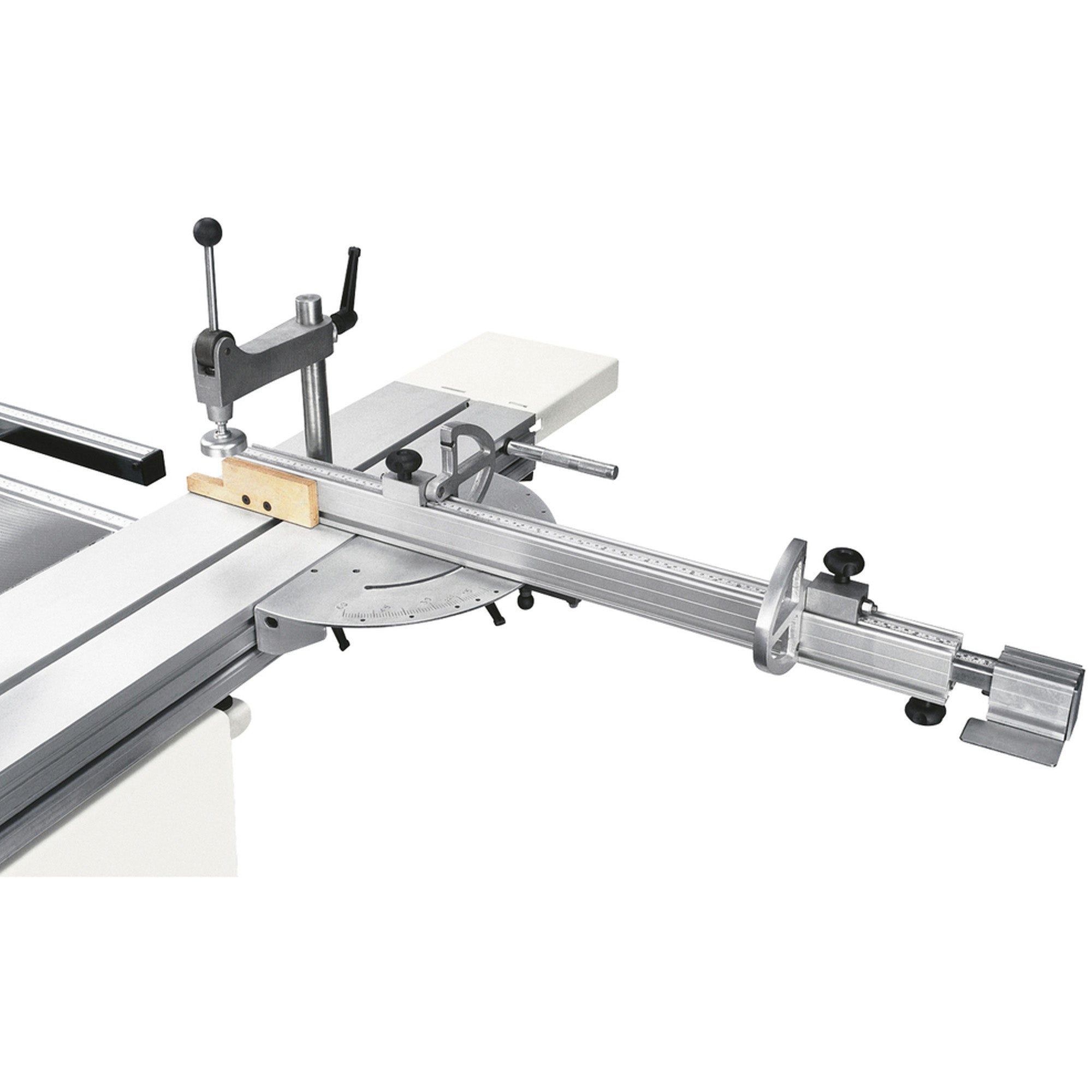

Panel loading is easy on the large squaring frame with an idle roller at the end. The telescopic squaring fence with the inclined metric scale and two reversible stops can be used to square panels measuring 3,200 x 3,200 mm and for tilted cuts at up to 45° on both sides of the frame.

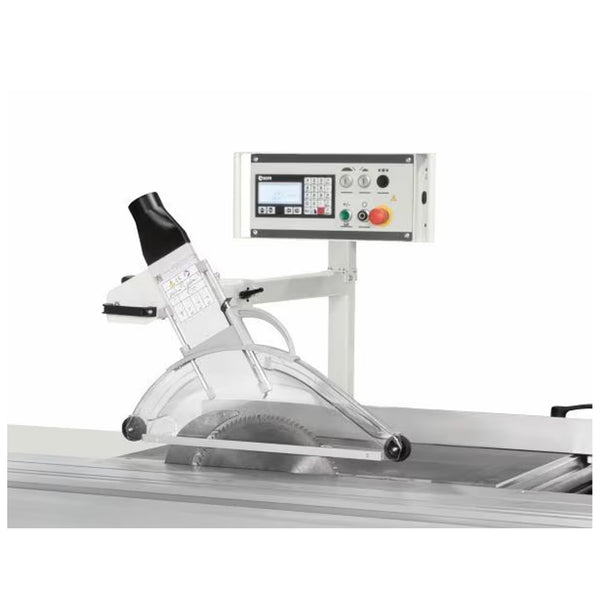

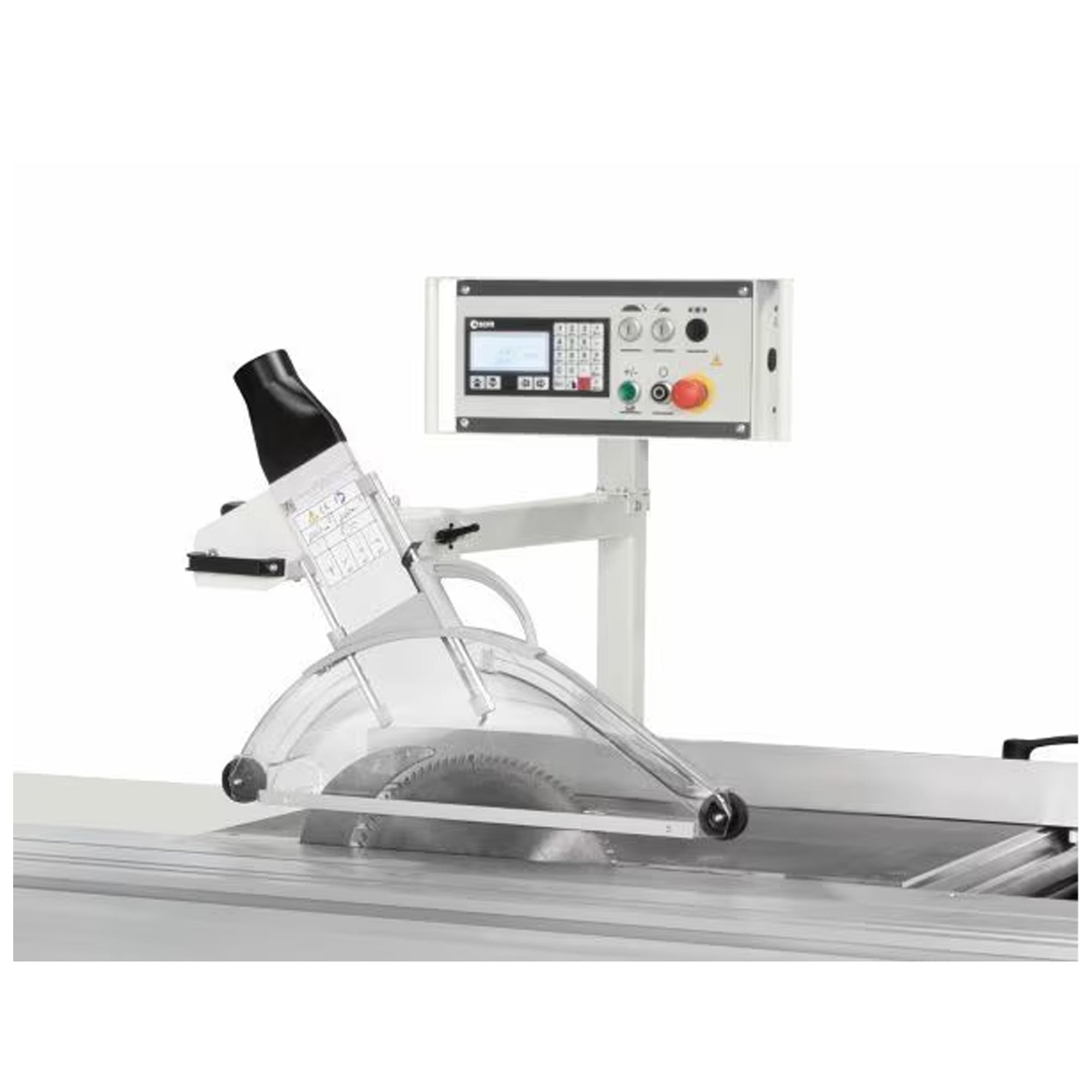

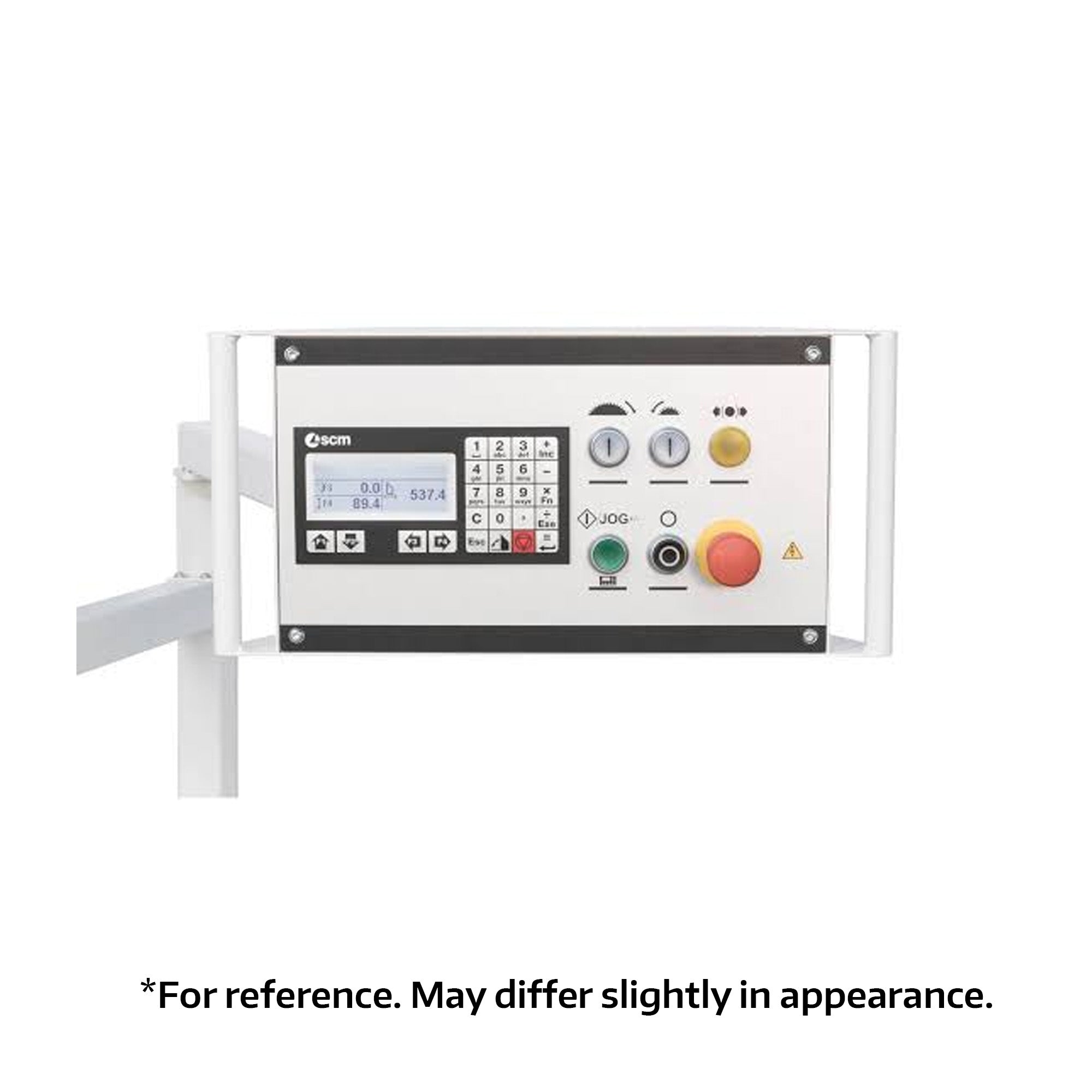

The Minimax SI X uses the “Ready 3 Up" electronic control (3 standard axes). This feature controls the lifting/tilting of the blade unit and allows the user to set tool data with automatic height adjustment and choose what mode (manual, semiautomatic, and automatic) they prefer as well as program the position of the rip fence. It has a memory capacity of up to 99 programs and also contains a calculator and hour counter.

This saw features angular cutting device with flip-over stops to rapidly perform miter cuts without moving the squaring fence, and a pre-set angular cutting device positioned on the squaring frame to quickly find the most common angles with the squaring fence.

Note: The saw will not come with the overhead control panel. It will be located by the power switch.

Features
  • Cast iron saw unit
  • High rigidity sliding side trunnions
  • Scoring unit with independent motor and external setting up
  • Anodized aluminum alloy carriage
  • Squaring frame with telescopic fence with 2 flip-over stops and metric rule tilted towards operator
  • Swinging arm support

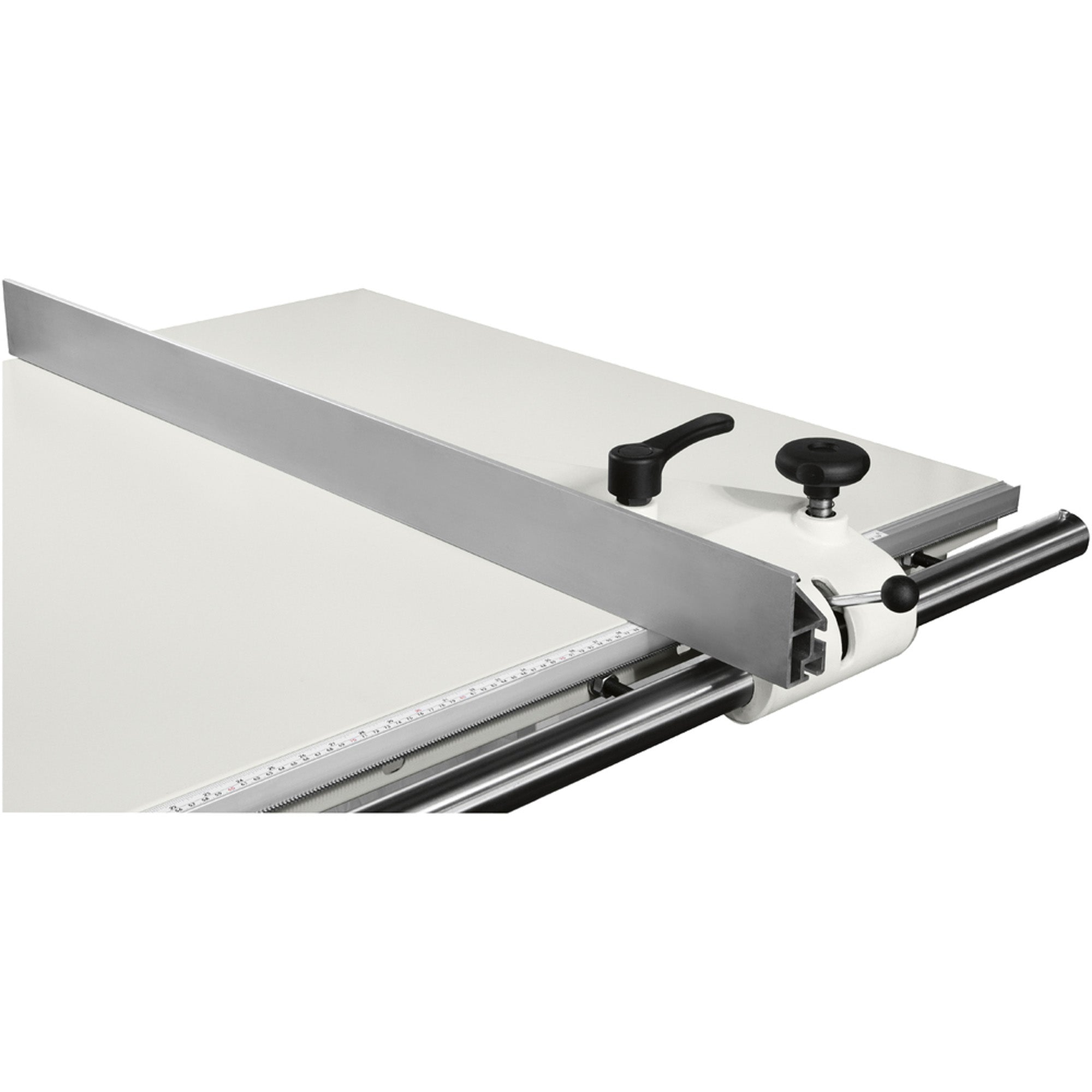

  • Micrometric adjustment and cam-locking system
  • Rectified steel round sliding bar
Specs

Cast-iron saw work table dia.: 1,000 x 685 mm
Blades tilting: -46° ÷ +46°
Max. saw blade dia. with scoring blade installed: 400 mm (15.75")
Max. saw blade projection from table at 90°/45°: 136/97/60 mm (5.5"/3.8")
Scoring blade diameter: 160 mm (4.75")
Squaring stroke: 3,200 mm (125.9")
Cutting width on parallel fence: 1,270 mm (49.9")
Three-phase motors: 7kW (9,4hp) 50Hz – 8kW (11hp) 60Hz
Phase motor (scorer) S1: 0,74kW (1hp) 50Hz – 0,9kW (1,2hp) 60Hz
Exhaust outlets diameter: 120 mm (4.75")

*Shipping

Please note: Items being shipped to extremely remote areas or areas with limited delivery access (such as islands only accessible by ferry) may incur additional shipping or freight fees. If your order requires any additional fees other than what is already included in the price, you will be contacted before those fees are applied and before your item ships. This is rare and will not apply to most orders.

SKU: Minimax SI X-3UP
