The Minimax TW 45C is a 4 horsepower spindle moulder with a sliding table and a fixed spindle. Versatile and easy to use, it is ideal for D.I.Y. woodworkers and craftsmen. The TW 45C features a standard 1.25” spindle with dual exhaust ports, T-slot on front of the table, and miter gauge for angled cuts, flip-stops and eccentric clamp.

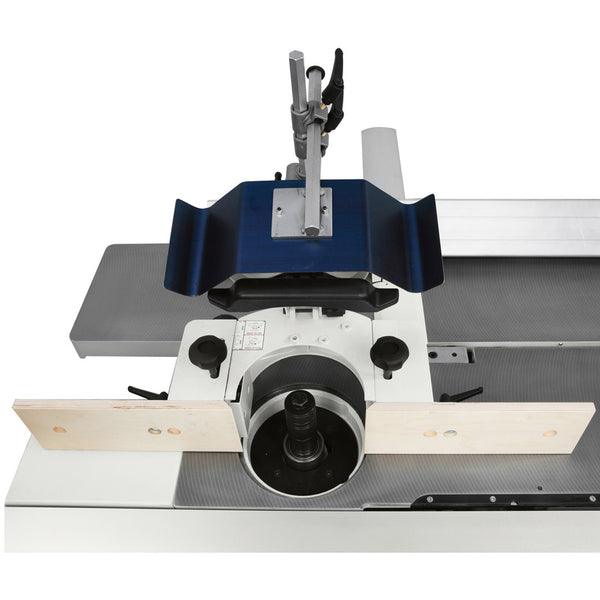

The unit has a cast-iron structure. It is closed off by a cast iron “cup” to protect mechanical components inside the machine from sawdust, shavings, and dirt. Precise and safe machining with the spindle moulder fence with micrometric adjustment complete with vertical and horizontal pressers.
The 270 mm sliding table on the TW 45C provides greater support and is very useful for tenoning. Precise cuttings, even for large workpieces, are possible with the optional support frame with a telescopic fence.

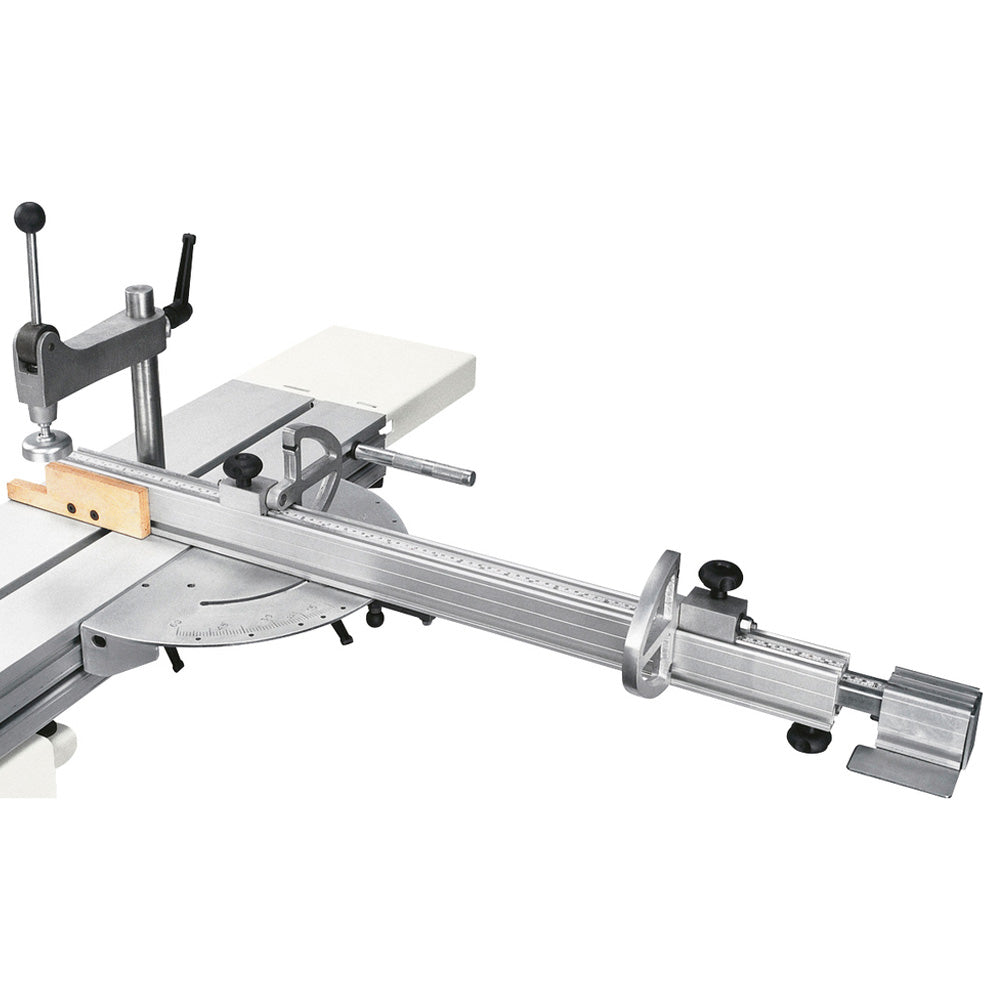

The Minimax TW 45C comes with a miter gauge with flip-over stops for angled cuts and eccentric clamp. The flip-stops adjust along the fence for repeatable accuracy by creating easy to use reference points, while the eccentric clamp securely holds the workpiece in place.
Capacity under the nut: 3.75"
Table height: 34"
Max. useful spindle length: 4" (100 mm)
Spindle moulder speeds: 3,500/6,000/8,000/10,000 RPM
Max. tool diameter when profiling: 8.26" (210 mm)
Max. tool diameter lowered under the table at 90°: 7" (180 mm)
Max. tool diameter when tenoning: 10.82" (275 mm)
Single-phase motor: 4hp
Dust extraction port dia.: 4.75" (120 mm)
Min. suggested dust extraction vol.: 600 CFM
Shipping weight: 642 lbs.
