Next Wave CNC Shark 3D Digitizing Probe Kit

For all Next Wave CNC Shark models.

The 3D Digitizing Probe attaches to the router in any Shark CNC and allows you to trace objects down to 0.001″ detail. You can then import the STL image into VCarve and replicate objects, shapes, and patterns.

One of the key features of the 3D digitizing probe kit is that it’s easy to use. All you need to do is attach the probe to your CNC machine and let it do the work for you. There’s no complicated processes or programming required, making it perfect for beginners and professionals alike.

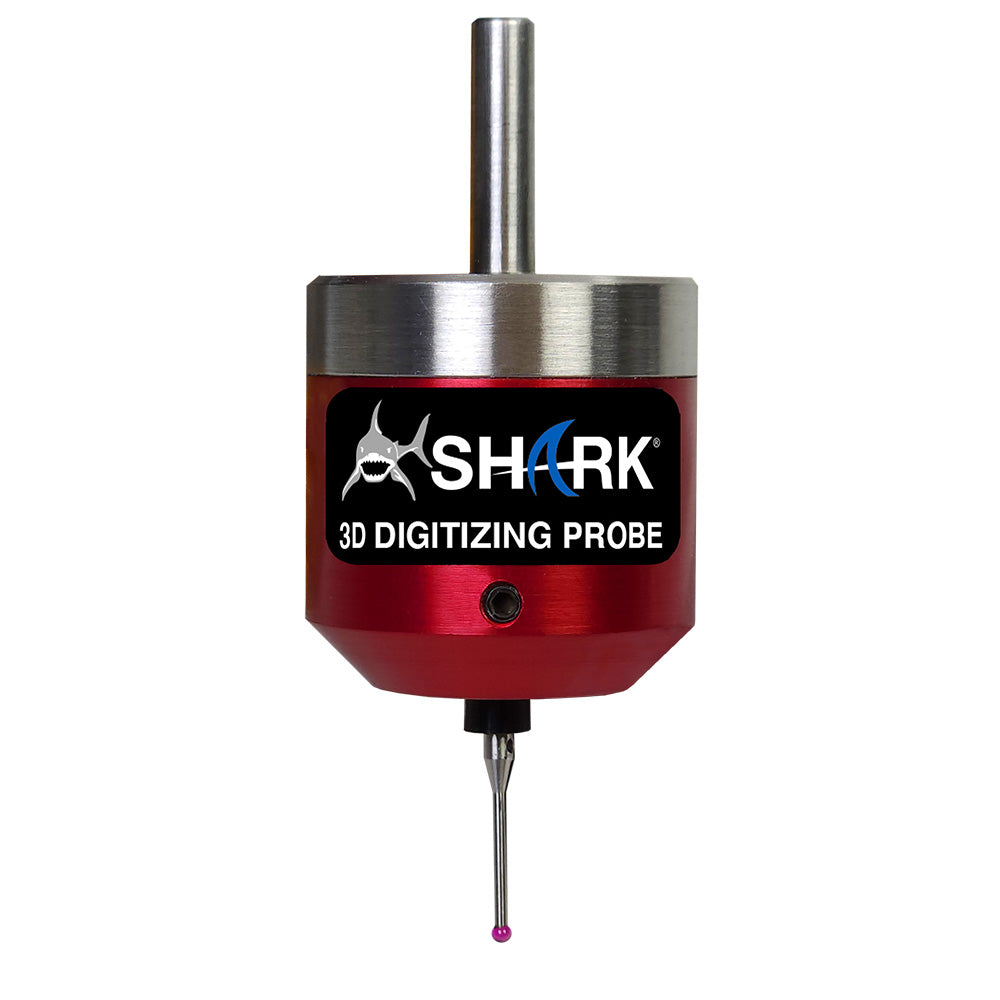

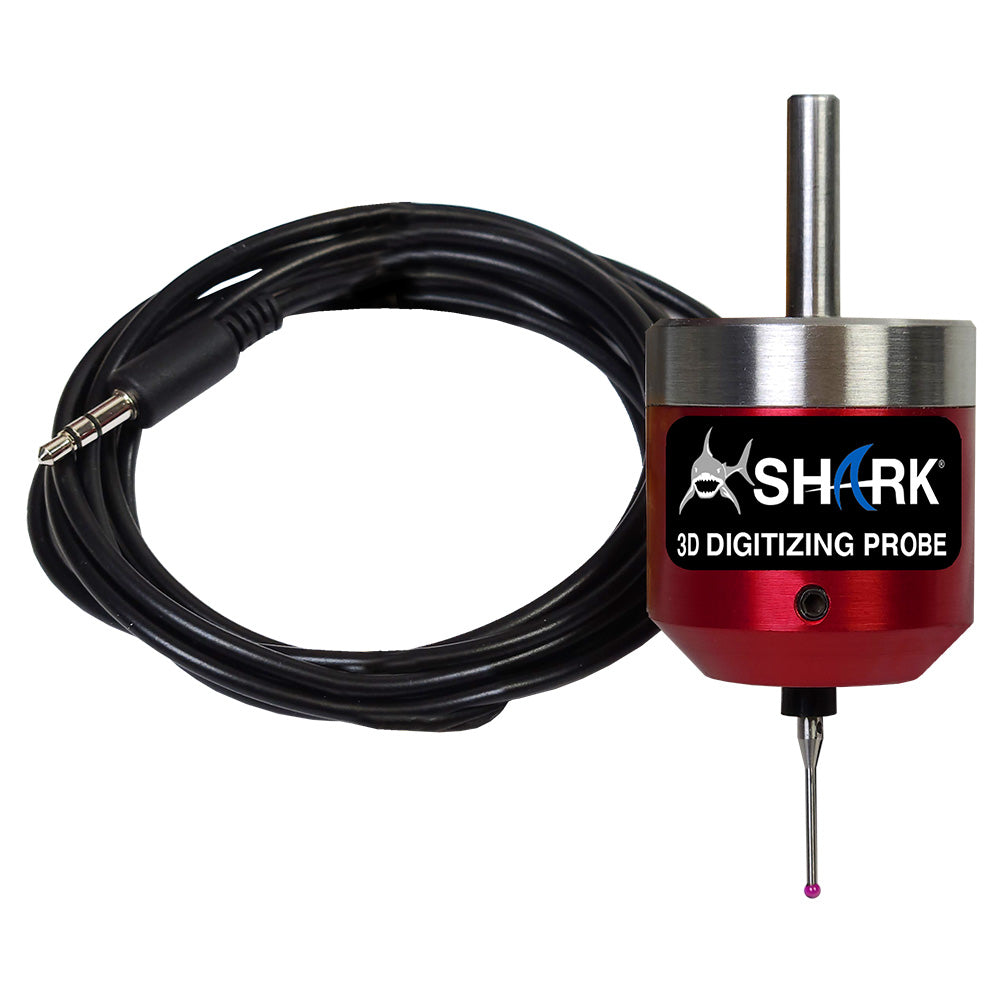

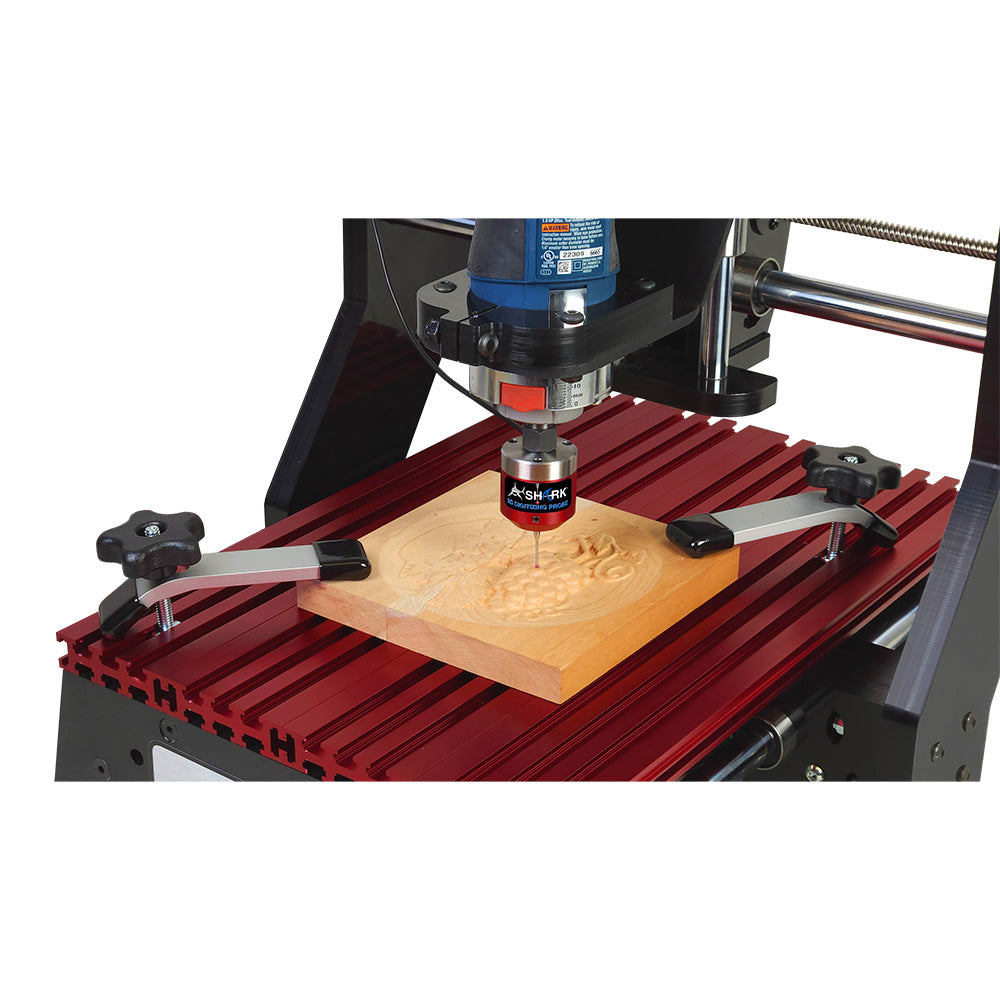

The Digitizing Probe is designed to be mounted in a router collet, similar to a router bit, using a 1/4" shank. To copy an existing 3D shape, decorative trim, or molding, simply place the object on the Shark Aluminum InterLoc T-Slot bed and use the LCD Pendant to run the Digitizer App. This technique is particularly useful for luthiers, furniture makers, and restoration work, as it enables the replication of basic shapes for carvings or damaged areas on antiques or other irreplaceable items.

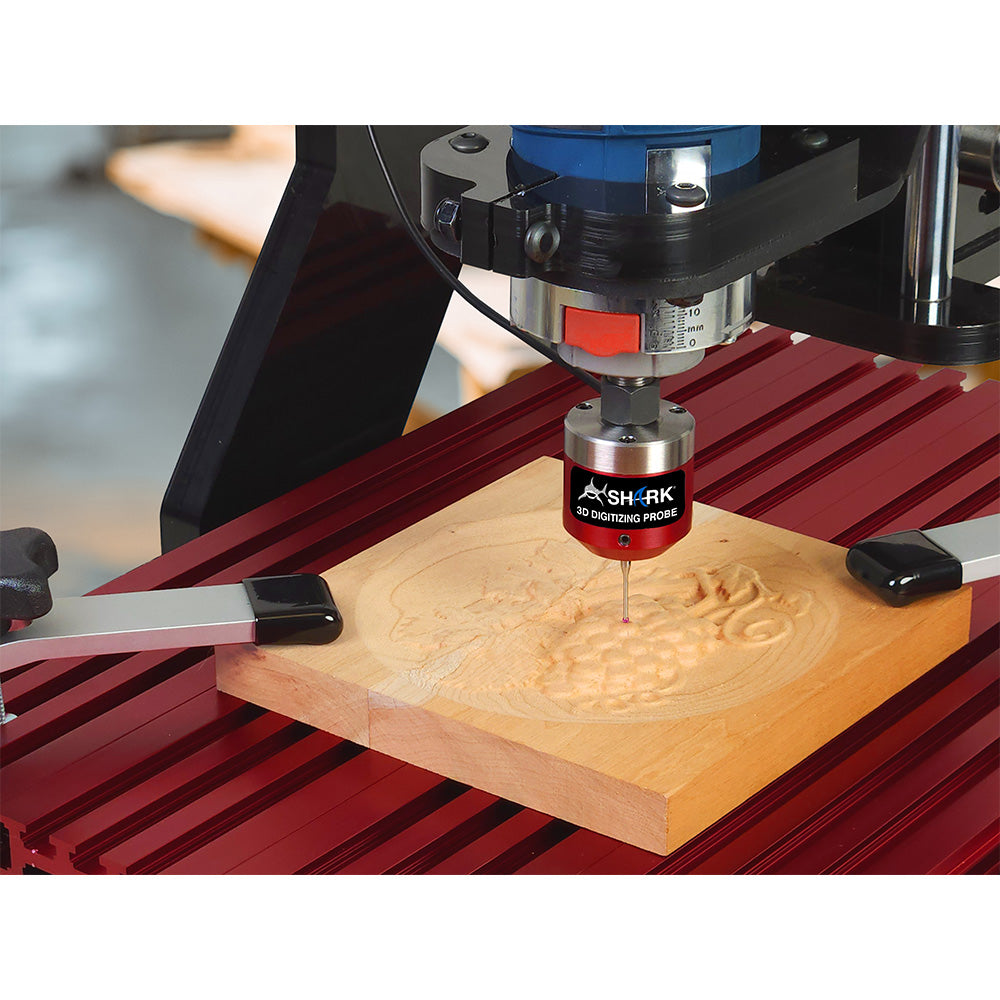

The probe operates by gently touching the object and taking measurements along the surface. Accurate and reliable measurements are provided by tactile switches located inside the probe, which can make millions of contacts. However, it is important to note that softer materials such as clay, basswood, or plaster may be marked by the probe's tip. It is recommended to test a small area of the material before scanning the entire piece.

Note: Vcarve Desktop, Vcarve Pro, or Aspire software, as well as an LCD pendant controller, is required.
