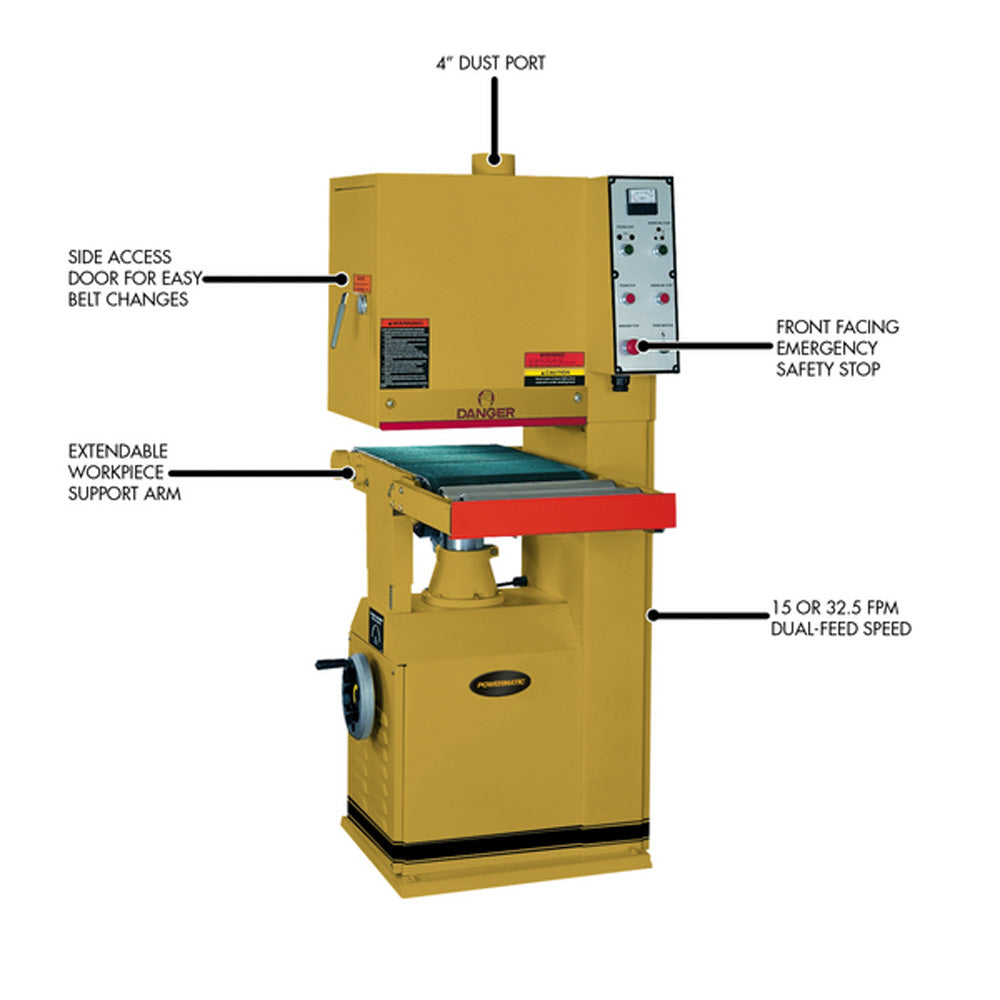

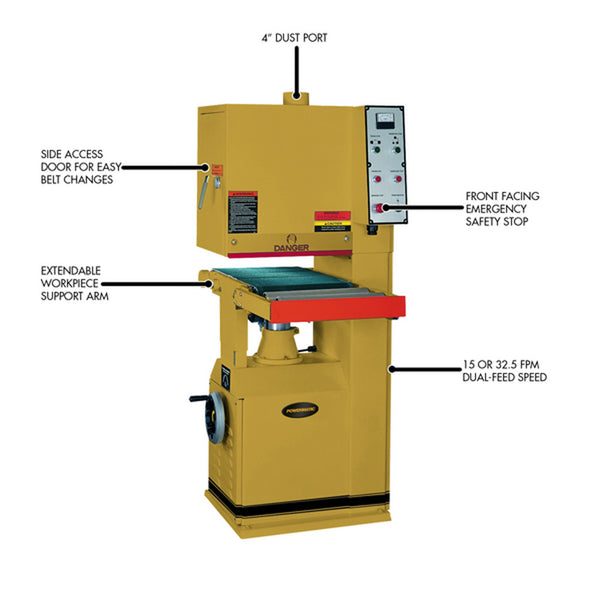

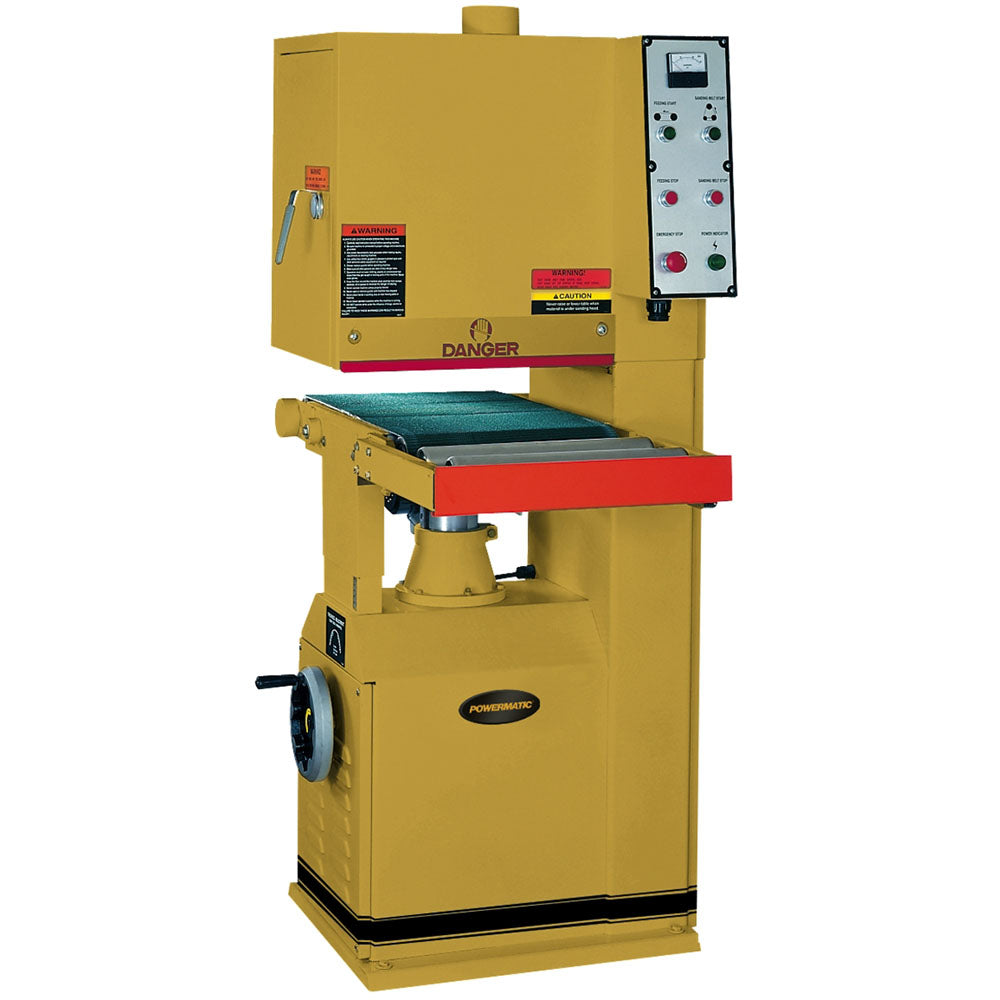

The 16" Open-End Belt Sander has front-mounted controls and a load meter, which maintains a constant check during operation. Metal-tipped safety limiters inside the machine will stop the sander immediately should belt breakage occur. The combination head means a more consistent finish, and pneumatic conveyor belt tracking keeps belts automatically centered.
Style (Type): Open End Belt
Max. Board Width: 32"
Max. Board Thickness: 5"
Min. Board Length: 13-3/4"
Feed Rate (FPM): 15/32.5
Sanding Belt Speed (FPM): 2,200
Sanding Belt Size: 17" x 54"
Air Required: 4 at 5 atm
Dust Collection Min. CFM Required (CFM): 800
Dust Port Outside Diameter: 4"
Feed Motor Power (HP): 1/4
