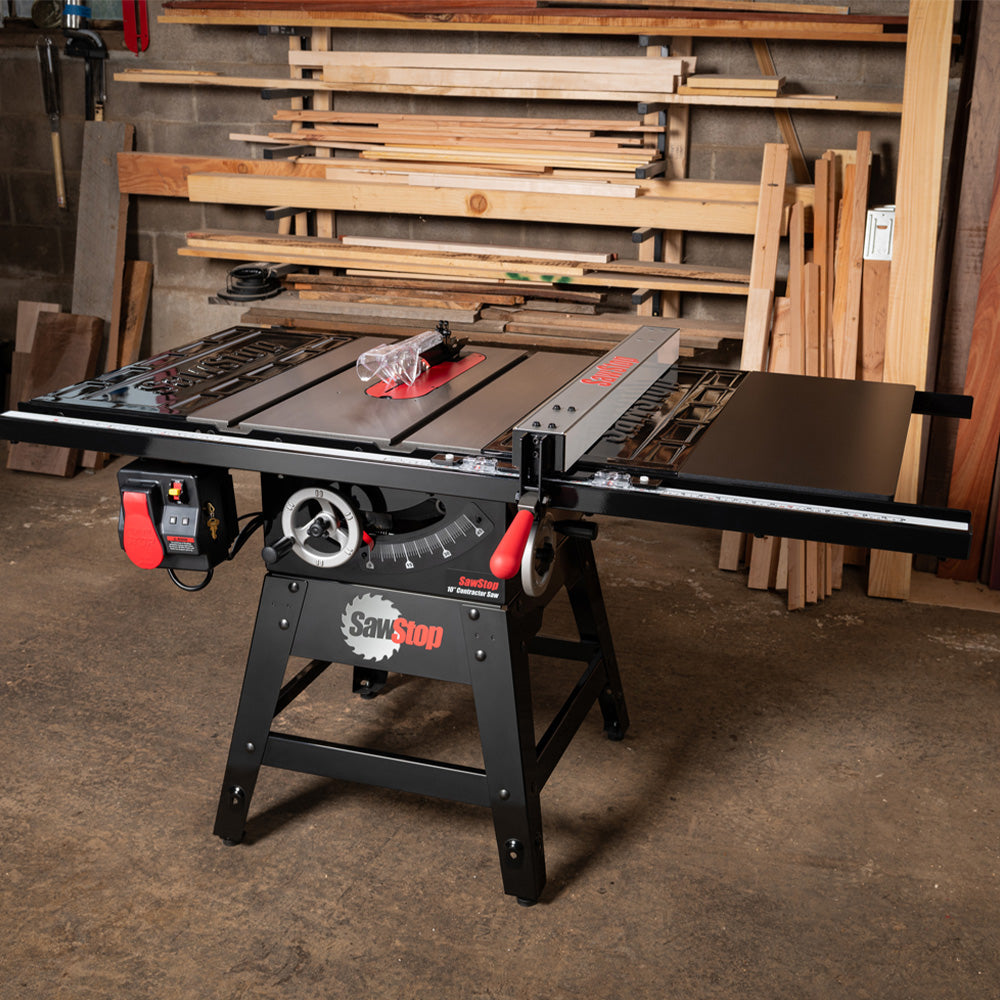

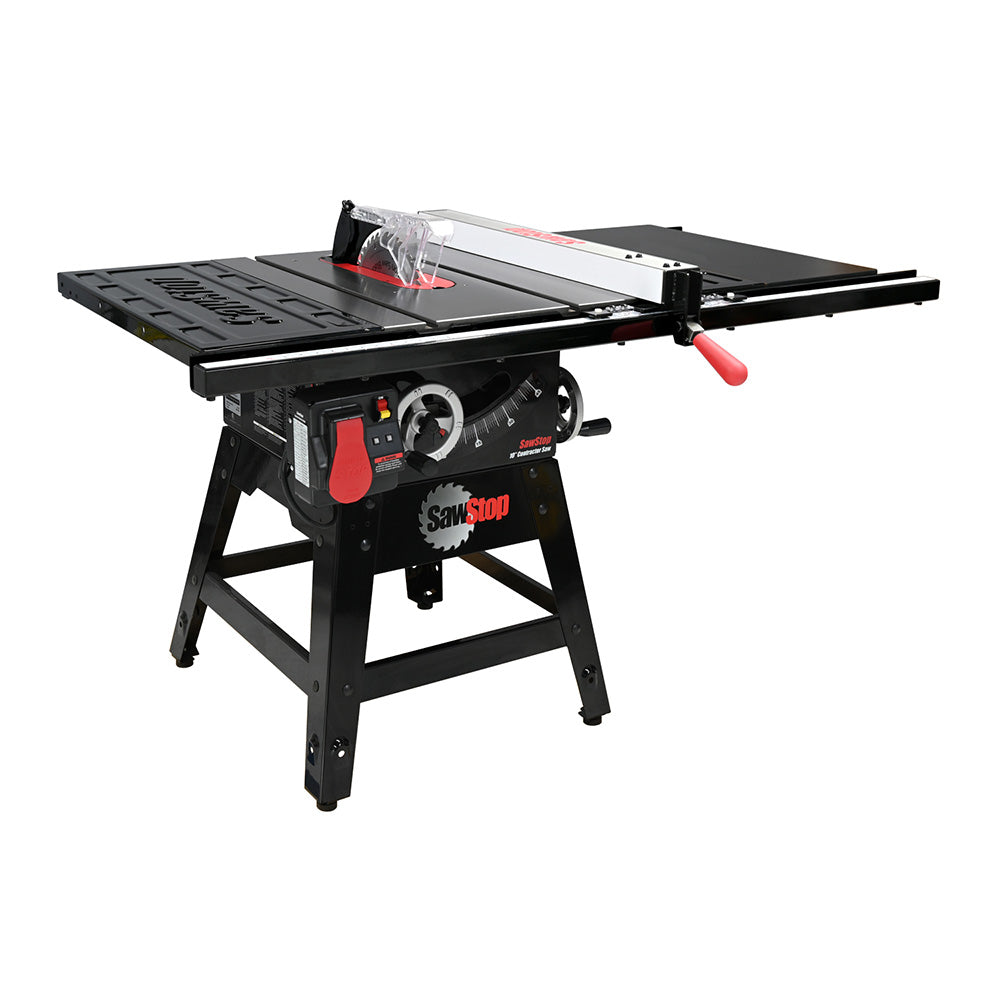

The SawStop Contractor Saw combined SawStop’s patented safety technology with tons of features that can be configured to meet your needs on the jobsite. As SawStop’s most configurable saw, it is truly versatile. This contractor saw combines mobility and stability with impressive performance, durability, and safety.

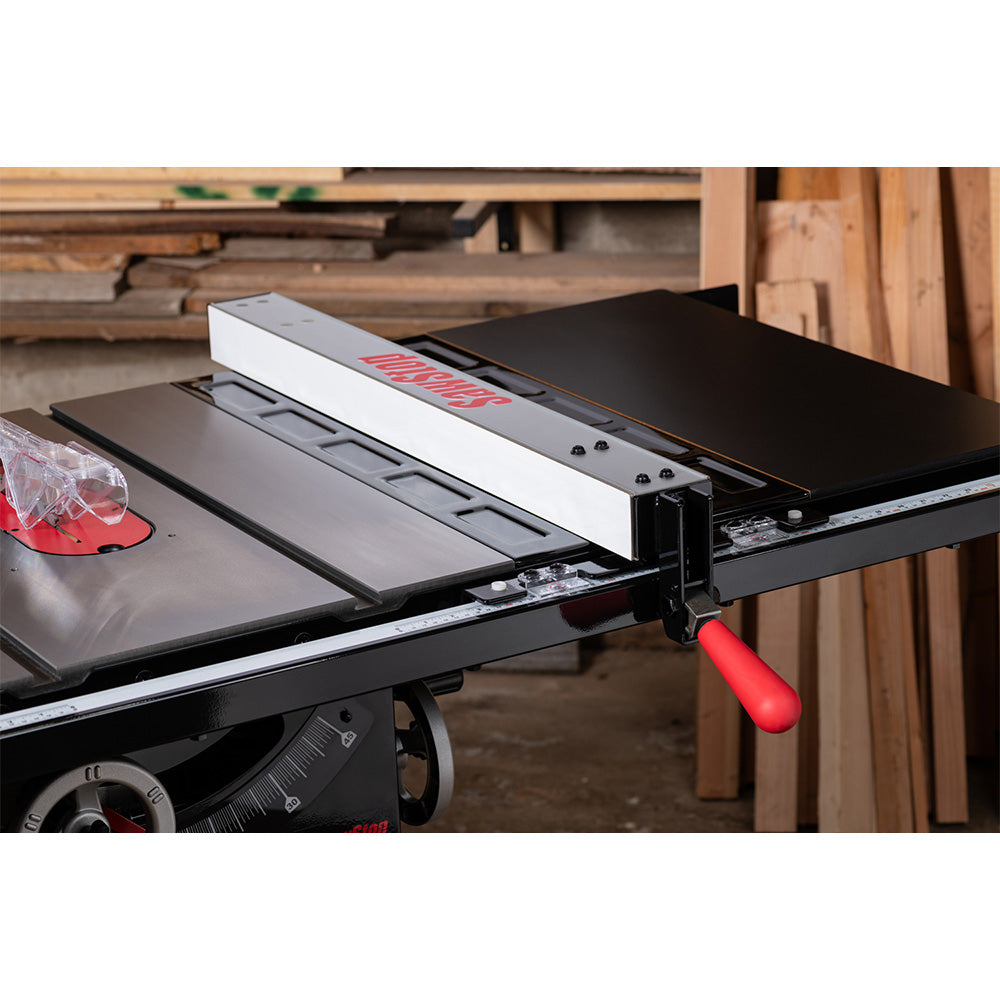

SawStop's Contractor Saw now comes standard with the upgraded 30" Premium Rip Fence. This fence features a wider body for increased stability, and is easier to adjust square and parallel. It is smoother to glide compared to the previous fence, and the steel rails add strength and rigidity.
The heart of any SawStop Saw is the skin contact detection. The blade carries a small electrical signal that is continuously monitored by a digital signal processor. The signal changes when it comes in contact with skin since the human body is conductive. This triggers the quick release aluminum brake. A heavy-duty spring forces the brake into the teeth of the spinning blade, stopping it instantly.
The elevation system operates on a vertical slide. This unique design provides consistent and precise blade alignment along all elevation levels. Not only does this improve the accuracy of your cuts, it also reduces the risk of binding and kickback. Additionally, the Zero Clearance insert supports the wood along the cut and reduces tearout.
Dust collection is maximized on your SawStop Contractor Saw. Under-table shrouding funnels dust out of the saw. You can attach your contractor saw directly to a 4” dust collection tube or to SawStop’s Dust Collection Panel, which has both 2.5” and 4” ports for compatibility with a variety of dust collection systems. You can also upgrade to a Dust Collection Blade Guard and step up to SawStop’s advanced dust collection above the table.
With a 1.75hp motor, the SawStop Contractor Saw delivers the power you need in a compact package. The poly-v-ribbed belts transfer more power to the blade for better cuts with less vibration. Powder-coated steel resists rust and corrosion to ensure life-long reliability. This contractor saw is sturdy and solid with considerably more cast iron for reduced vibration.
The SawStop Contractor Saw offers versatility, mobility, power, and reliability. From the job site to your home shop, it’s ready to get the job done!
Pair with the Contractor Mobile Base for maximum mobility.
Note: Some images may be shown with optional accessories.
Only ships to continental 48 states - Not available for express or overnight shipping
Motor: 60Hz, TEFC, 1.75 HP, 120v, 14 A (user config. to 220v w/optional kit available for purchase)
Overall saw dimensions: 61-3/4" W x 40-1/2" D x 34-3/4" H
Saw body w/stand footprint: 25-3/4" W x 27" D
Cast iron table (w/ extension wings): 44" W x 27" D
Stamped Steel Wings: 12" W x 27" D
Assembled weight: 256 lbs.
Blade: 40-tooth, prof. grade, 5/8" arbor
Blade diameter: 10"
Blade tilt: Left
Blade kerf: 0.118" (3mm)
Blade plate thickness: 0.078" (2mm)
Max. depth of cut, blade at 0º: 3-1/8"
Max. depth of cut, blade at 45º: 2-1/4"
Max. rip, left of blade: 16-1/2"
Dado diameter: 8" (req. dado brake + insert)
Dado max. width: 13/16"
Arbor diameter at blade: 5/8"
Main bearing size: 62 mm OD x 30 mm ID
Second bearing size: 52 mm OD x 25 mm ID
Table in front of blade (max. elevation): 10-5/8"
Table behind blade (max. elevation): 7-1/8"
Arbor Runout: 0.001" Maximum allowable runout
Table flatness measured diagonally: 0.016" Maximum gap
Blade alignment with miter slot: 0.010" Maximum displacement
Deviation of miter gauge indexing stops from actual: +/- 0.25 degrees
Alignment between splitter and blade: 0.010" Maximum difference
Miter slots T-shaped: 3/4" at top, 1" at bottom, 3/8" deep
Miter slots center: 11-1/8" center-to-center
Miter slots info: 5-1/2" (arbor flange to center of right slot)
Dust collection port diameter: 4" under table top
Riving knife / splitter thickness: 0.090" (2.3 mm)
Micro blade guard: polycarbonate, extends 1" right of blade (opt dust guard for purchase)
Insert: zero clearance, phenolic core, melamine surfaces
Hand wheels: 6" diameter, cast alum. w/ ABS handle
Belts: V-ribbed belt – static dissipative
Warranty: 1 year
