Purchase any SawStop Contractor, Professional, or Industrial saw and receive a free SawStop Systainer containing a premium woodworking apron and 60-tooth blade! (See second image.) Receive your free gift by completing the form at www.sawstopstore.com/gift/ after purchase. Purchases must be made by December 31, 2024 to qualify. Form must be submitted by January 31, 2025. Blade my change based on supply.

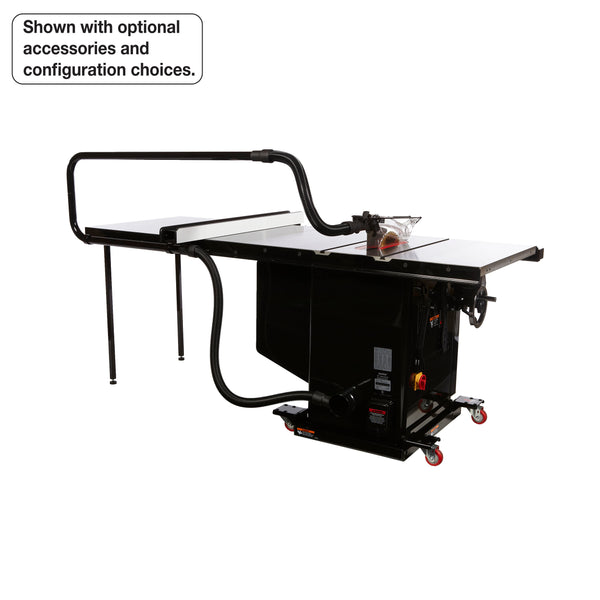

The SawStop® Industrial Cabinet Saw is the definition of industrial grade. This 3hp cabinet saw is the heaviest, most powerful and highest quality 10" cabinet saw available. The 1-phase, 230v motor configuration with a 52" Industrial T-Glide Fence Assembly offers the durability, versatility, and the peace of mind only SawStop's patented safety system can provide.
The heart of any SawStop Saw is the skin contact detection. The blade carries a small electrical signal that is continuously monitored by a digital signal processor. The signal changes when it comes in contact with skin since the human body is conductive. This triggers the quick release aluminum brake. A heavy-duty spring forces the brake into the teeth of the spinning blade, stopping it instantly.
Multi-v-ribbed belts transfer motor power and provide more torque with less vibration. SawStop engineers have meticulously designed the under table assemblies for maximum performance. A gas piston carries the weight of the internal mechanism, allowing the operator to effortlessly raise or lower the blade. Additionally, the trunnions and motor are perfectly balanced for precise tilt adjustments.
SawStop's Industrial T-Glide Fence, made of durable steel, glides smoothly over the saw. It is infinitely adjustable and locks down solid. Multiple guide plates and the adjustable rail prevent rough/jerky movements commonly found with other fences.
Pair with the optionalMobile Base to maximize flexibility without forfeiting a reliably solid cutting surface!
Only ships to continental 48 states - Not available for express or overnight shipping
Motor: 60Hz, TEFC, 3HP, 1 phase, 230v, 13A
Overall saw dimensions: 85-1/4" W x 36-1/2" D x 34" H
Cabinet footprint: 20" W x 25" D
Cast iron table: 24" W x 30" D
Cast iron table (w/ extension wings): 44" W x 30" D
Extension wings: 10" W x 30" D each
Extension table: 40" W x 30" D
Approximate assembled weight: 685 lbs.
Approximate weight - table saw only: 530 lbs.
Blade: 40-tooth Titanium, 5/8" arbor
Blade diameter: 10"
Blade tilt: Left
Blade kerf: 0.118" (3mm)
Blade plate thickness: 0.078" (2mm)
Max. depth of cut, blade at 0º: 3-1/8"
Max. depth of cut, blade at 45º: 2-1/4"
Max. rip, right of blade: 52-1/2" (w/ optional 52" rails)
Max. rip, left of blade: 12-1/2"
Dado diameter: 8" (requires a separate brake cartridge and insert)
Dado max. width: 13/16"
Arbor diameter at blade: 5/8"
Main bearing size: 62 mm OD x 30 mm ID
Second bearing size: 52 mm OD x 25 mm ID
Table in front of blade (max. elevation): 10-3/4"
Table behind blade (max. elevation): 10"
Arbor Runout: 0.001" Maximum allowable runout
Table flatness measured diagonally: 0.010" Maximum gap
Belts: 2 V-ribbed belts
Blade alignment with miter slot: 0.010" Maximum displacement
Deviation of miter gauge indexing stops from actual: +/- 0.25º
Alignment between splitter and blade: 0.010" Maximum difference
Miter slots T-shaped: 3/4" at top, 1" at bottom, 3/8" deep
Miter slots center: 11-1/8" center-to-center
Miter slots info: 5-1/2" (arbor flange to center of right slot)
Dust collection port diameter: 4"
Dust collection blade guard: polycarbonate, extends only 1-3/16" to right of blade
Blade guard (dust collection) port diameter: 1-1/2" Outside, 1-1/4" Inside
Insert: zero clearance, phenolic core, melamine surfaces
Hand wheels: 8" diameter, cast iron w/ chrome handle
Riving knife / splitter thickness: 0.090" (2.3 mm)
Warranty: 2 years saw / 5 years motor
