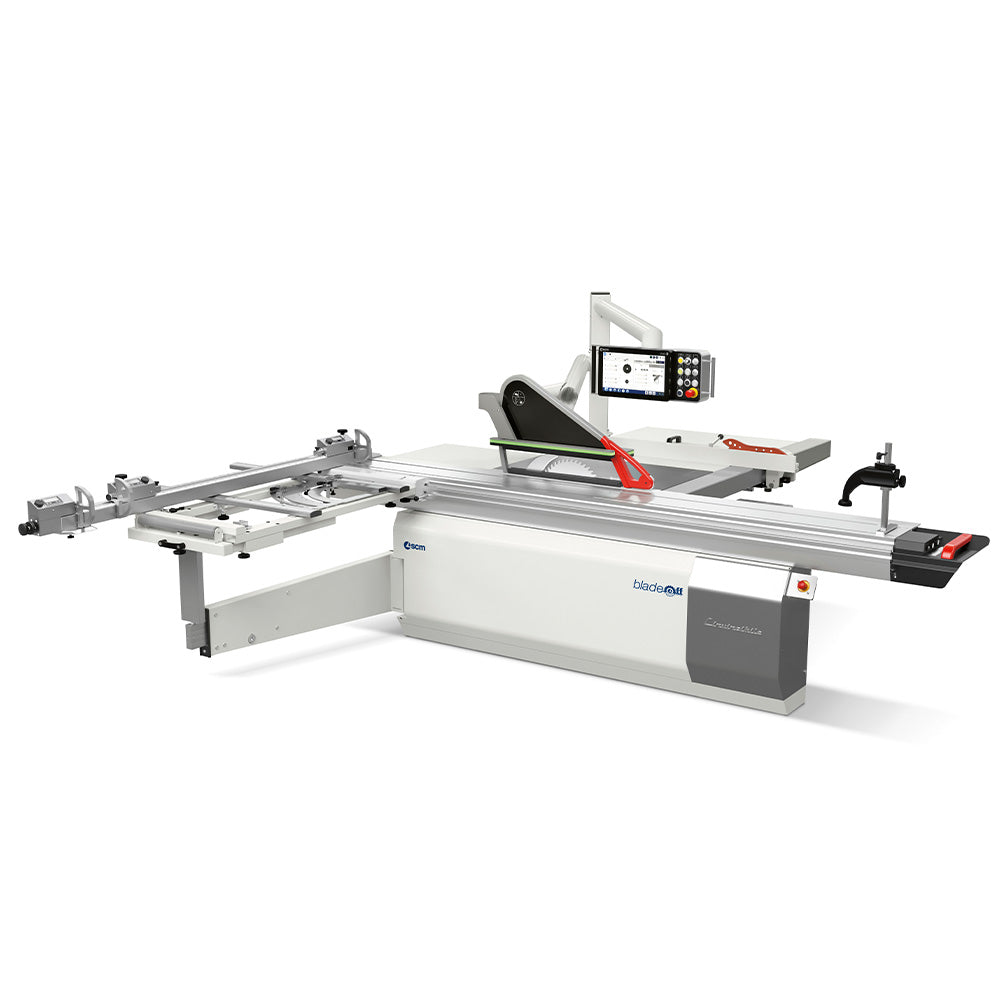

SCM L'invincibile SI 3 BLADEOFF Sliding Table Saw

• Next available: December 2024

The L’invincibile SI 3 represents the top-of-the-line in SCM Group's American sliding table saw lineup. It boasts a color touch-screen programmer that utilizes breakthrough technology to assist the operator in cutting complex components (compound miters etc.). It also features powered movement (manual, manual incremental/jog, semi-automatic and fully automatic) functions for the main and scoring blades, blade RPM’s and also programmable rip fence for maximum accuracy.

This table saw features SCM's exclusive BLADEOFF safety technology. The BLADEOFF system prevents any accidental contact with the blade thanks to smart sensors that recognize human contact. It is a predictive system, meaning it recognizes a potential accident and triggers the stop system before the operator even has a chance to come in contact with the blade. It even works if the operator is wearing gloves.

BLADEOFF will not interfere with your workflow. After the system is triggered, blades can return to their working positions in seconds. The blades do not get damaged, and there are no cartridges to replace and no re-calibration needed. Furthermore, the operator is not required to perform any start up activity, so you won't notice it's there.

The BLADEOFF system communicates with the operator through a light system. The red light means the saw is in stand-by mode after a safety intervention. No light communicates that the saw is currently resetting or the BLADEOFF system has been temporarily suspended by the operator. Finally, the green light signifies that the BLADEOFF system is active and the saw is ready to use as normal.

The L’invincibile SI 3 incorporates a feature that no one else in the industry can touch. The operator can have up to a 550 mm blade AND a 160 mm scoring blade running on the machine at the same time. This allows you bigger projects and deeper cuts without having to remove your scoring blade!

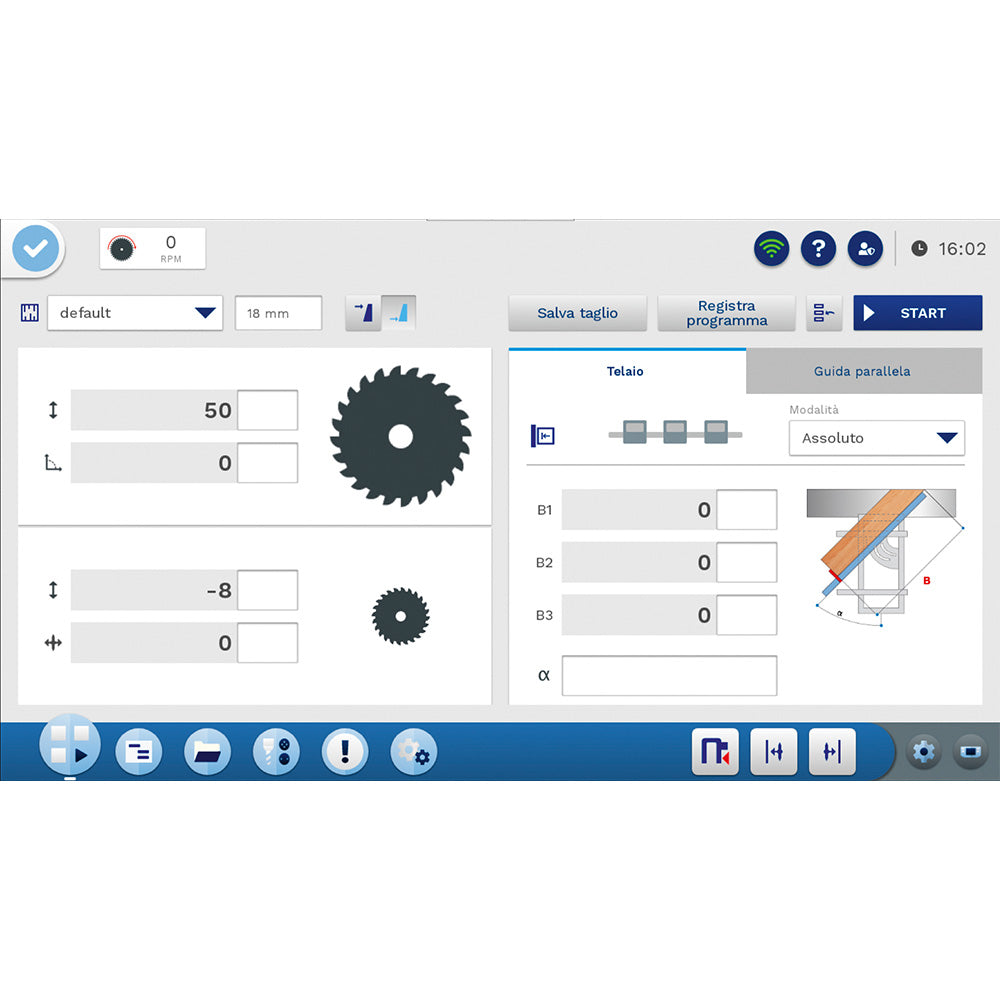

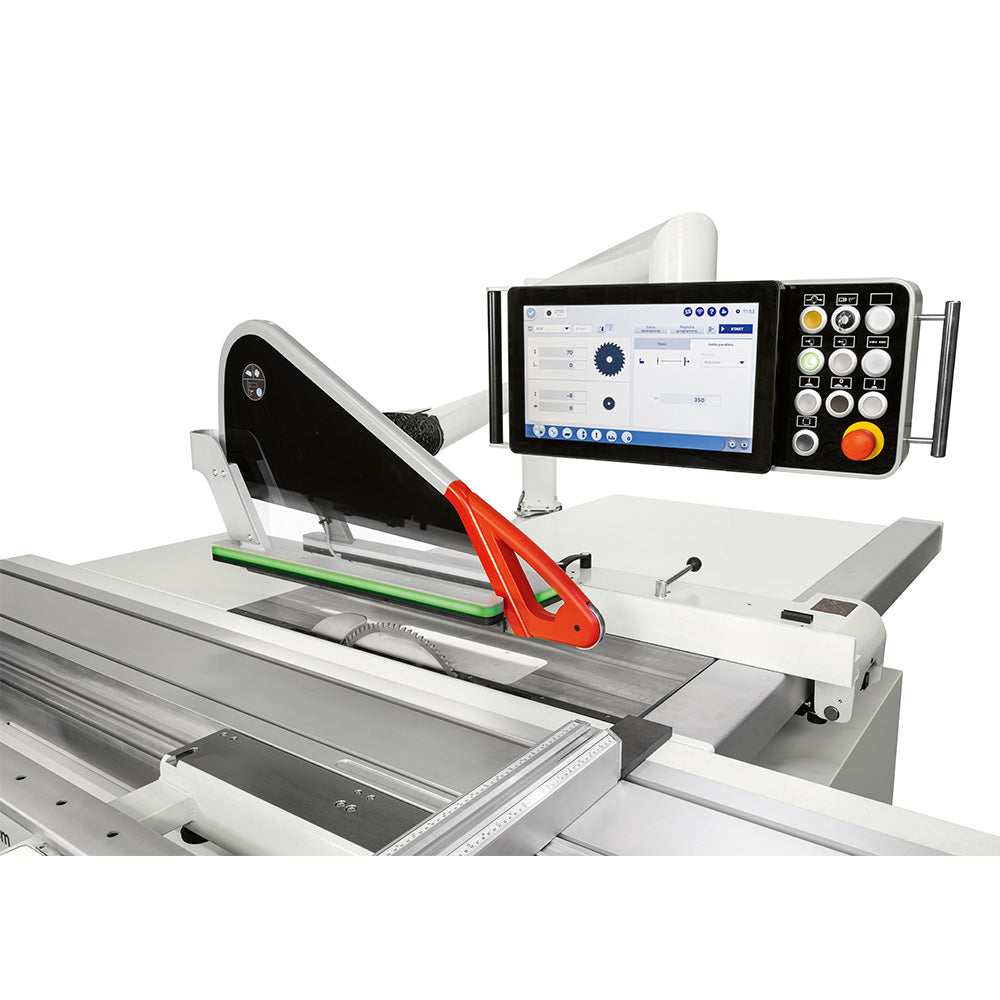

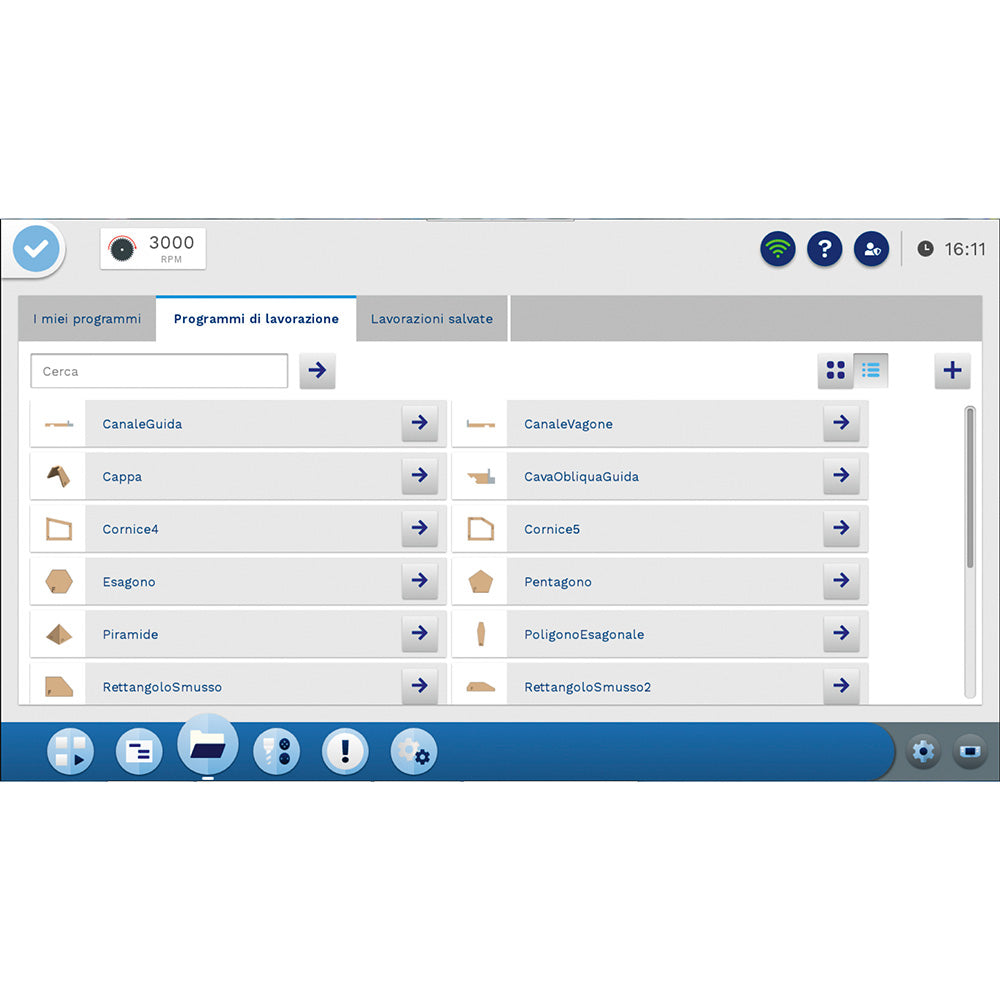

The “Easy Touch” 5-axis programmer controls blade raise & lower, blade tilt, main blade RPM, rip fence position, scoring height, and scoring left to right. It has an easy to use touch screen for quick data entry. It has the following features:

• Easy Touch LCD color touchscreen format of all program functions.
• Integrated and fast management of all integrated functions, improving overall productivity.
• 5-axis (+) electronic control for saw blade lifting and tilting, powered rip fence, and motor-powered movement of the horizontal and vertical positioning of the scoring blade, selectable by means of numerical keyboard and displayed on electronic digital readouts.
• Program function to assist with work stop positioning on the crosscut and miter fence, for cuts with tilted blade and/or angular cutting on the worktable.
• Memory capacity up to 999 working programs.
• Programming of sequential measures of the execution of six cuts maximum with a single program.
• Automatic activation of the scoring blade.
• Operator assistance with graphic help, to include development and selection of the dimensional measures, working angles for both the worktable fence and blade, referred to single elements of compound pieces.
• Wireless–Adjusts LCD Stop readout in real time according to blade tilt and/or cutting angle.
• Tool database.

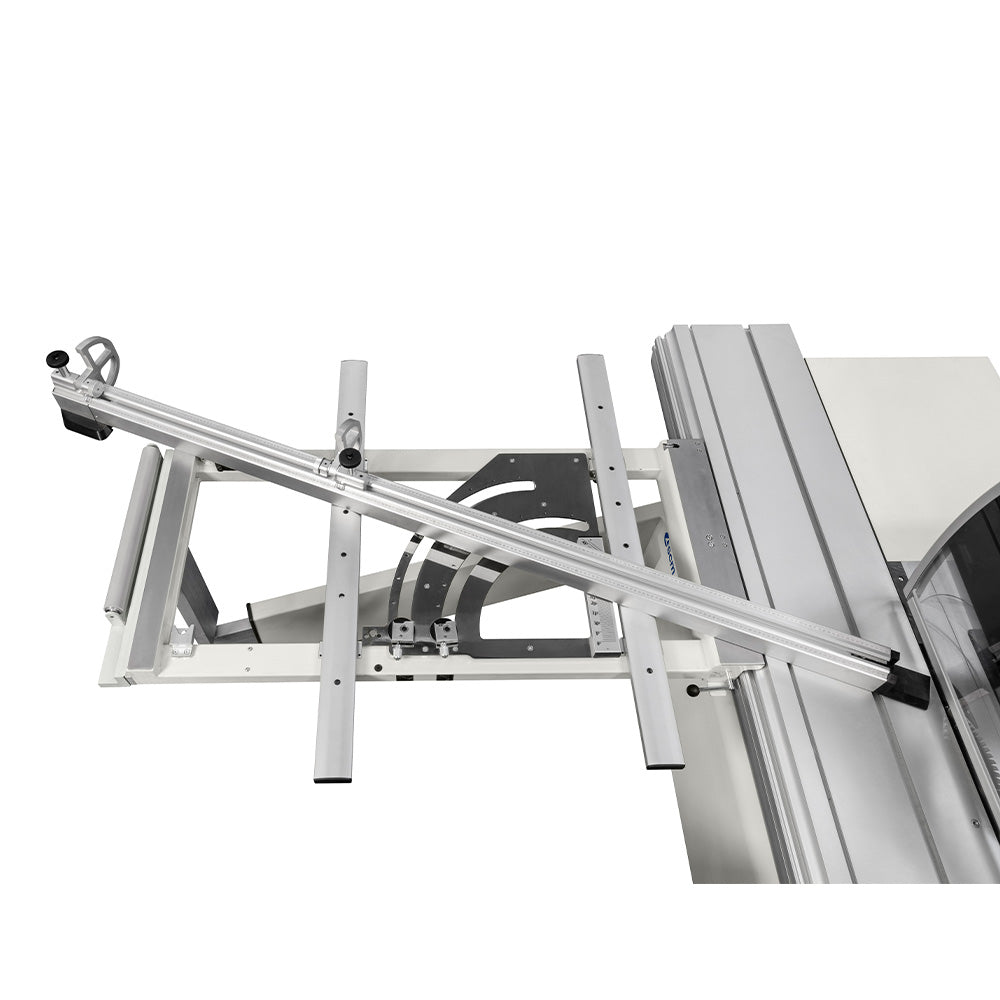

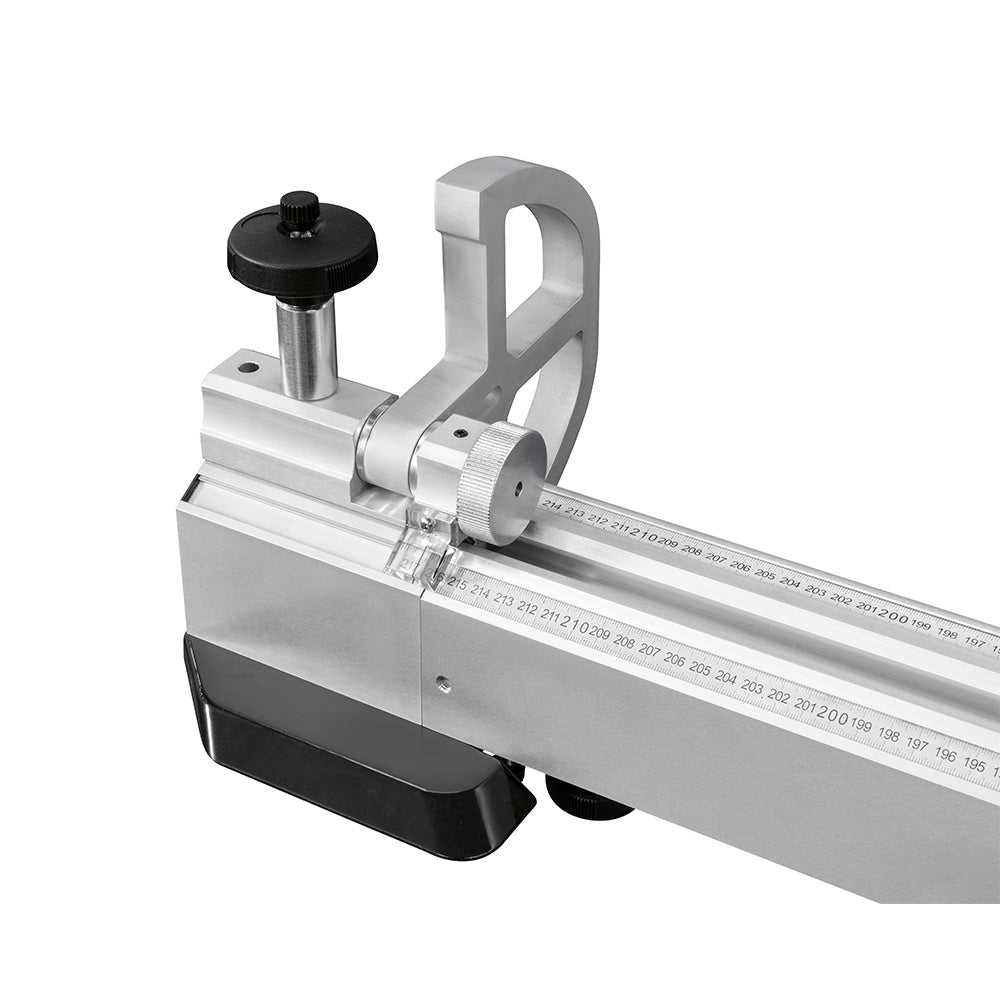

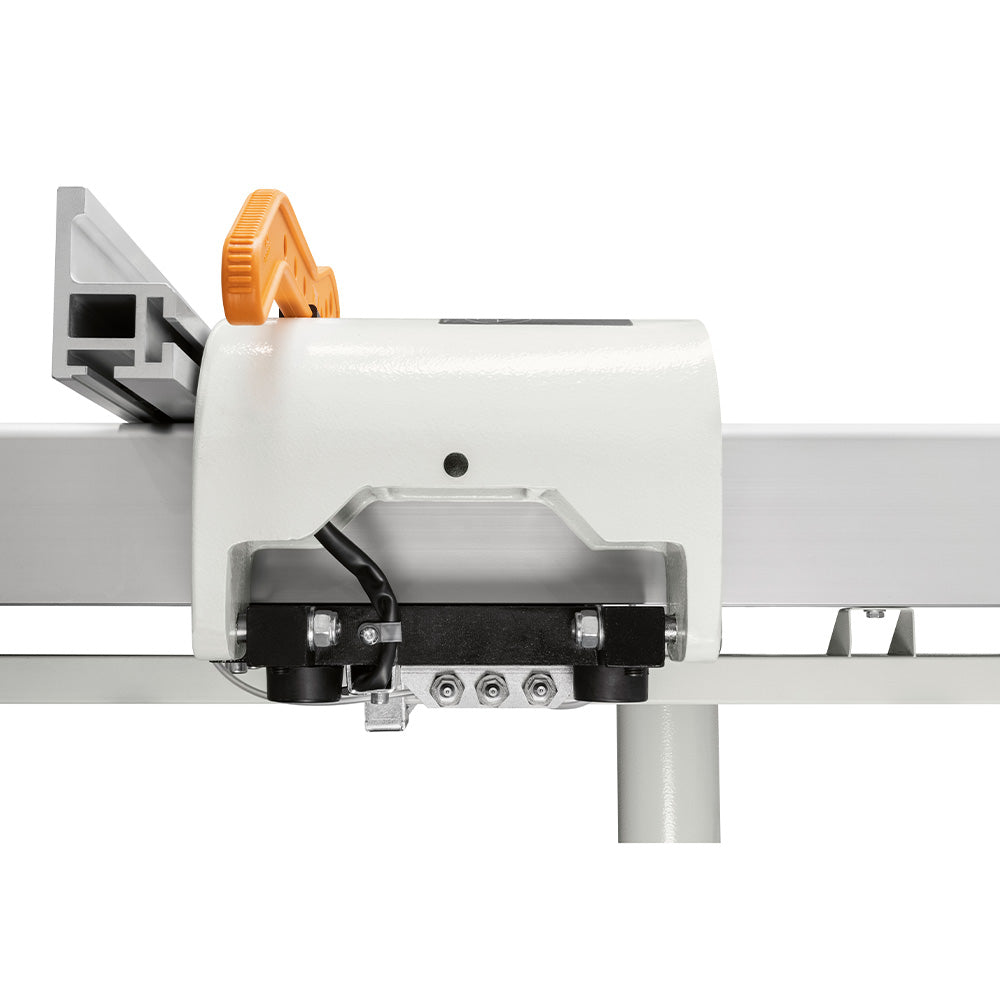

This machine comes standard with three LCD readouts on the crosscut fence. These readouts are extremely accurate. The actual stop has a special design using a rigid bearing so that it stays true for the life of the saw. It will not wear, and will not develop any side to side “play” over time. The wireless feature allows each stop to adjust its positioning when the full mobile support is angled and/or the main blade is tilted in real time. It will also automatically change the readout of the stop position even when you mitre or tilt the angle of the blade.
