The Minimax FS 52ES T is a professional grade, heavy duty, long bed jointer/planer combination machine designed to meet the needs of the most demanding environments. It features heavy cast iron tables, a 10 horsepower 3-phase motor with a tilting fence.
The planer unit stands on cast iron supports with a 120mm diameter, 20” Tersa cutterblock with 4 quick tightening knives and automatic adjustment. For an impeccable finish, the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The infeed roller has a helicoidal profile to guarantee firm and constant work piece feed, while the outfeed roller, in sandblasted steel, maintains the perfect postprocessing finishing.
The standard guard offered on the Minimax jointer/planer combination machine is a spring type guard which always covers the unused portion of the knife. Other style guards require the guard to be manually moved into place when the fence is readjusted. When processing thick wood, this does not cover the blade as completely.
For a maximum long lasting stability the cast iron thicknessing table lifts on 4 spindles with dust protected trapezoidal threads. The Minimax FS 52ES T uses a dedicated planing fence extremely rigid and smooth, thanks to a support with central round bar.

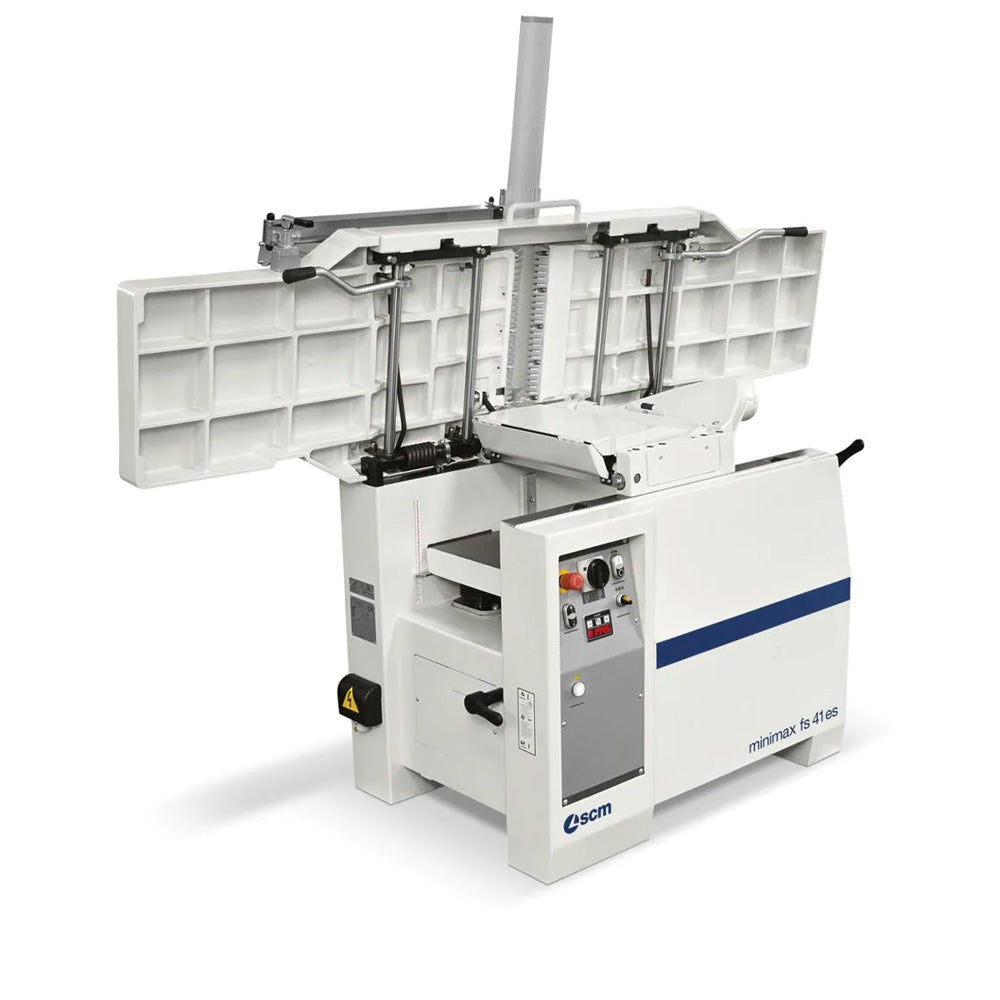

Comfortable and precise planing. The ES series adopts ergonomic solutions like the 2,200 mm jointer tables, in ribbed cast iron, that allows for the simultaneous opening towards the inside of the machine with a 90° angle. For maximum long lasting stability the cast iron thicknessing tables lift on 4 spindles with dust protected trapezoidal threads.
Need replacement knives? Find them here.
Motor: 10hp, 3-phase (220V)
Dust extraction outlet diameter: 4.75” (120 mm)
Jointer
Working width: 20" (520 mm)
Overall table length: 88.6” (2,250 mm)
Cutterhead dia.: 120 mm
Max. depth of cut: 0.196" (5 mm)
Fence tilt: 0° - 45°
Planer
Table size: 20.47" x 33.46” (520 mm x 850 mm)
Min./Max. working thickness: 0.12”/9.45” (3 mm/240 mm)
Min. working length: 8.66" (220 mm)
Max. stock removal: 0.1968" (5 mm)
Feed speed: 5 / 8 / 12 / 18 meter/min
