SCM Nova SI 400 Sliding Table Saw

• Freight included in price*
• Next available January 2025

The Nova SI 400 is SCM’s best-selling sliding table saw. This machine comes with a 14” (350 mm) main blade (maximum blade capacity is 16”) and expandable 5" (120 mm) scoring blade. It features a 10.5ft. squaring stroke on an anodized aluminum sliding table with hardened steel guides and an impressive 11 horsepower 3-phase motor to cut through tough materials with great precision. Customers appreciate the ease of use and production capabilities this saw has to offer.

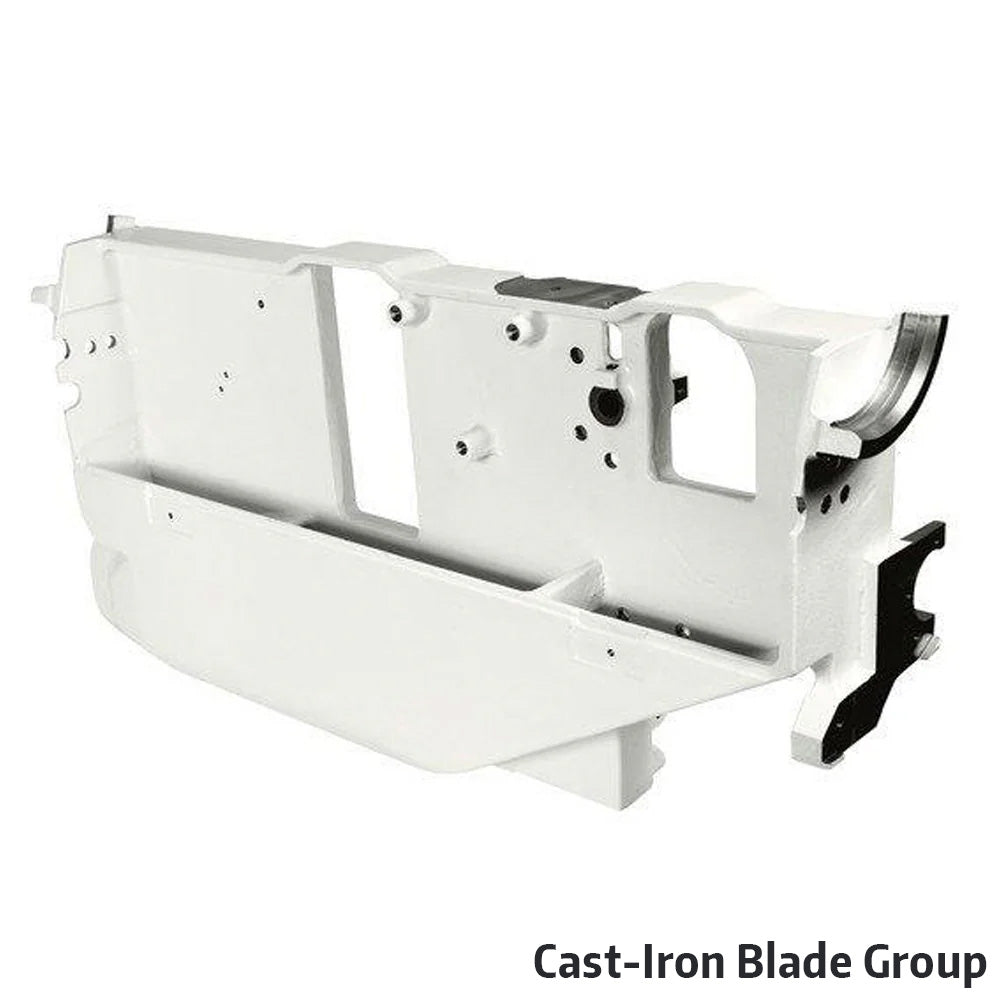

The entire blade group (main blade and scoring blade) raises and lowers on two dovetailed steel guideways. This casting eliminates the possibility of misalignment, which exists when these parts are bolted in place or pivoted on a pin as some manufacturers do. SCM’s engineered direct shaft drive coupled with rack and pinion allows for a smooth angle adjustment of the saw blade.

The Nova SI 400 has a wider sliding table with two channels for added versatility. This is a feature normally only found on larger machines. The hardened steel guideways are machined into place (no glue), and are designed to last the life of the machine with no adjustments needed.

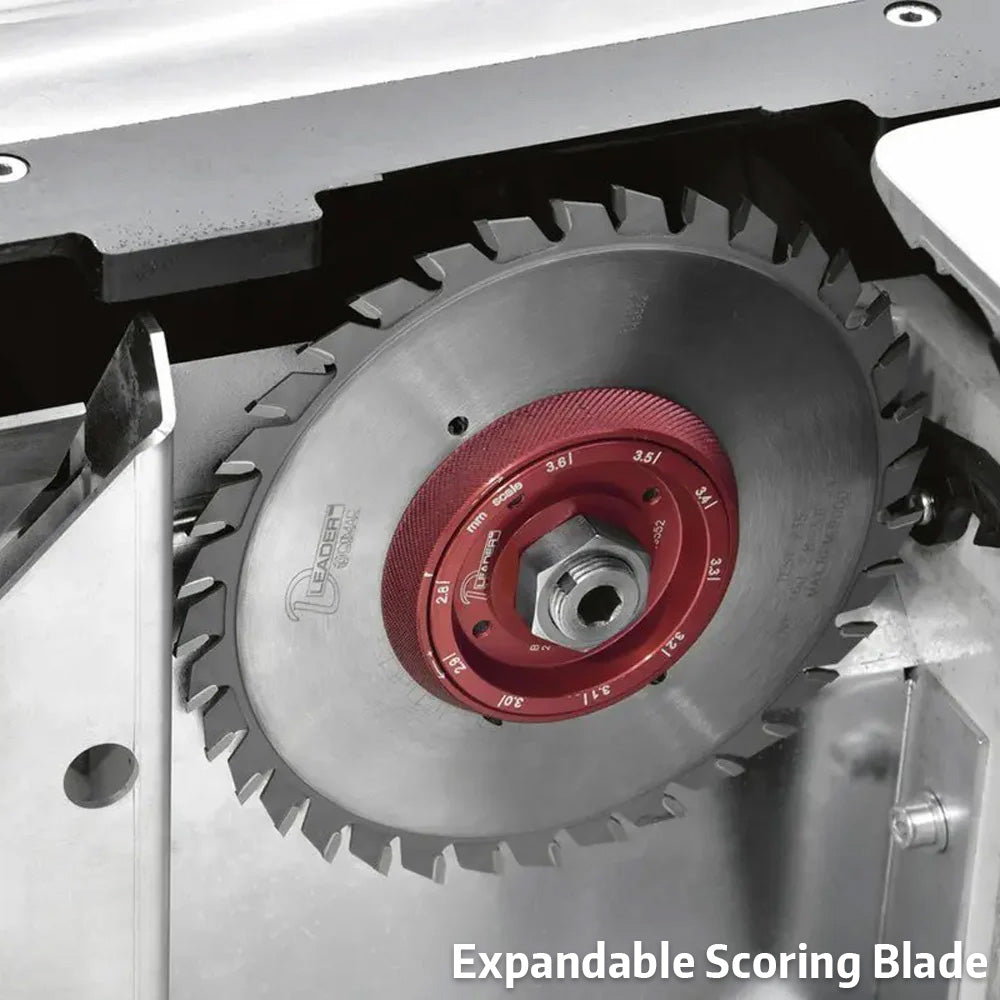

Adjusting the scoring set is quick and easy. Simply turn the dial to adjust the width of the score. This system eliminates the need for shims and the constant adjustment they require. It is fully adjustable in 0.1 mm increments.

The Nova SI 400 comes standard with an overhead blade guard. Whether you are cutting sheet goods or 5” thick solid wood lumber, this guard has you covered. The guard also has a dust collection outlet to aid in the removal of dust and other airborne particles.

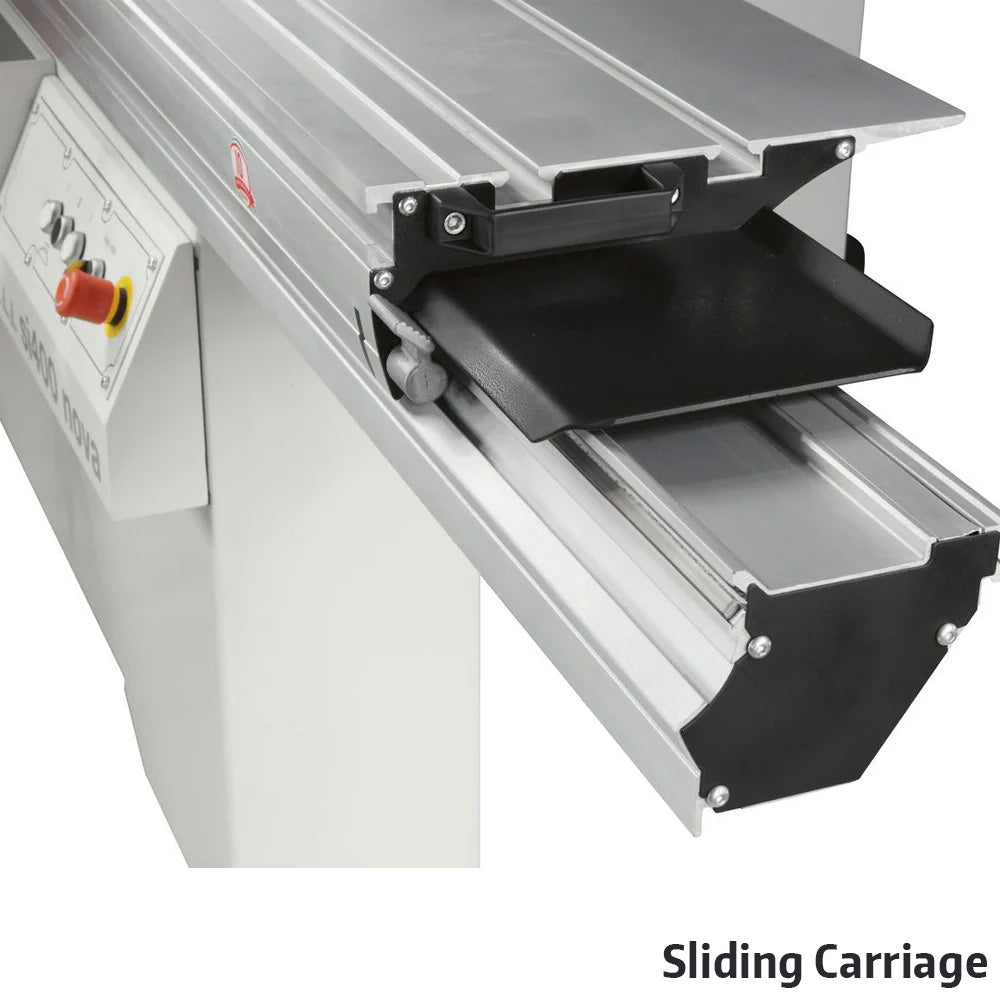

Guideways are ground to tolerance allowing for a precise and permanent fitting of the wagon assembly. The radius is ground into the steel guides which increases the contact area along the bearing surface which eliminates pre-mature wearing of the bearing and guides. The steel guides are mechanically dovetailed into place and have a +/- 0.05 mm (.002”) tolerance along the entire length of the carriage. The carriage will never require adjustment due to its structure with arch-ground steel guideways (developed by SCM).

The Nova SI 400 features a telescopic squaring fence with two flip-over stops for fast referencing when cutting workpieces with the same dimensions. This fence also features a swinging arm support, an idle roller to facilitate panel loading/unloading, and a metric ruler tilted towards the operator.

Utilize SCM's Thundercut App to get the most out of the Nova SI 400. This app is compatible with iOS and Android operating systems, and allows you to:

• Manage stock material and guides you through the cut
• Create and modify projects, import projects from the main furniture design software ("cpout" file format), and import cutting lists
• Choose different cutting patterns based on app's suggestions, such as "minimum waste," "maximum speed," etc.
• View machine configuration in 2D or 3D
• Print panel labels
