$ 2,499

Have questions? Give us a call at 260-637-0054.

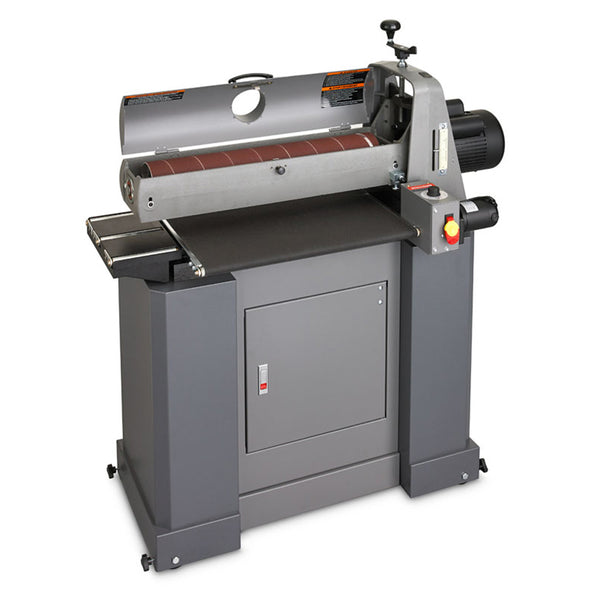

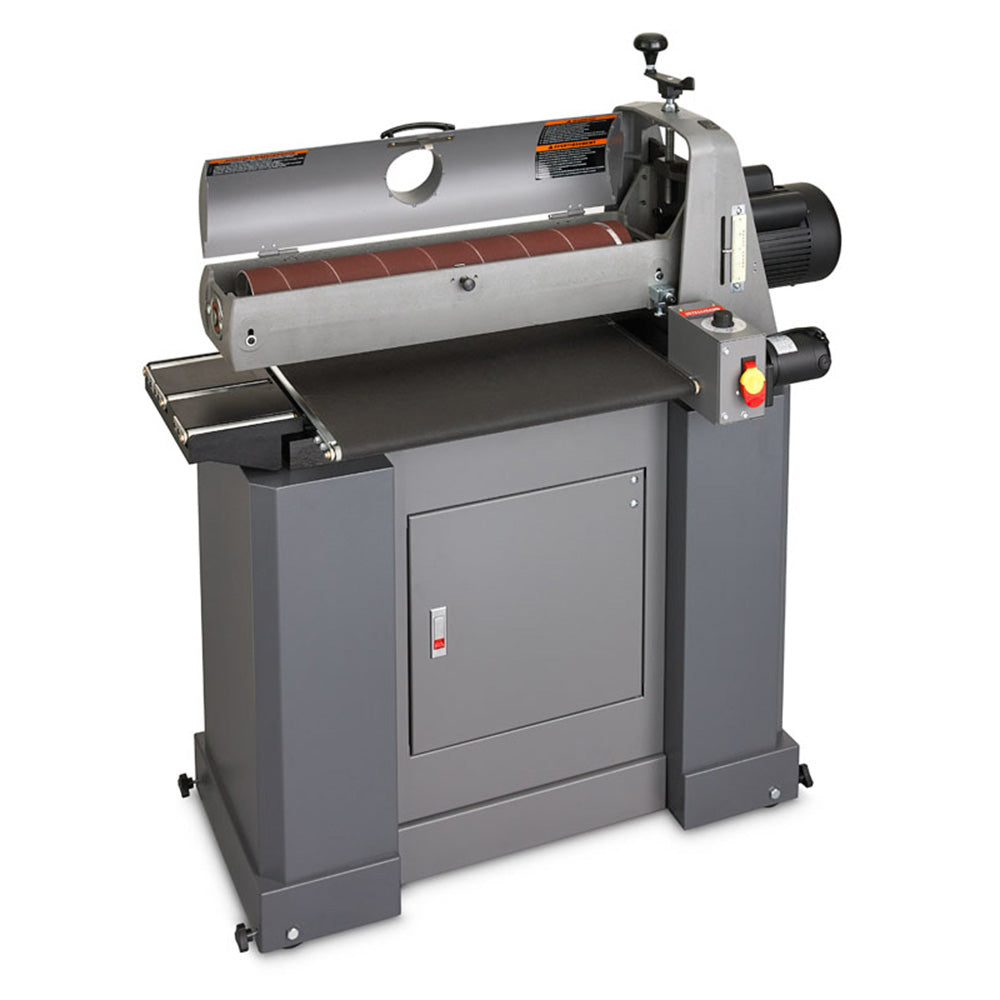

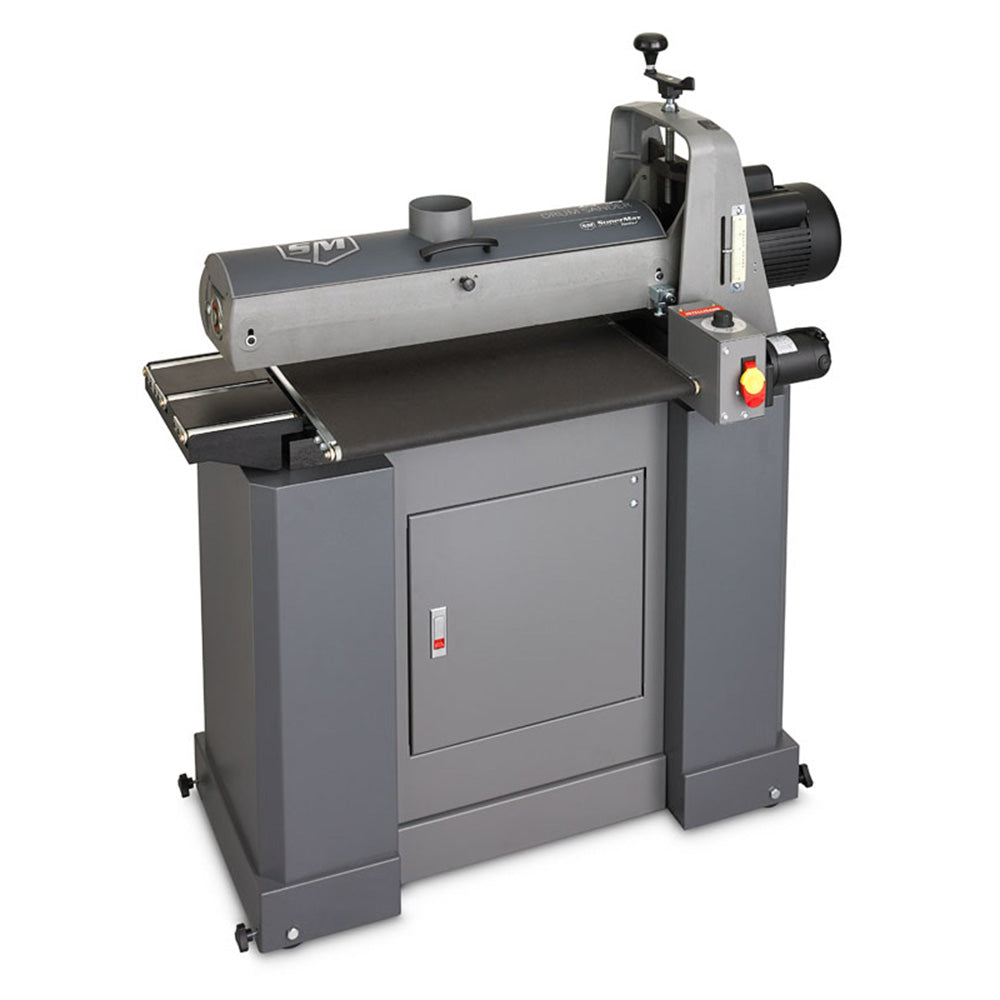

The SuperMax 25-50 Drum Sander is the largest open-ended drum sander on the market. Sand 25″ in a single pass, and up to 50” in a double pass. Expand the scope of projects you’re able to complete while increasing speed and consistency in which you’re able to do them! The 25-50 Drum Sander comes standard on the Closed Mobile Base Stand. The drum is pre-wrapped with 80 grit sandpaper. Additional accessories and sandpaper are available for purchase.

All Laguna Tools woodworking machinery carry a 2-year warranty. Must register machine within 30 days of purchase.

Compare Models >

Shop 25-50 Abrasive Wraps >

Features
  • 25" sanding in a single pass, 50" in a double pass
  • INTELLISAND Technology automatically adjusts conveyor speed if required and also prevents gouging stock or damage to the motors
  • Fast Adjust Lever offers an extremely quick and accurate adjustment for proper alignment when sanding material wider than the drum
  • More room for easy access to abrasives- no special tool needed
  • Self-cooling drum prevents overheating and extends abrasive life

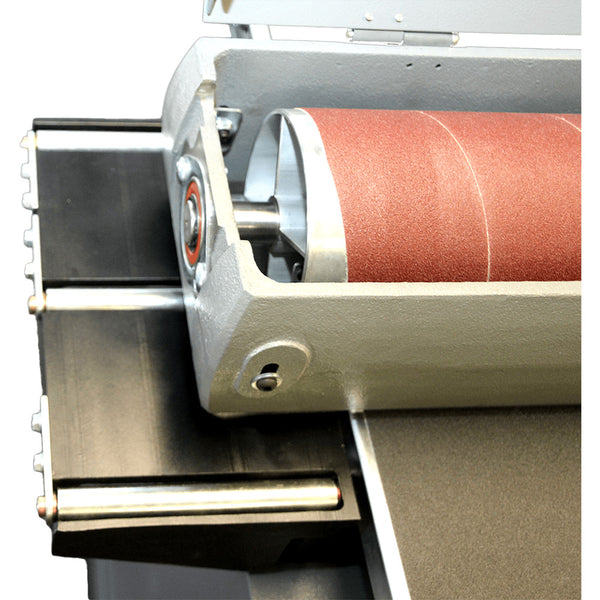

  • Tension rollers are adjustable for pressure and contact, preventing snipe and maintaining proper feeding of material
  • Closed stand has built-in wheels and storage
  • Mobile base helps stand and machine to move with ease
Specs

Max. Sanding Width: 50″ (Two Passes)
Min. Sanding Length: 2-1/4″
Max. Sanding Thickness: 4″
Min. Sanding Thickness: 1/32″

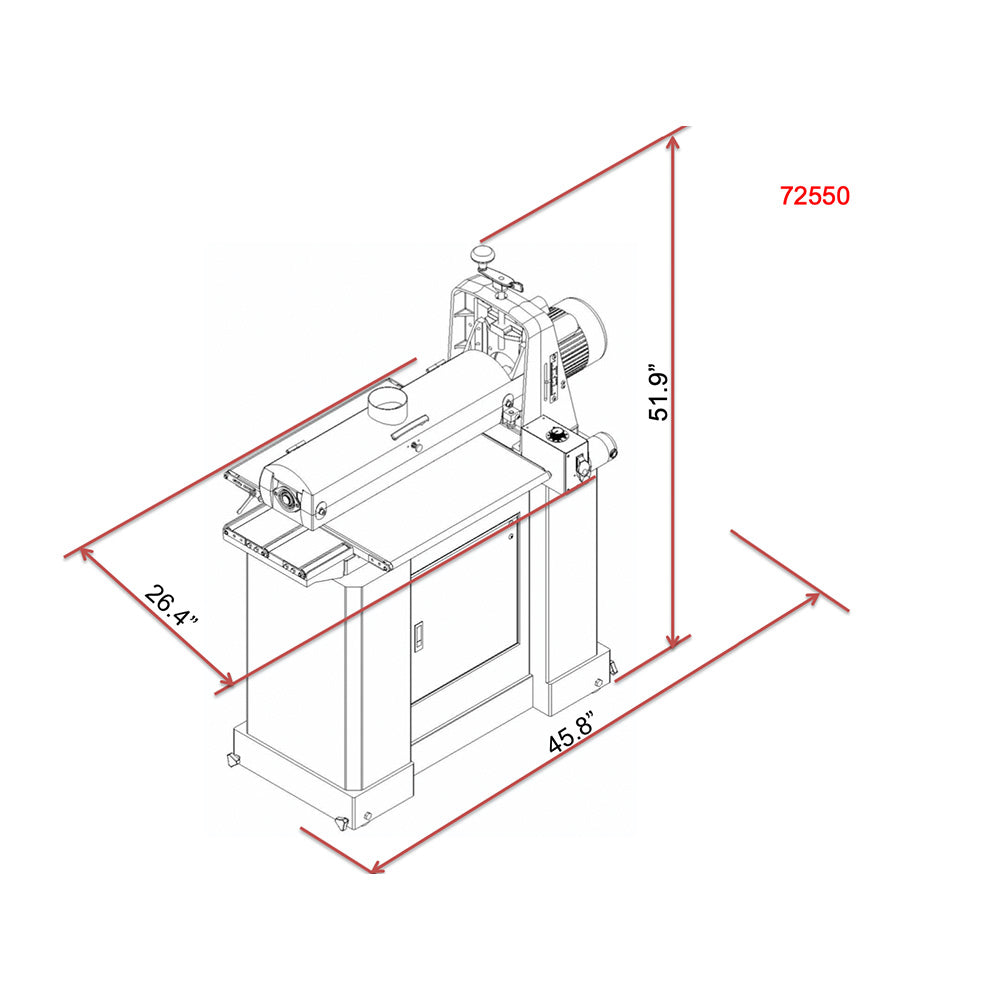

Dimensions (D x W x H): 27″ x 46″ x 53″ (On Stand)

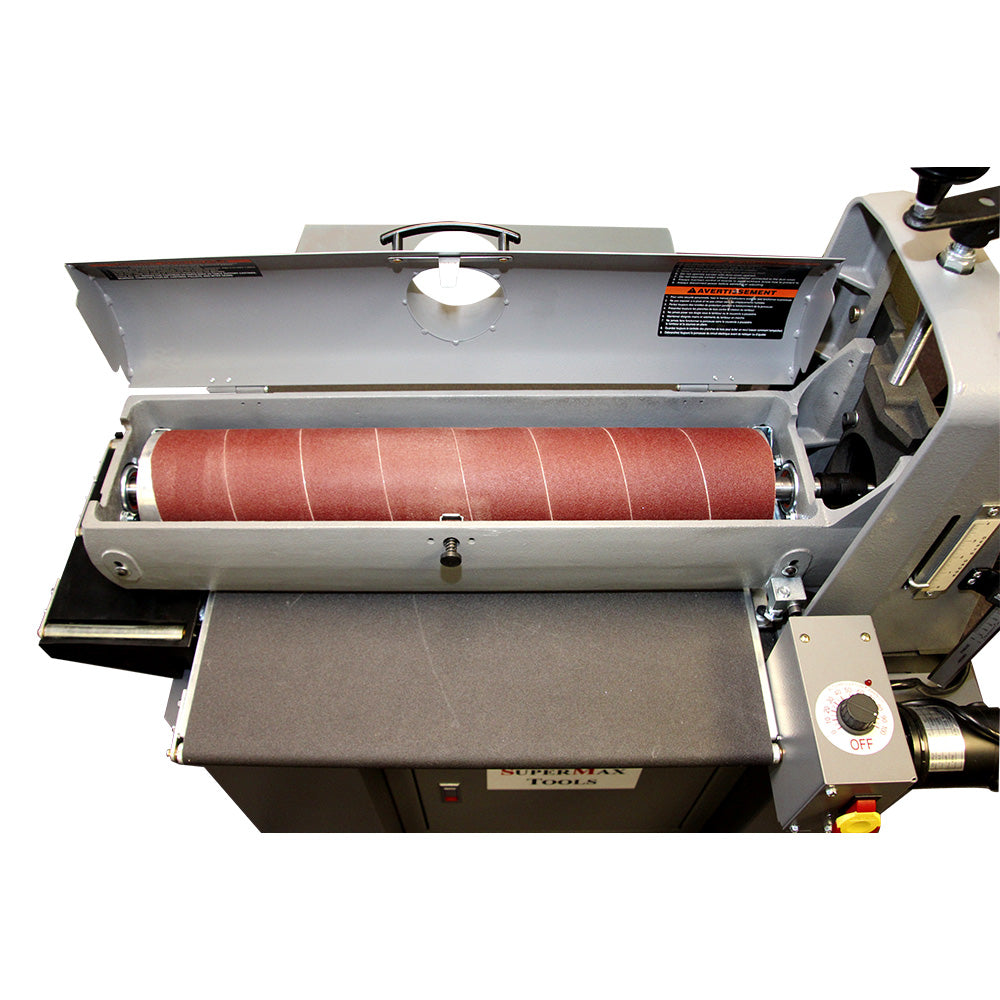

Drum: 5″ x 25″ Extruded Aluminum
Drum Speed: 1,740 RPM
Drum Speed: 1,740 RPM
Dust Hood: 1 – 4″ Vacuum Port, Min. 600 CFM Recommended
Conveyor Motor: 43 in.-lb torque, direct drive D.C. motor, ranged variable 0-10 FPM
Drive Motor (TEFC): 1-3/4hp
Power Requirements: 110 V 20 amp
Table Height (Floor To Top Of Table): 33″
Shipping Weight: 369 lbs. (3 boxes including stand)
Shipping Dimensions (L x W x H): 45″ x 16″ x 24″

SKU: SUPMX-72550

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
John Austin
Excellent sanding

I've had the sander for a month now, so I am getting it dialed in just right.
First off, I received an email from Oak tree showing me how it was packed before shipping and to look for any damage it may receive from the shipper.
Thankfully it came with zero damage, but what a nice touch to take a pic.

Assembly went good, the sander head is very heavy as it's cast iron. Everything seems well made and not cheap. I did have to fine tune a couple things.

Changing the belt was difficult the first time. Watch a video first, It's hard to see how the springed holder work.

I have run a bunch of Hemlock thru it with great results. It made quick work sanding down 5 piece doors

B
Benjamin Kwadwo Som-Pimpong
Game Changer

This sander has completely revolutionized my work flow. It is so well crafted. It is quiet, heavily built, and reliable. I am so glad I found this brand and that Oak Tree had it in stock when many others did not. Thank you!
