$ 499

Have questions? Give us a call at 260-637-0054.

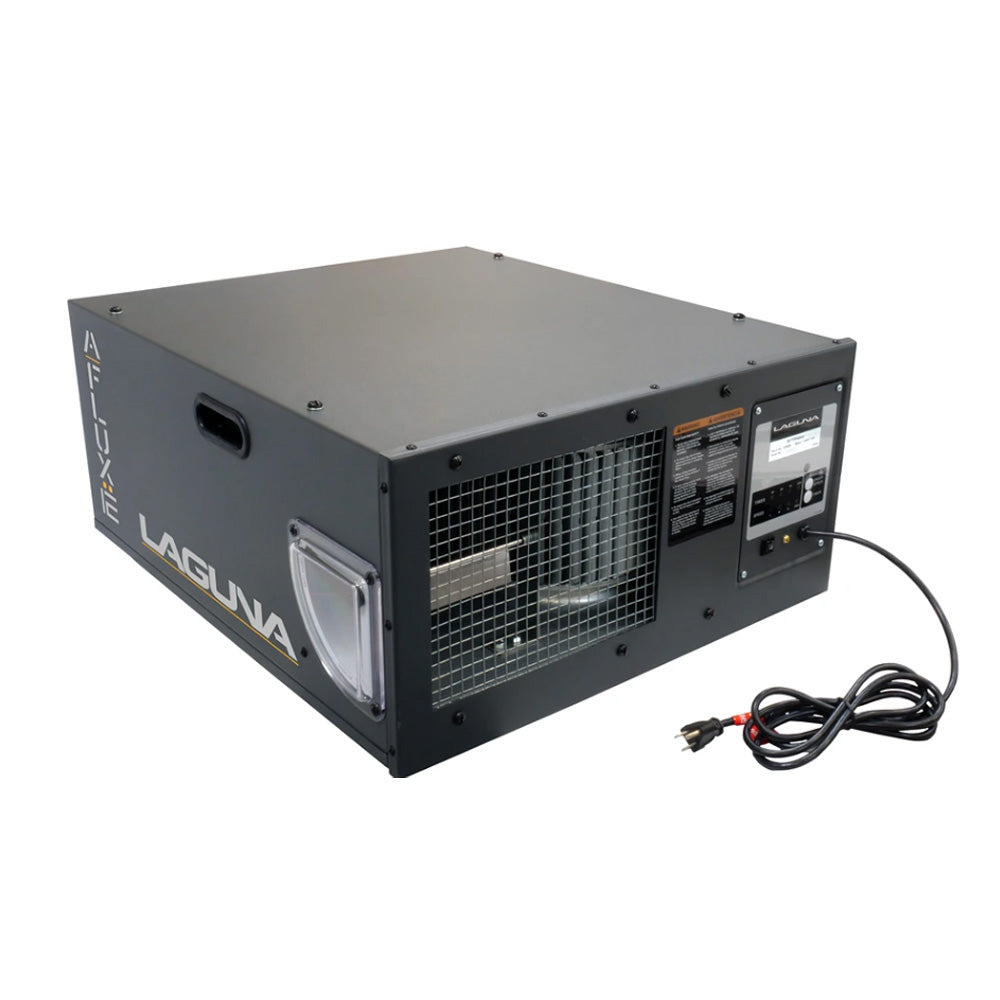

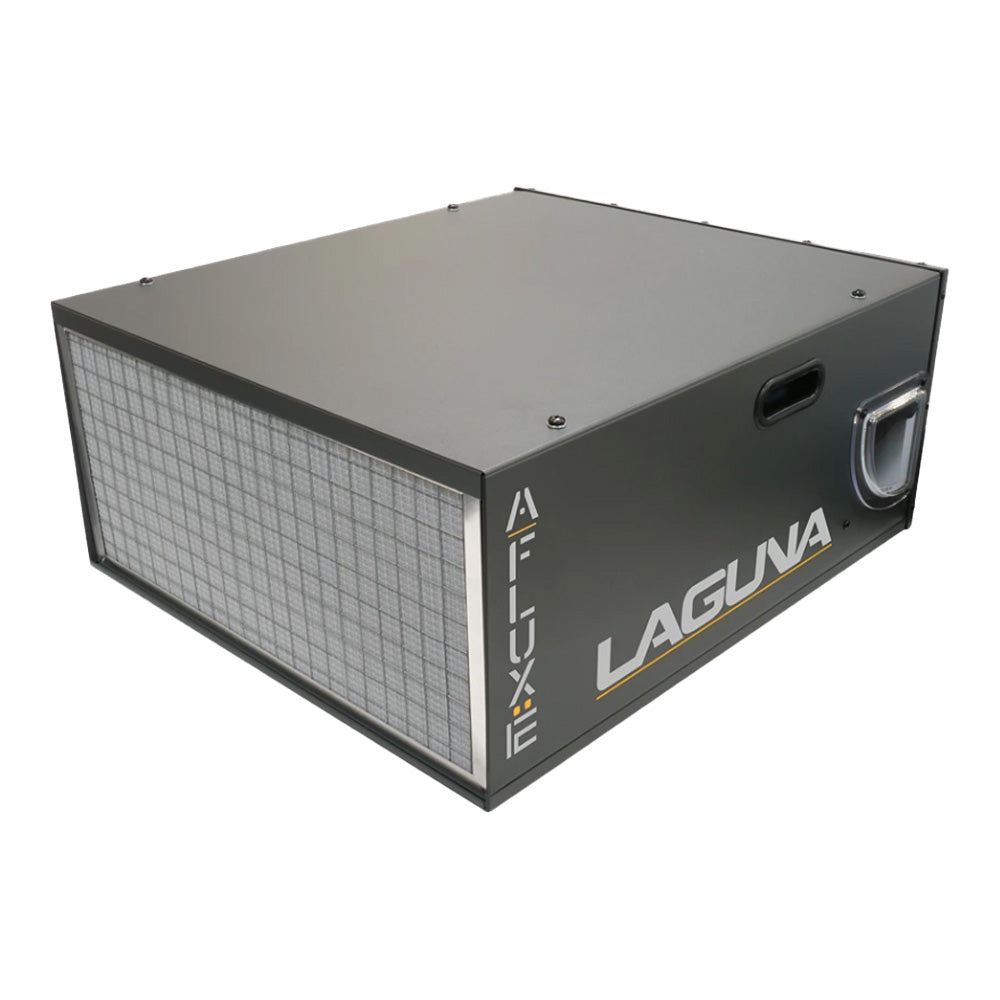

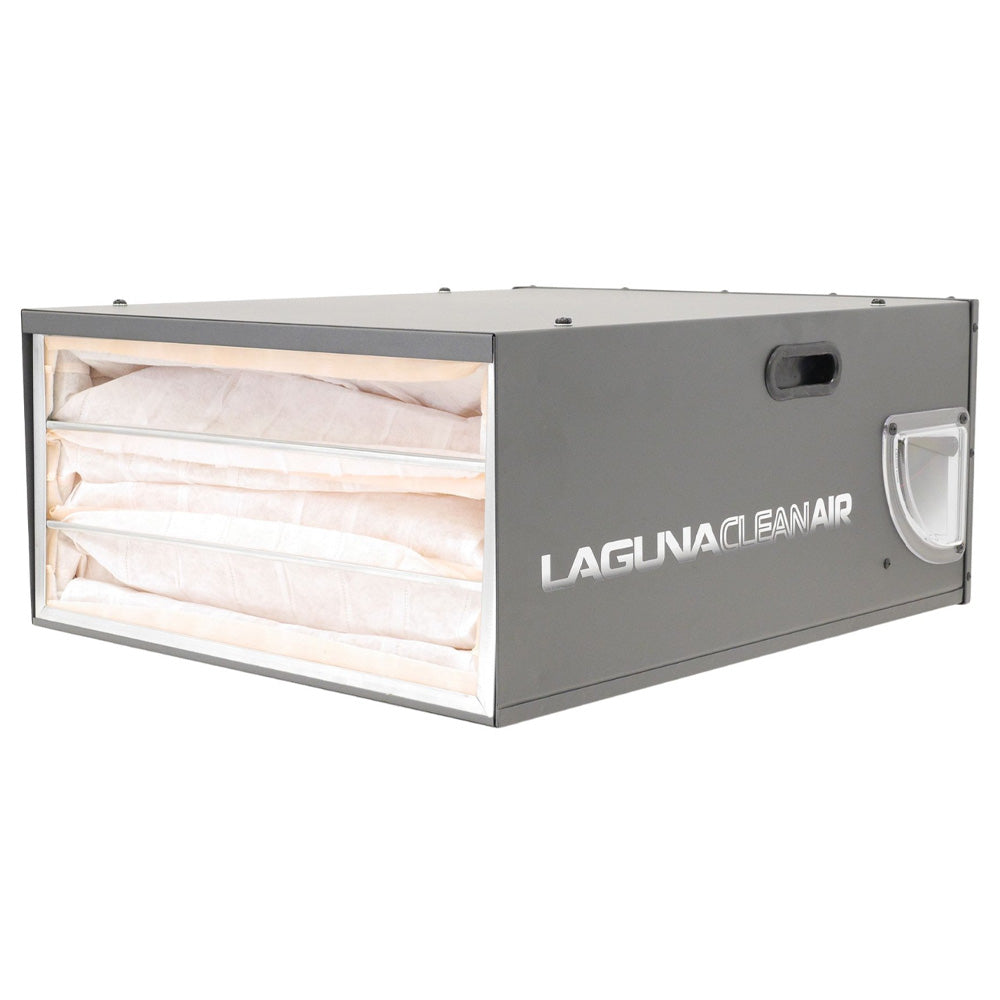

The A|Flux 12 is designed to recycle all of the air in a 20′ x 20′ x 8′ space up to 22 times per hour at its highest speed. It includes one (1) outer washable electrostatic filter with an inner filter that captures all particles larger than 1 micron ensuring clean air output. The unit is equipped with a 1/5 HP, 60 Hz service with the option of 540, 730, or 1,200 CFM.

All Laguna Tools woodworking machinery carry a 2-year warranty. Must register machine within 30 days of purchase.

Features

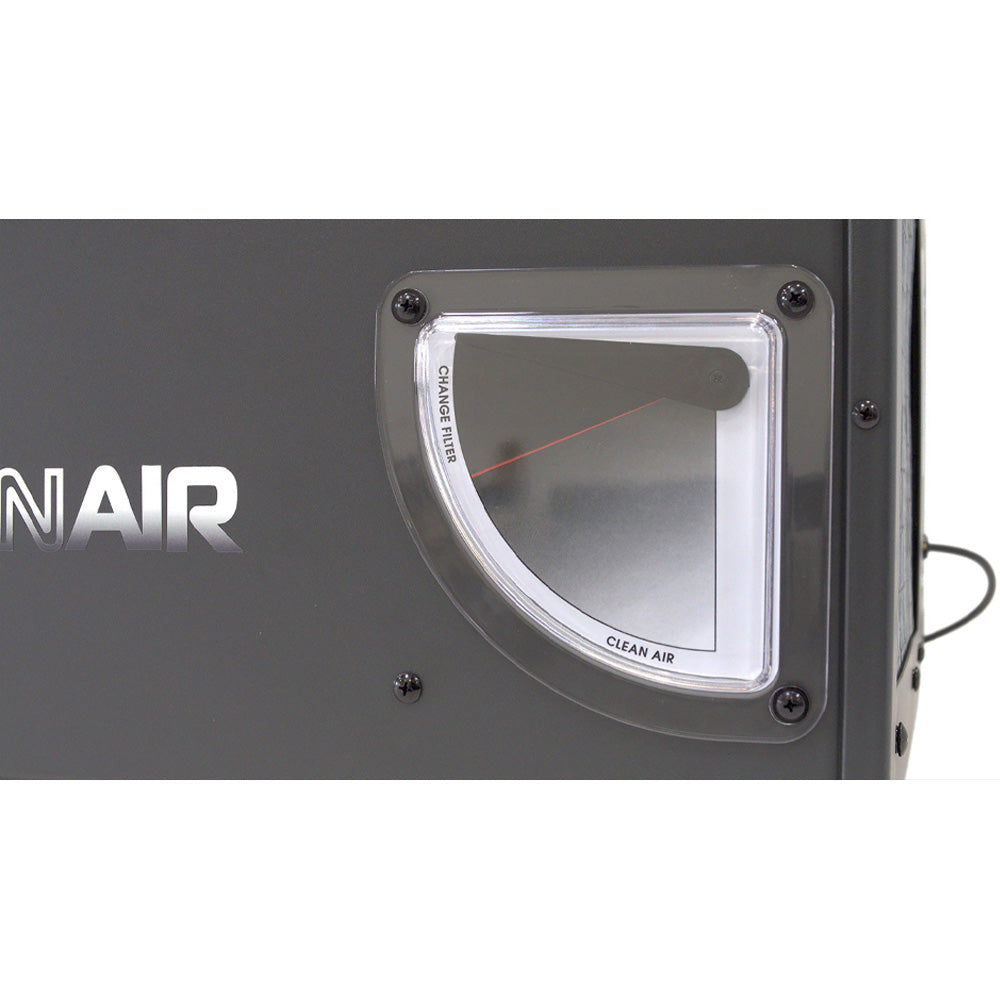

  • Air filter indicator: Monitors and alerts when filter is dirty ensuring optimal air cleaner performance

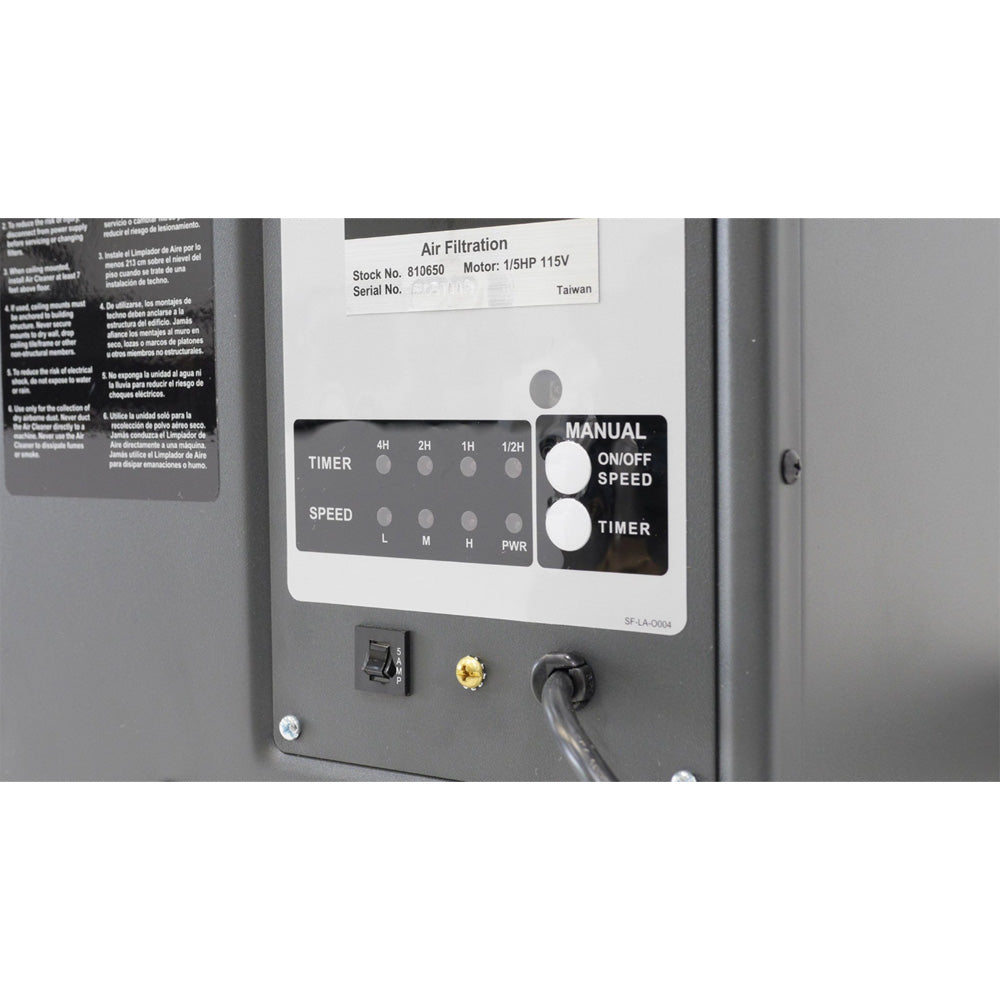

  • Built-in timer: Timer settings from 1/2 hour to 4 hours allow user to set the unit with confidence that, while they are away, the unit will clean the air in the shop and then turn itself off
  • Breathe easy: Recycles all of the air in a 20′ x 20′ x 8′ space up to 22 times/hour at highest speed setting
  • Convenient remote control: Offers convenience for on/off, speed adjustment and timer programming when unit is mounted on the ceiling or in hard-to-reach areas

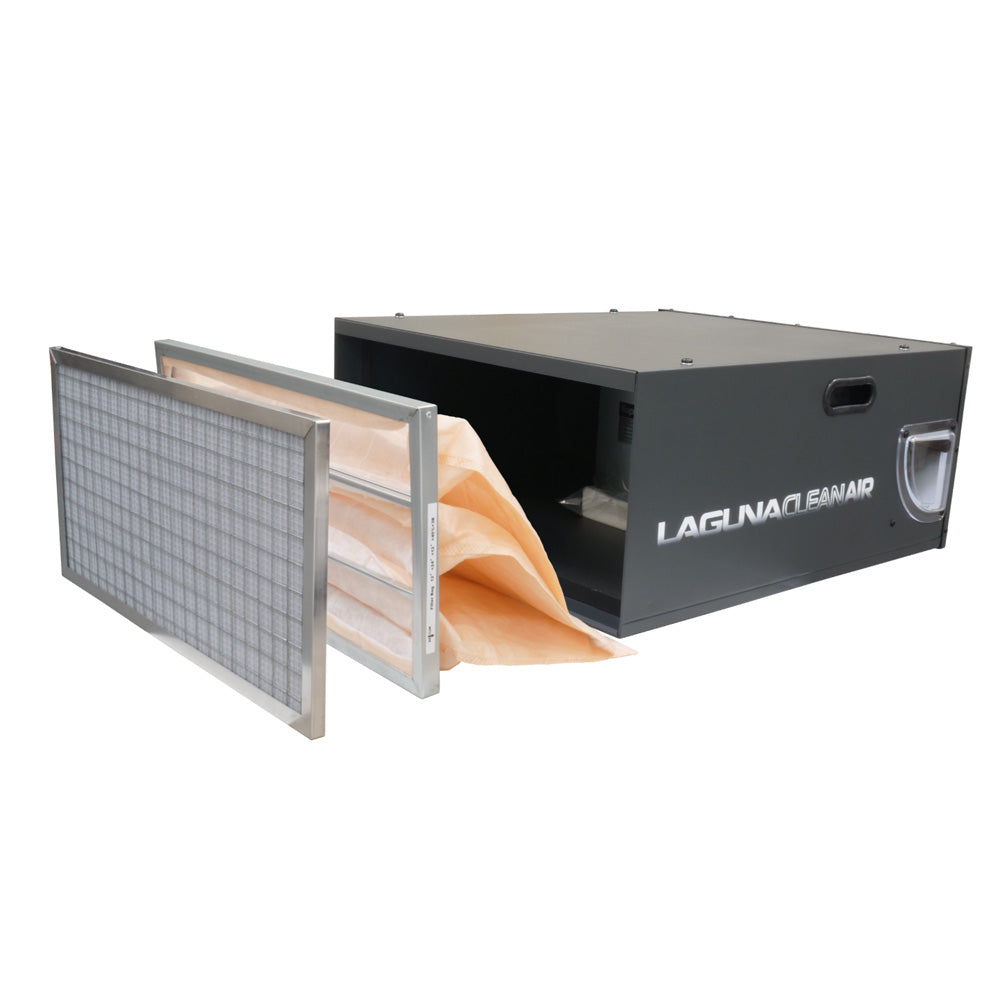

  • Electrostatic outer filter: Acting as the first line of defense, the electrostatic outer filter catches larger particles and is also conveniently washable
Specs

Motor: 1-1/5hp, 120V, 1 Phase, 60 HZ
Max CFM: 540, 730, 1200 CFM
Filter Cycle: 20′ x 20′ x 8′ Room – 10, 14, 22 times/hour
Outer Filter: 5 Micron Washable Electrospindle Filter
Outer Filter: 12″ x 24″ x 1″
Inner Filter: 1 Micron
Timer Settings: 1/2 Hour to 4 Hours
Motor Amp: 4.9
Length: 28″
Width: 24″
Height: 12″
Weight (Net): 60 lbs.
Weight (Shipping): 73 lbs.
Warranty: 2 Years
Decibels (High Speed): 59.6 dB
Decibels (Medium Speed): 56.1 dB
Decibels (Low Speed): 55.6 dB
Shipping Weight: 73lbs
Shipping Dimensions (L x W x H): 27″ x 15″ x 65″

Includes
  • 1-1/5hp, 60 Hz, 120 V, 1 Phase motor
  • Remote
  • (4) Ceiling mount o-screws
  • (4) Rubber feet
  • (4) Ceiling mount nuts
  • (1) inner filter
  • (2) Batteries for remote

SKU: 810650
