$ 3,199

Have questions? Give us a call at 260-637-0054.

Attention: Please call for availability: 260-637-0054. This item may be on backorder. You may still place an order to reserve your place in line. As we receive inventory, orders will be fulfilled in the order they are received.

The updated model now includes: Sanding Head Assembly with Flatter Installed, Conveyor Table Assembly, An Aluminum Drum w/ Two Bearing Sets, A Coupling and one 80 Girt Abrasive Belt, and Open Stand Assembly.

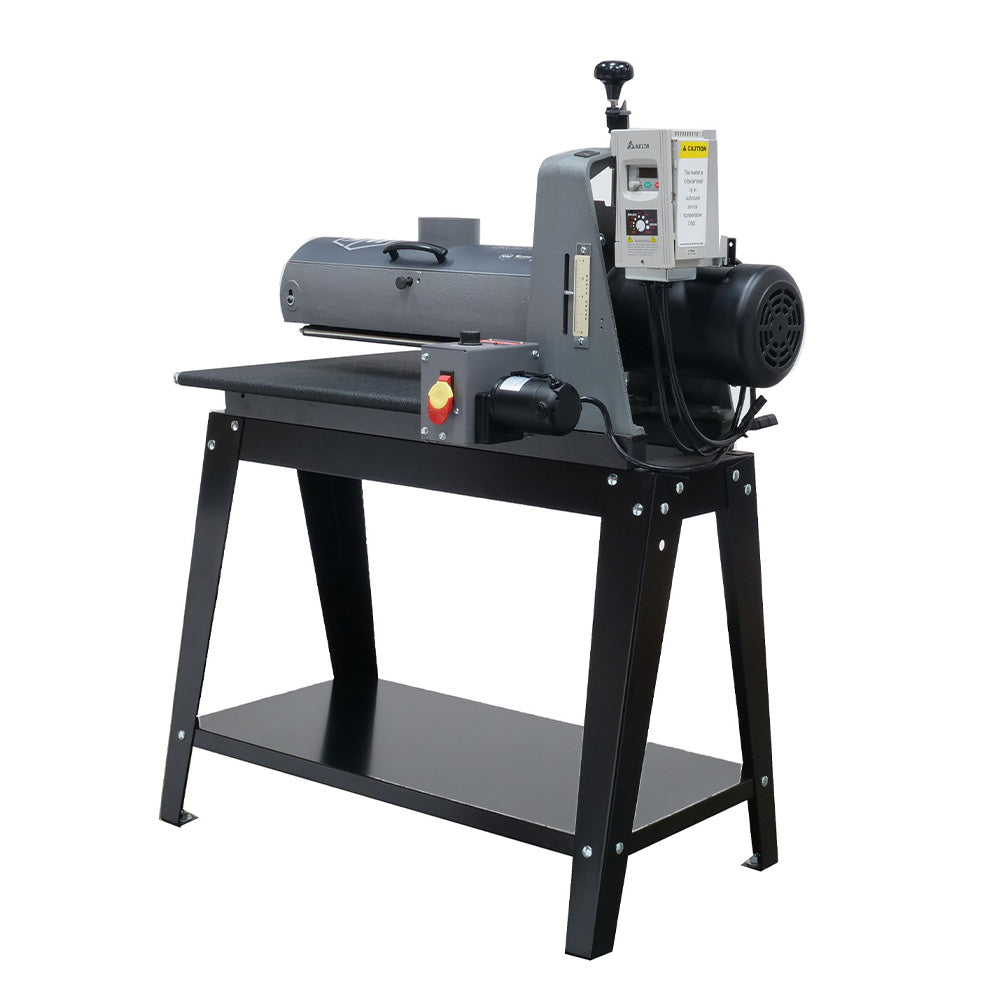

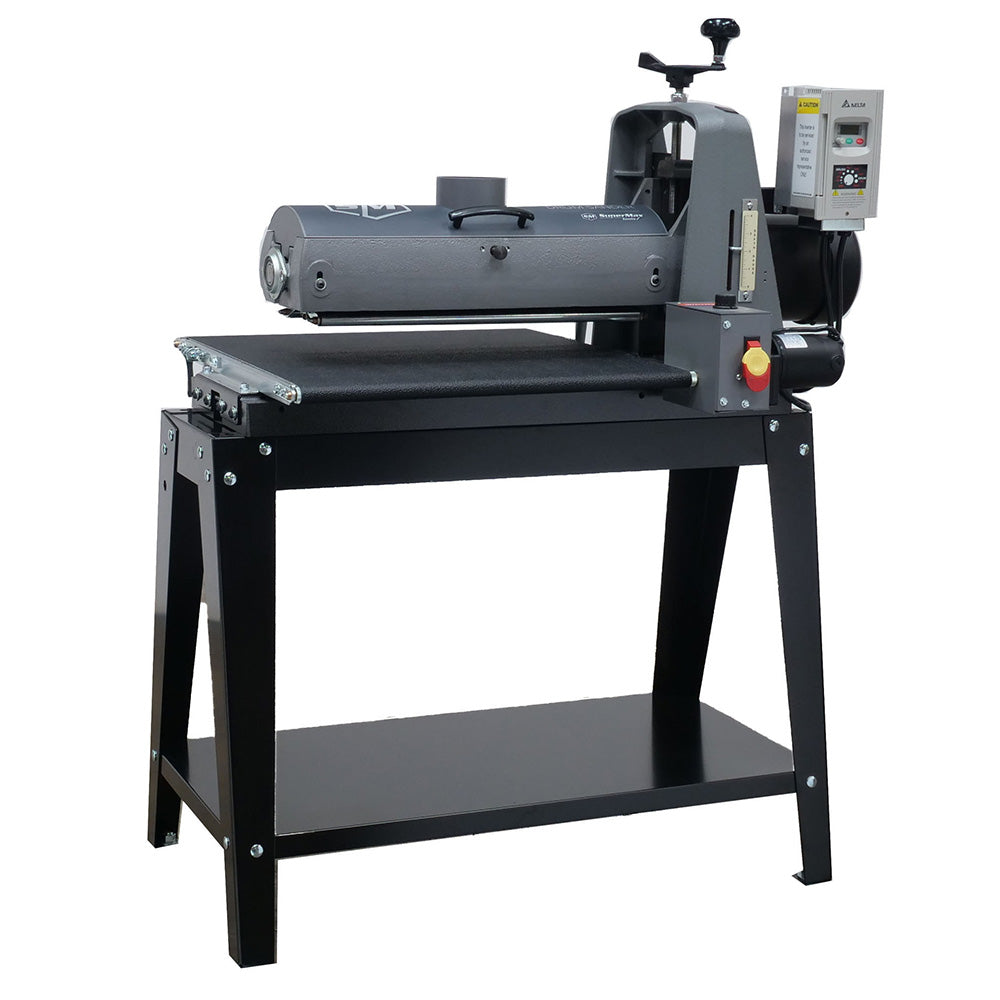

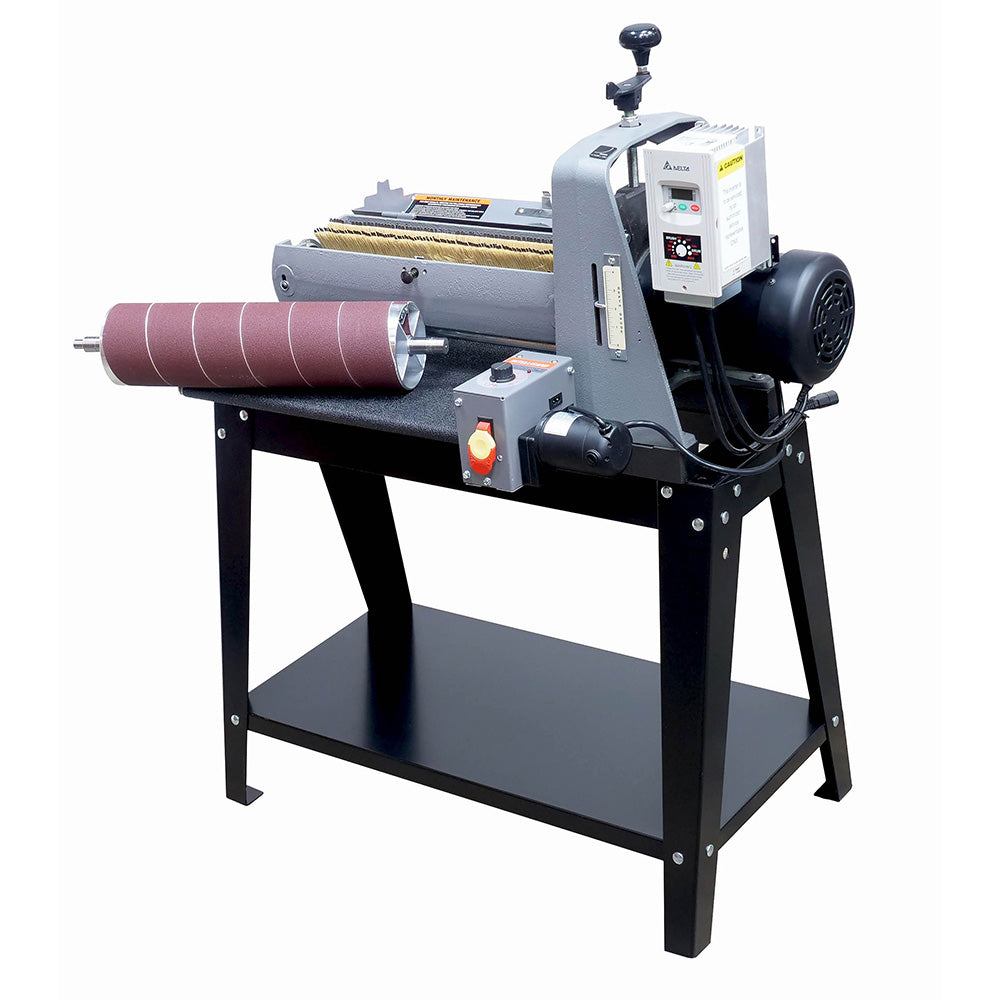

Simplify sanding with a 19-38 Combination Brush/Drum Sander! Laguna/SuperMax’s exclusive technology allows you to drum sand and profile sand on the same machine. Interchangeable drum and brush heads allow for unlimited applications.

The 19-38 Combo Sander has an indexed alignment setting for narrow and wide stock. When sanding stock wider than 19", the index lever will properly adjust the conveyor for flawless wide sanding. The extra-wide 22" conveyor table also helps with large stock.

Features
  • Simple alignment feature: Just one nut will adjust the conveyor to parallel the sanding head, making aligning the conveyor to the sanding head fast and easy
  • Indexed alignment setting: Has an indexed alignment setting for narrow and wide stock. When sanding stock wider than 19″, the index lever will properly adjust the conveyor for flawless wide sanding

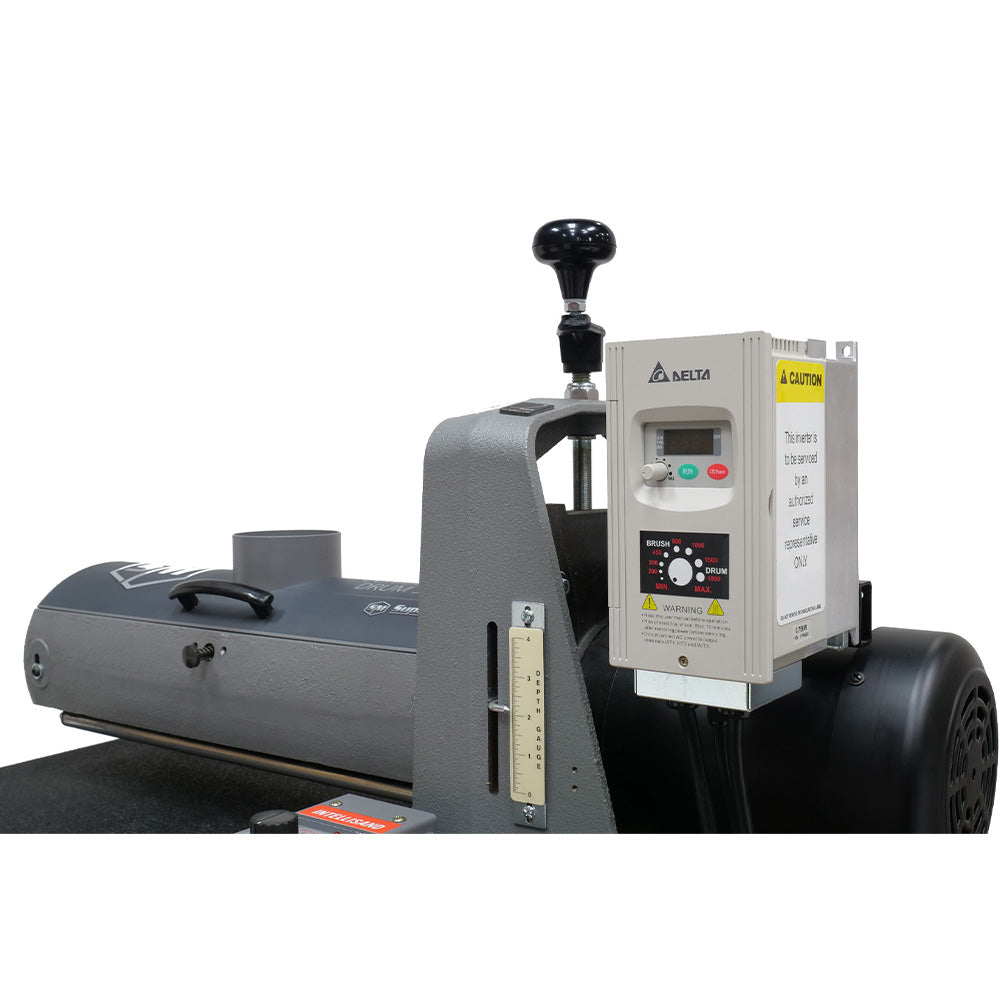

  • Easy height adjustments: A thrust bearing below the handle and a nut positioned above prevents the drum from moving out of the set position while sanding. No backlash or slop in the height adjustment mechanism allowing easier and smoother height adjustments
  • Extra-wide conveyor: Helps to properly support stock over 19″ wide. The conveyor table is 22″ wide to add support to the work piece
  • Drum stays aligned: The drum carriage is bolted to the base, preventing any movement or alignment issues
  • Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010″ across the width of the sander
  • Abrasive conveyor belt: Offers the best grip for raw wood, allowing you to accommodate stock that is much shorter or thinner
  • Patented Abrasive Attachment System: Effectively tensions the abrasive wraps, preventing loose abrasive and overlap
  • Self-cooling drum: Prevents overheating and extends abrasive life
  • Tension rollers: Adjustable in height and hold down pressure, eliminating snipe
  • Excellent dust extraction: Dust cover is formed to shape of drum Metal, not plastic, is formed to maximize air flow and dust extraction
Specs

Sanding max. width: 38" (two passes)
Sanding max. thickness: 4" (varies with application)
Sanding min. length: 5-1/2"
Sanding min. thickness: 1/32"
Dimensions (H x W x D): 24″ x 40″ x 24″
Drum speed: 1,740 RPM
Dust hood: 1 – 4″ Vacuum port, min. 600 CFM Recommended
Conveyor motor: 43in.-lb torque, direct drive D.C. motor, ranged variable 0-10 FPM
Drive motor: 1-3/4 TEFC
Power requirements: 110V 15 Amp
Open stand footprint: 21" x 36"
Net weight: 264 lbs.
Shipping weight: 371 lbs.
Shipping dimensions (L x W x H): 43″ x 16″ x 24″

SKU: 219383
